SSDTH
SSDTH WOOD CLADDING and DECKING Screw

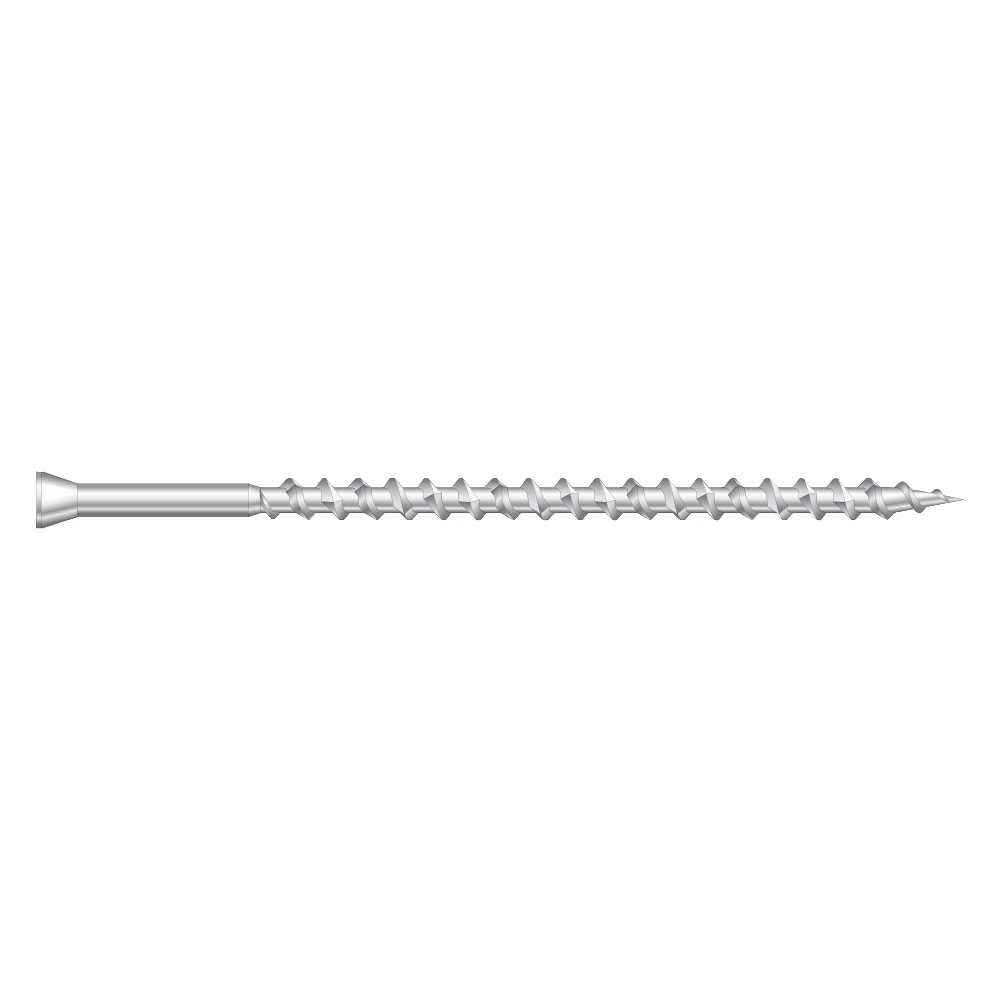

SSDTH is a stainless steel screw with a trim head and sharp point tip suitable for wood cladding & decking installation.
Service class 3
Stainless steel A2
Outdoor
EPD
Product Details
Images
Features
Application
Technical Data
Dimensions and caracteristics values
Dimensions
| Reference | Fasteners Dimensions | ||||||
|---|---|---|---|---|---|---|---|
| Fastener dimensions[mm] | QD information | Other | |||||
| dₕ[mm] | d[mm] | l[mm] | Qty per Strip | Quik Drive Attachment | Recommended RPM[tr/min] | Qty per Box | |
| SSDTH51E | 6.3 | 4.2 | 51 | 30.0 | QDPRO51E / QD76KE / QDPRO64E / QDPRO76SKE | 2500.0 | 1000.0 |
| SSDTH64E | 6.3 | 4.2 | 64 | 30.0 | QDPRO64E / QD76KE / QDPRO76SKE | 2500.0 | 1000.0 |
