SPF-S
SPF-S

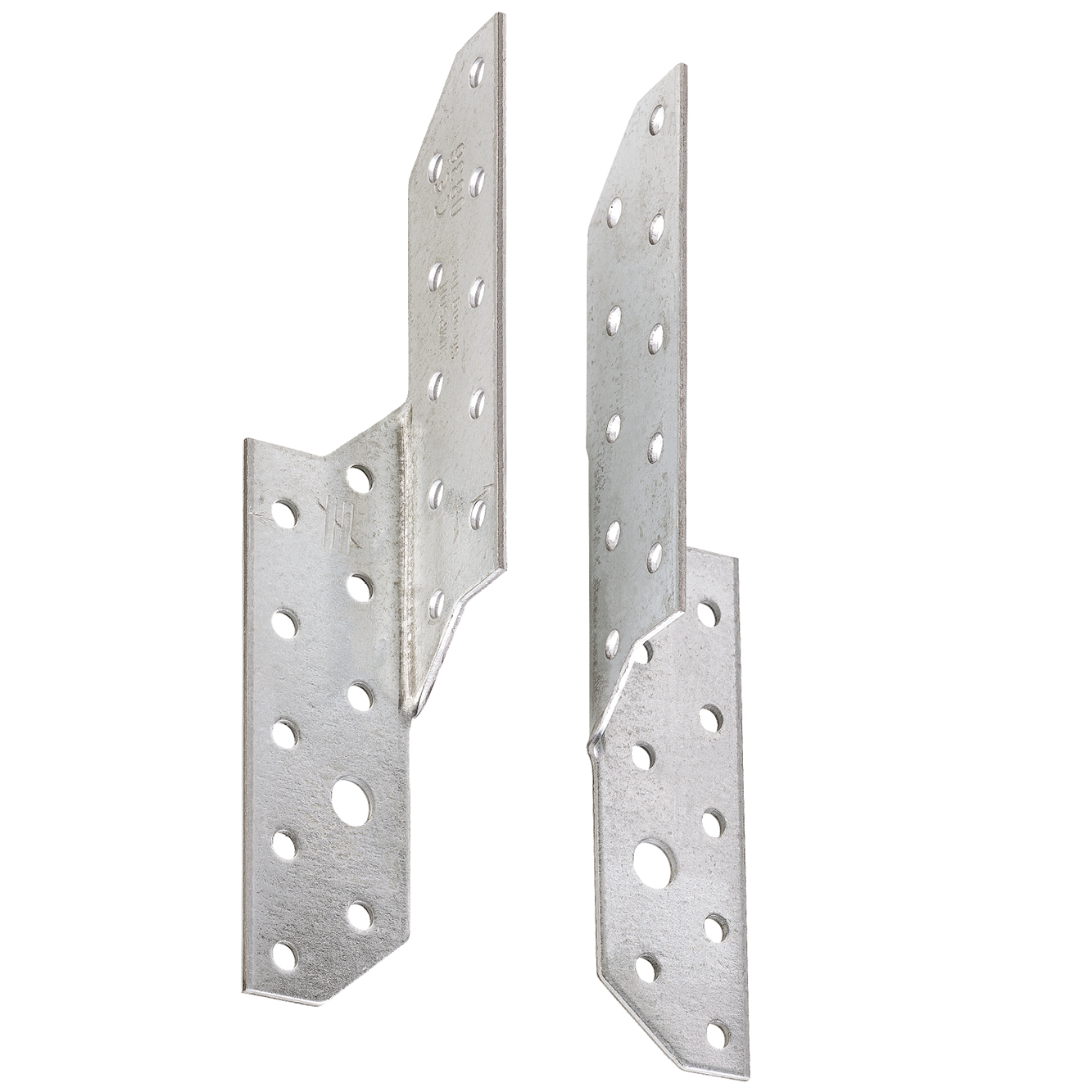

STAINLESS version of SPF
CE Marking
ETA
EPD
Service class 3
Stainless steel A4
Product Details
Images
Features
Application
Technical Data
Dimensions
Dimensions
| Reference | Connector Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
| Other | Dimensions[mm] | Holes[mm] | ||||||
| DB. nr. | NOB nr. | Qty per Box | A[mm] | B[mm] | t[mm] | Diameter[mm] | Qty | |
| SPF170LS | 2914620 | 21221288 | - | 170 | 32.5 | 2 | 5 | 10 + 10 |
| SPF170RS | 8036022 | 21221296 | - | 170 | 32.5 | 2 | 5 | 10 + 10 |
| SPF210LS-B | 2914638 | 21221304 | 100 | 210 | 32.5 | 2 | 5 | 14 + 14 |
| SPF210RS-B | 8036030 | 21221312 | 100 | 210 | 32.5 | 2 | 5 | 14 + 14 |
Note:
The “SPF...R” type is simply a single, right-hand rafter-purlin anchor.
The “SPF...L” type is simply a single, left-hand rafter-purlin anchor.
Load capacity
| Reference | Ties capacity | |||||
|---|---|---|---|---|---|---|
| Characteristic load-bearing capacity, two beam anchor price. collection[kN] | ||||||
| Quantity CNA4.0x40 / per leg | ||||||
| 4 (min. HT* = 88) | 5 (min. HT* = 98) | 7 (min. HT* = 118) | ||||
| R₁,ₖ | R2/3,k | R₁,ₖ | R2/3,k | R₁,ₖ | R2/3,k | |
| SPF170LS | 8.5 | 2.7 | min (11.5 ; 12/kmod) | 3.5 | - | - |
| SPF170RS | 8.5 | 2.7 | min (11.5 ; 12/kmod) | 3.5 | - | - |
| SPF210LS-B | 8.5 | 2.7 | min (11.5 ; 12/kmod) | 3.5 | min (19.3 ; 14/kmod) | 4.7 |
| SPF210RS-B | 8.5 | 2.7 | min (11.5 ; 12/kmod) | 3.5 | min (19.3 ; 14/kmod) | 4.7 |
*) HT = minimum support height
When using 4 rafter-purlin anchors (SPF), the load values can be doubled.

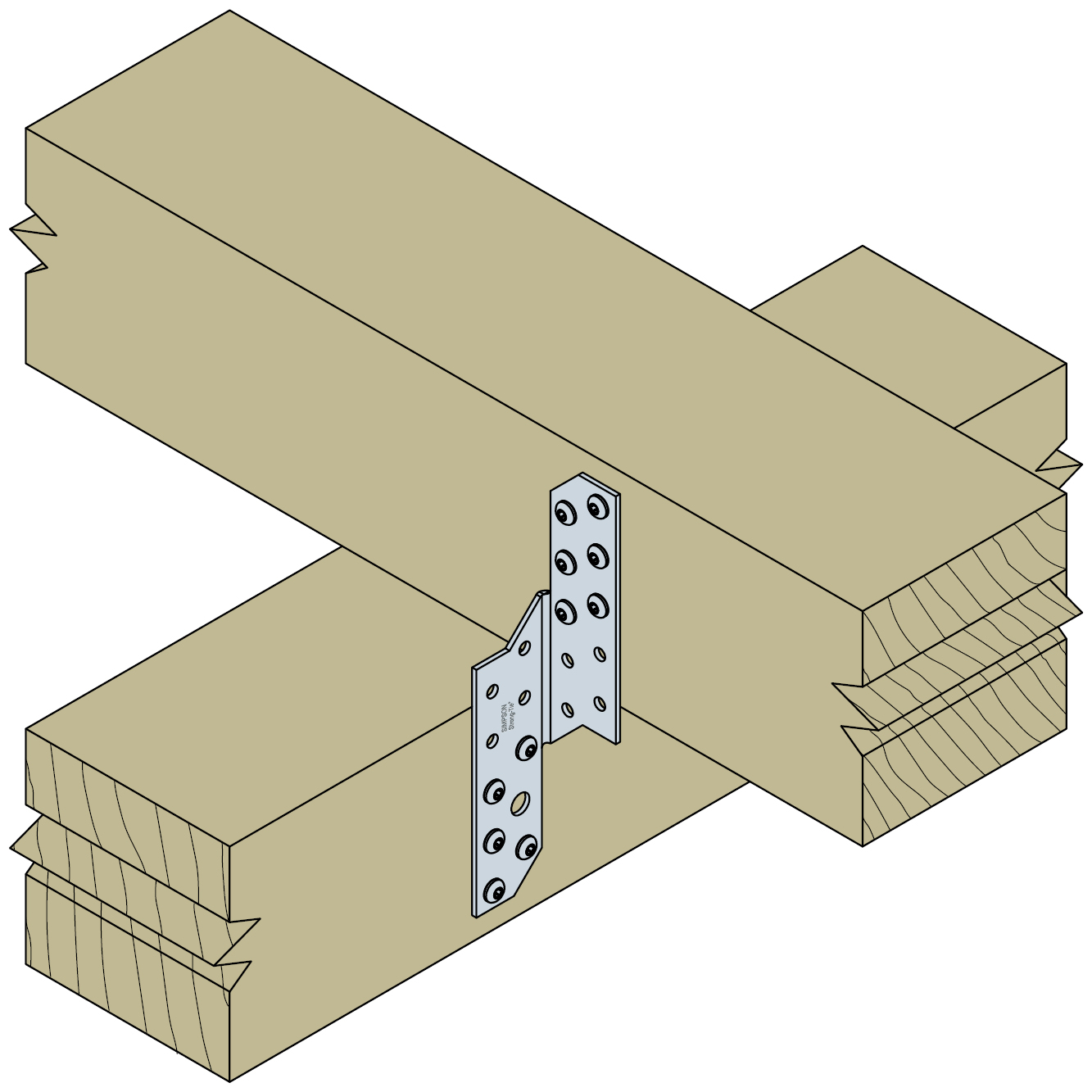

Installation
Installation
CAD and BIM Library
2D
SPF210LS-B
-
-
-
-
3D
SPF210LS-B
-
-
-
-
-
3D Simplified
SPF210LS-B
-
-
-
-
-
