ET

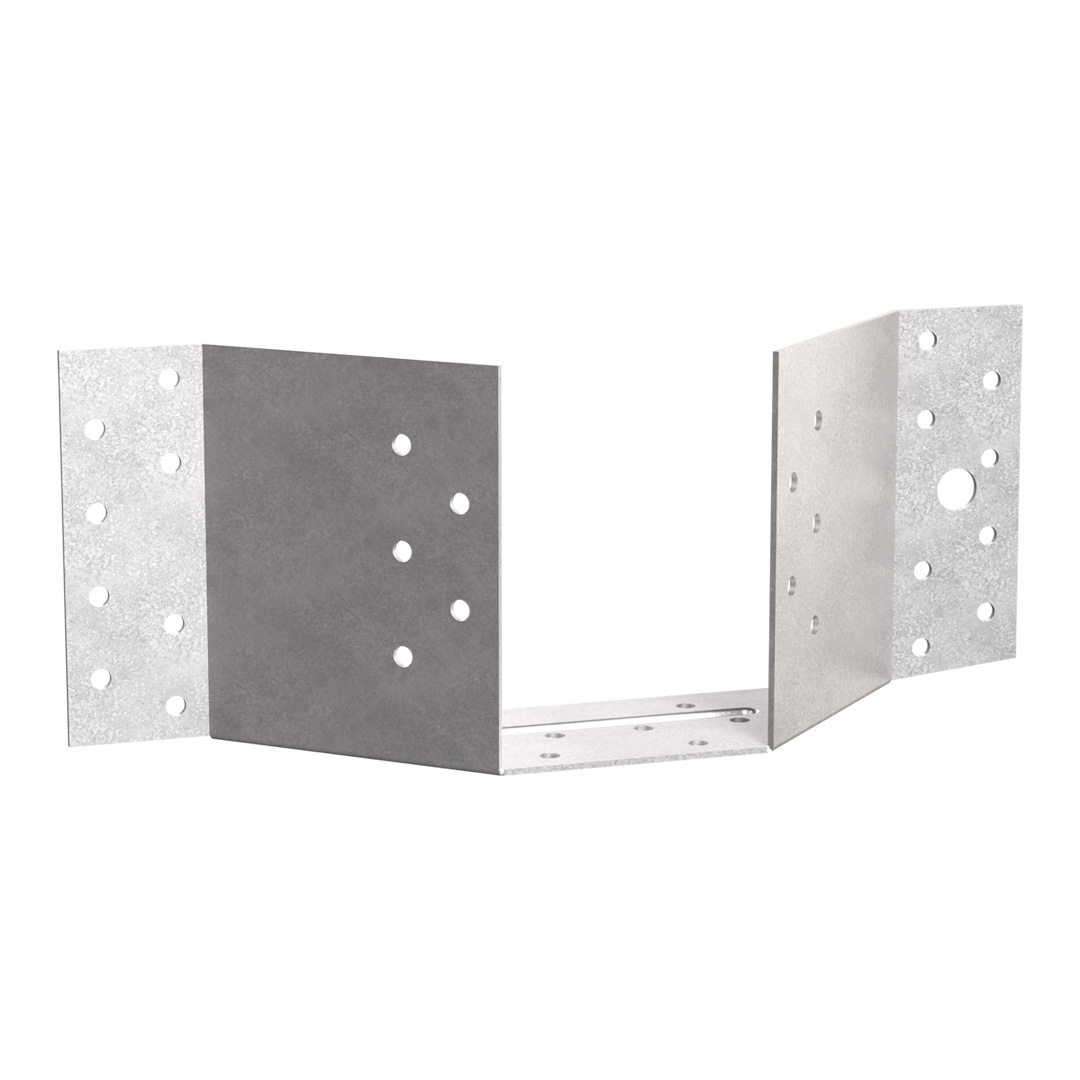

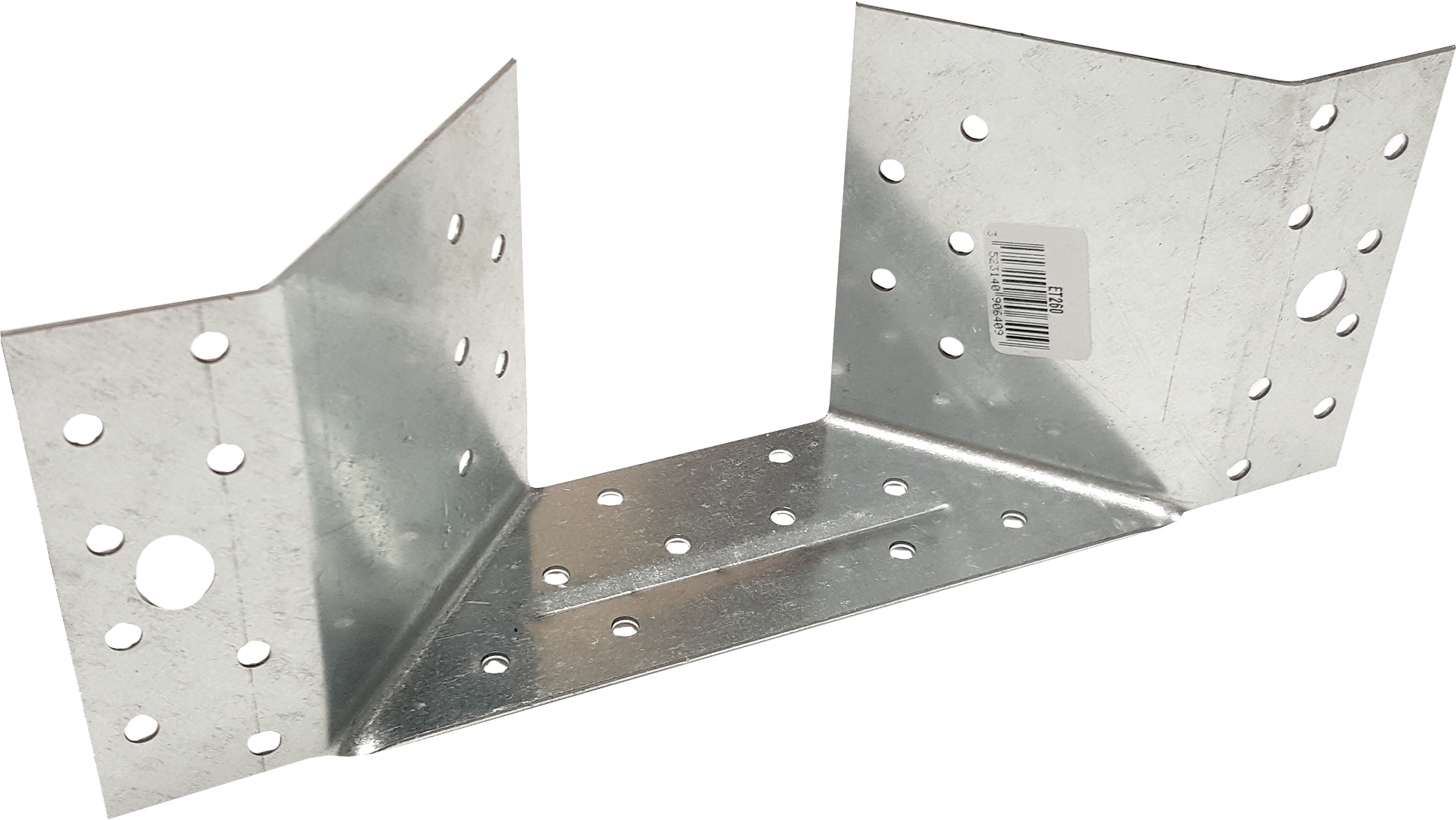

Skewed 45° Hanger (right and left)

The ET is used for supporting skewed timber joists from timber members. This range is tested and standardised with a 45° skew angle left or right.

CE Marking
ETA
Service class 2
Electrogalvanized steel 20 µm

Product Details

Images

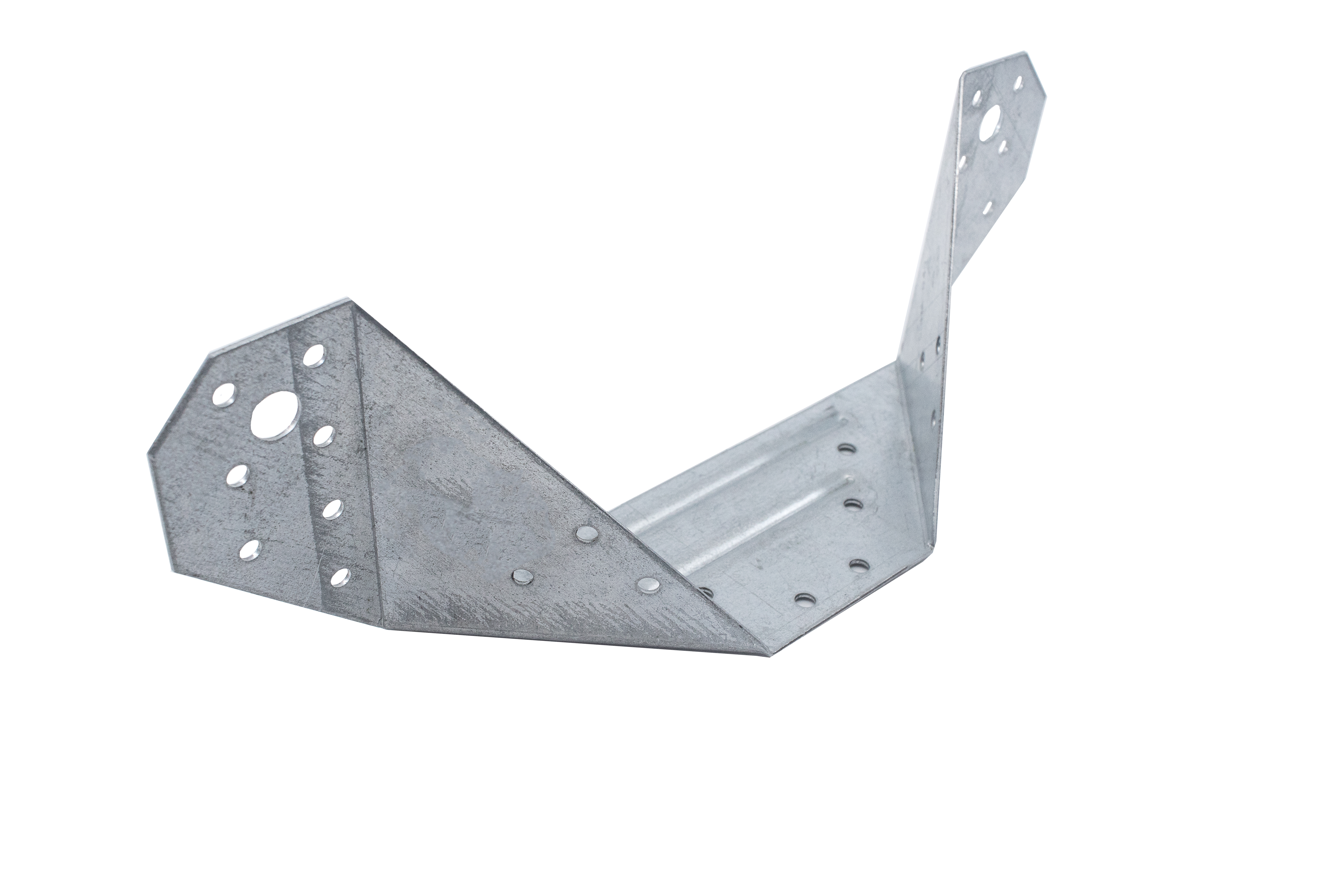

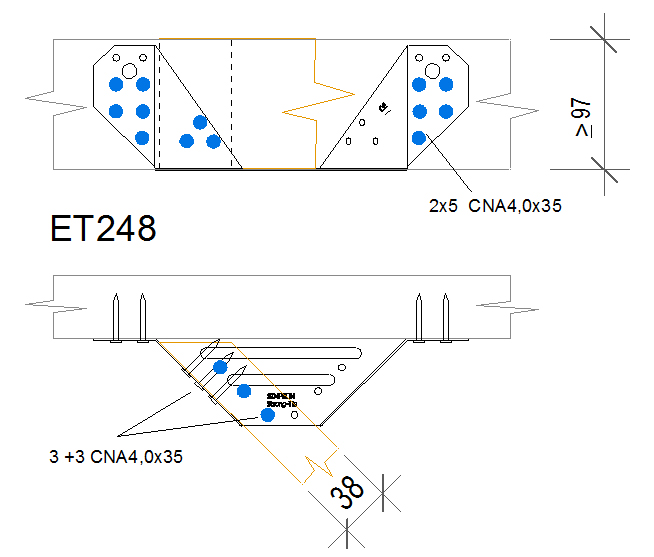

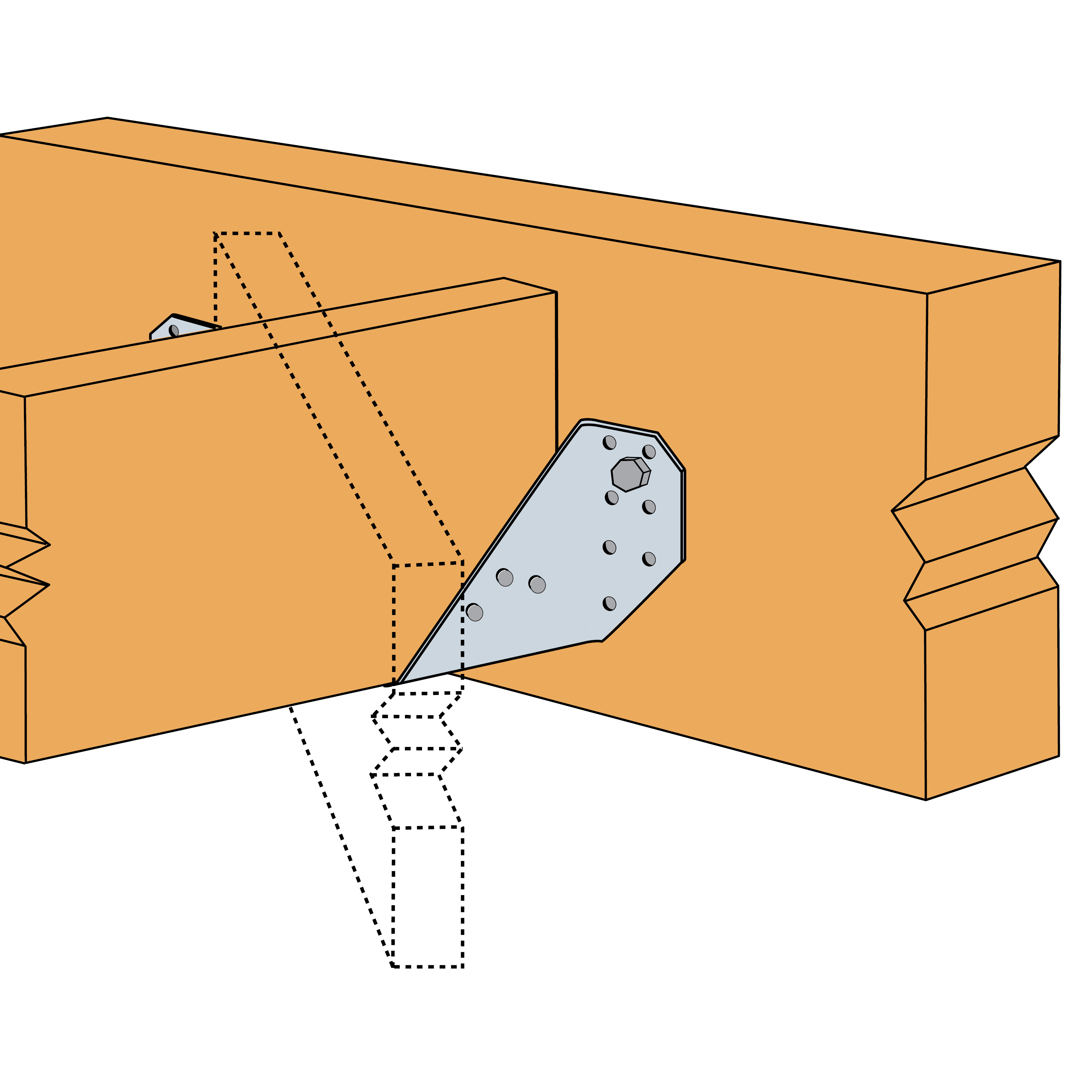

ET248

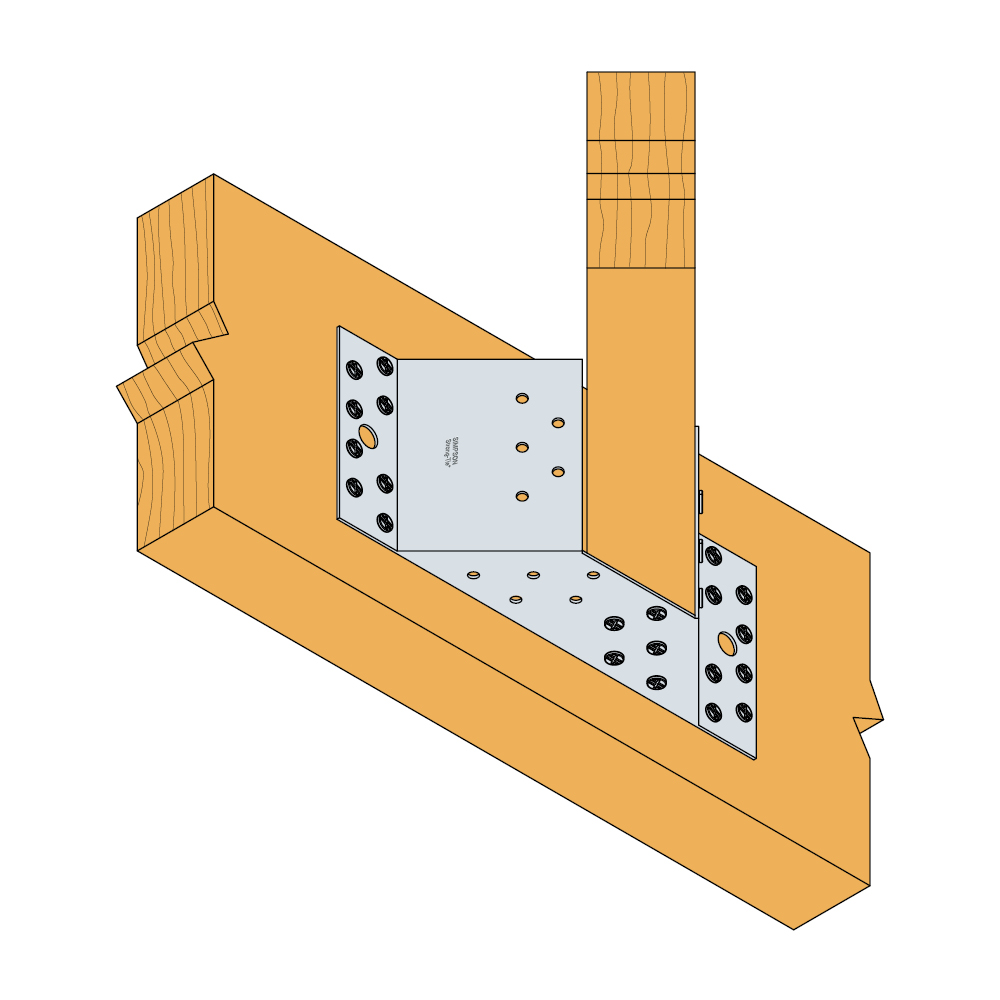

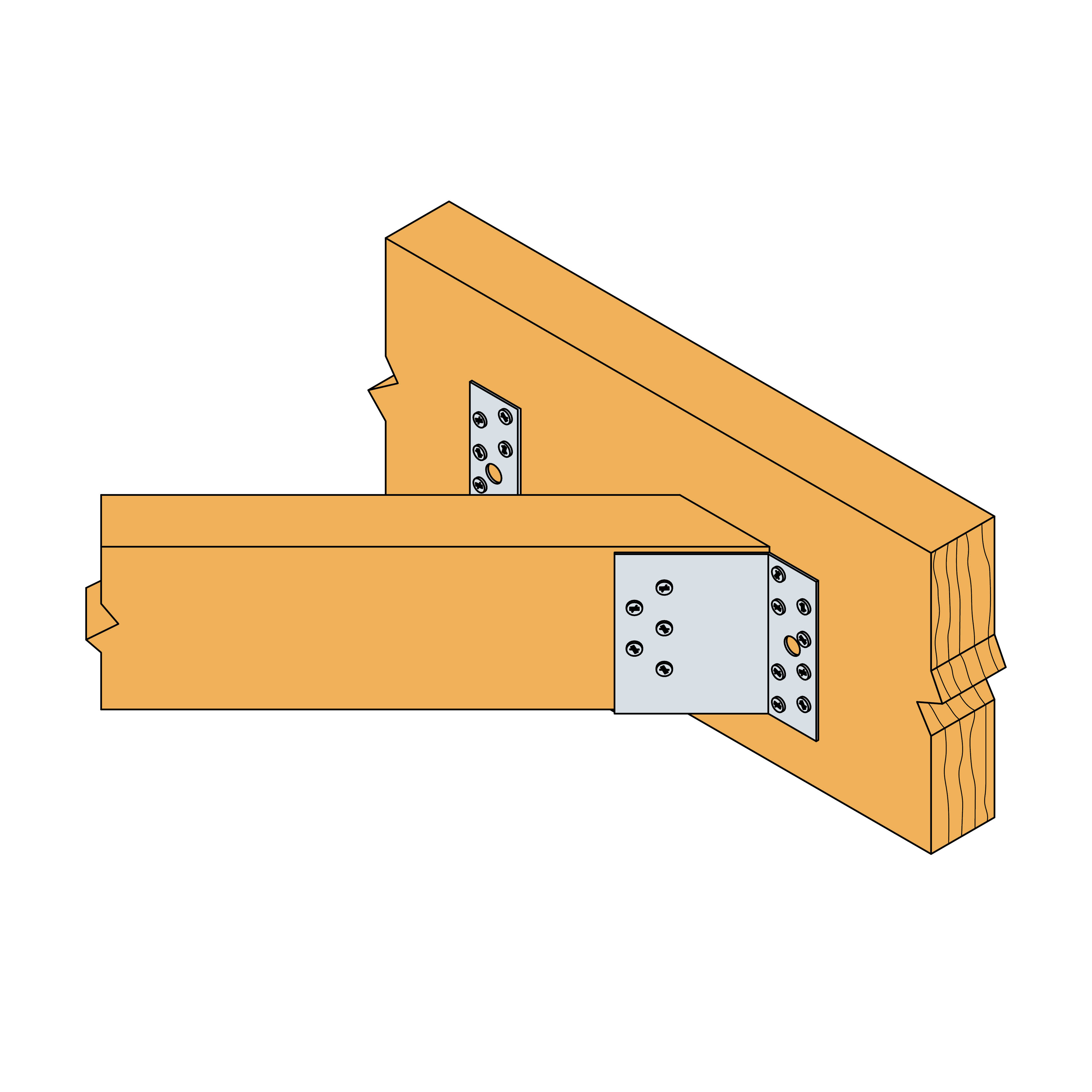

ET260 - Timber Installation

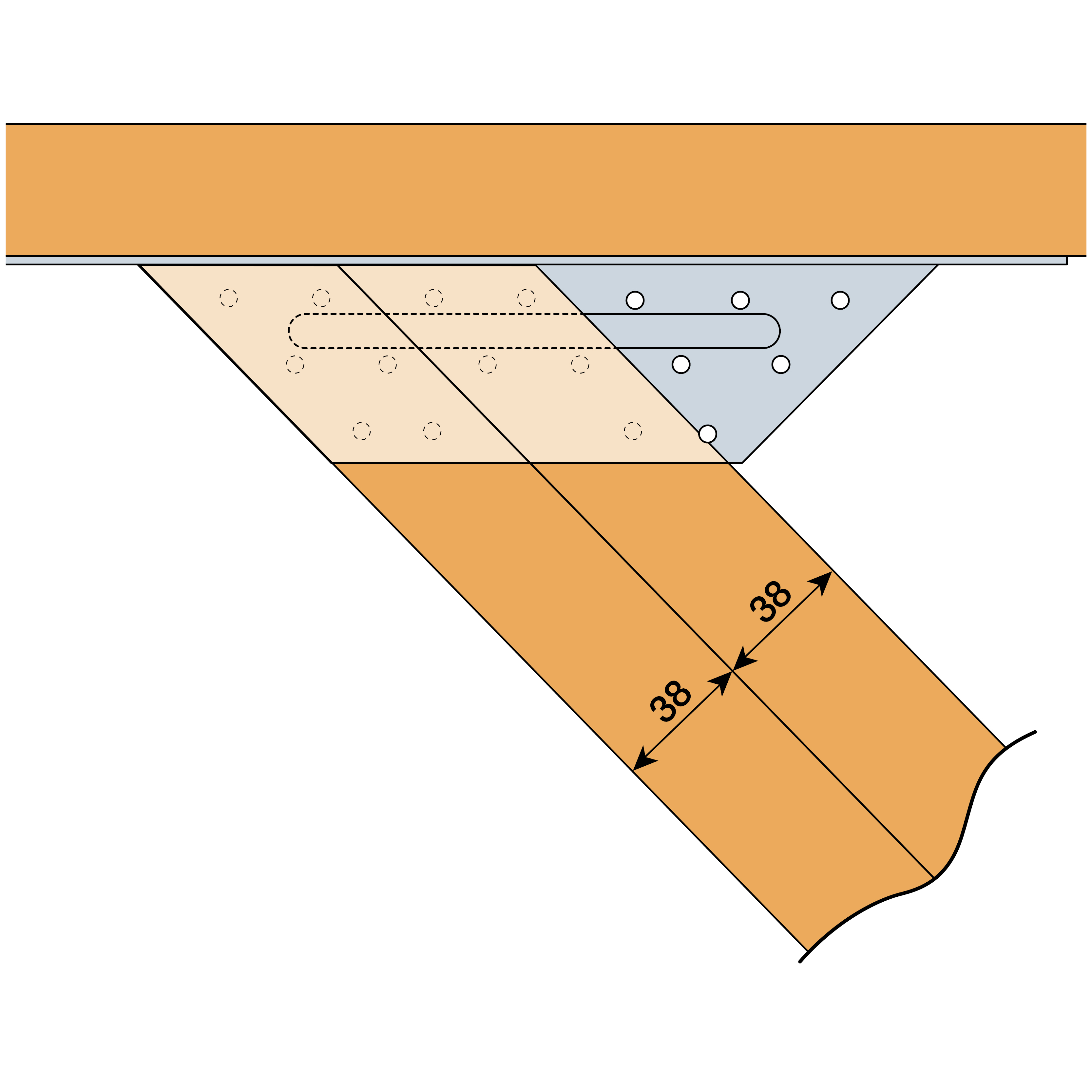

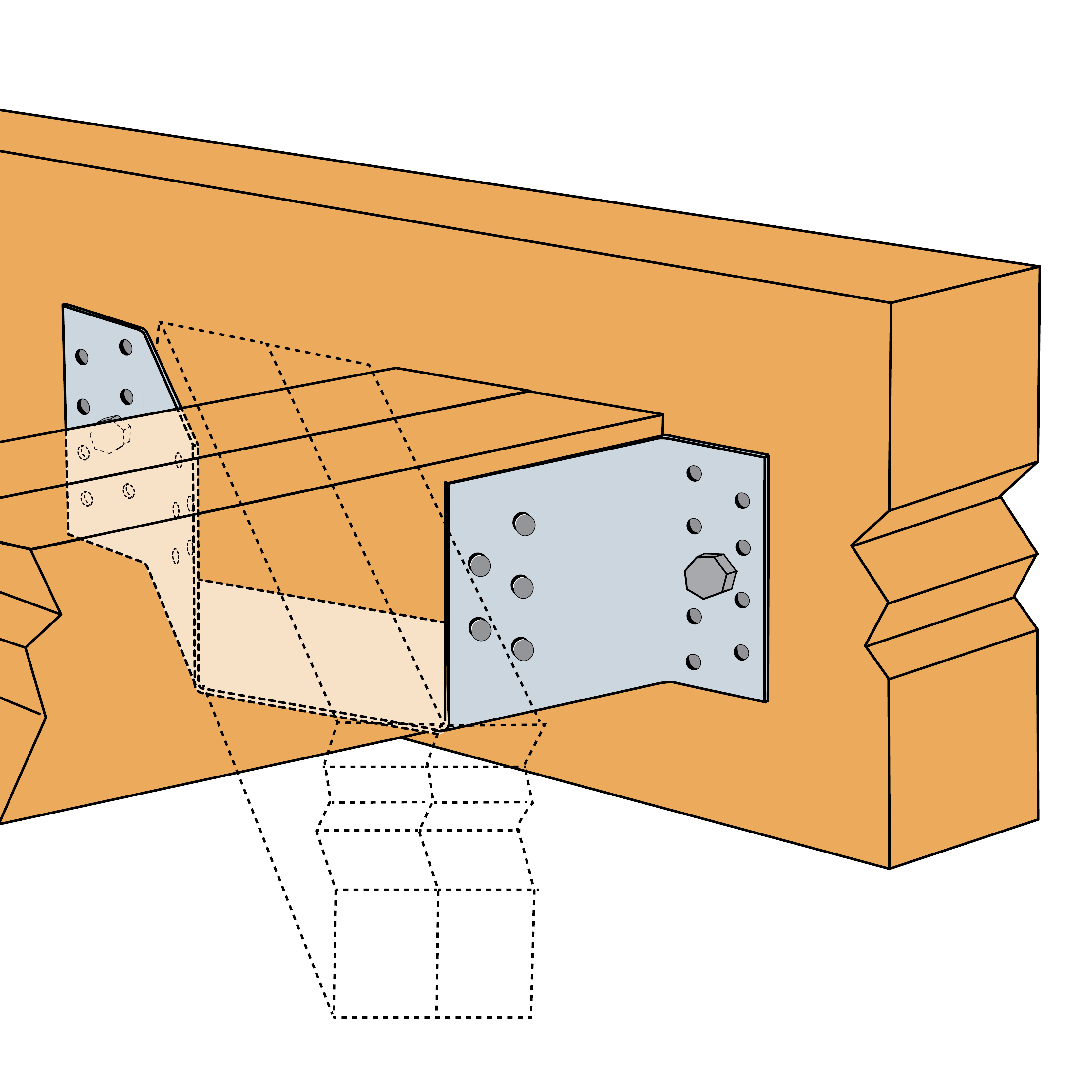

ET301 - Timber Installation

Features

Material

  • Pre-galvanised mild steel

Benefits

  • Install carried members at 45° skew left or right
  • Fix to solid sawn timber

Application

Suitable On

  • Supporting member: solid wood, engineered timber (e.g. LVL, truss, glulam), concrete, steel
  • Supported member: solid wood

Applications

c


Technical Data

Dimensions

Product Dimensions

References NOB nr. Tun / DB nr. Joist Size [mm] Product Dimensions [mm] Header holes Joist holes Box Quantity
Width Height A B C D F t Ø5 Ø11 Ø5
Min Max.
ET248--3897145599265189461.5142630
ET2605063993718622894797145679555177351.51621030
ET301--2x38971451089555218351.51621630

Wood/wood fastening- Characteristic values in kn

References Characteristic capacities - Timber to timber - Full nailing
Number of Fasteners Product characteristic capacities - Timber C24 [kN] Safe Working Loads [kN]
Header Joist R1.k R2.k R​1,SWL,LongTerm
Qty Qty CNA4,0x35 CNA4,0x35 C24 Header
CNA4,0x35
ET2481468.723.6
ET260161010.55.44.4
ET301161611.26.34.7

Use a LS30 Skewable Angle for extra stability if the joist height exceeds 195mm

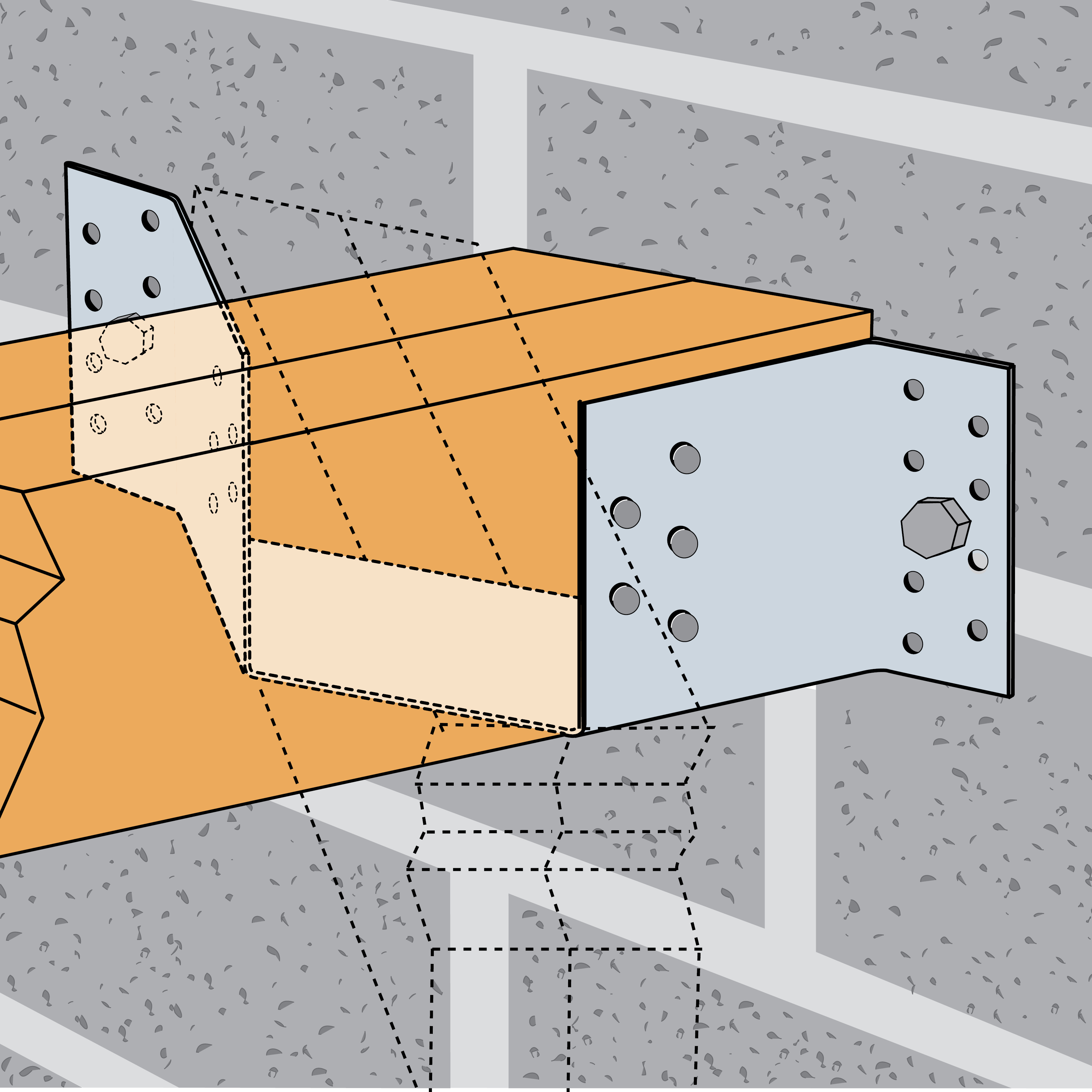

Product Capacities - Timber to Concrete

References Characteristic capacities - Timber to concrete or steel
Number of Fasteners Product characteristic capacities - Timber C24 [kN]
Header Joist R1.k R2,k
Qty Type Qty Type CNA4,0x35 CNA4,0x35
ET2482Ø106CNA**8.71.9
ET2602Ø1010CNA**10.5-
ET3012Ø1016CNA**11.2-

Use a LS30 Skewable Angle for extra stability if the joist height exceeds 195mm

* Refer to the Simpson Strong-Tie anchor product range for suitable anchors. Typical anchor solutions are BOAXII, SET-XP, WA, AT-HP, depending on the concrete type, spacing and edge distances. The values in this table are given for an installation in the middle of a concrete slab. In other installation condition (close to the edge,...), the designer must check the anchor separately (Our free software Anchor Designer is available for download on our website).

** Refer to Characteristic Capacity table columns for type of fasteners that can be used in Flange A. Capacities vary depending on fastener type used.

Product characteristic capacities - Timber beam to timber beam - with SSH screws

References Product capacities - Timber to timber - with SSH screws
Fasteners Product characteristic capacities - Timber C24 [kN]
Header Joist R1.k R2.k
Qty Type Qty Type
ET2482SSH10.0x406CNA4.0x354.81.5

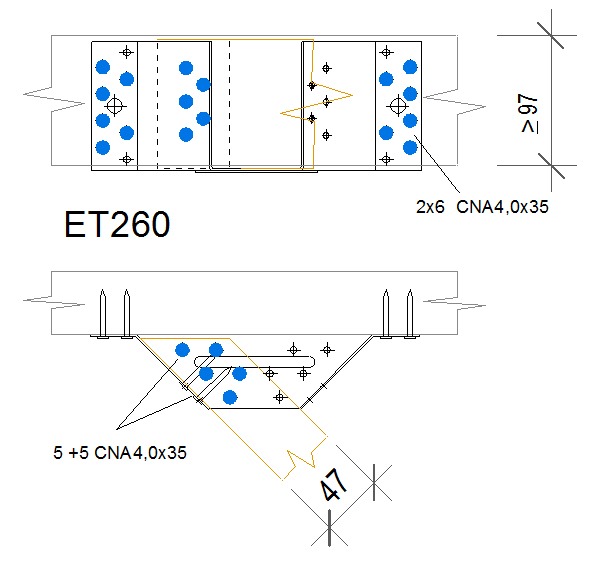

Installation

Installation

Fasteners on header

Wood substrate:

  • CNA annular ring-shank nails dia. 4.0 x 35 mm

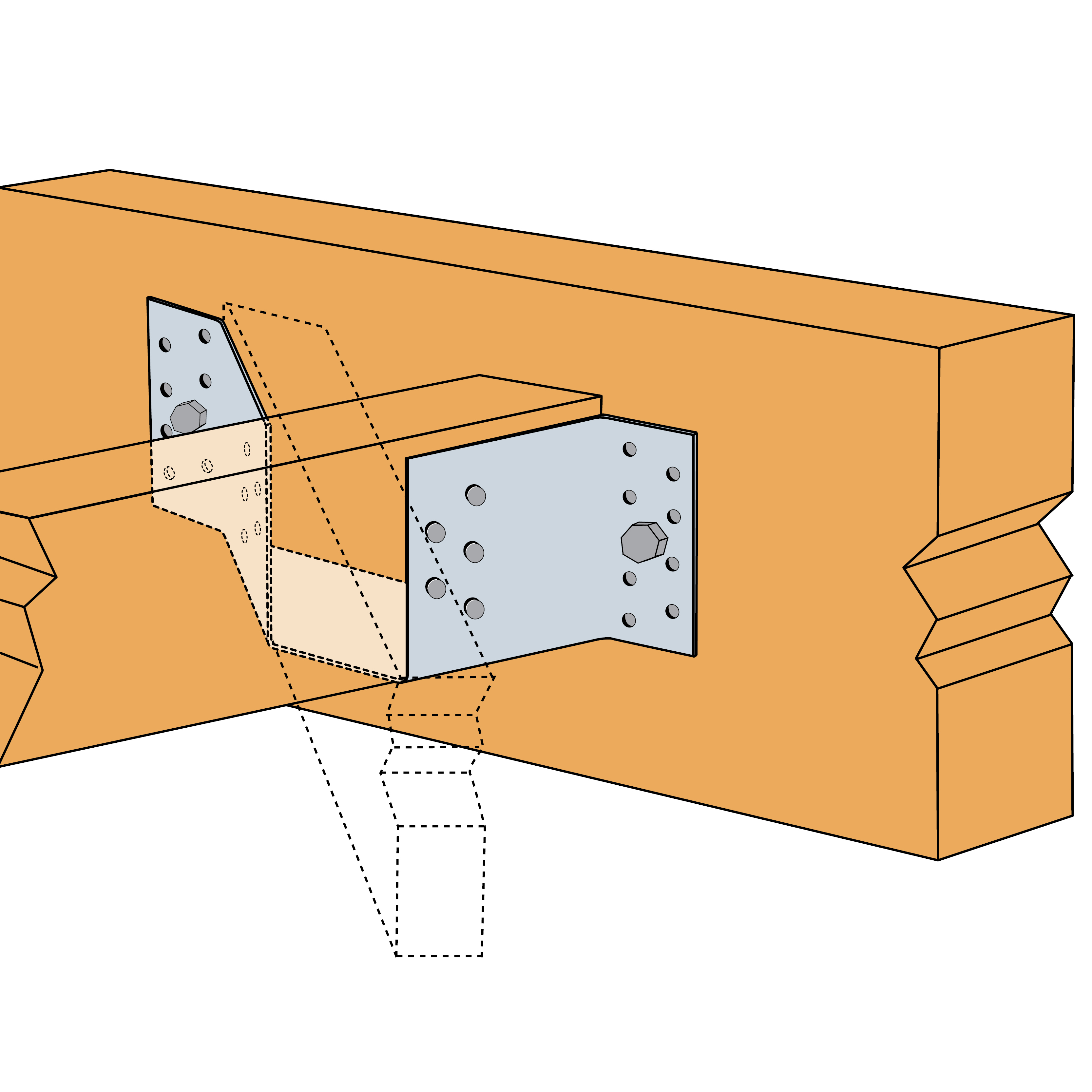

Steel substrate:

  • Bolts dia. 12 mm (bolt diameter cannot be more than 2 mm smaller than the drill hole diameter)

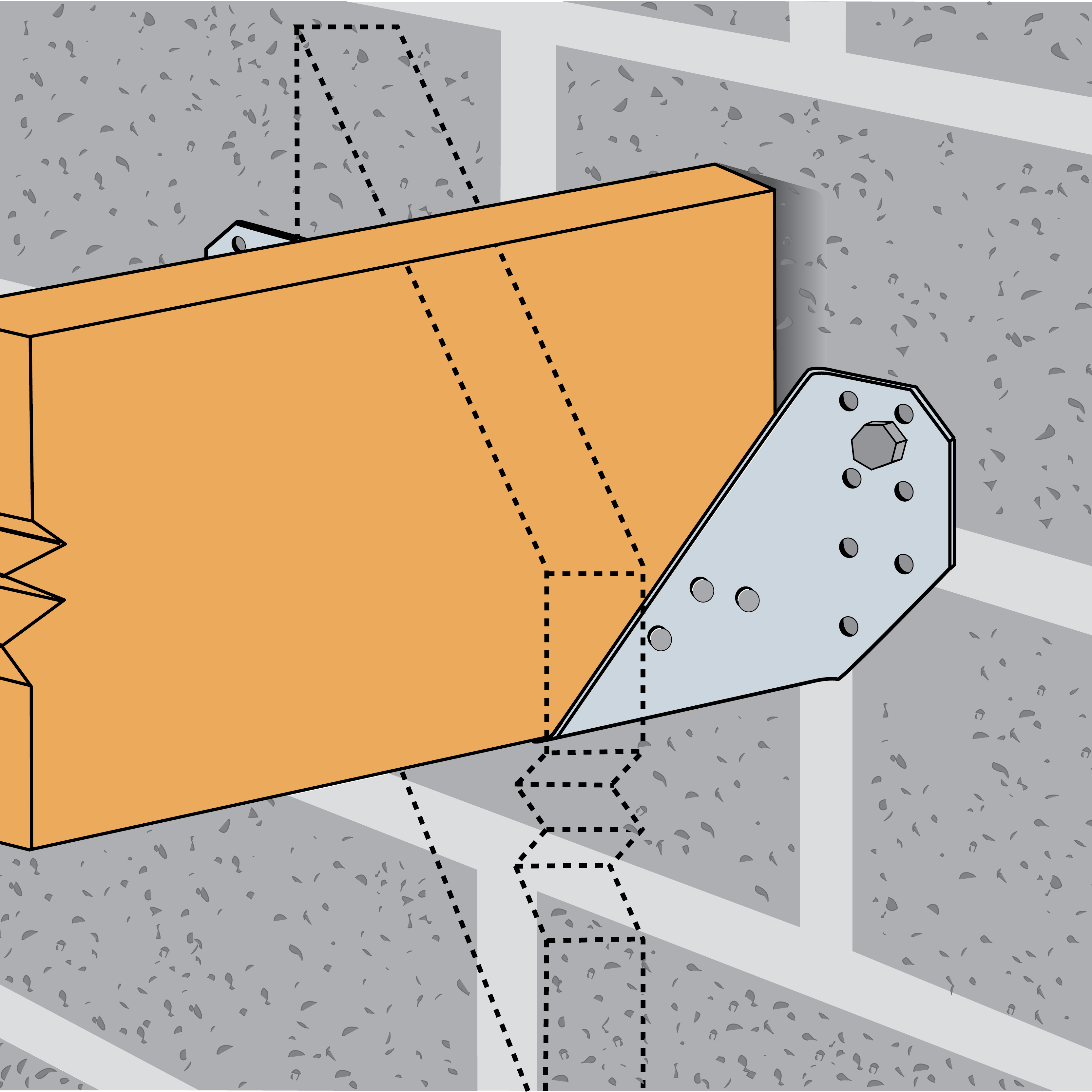

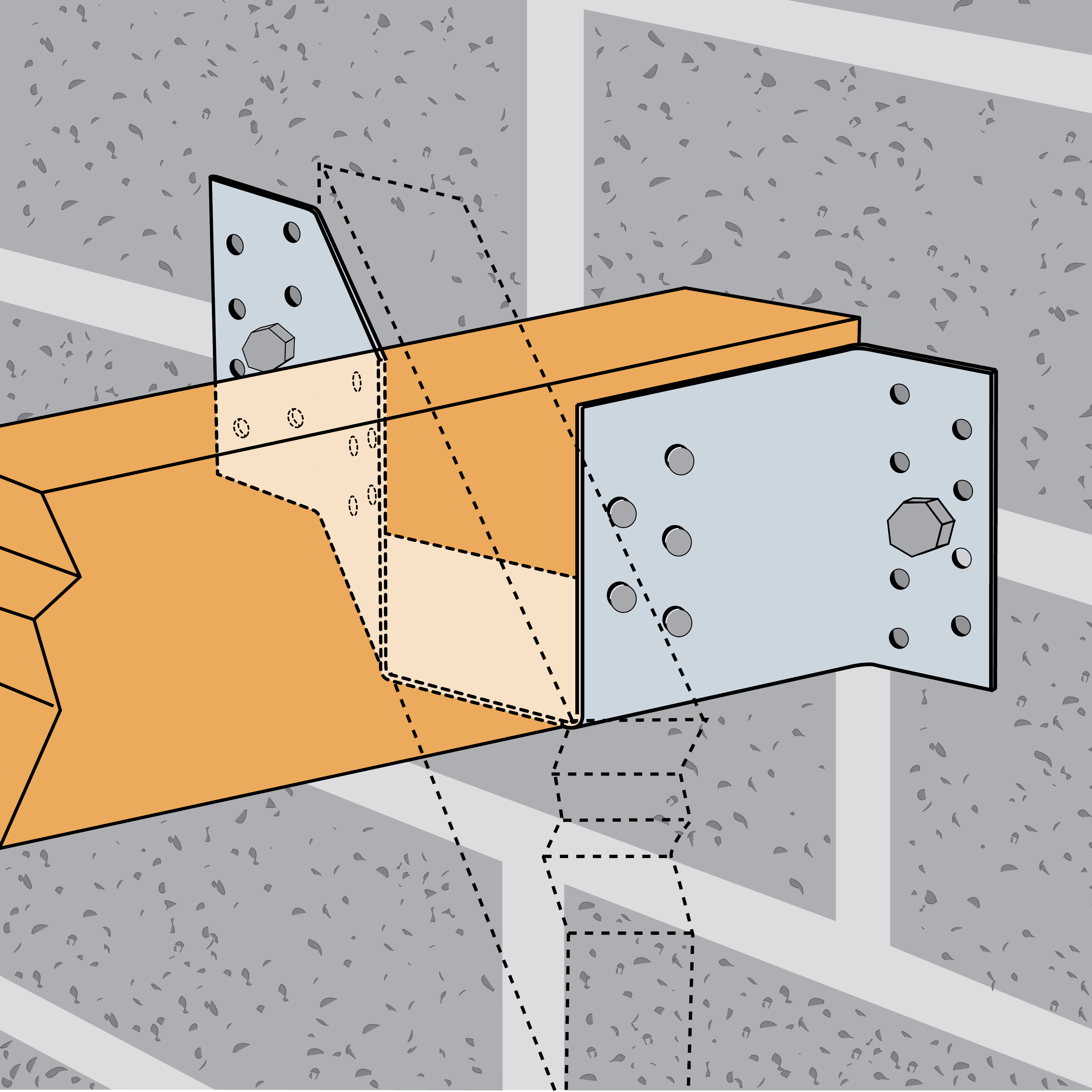

Concrete substrate:

  • Mechanical anchor: M10 x FM-753 - Length to be confirmed by Enginee
  • Chemical anchor: AT-HP resin + LMAS M10 Rod - Length to be confirmed by Engineer

Installation

Use all specified fasteners. See General Notes.
Verify that the header can take the required fasteners specified in the table.

Multi-ply joists must be connected together so that they act as one single element.
