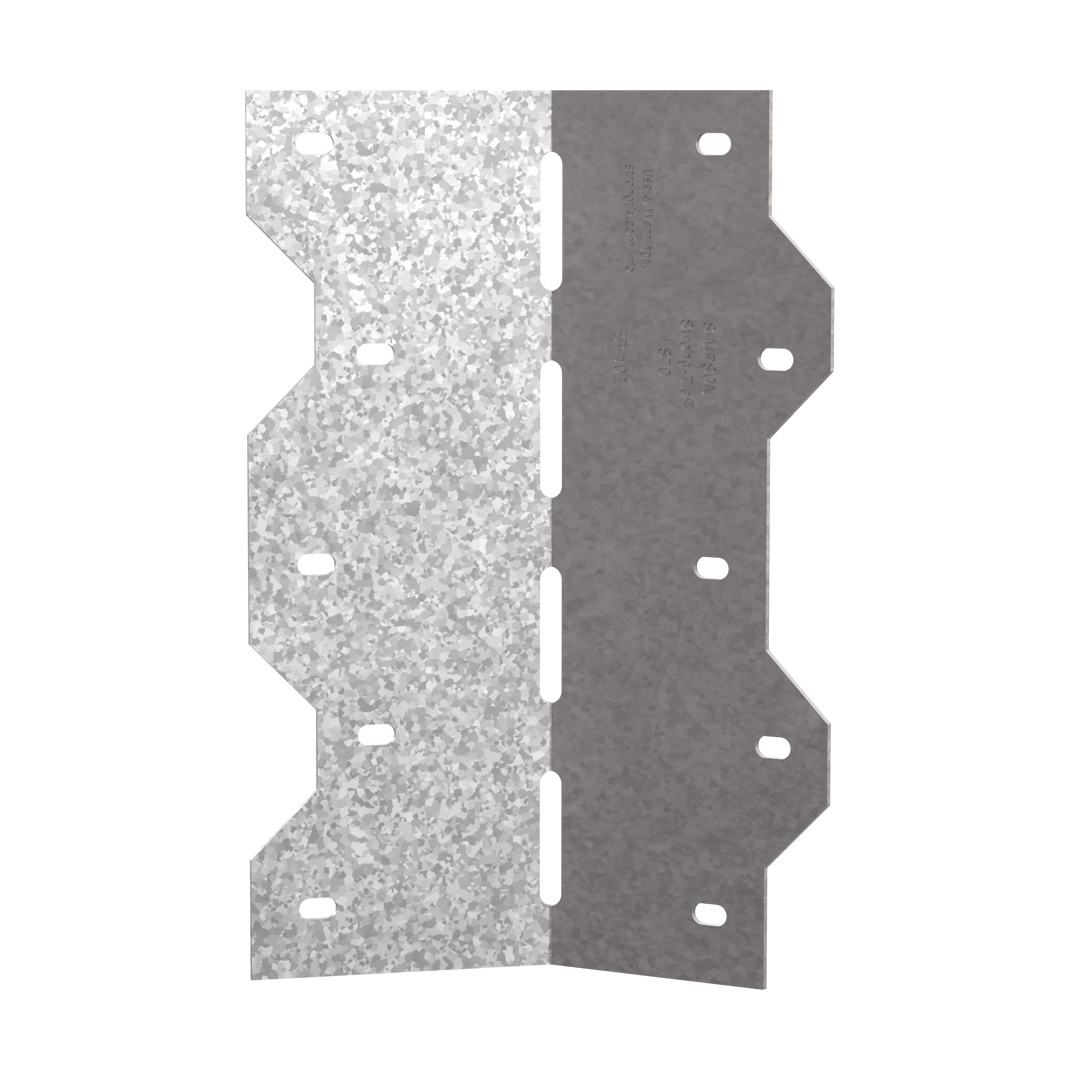

LS
Skewable Angle

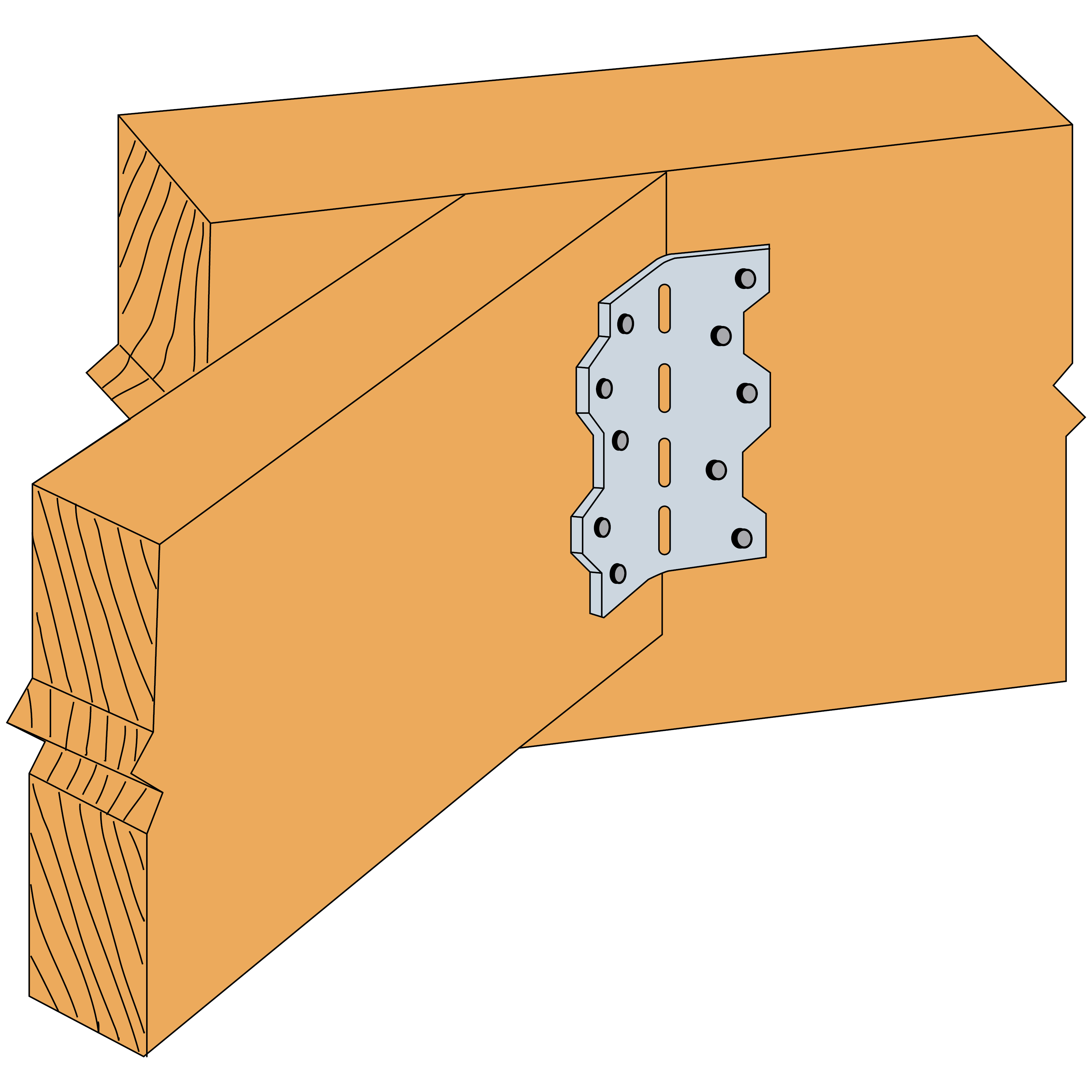

Designed to attach timber members at irregular angles, these connectors

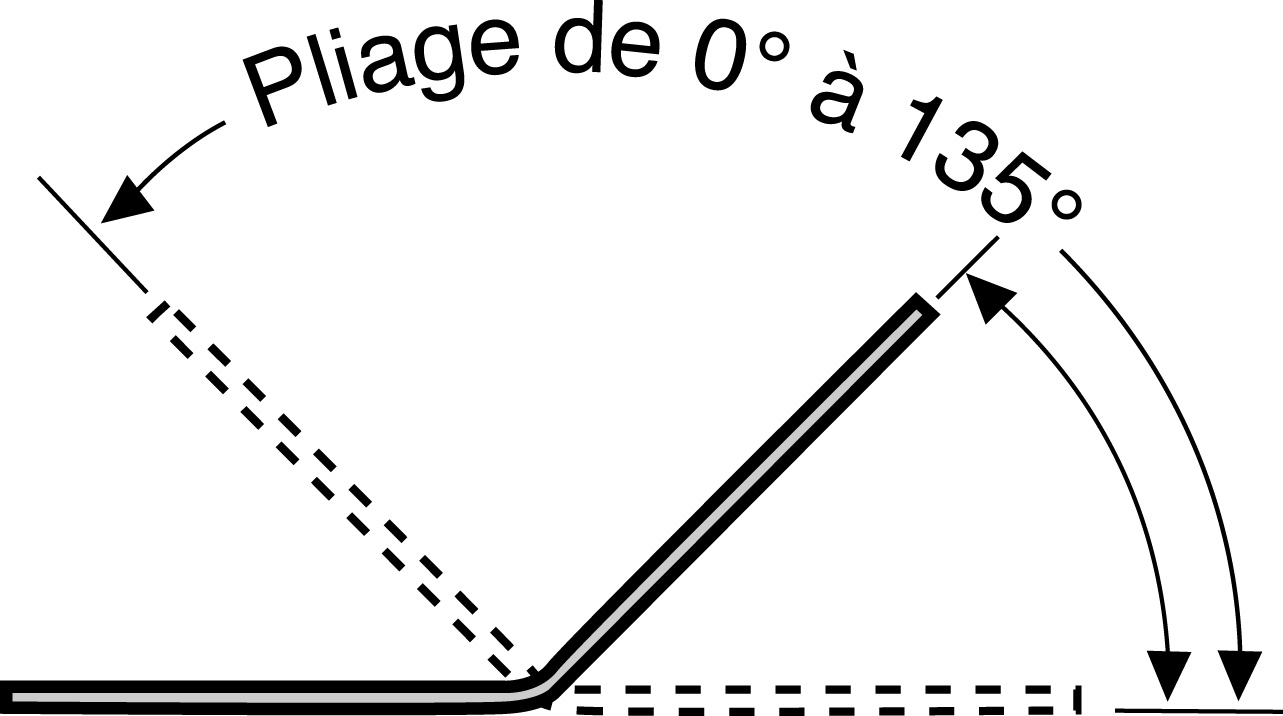

can be bent on site from 0° to 135°. The staggered nail pattern reduces the possibility for splitting the timber and allows installation on both sides of the member.
LS can also be used to steel to steel.
![](/sites/default/files/field_taxo_term_pim_icon/2021/04/09/110818/ce-jpg-default_tag_pdf.jpg)
CE Marking
![](/sites/default/files/field_taxo_term_pim_icon/2022/08/31/025119/eta-default_tag_pdf.jpg)
ETA
![](/sites/default/files/field_taxo_term_pim_icon/2023/05/22/230147/f-serviceclass2-prodla-ill-pictogram-sc2-eu-eu-cn-default_tag_pdf.png)
Service class 2
![](/sites/default/files/field_taxo_term_pim_icon/2021/04/09/112546/f-eg-20-prodla-ill-pictogram-eu-fr-cn-default_tag_pdf.jpg)
Electrogalvanized steel 20 µm
![](/sites/default/files/field_taxo_term_pim_icon/2021/04/09/110819/picto-indoor-default_tag_pdf.png)
Indoor
Technical Data

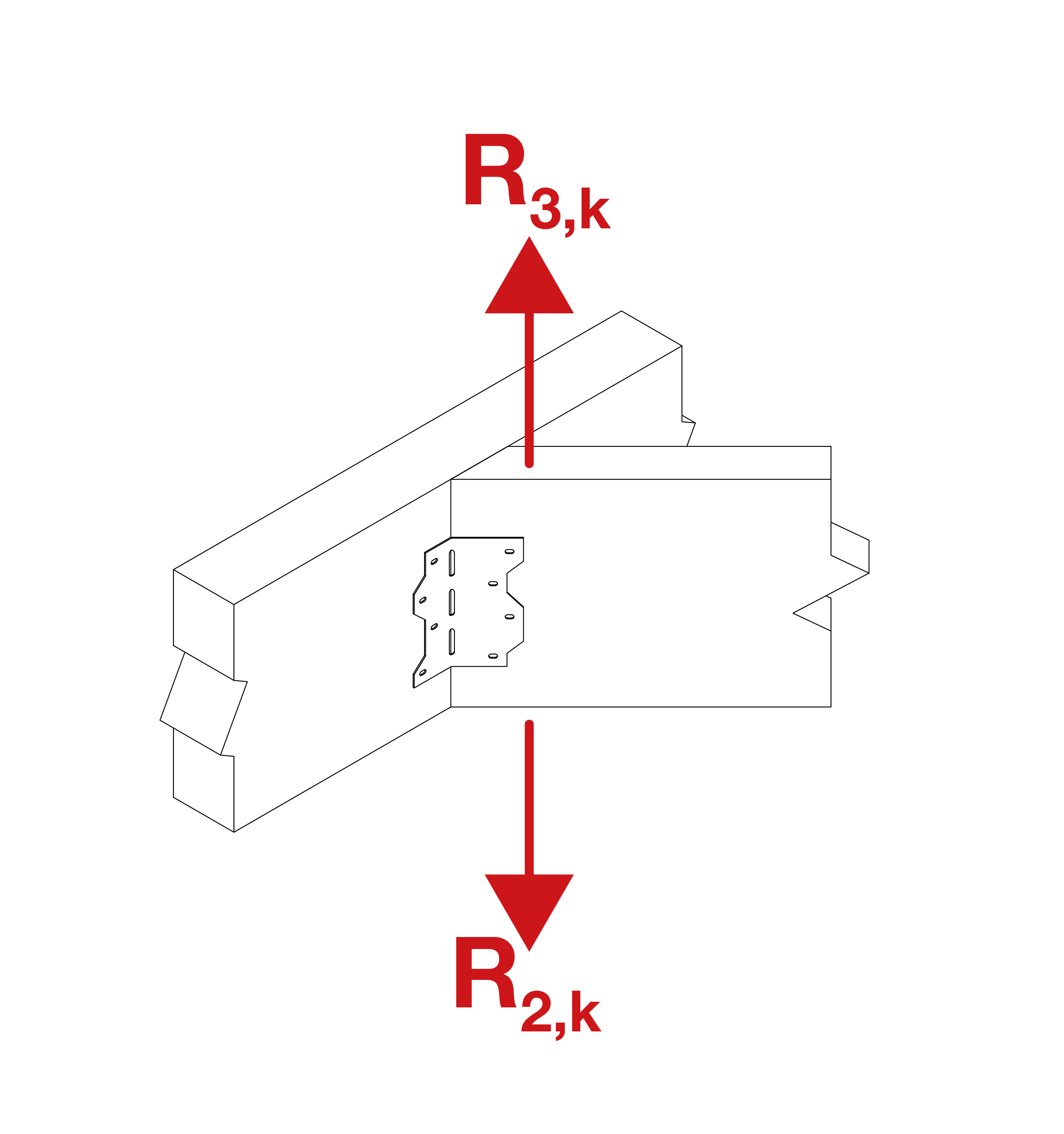

Product capacities - Timber to timber - Full nailing - 1 bracket
References | Product capacities - Timber to timber - Full nailing | |||
---|---|---|---|---|
Number of Fasteners | Characteristic capacities - Timber C24 - 1 angle brackets per connection [kN] | |||
Joist | Flange B | R2.k = R3.k | ||
Qty | Qty | Round smooth nail 3.75x75 | CNA3.7x50 | |
LS30 | 3 | 3 | 1.7 | 2.8 |
LS50 | 4 | 4 | 2.6 | 4.3 |
LS70 | 5 | 5 | 2.6 | 4.4 |
