CBSDQ

Self Drilling Fibre Cement Screw

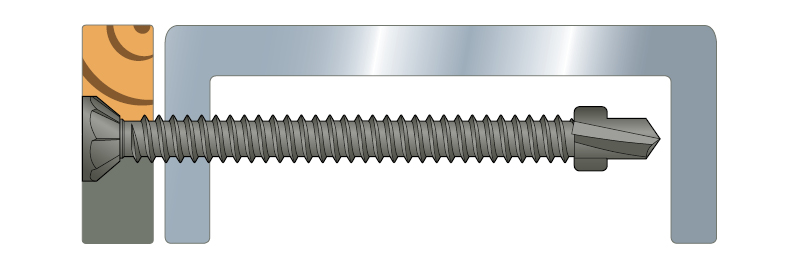

The CBSDQ screw is suitable for fixing fibre cement board/timber to steel such as modular housing construction. It has a countersunk ribbed flat head, fine thread and drill point with wings. The wings ream a hole larger in the cement board/timber and break off when they hit the steel. This allows the cement board/timber to be pulled tight to the steel. Suitable for steel up to 3mm thick.

CE Marking
Service class 2
Outdoor
QuickGuard

Product Details

Images

Features

Material

  • Steel - Quik Guard® coated

Benefits

  • CE Marked to EN14566
  • Countersunk ribbed flat head for neat finish
  • Drill point with wings to clear debris from hole
  • Self tapping fine thread
  • Driver bit included (BIT2SUE)

Application

Support

  • Used for fixing to steel only
  • Maximum steel thickness 3mm

Common Applications

  • Fibre cement board to steel
  • Cement board to steel
  • Timber to steel

Technical Data

Dimensions

Dimensions and caracteristics values

References Head Ø [mm] Thead Ø [mm] Screw length [mm] Nb of screw / strip Nb of screw / box Compatibles tools Max rotation speed [tr/min]
CBSDQ41E8.44.241301500QDPRO51E / QDPRO64E / QDPRO76SKE2500

Certification

Declaration of Performance (DoP)
