Quik Drive
Collated screw clips. Plasterboard
RDPF

Screw for drywall

Technical Data Sheet
CE Marking
Service class 1
Phosphated
Indoor
EPD

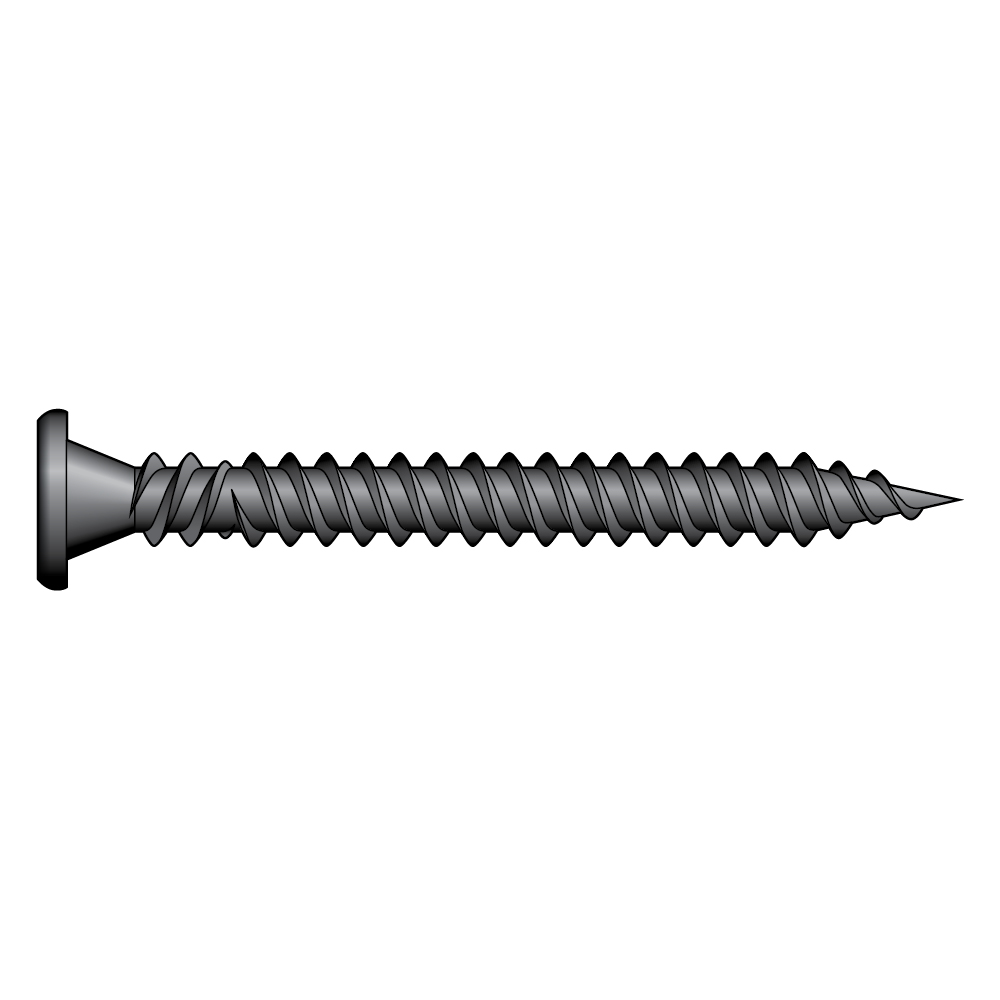

RDPF main image.jpg

Product Details

Images


Features

Material

  • Gray phosphate finish.

Benefits

  • Flat head countersunked to be flush with the plate,
  • Tapered tip for good penetration even without pre-drilling,
  • Reverse thread for easy removal of plaster dust,
  • High-low thread for fixing in timber or steel,
  • 4.2 mm diameter to prevent the screw from breaking when tightened,
  • CE marking according to EN14566: characteristic load values on steel (pull-out & shear).

Application

Header member

  • Fiber reinforced drywall.

Applications

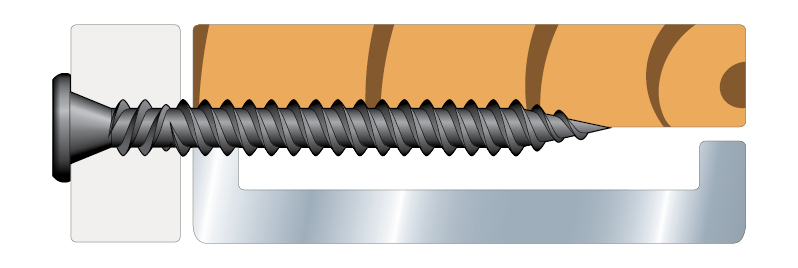

  • Plasterboard on timber supports and metal rails.

Technical Data

Dimensions

RDPF dim image.jpg

Dimensions and caracteristics values

References dh [mm] d [mm] l [mm] lg [mm] Nb. screws/strip Nb. screws/box Compatibles tools. Max. rotation speed [tr/min]
RDPF40PE7.84.14031.5302500QDPR051E / QD76KE4000

Dimensions and technical data - DE

References Fastener dimensions Nb. screws/strip Nb. screws/box Max. rotation speed - DE [U/Min.] Compatibles tools.
dh [mm] d [mm] l [mm]
RDPF40PE7.84.1403025002500QDPR051E / QD76KE

Certification

Declaration of Performance (DoP)

uk-dop-h13-0004-pdf.pdf (30.08 KB)

Environmental Product Declarations (EPD)

epd-certificate-sst-screws
