ARA2
Ring Shank Wood to Wood Nail - Stainless Steel (A2)

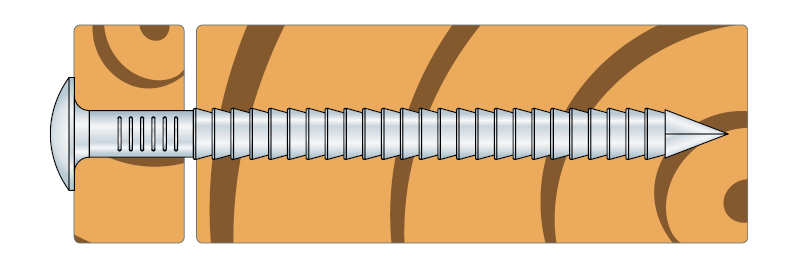

This ring shank nail with its low oval head and ring shank is used to fix timber components to wood, where high pull-out strength is required. Stainless A2 can withstand all weather conditions. Is also used for laying roofing tiles.
CE Marking
Service class 3
Stainless steel A2
Outdoor
Solid Wood
Product Details
Images
Technical Data
Dimensions
Product Dimensions
| References | Item Code | Tun / DB nr. | NOB nr. | Fastener dimensions [mm] | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| d | l | dh | Ah | ht | lg | lp | ||||
| ARA22.3X35 | 75031 | - | - | 2.3 | 35 | 5.5 | 23.5 | 1.2 | 30 | 3.2 |
| ARA22.3X45 | 75032 | - | - | 45 | 5.5 | 23.5 | 1.2 | 35 | 3.2 | |
| ARA22.3X50 | 75033 | - | - | 50 | 5.5 | 23.5 | 1.2 | 40 | 3.2 | |
| ARA23.1X75 | 74218 | 1950547 | 53292797 | 3.1 | 75 | 7.5 | 44.2 | 1.6 | 50 | 4.3 |
