Angle bracket for CLT

Reinforced Angle Bracket

These angles are used for connections wood / timber, or for connecting wooden structures in concrete, steel, masonry.

Technical Data Sheet

CE Marking

ETA

New

EPD

Service class 2

Indoor

Electrogalvanized steel Z275

Available in Connector Selector

Product Details

Images



Features

Material

Steel quality:
• S250GD + Z275 according to DIN EN10346

Corrosion protection:
• 275 g / m galvanized on both sides 20mm

Benefits

• Connection wood / concrete
• Load in all directions 4

Application

Applicable materials

Wood, wood products, concrete, steel

Application area

• Coupling elements of wood or wooden materials, components made of wood / wood materials or concrete / steel

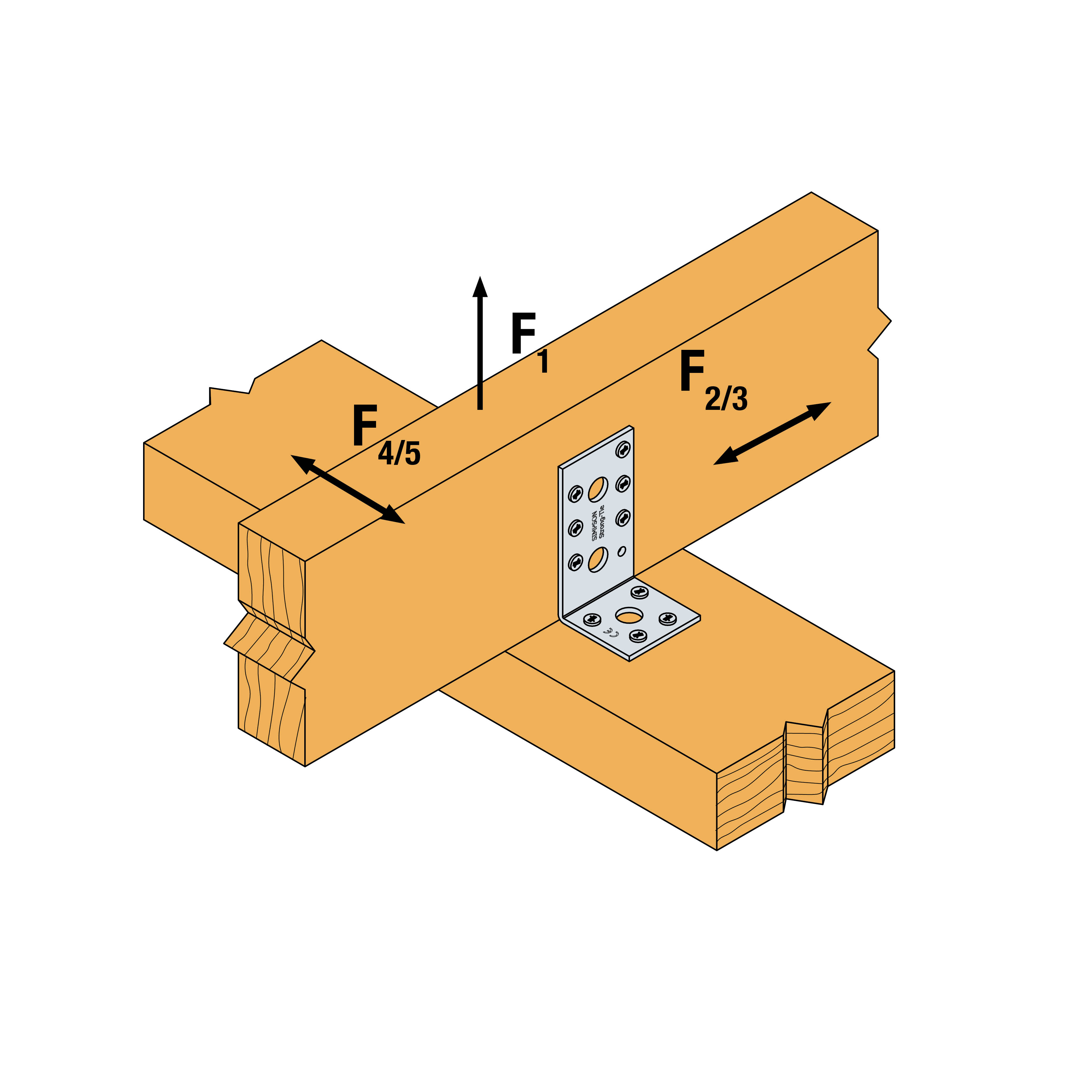

Values for joint wood and wood, two connection / partial nailing

1) b = 80 and e = 120

*) The number of nails AE116: 8 pieces in F1, F4 / 5 and 9 pieces in the F2 / 3 - Other nails found in ETA.

If the timber when the connection cannot twist, half of the values in the table can be adopted for connection with only one angle for R1 and R2 / 3 system.

If the purlins rotatable directions and forces F4 and F5 at other intervals, B and E, you can find more information on ETA.

Technical Data

Product Dimensions

Dimensions

Reference	Connector Dimensions
	Other				Product Dimensions[mm]				Joist[mm]		Flange B[mm]
	Tun / DB nr.	NOB nr.	Qty per Box	Weight[kg]	A[mm]	B[mm]	C[mm]	Thickness[mm]	Round		Round
	Tun / DB nr.	NOB nr.	Qty per Box	Weight[kg]	A[mm]	B[mm]	C[mm]	Thickness[mm]	Ø5[mm]	Ø13	Ø5[mm]	Ø13[mm]

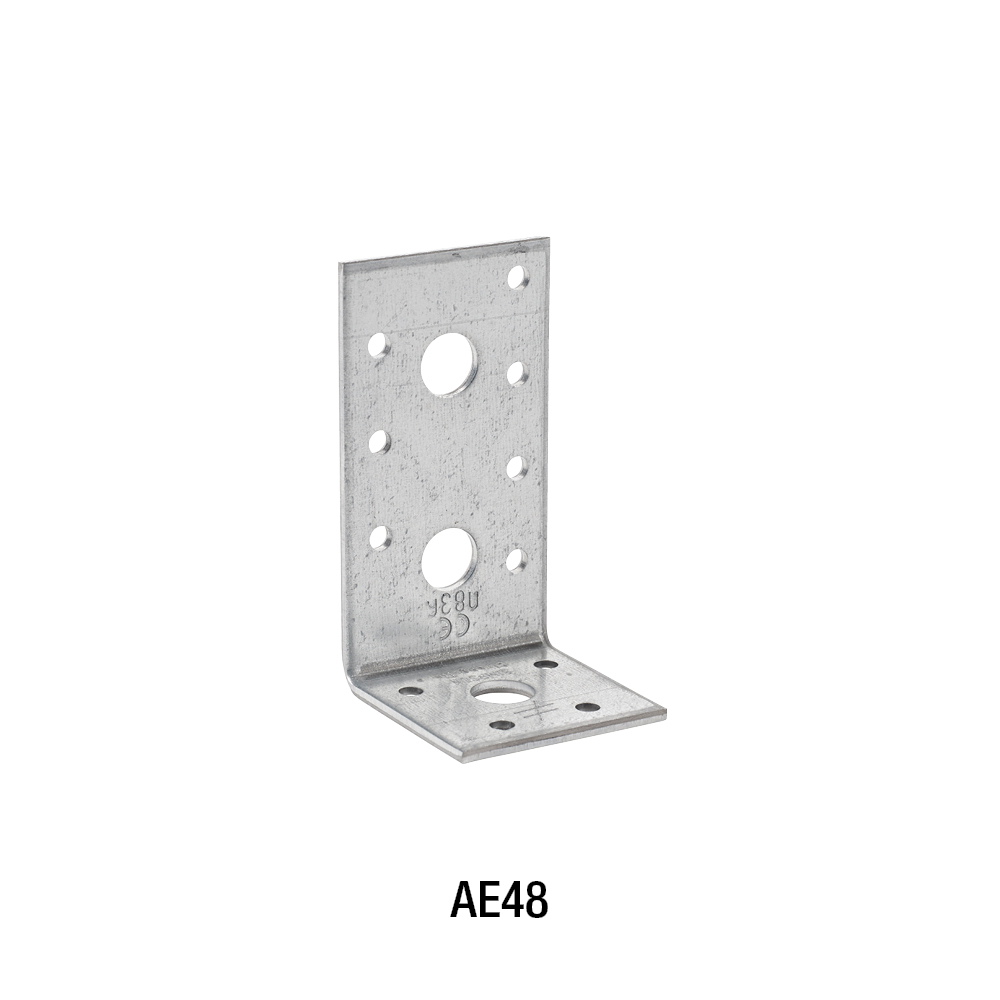

AE48	3779212	21220751	100.0	0.13	90	48	48	3	7	2	4	1

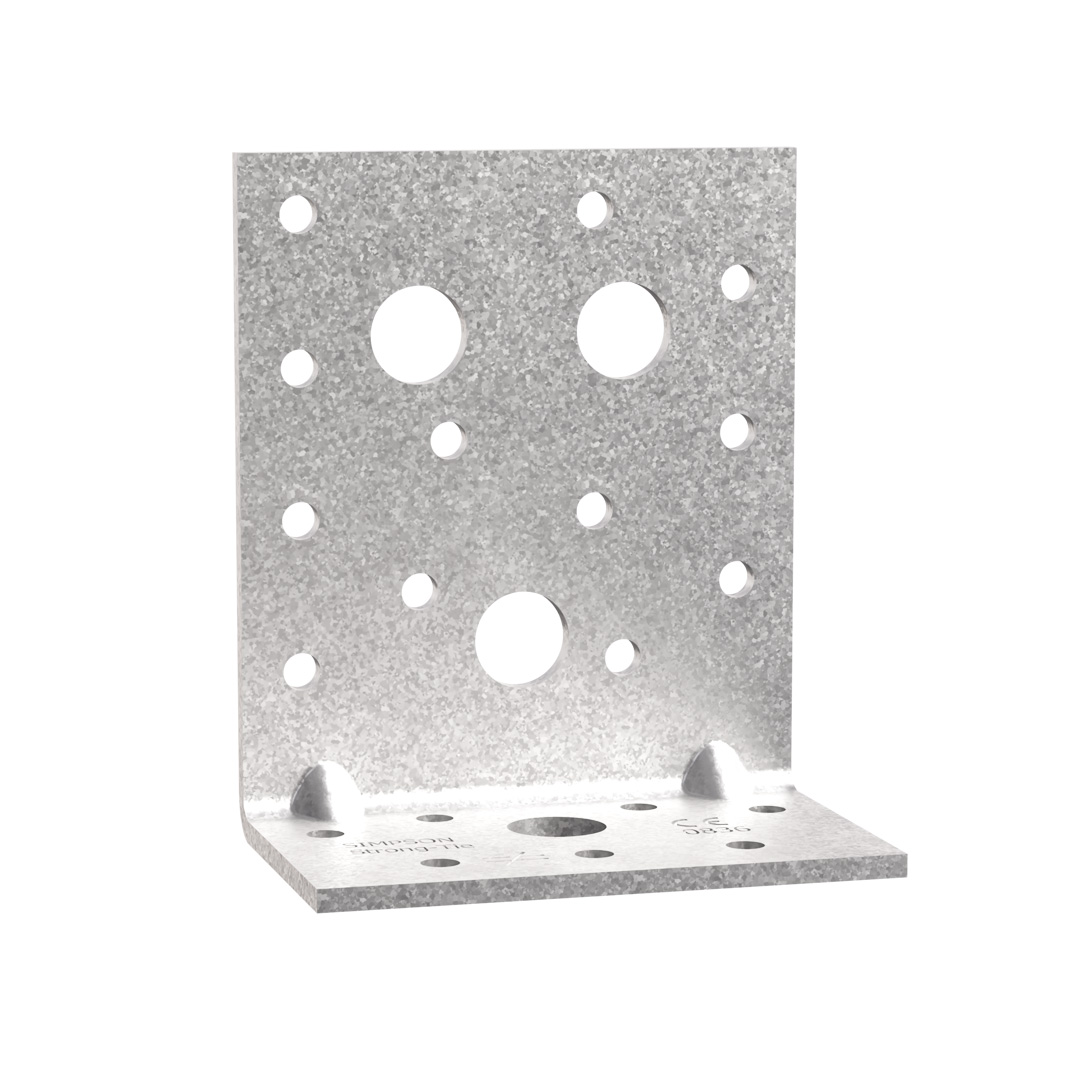

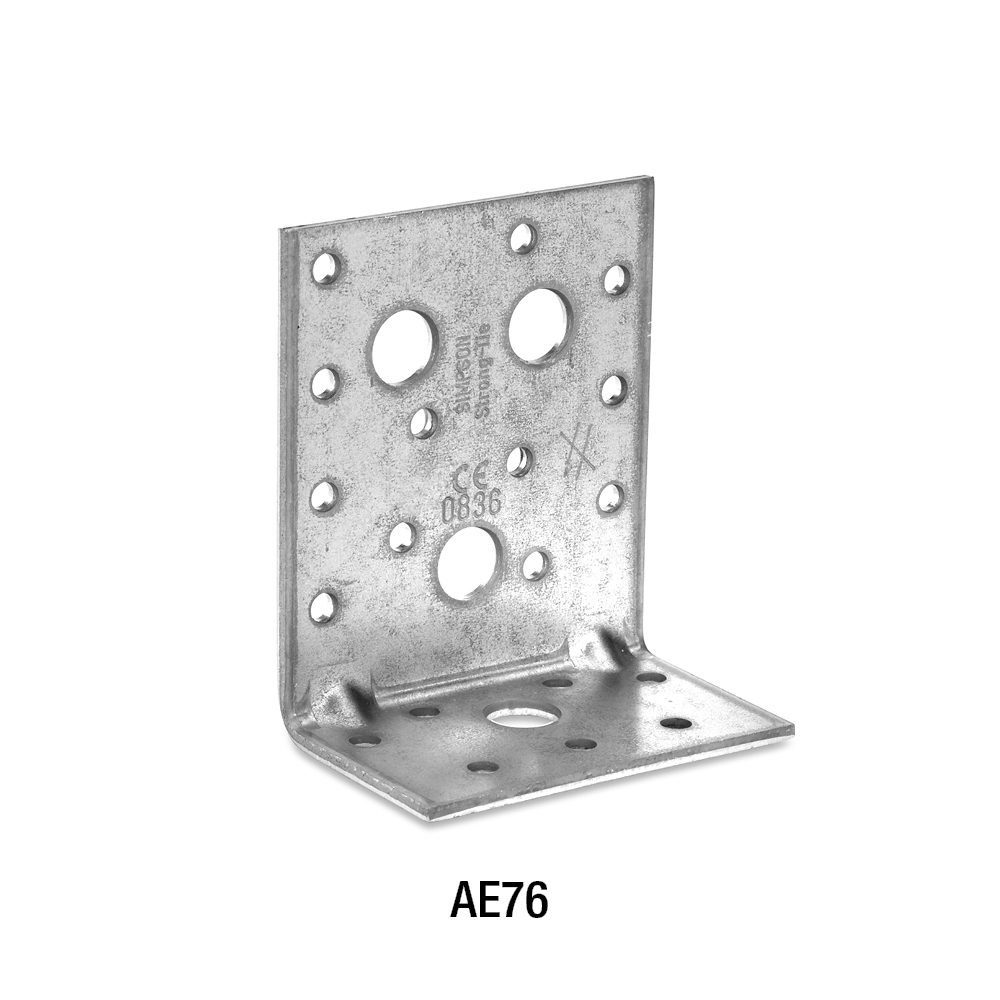

AE76	-	21594528	100.0	0.21	90	48	76	3	12	3	7	1

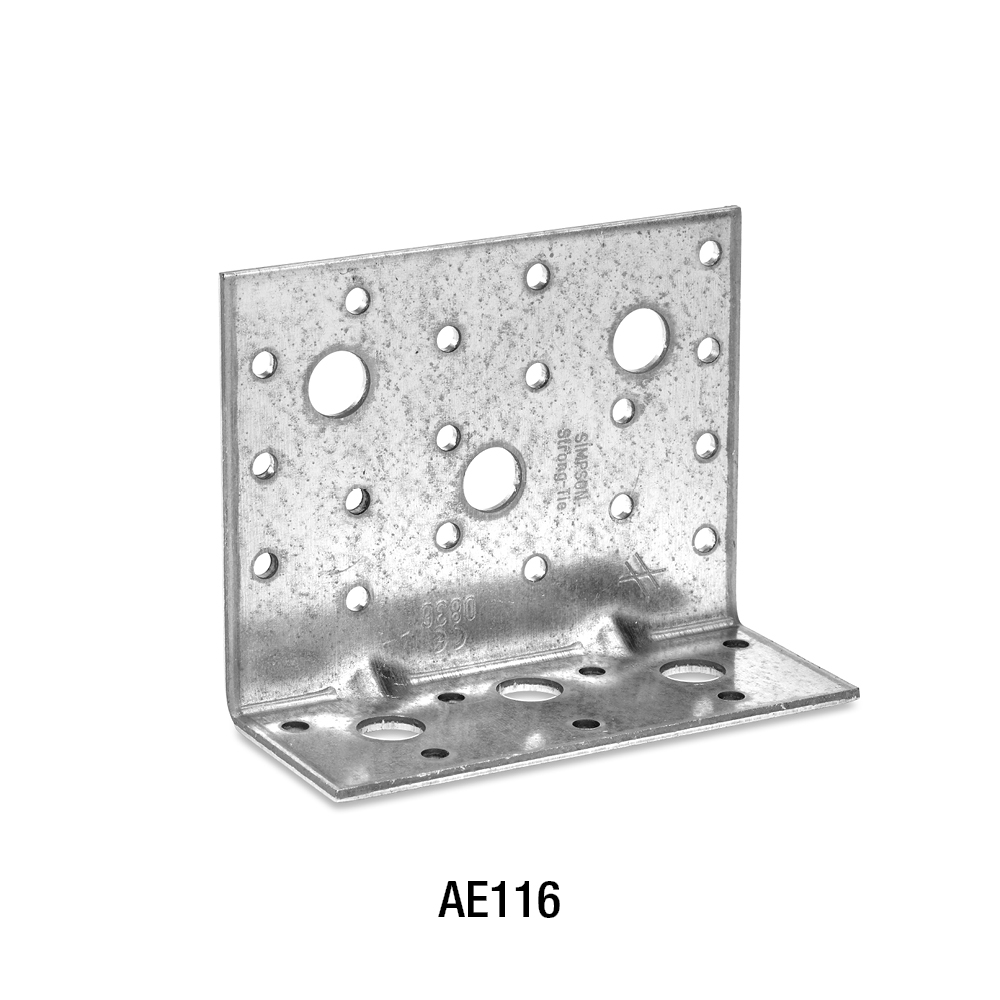

AE116	7742216	21594536	50.0	0.34	90	48	116	3	18	3	7	3

Capacities wood-wood connection - Full Nailing

Dimensions

Reference	Angle bracket capacity
	Product capacities - Timber to timber - Beam to beam - Full nailing
	Number of Fasteners		Characteristic capacity - 2 angle brackets per connection - full nailing[kN]
	Joist	Flange B	R₁,ₖ				R₂,ₖ=R₃,ₖ[kN]				R4/5,k
	Qty	Qty	CNA4.0x35	CNA4.0x40	CNA4.0x50	CNA4.0x60	CNA4.0x35	CNA4.0x40	CNA4.0x50	CNA4.0x60	CNA4.0x35	CNA4.0x40	CNA4.0x50	CNA4.0x60
AE48	6	4	2.5	3	3.8	4.9	3.5	4	4.9	6	1.1/kmod^0.25	1.3/kmod^0.25	1.7/kmod^0.25	2.0/kmod^0.25
AE76	9	7	5.1	5.9	7.7	9.8	10.4	11.6	13.4	15.7	2.5/kmod^0.25	2.9/kmod^0.25	3.6/kmod^0.25	4.2/kmod^0.25
AE116	12	7	5.1	5.9	7.7	9.8	14.7	16.5	20	23	2.8/kmod^0.25	3.2/kmod^0.25	4/kmod^0.25	4.7/kmod^0.25

1) R_4/5 is detemined for beam width b = 75 mm and eccentricity e = 130 mm.
The load capacity belongs to a load group with the modification factor k_mod.

If the overall structure prevents the rotation of the purlin, the load values R_1,k and R_2/3,k in an assembly with only one bracket equal to half of the given value in the table

* For higher F_2/F3 capacities, Load combination and other nail patterns, refer to ETA-06/0106

Capacities wood-wood connection / partialnailing

Dimensions

Reference	Angle bracket capacity
	Product capacities - Timber to timber - Partial nailing
	Number of Fasteners		Characteristic capacity - 2 angle brackets per connection - full nailing[kN]
	Joist	Flange B	R₁,ₖ				R₂,ₖ=R₃,ₖ				R4,k = R5,k(1)
	Qty	Qty	CNA4.0x35	CNA4.0x40	CNA4.0x50	CNA4.0x60	CNA4.0x35	CNA4.0x40	CNA4.0x50	CNA4.0x60	CNA4.0x35	CNA4.0x40	CNA4.0x50	CNA4.0x60
AE48	4.0	4.0	2.5	2.9	3.8	4.9	3.4	3.9	4.7	5.4	1.1/kmod^0.25	1.3/kmod^0.25	1.7/kmod^0.25	2.0/kmod^0.25
AE76	7.0	7.0	5.1	5.8	7.7	9.8	8.2	9.5	11.4	13.1	2.5/kmod^0.25	2.9/kmod^0.25	3.6/kmod^0.25	4.2/kmod^0.25
AE116	8.0	7.0	5.1	5.8	7.7	9.8	11.9	13.8	16.9	19.4	2.8/kmod^0.25	3.2/kmod^0.25	4/kmod^0.25	4.7/kmod^0.25

1) R_4/5 is detemined for beam width b = 75 mm and eccentricity e = 130 mm.
The load capacity belongs to a load group with the modification factor k_mod.

If the overall structure prevents the rotation of the purlin, the load values R_1,k and R_2/3,k in an assembly with only one bracket equal to half of the given value in the table

* For higher F_2/F3 capacities, Load combination and other nail patterns, refer to ETA-06/0106

Characteristic capacities - Timber to concrete

Dimensions

Reference	Angle bracket capacity
	Product capacities - Timber to Concrete
	Number of Fasteners				Characteristic capacity - 2 angle brackets per connection - full nailing[kN]
	Joist		Flange B		R₁,ₖ				R₂,ₖ=R₃,ₖ				R4/5,k
	Qty	Type	Qty	Type	CNA4.0x35	CNA4.0x40	CNA4.0x50	CNA4.0x60	CNA4.0x35	CNA4.0x40	CNA4.0x50	CNA4.0x60	CNA4.0x35	CNA4.0x40	CNA4.0x50	CNA4.0x60
AE48	6	CNA*	1	M12	min: 12.3 ; 12.6/kmod	min: 14.9 ; 12.6/kmod	12.6/kmod	12.6/kmod	1.9	2.1	3.2	3.5	-	min: 5.2 ; 4.2/kmod^0.7	-	4.2/kmod^0.7
AE76	9	CNA*	1	M12	min: 18.7 ; 16.8/kmod	min: 22.7 ; 16.8/kmod	16.8/kmod	16.8/kmod	6.7	7.5	10.3	11.2	-	min: 8.5 ; 6.1/kmod	-	6.1 / kmod
AE116	12	CNA*	2	M12	20.7	25.1	min: 33.3 ; 28.1/kmod	min: 38.1 ; 28.1/kmod	23	25.8	25.5	27.7	-	9,1 / kmod^0.2	-	min: 14 ; 10/kmod

1) R_4/5 is detemined for beam width b = 75 mm and eccentricity e = 130 mm.
The load capacity belongs to a load group with the modification factor k_mod. The characteristic anchoring strength of the bolt must be minimum 15,3 kN for both withdrawal and shear force. The bearing capacity value for the assembly must be reduced proportionally if the bearing capacities of the bolt is less than 15,3 kN.

If the overall structure prevents the rotation of the purlin, the load values R_1,k and R_2/3,k in an assembly with only one bracket equal to half of the given value in the table

*For higher F_2/F3 capacities, Load combination and other nail patterns, refer to ETA-06/0106

Product capacities - CLT Beam to CLT beam - Ø12 connector screws - 2 angle brackets

Dimensions

Reference	Angle bracket capacity
	Product capacities - CLT beam to CLT beam - Ø12 connector screws - 2 angle brackets
	Characteristic capacities - Timber CLT- 2 angle brackets per connection[kN]		Number of Fasteners
	R₁,ₖ	R₂,ₖ=R₃,ₖ	Joist		Flange B
	SSH12x80	SSH12x80	Qty	Type	Qty	Type
AE48	-	-	-	-	-	-
AE116	33	29.5	3.0	SSH	3.0	SSH

Installation

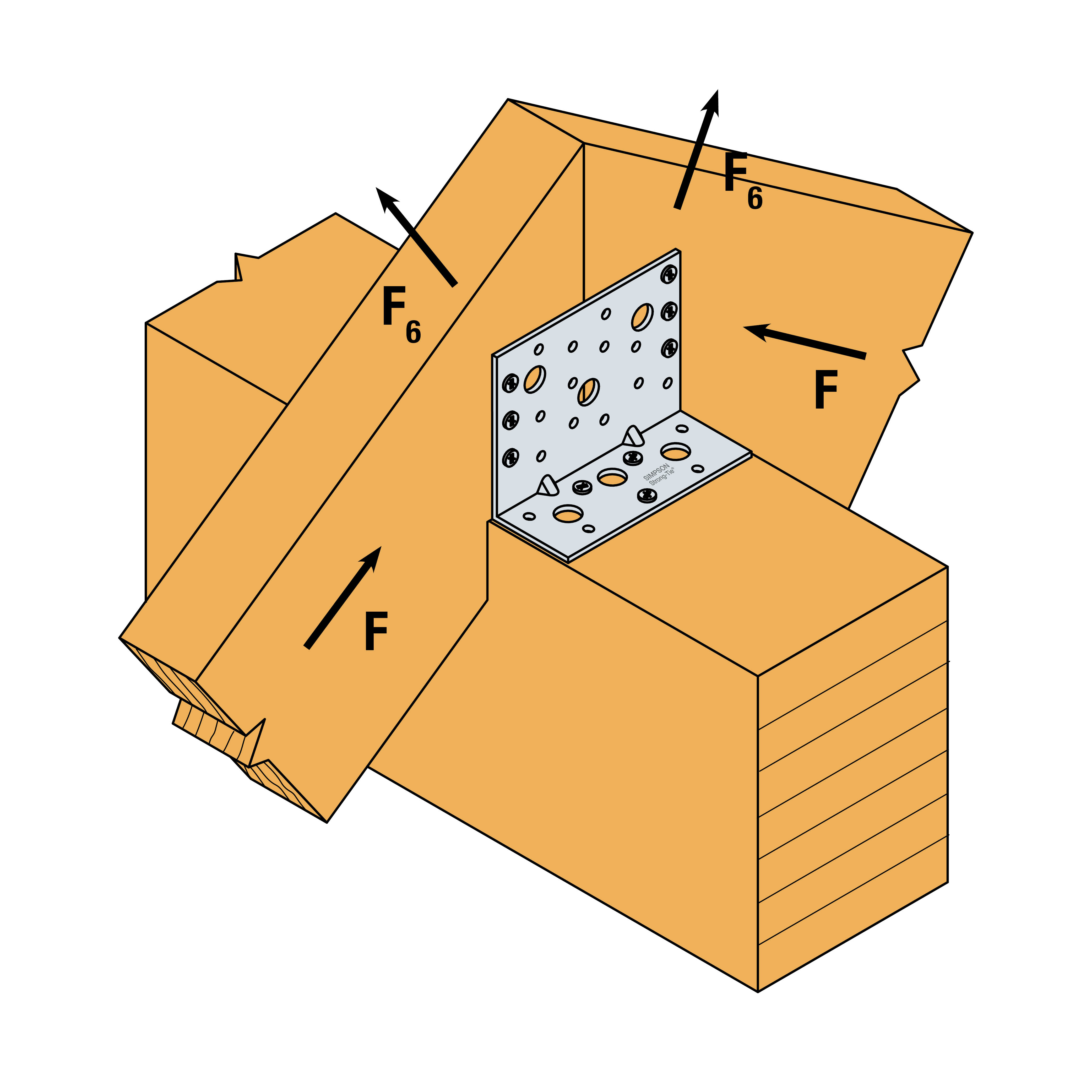

Timber to timber:
- CNA4,0xℓ nails or CSA5,0xℓ screws for fastening in wood.

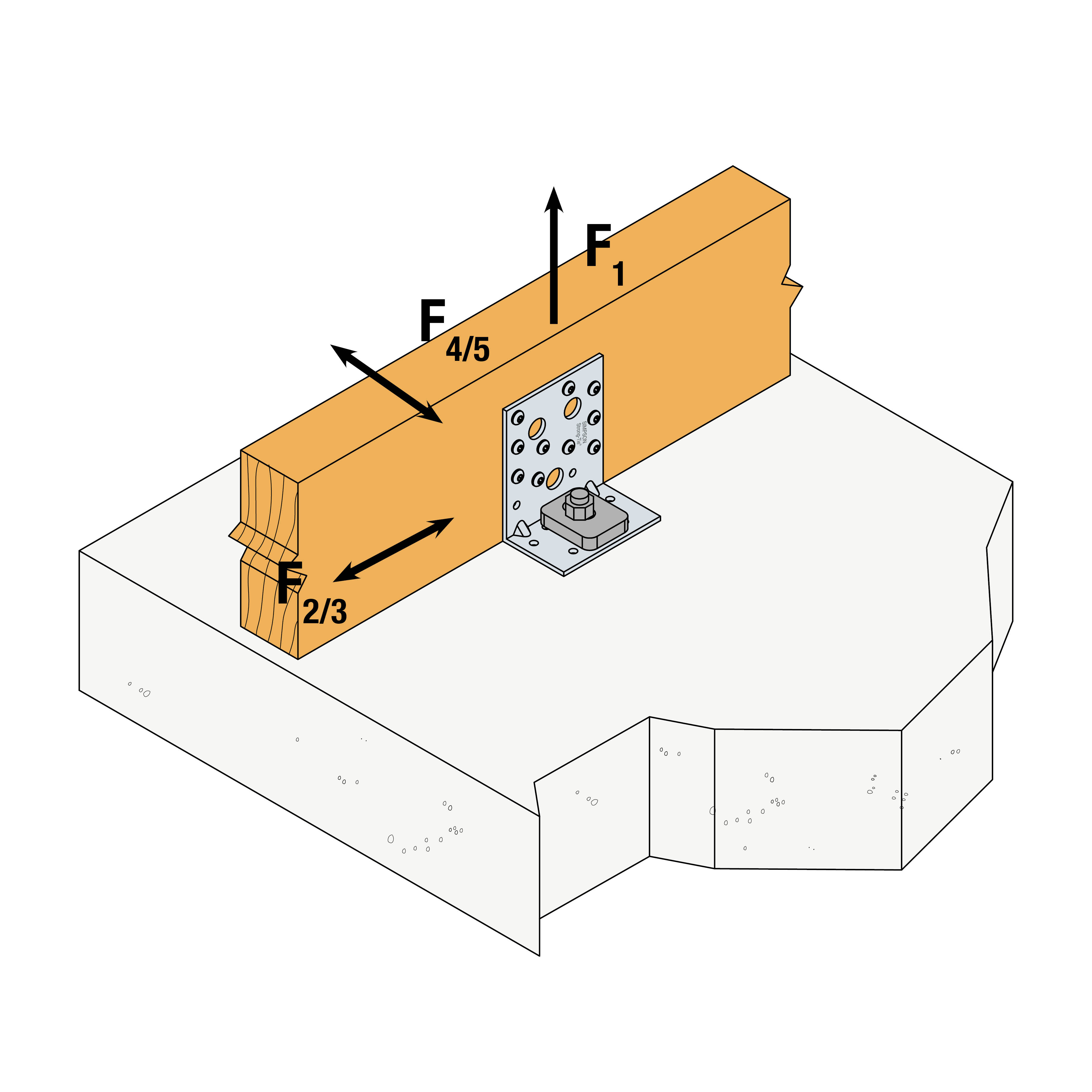

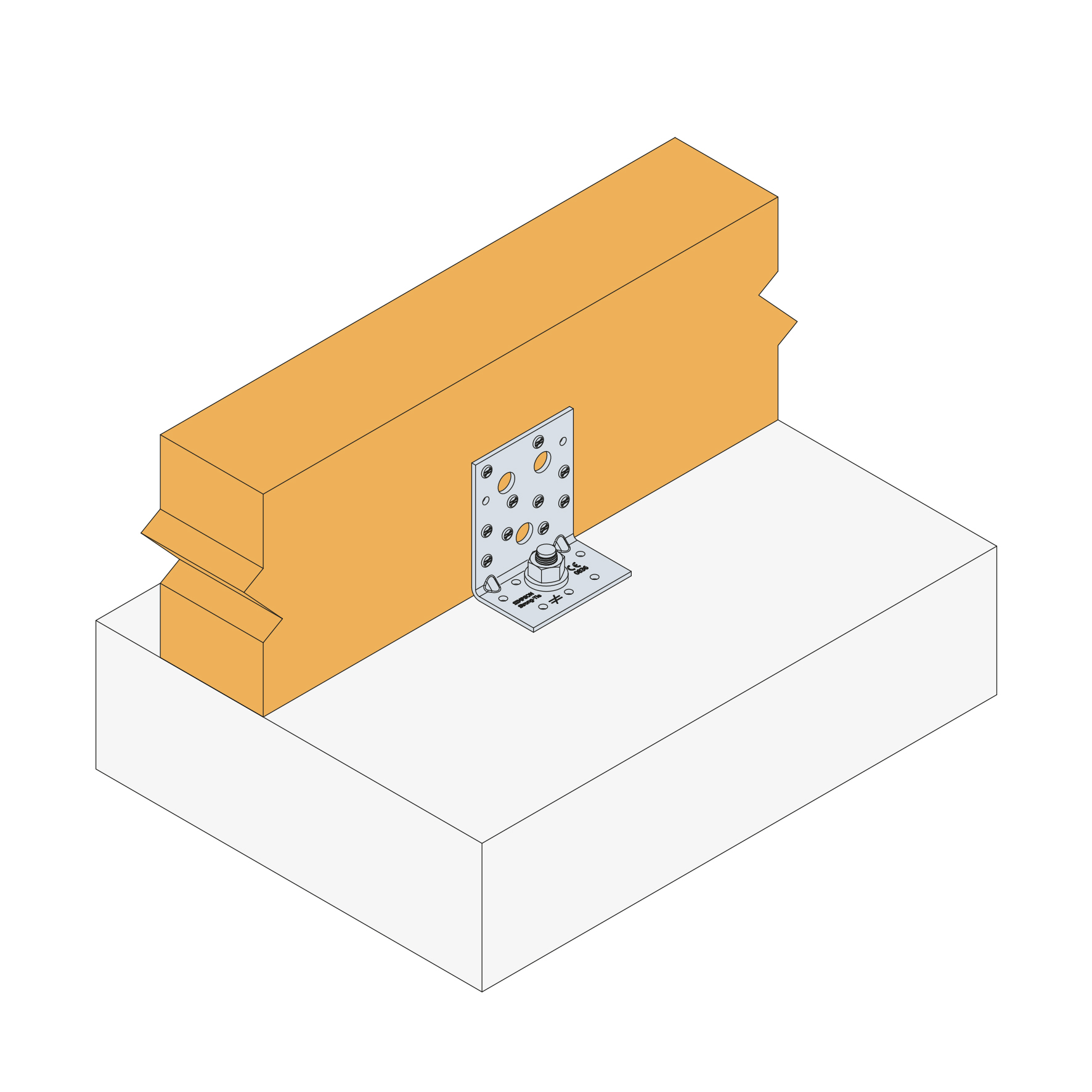

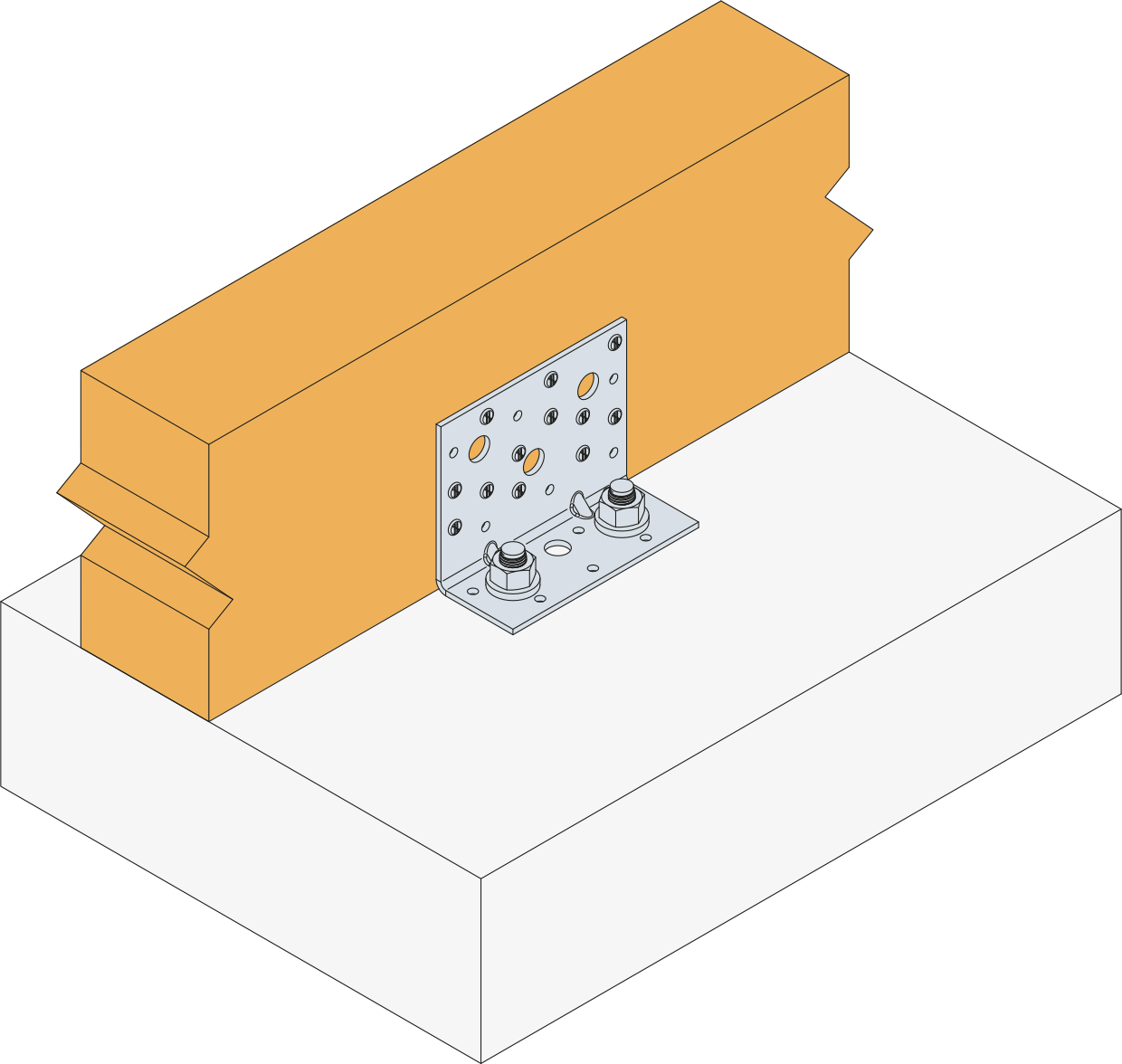

Timber to concrete :

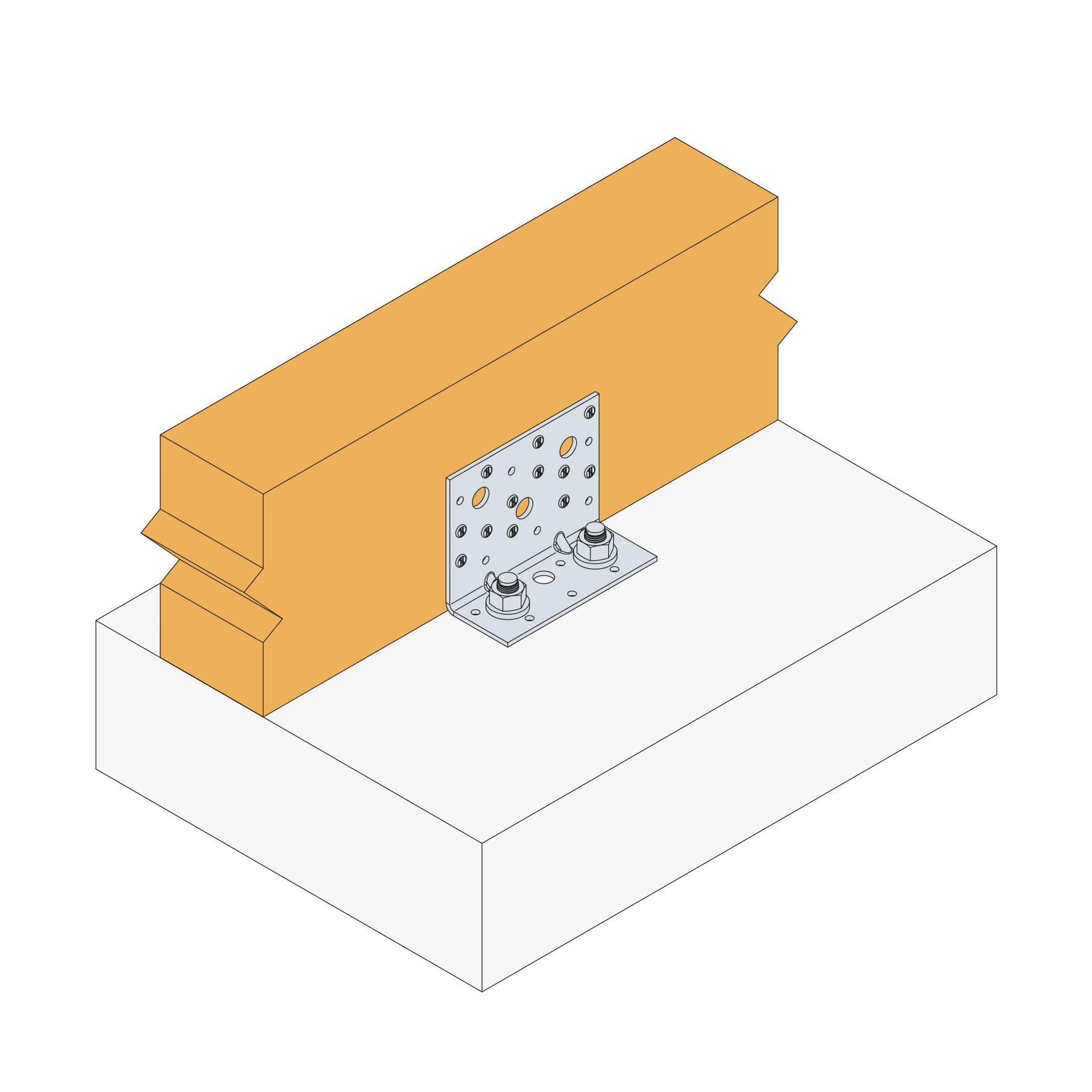

- One or two M12 bolts with washer US40/40/10G for fastening.
CLT beam to CLT beam :
- SSH Ø 12.0 x 80 mm (for AE116)
