Rafter Connectors (SFN / SFM / SFH / SFHM / SFHS)

The SFxx series rafter brackets are used in connections between rafters and tilted wall plates. The brackets are available in a left and a right version and is sold in pairs (one left and one right). Always use two brackets / one pair per connection.

Technical Data Sheet
CE Marking
CE Marking
ETA
ETA
Electrogalvanized steel Z275
Electrogalvanized steel Z275
EPD
EPD
Service class 2
Service class 2

Product Details

Images

SFN inst..jpg

Features

Material

  • Galvanized steel S250GD + Z275 according to NF EN 10346.

*

  • SFH rafter foot connectors are used to fasten rafter bottom chords to foot rails. The hole pattern in the rafter leg is designed so that the nails or screws on both sides do not interfere with each other. This makes the SFH type suitable for rafter widths of 40 mm or more
  • The SFHS/SFHM rafter foot connectors are used to fasten truss bottom chords to foot rails. They are suitable for truss widths of 95 mm or more—or multiple trusses with an individual width of 46 mm or more. A minimum dimension (W×H) of 160×60 mm for the foot rail was assumed during development
  • The SFHS/SFHM rafter foot connector is used when the load-bearing capacity of the SFM rafter foot connector is insufficient. They can also be used to connect rafters to foot purlins

Application

*

Support:

  • Wood, wood-based material

Supported member:

  • Wood, wood-based materials

*

  • The SFN / SFH / SFHM / SFHS rafter foot connectors securely join two pieces of wood positioned crosswise on top of each other to resist shear forces.
  • The shear force can act only in a specified direction.

Technical Data

Available dimensions

Available dimensions
ReferenceConnector Dimensions
OtherDimensions[mm]Holes[mm]
DB. nr.NOB nr.Qty per BoxA[mm]B[mm]C[mm]D[mm]E[mm]t[mm]Diameter[mm]
SFN774243044191734251771395353392.520 Ø5
SFM-B231266821218722102601697373912.543 Ø5
SFH-B--20270159456027219 Ø5
SFHM-B--20270159636027236 Ø5
SFHS-B--102601401087550362 Ø5

Characteristic capacity

ReferenceTies capacity
Characteristic Capacity[kN]Characteristic load-bearing capacity, two beam anchor price. collection[kN]
Nb of nails per connectorCNA4,0x40
CNA4,0x35R₁,ₖCNA4,0x50CNA4,0x460
SFN1 + 10 + 925.227.633.335.5
SFM-B2 + 21 + 2058.863.674.879
SFH-B10 + 9-27.733.535.7
SFHM-B18 + 18-51.661.264.8
SFHS-B7 + 30 + 25-79.996.7102.9

Evidence shall be provided:\frac{F_{i,d}} {R_{i,d}}\le1

Installation

Installation

Fixing

  • For fastening to timber – use connector nails CNA4,0 x l mm or connector screws CSA5,0 x l mm

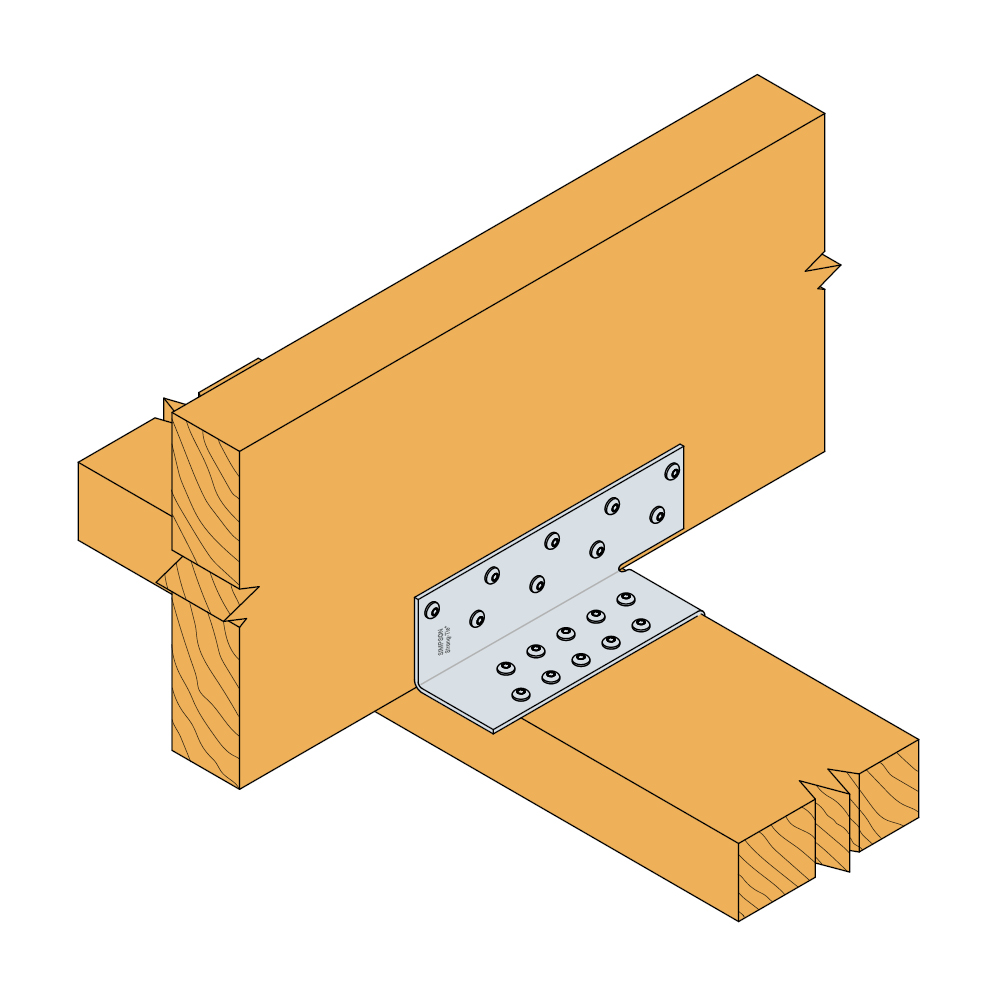

SFN inst..jpg
