SVI

Rafter Angle Brakets

SVI bracket is used in connections between rafters and horizontal wall plates. The bracket can transfer horizontal loads. The bracket is available in a left and a right version and is sold in pairs (one left and one right). Always use two brackets per connection.

CE Marking
Service class 2
Electrogalvanized steel 20 µm

Product Details

Images

Features

Material

  • Pre galvanized mild steel Sendzimir method S250GD + Z 275 g/m2 (20 μm)

Application

Suitable On

  • Supporting member: solid wood, composite lumber.
  • Supported member: composite lumber.

Technical Data

Dimensions

Available dimensions

References DB. nr. NOB nr. Dimensions [mm] Holes
A B C t Ø Qty
SVI200-B26214152121881320062422511 + 11
SVI240-B23126502121882124063432510 + 10

Characteristic capacity

References Fixing - Fasteners Characteristic capacity
1 set per connection
CNA4,0x35 CNA4,0x40 CNA4,0x60
SVI200-B6+6 / 8+816.8 / 19.618.4 / 21.523.6 / 27.6
SVI240-B9+9 / 10+1023.1 / 23.625.3 / 25.932.6 / 33.3

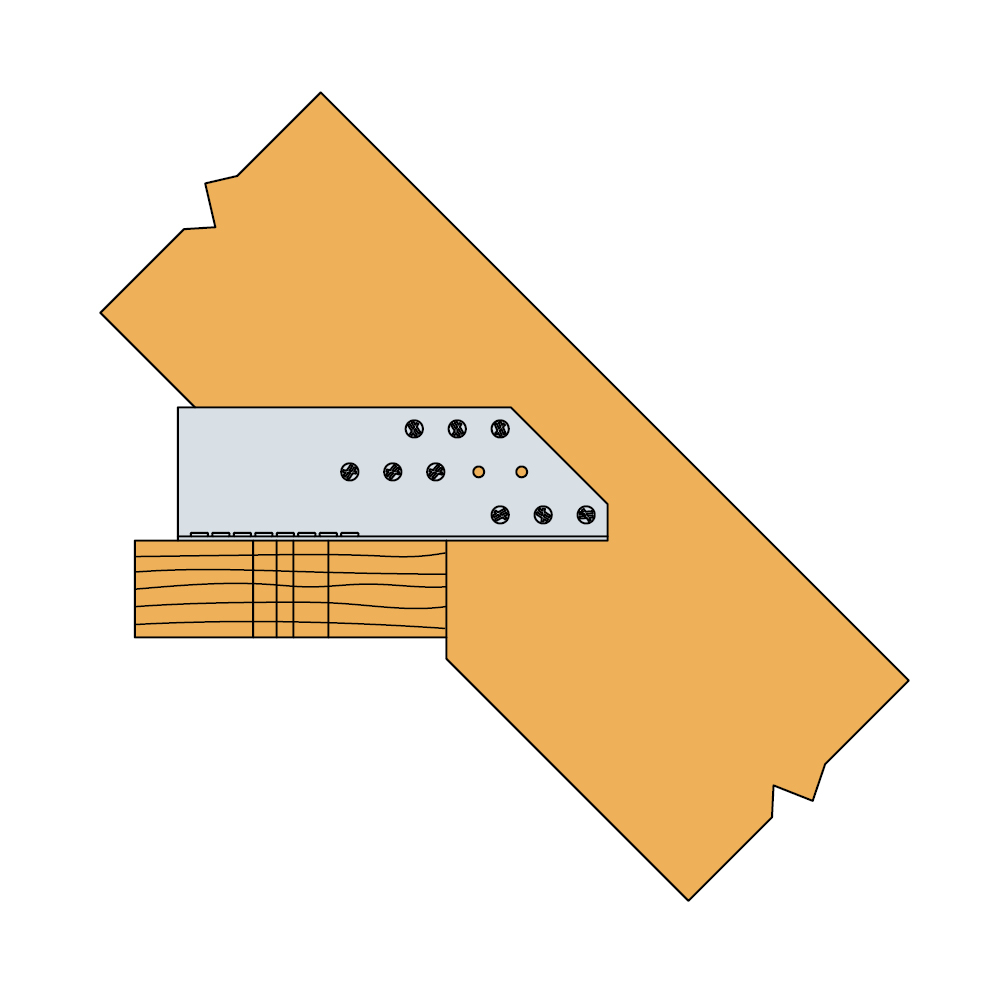

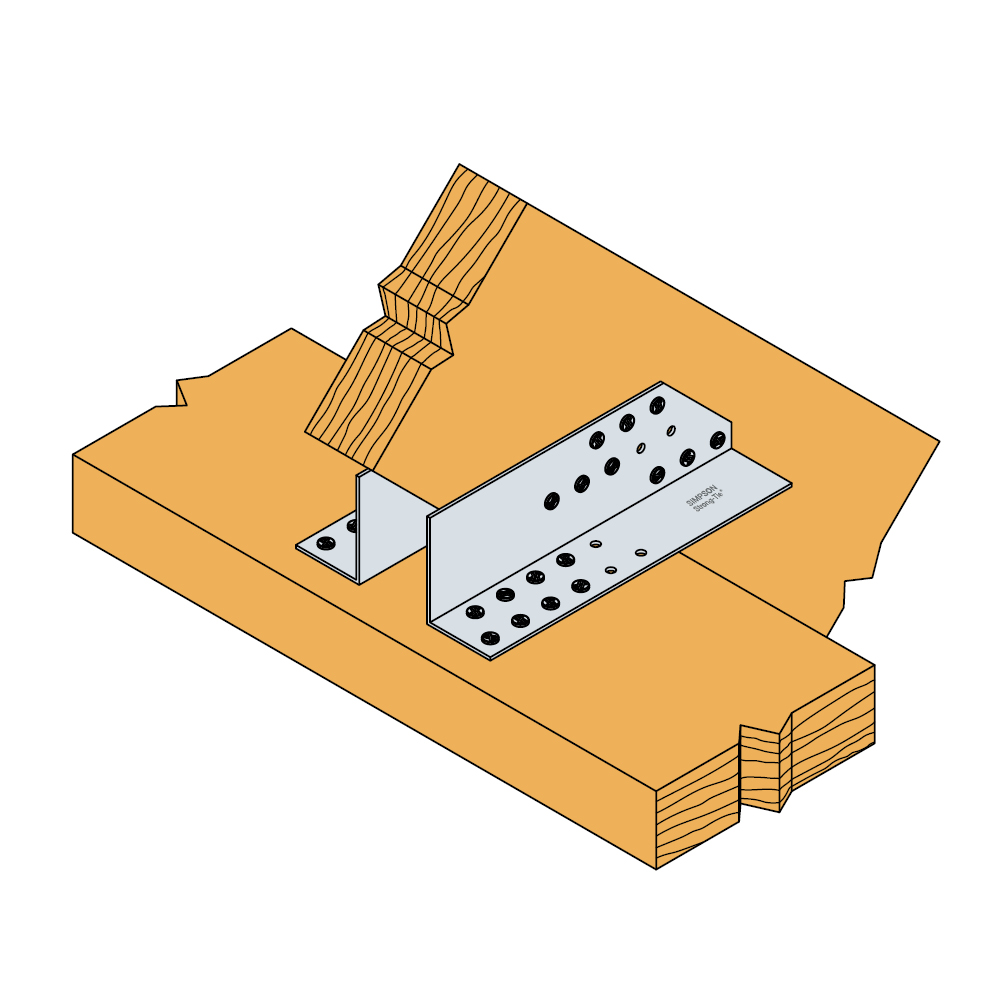

Installation

Installation

Fixing

  • For fastening to timber – use connector nails CNA4,0 x l mm or connector screws CSA5,0 x l mm

Certification

Declaration of Performance (DoP)

European Technical Assessment (ETA)
