TTFA4-E

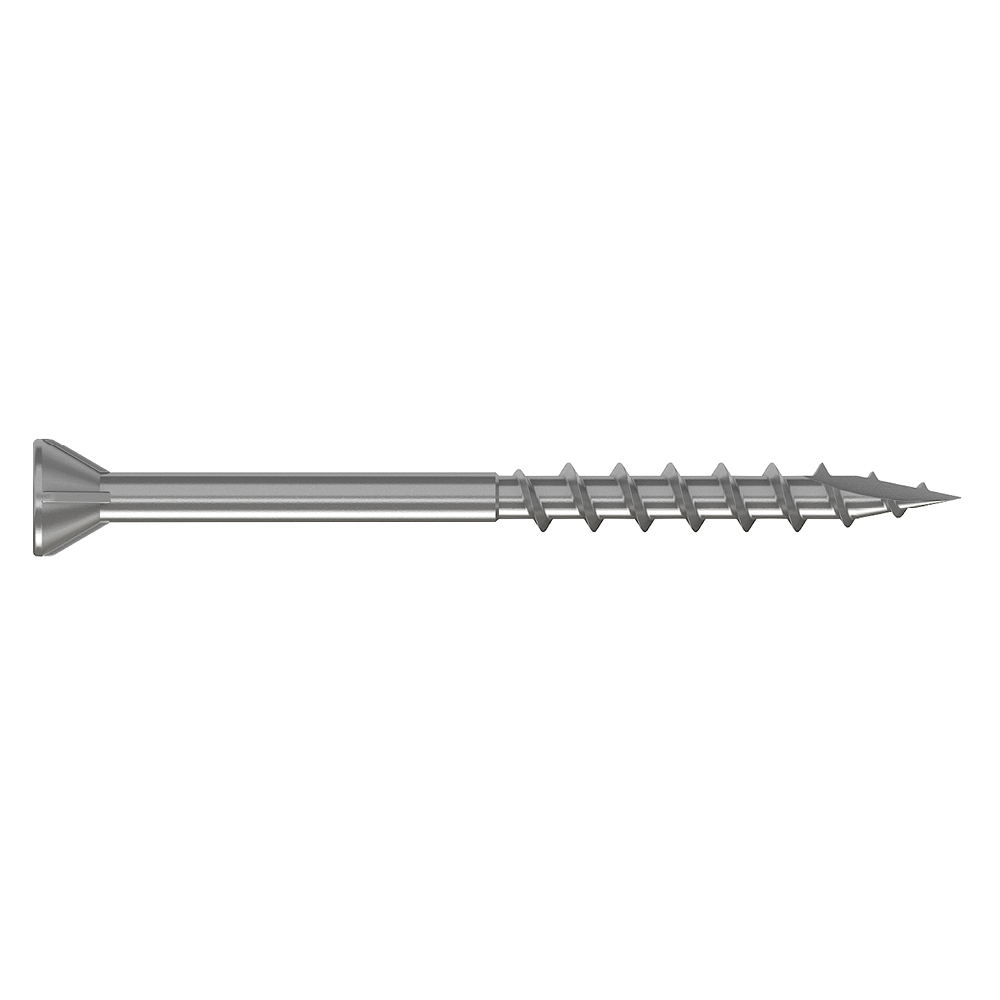

Quik Drive Decking Screws
Suitable for marine environments and industrial atmospheres. The Quik Drive collated TTFA4 screw will not discolour the woodwork around the screw head. Also suitable for precious woods such as oak, cedar or larch. The screw has a 6 lobe recess to ensure good grip and a cutpoint, which effectively drives the screw into the woodwork and counteracts splitting.
CE Marking
Stainless steel A4
Severe
EPD
Fastener Designer
Product Details
Images
Features
Technical Data
Dimensions
| Reference | Fasteners Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Other | Fastener dimensions[mm] | QD information | ||||||||
| DB No. | NOBB No. | Qty per Box | Weight[kg] | dₕ[mm] | d[mm] | l[mm] | Qty per Strip | Recommended RPM[tr/min] | Quik Drive Attachment | |
| TTFA455E | 2396011 | 60160071 | 2000.0 | 6.5 | 7 | 4.2 | 55 | 30.0 | 2500.0 | QDPRO64E/QDPRO76E |
