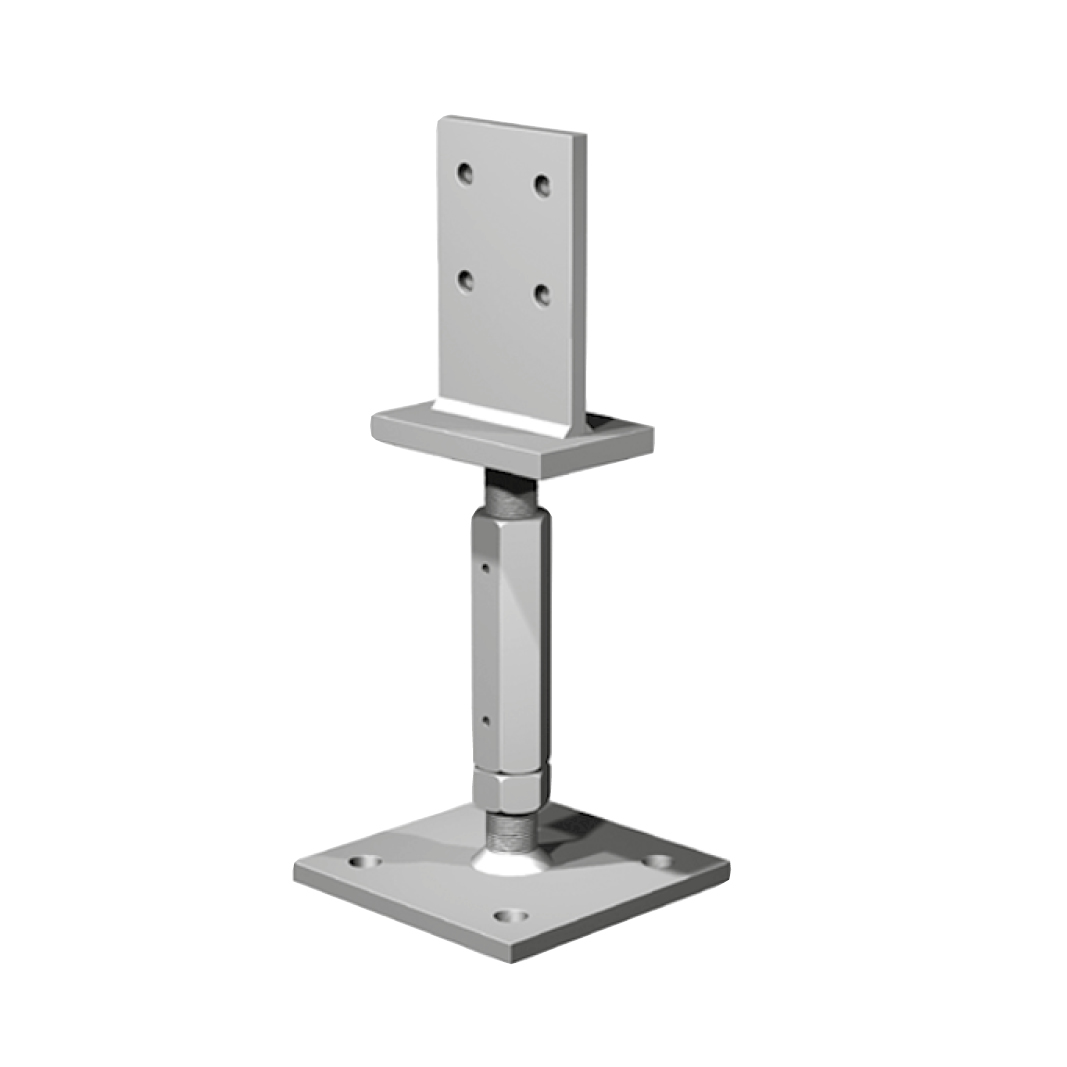

PJIB

Post Bases

The PJIB post bases are suitable for vertical and horizontal loads and are connected to the concrete foundation by anchor bolts.

CE Marking
CE Marking
ETA
ETA
Hot-dip galvanised steel
Hot-dip galvanised steel
EPD
EPD
Service class 3
Service class 3
Outdoor
Outdoor
Available in Connector Selector
Available in Connector Selector

Product Details

Images

Features

Material

Steel quality:

S 235 JR acc. to DIN EN 10025

Corrosion protection:

Hot-dip galvanized; Zinc layer thickness approx. 55 μm according to DIN EN 1461

Benefits

  • The post bases are height-adjustable after assembly and are preferred for concealed connections.

Application

Suitable On

Supporting member:

  • Concrete, steel, wood

Supported member:

  • Solid wood, engineered wood

When to Use

  • The PJIB post bases are suitable for use in light-weight buildings, e.g. Carports, where the possibility of height adjustment must be given.

Technical Data

Product Dimensions

Dimensions

ReferenceConnector Dimensions
Product Dimensions[mm]Top plate holesBottom plate holesOther
A[mm]B[mm]C[mm]D[mm]E[mm]F[mm]G[mm]t1[mm]t2[mm]RoundRound Weight[kg]
Ø8.5[mm]Qty[mm]
PJIBG9060110120120163 - 2132088442.4

Capacities

ReferencePost base capacity
Product capacities - Timber to Concrete[kN]
Number of FastenersCharacteristic capacities - Timber C24[kN]
On postOn concreteR₁,ₖR₂,ₖR₃,ₖR4,k
QtyTypeQtyTypeØ8x80Ø8x100Ø8x120min. gmax. gmin. gmax. g
Ø8x80Ø8x100Ø8x120Ø8x80Ø8x100Ø8x120
PJIBG4Ø84.0Ø12min( 90.7 ; 54.5/kmod )1618.720.71.4/kmod1.1/kmodmin( 2 ; 1.6/kmod )min( 2.3 ; 1.8/kmod )min( 2.6 ; 1.8/kmod )min( 1.7 ; 1.4/kmod )min( 2 ; 1.4/kmod )min( 2.1 ; 1.4/kmod )

For the load directions R1.k and R3.k, the cpacities are valid for all length of steel dowel.

Load combinations:

\sum\frac{F_{i,d}} {R_{i,d}}\le1

Installation

Installation

Fixing

The connection to the wood is done with Ø8 dowels in length of the timber width.
