PFU
PFU - purlin anchor
PFU connectors may be used for bracing the crossing beams. Similarly, the horizontal forces can be absorbed.
Depending on the load can be 2 or 4 connectors for connection. Connections are 2 left and 2 right at the junction
PFU are sold in sets.
CE Marking
ETA
Service class 2
EPD
Product Details
Images
Features
Application
Technical Data
Dimensions
Dimensions
| References | DB. nr. | NOB nr. | Dimensions [mm] | Holes | Qty per box | Weight [kg] | |||
|---|---|---|---|---|---|---|---|---|---|
| A | B | t | Ø | Qty | |||||
| PFU170 | 1837235 | 44492696 | 170 | 30 | 2 | 5 | 3 + 3 | 100 | 0.076 |
| PFU210 | 5385351 | 42290284 | 210 | 30 | 2 | 5 | 4 + 4 | 100 | 0.094 |
| PFU250 | 1264631 | 44492700 | 250 | 30 | 2 | 5 | 5 + 5 | 100 | 0.11 |
Load Capacity Table (characteristic values)
| References | Characteristic load-bearing capacity, two beam anchor price. collection [kN] | |||||||
|---|---|---|---|---|---|---|---|---|
| CNA4,0x40 [2 nails per flange] | CNA4,0x40 [3 nails per flange] | CNA4,0x40 [4 nails per flange] | CNA4,0x40 [5 nails per flange] | |||||
| R1,k - min of: | R2,k=R3,k - min of: | R1,k - min of: | R2,k=R3,k - min of: | R1,k - min of: | R2,k=R3,k - min of: | R1,k - min of: | R2,k=R3,k - min of: | |
| PFU170 | 5.5; 10.4/kmod | 0.8; | 9.5; 10.4/kmod | 2 | - | - | - | - |
| PFU210 | - | - | 9.6; 14.6/kmod | 1.5 | 13.6: 14.6/kmod | 3.1 | - | - |
| PFU250 | - | - | - | - | 13.6; 14.6/kmod | 2.6 | 17.6; 14.6/kmod | 4.5 |

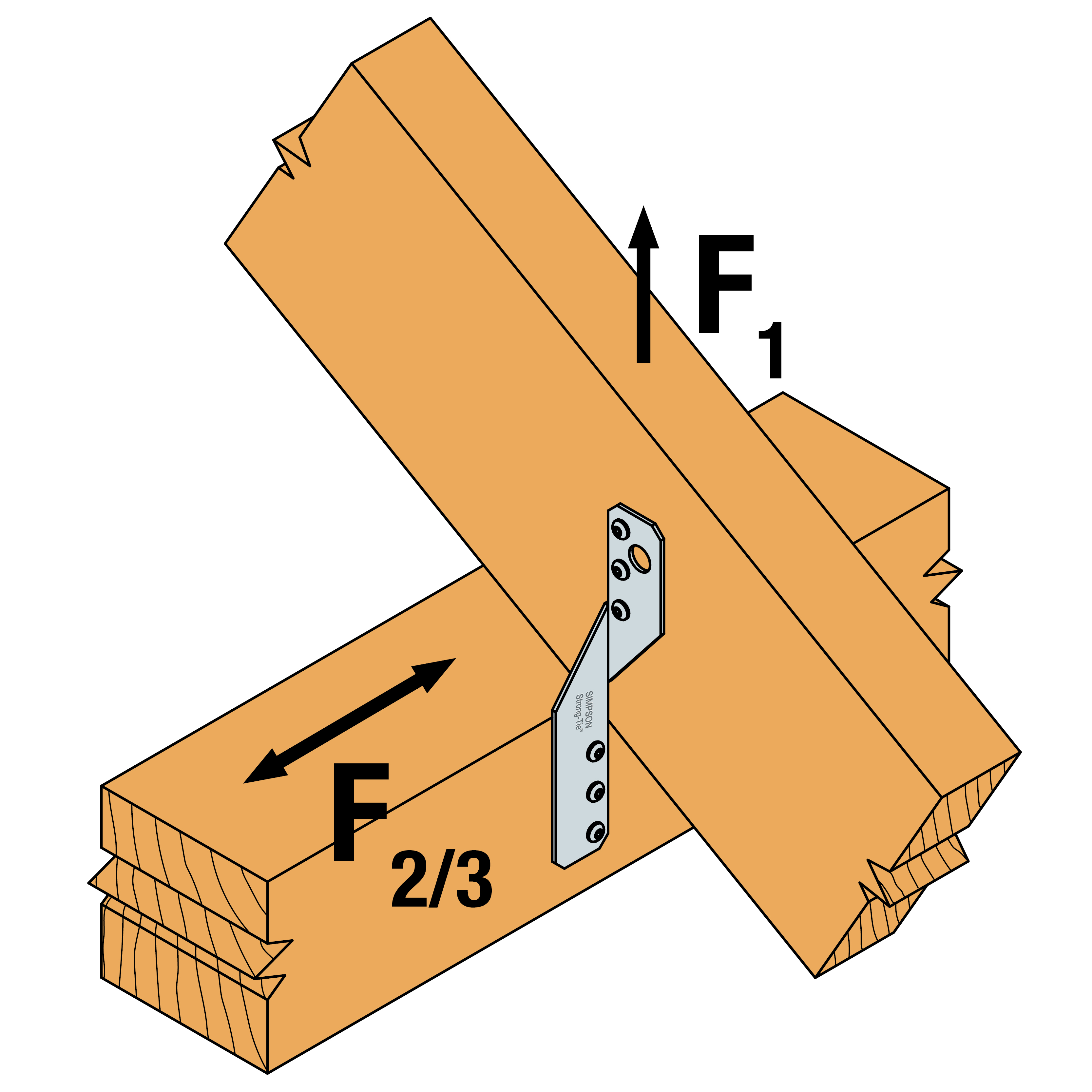

Kmod is the modification factor for the load group to which the required load capacity belongs. If the ridge is prevented from rotating, the load capacity R1,k, in an assembly with only one PFU beam anchor, will be half of the load capacity.
R2,k = R3,k: it is assumed that the force acts max. 20 mm above the beam. Nails are placed as close to the underside of the ridge/top of the beam, taking into account minimum edge distances. When using 4 PFU beam anchors per joint, the table values can be doubled.
