NP 1200

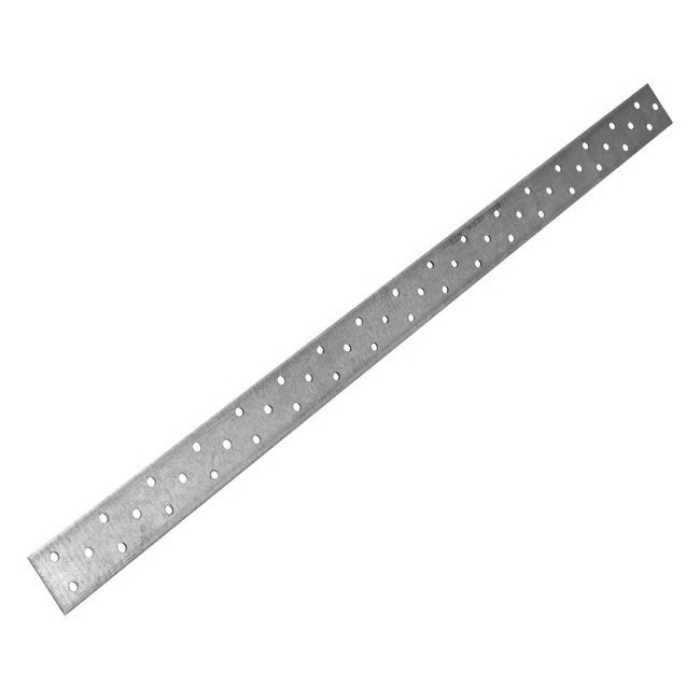

Perforated connection plates NP

Nail plates can be used in various applications, in particular for connection of timber elements along the same plane.

Technical Data Sheet
CE Marking
CE Marking
Indoor
Indoor
Service class 2
Service class 2
Electrogalvanized steel 20 µm
Electrogalvanized steel 20 µm
EPD
EPD

Product Details

Features

Material

Steel quality:
S 250 GD + Z 275 according to DIN EN 10346

Protection agains corrosion:
275 g / m galvanized on both sides 20mm




Benefits

• Multi-purpose fasteners in many standard sizes




Application

Applicable materials

  • Wood, wood products

Application area

• Suitable for the perforated plate, there are many possible applications in timber construction.
• Together with Simpson Strong-Tie® CNA nails or screws CSA can be fixed all the NP. The calculations are calculated as a perforated metal sheets thick sheets according to DIN or EC5 1052nd

Technical Data

Dimensions and drill holes

Dimensions

Dimensions and drill holes
ReferenceConnector Dimensions
OtherProduct Dimensions[mm]Holes[mm]
Tun / DB nr.NOB nr.Qty per BoxWeight[kg]A[mm]B[mm]Thickness[mm]∅
NP20/40/1200774224021594015150.74012002Ø5
NP20/60/1200129224943899565101.16012002Ø5
NP20/80/1200129225041497017101.48012002Ø5
NP20/100/120021842654149702551.710012002Ø5
NP20/120/120021842734149703352.112012002Ø5
NP20/140/120034013124149704152.414012002Ø5
NP20/160/120034013204149705852.816012002Ø5
NP20/180/120034013384149706653.118012002Ø5
NP20/200/120018061454149707453.520012002Ø5
NP20/220/1200-B--53.822012002Ø5
NP20/240/1200-B--54.124012002Ø5
NP20/260/1200-B--54.526012002Ø5
NP20/280/1200-B--54.828012002Ø5
NP20/300/1200-B--35.230012002Ø5
