CLR Plus P

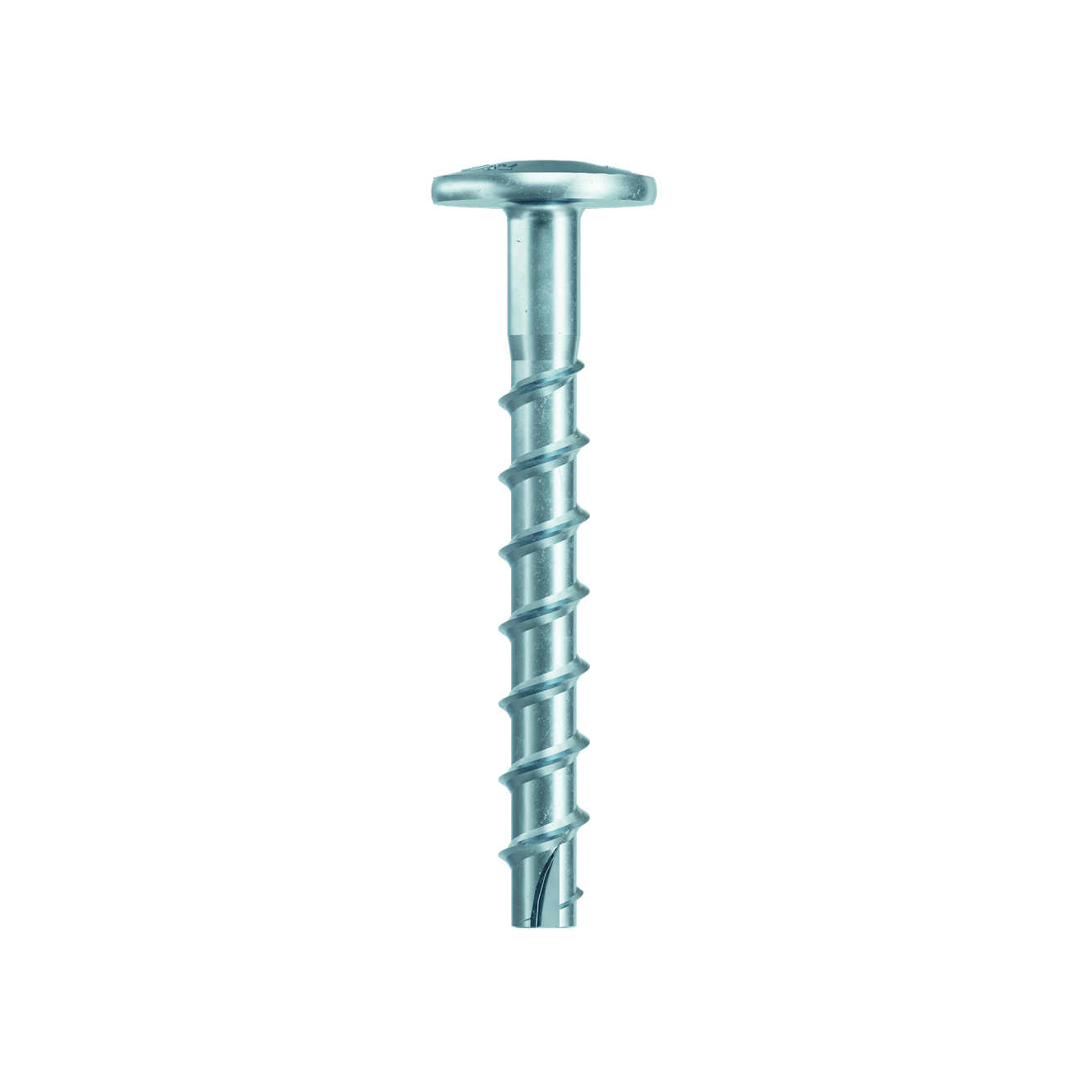

Pan-Head Concrete Screws

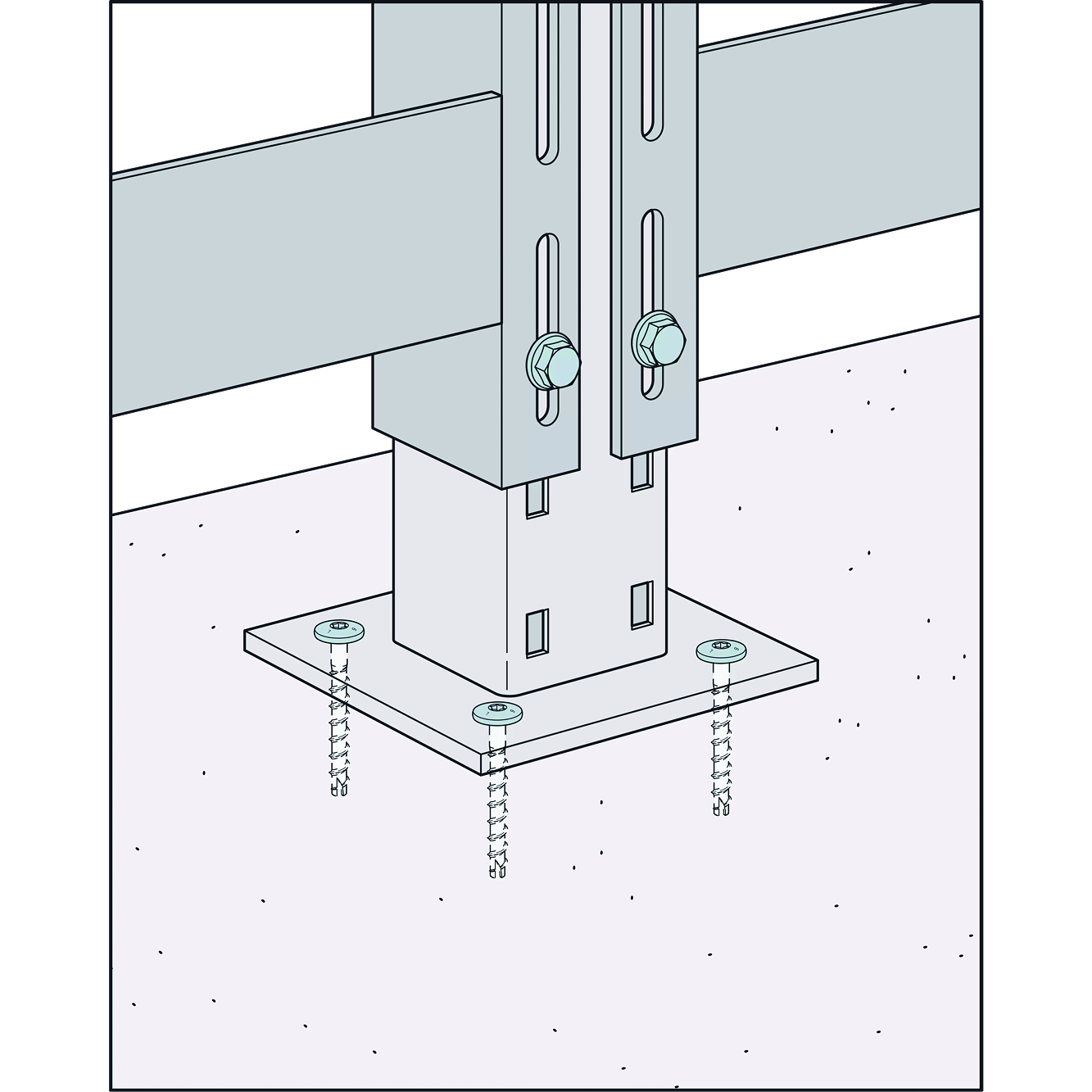

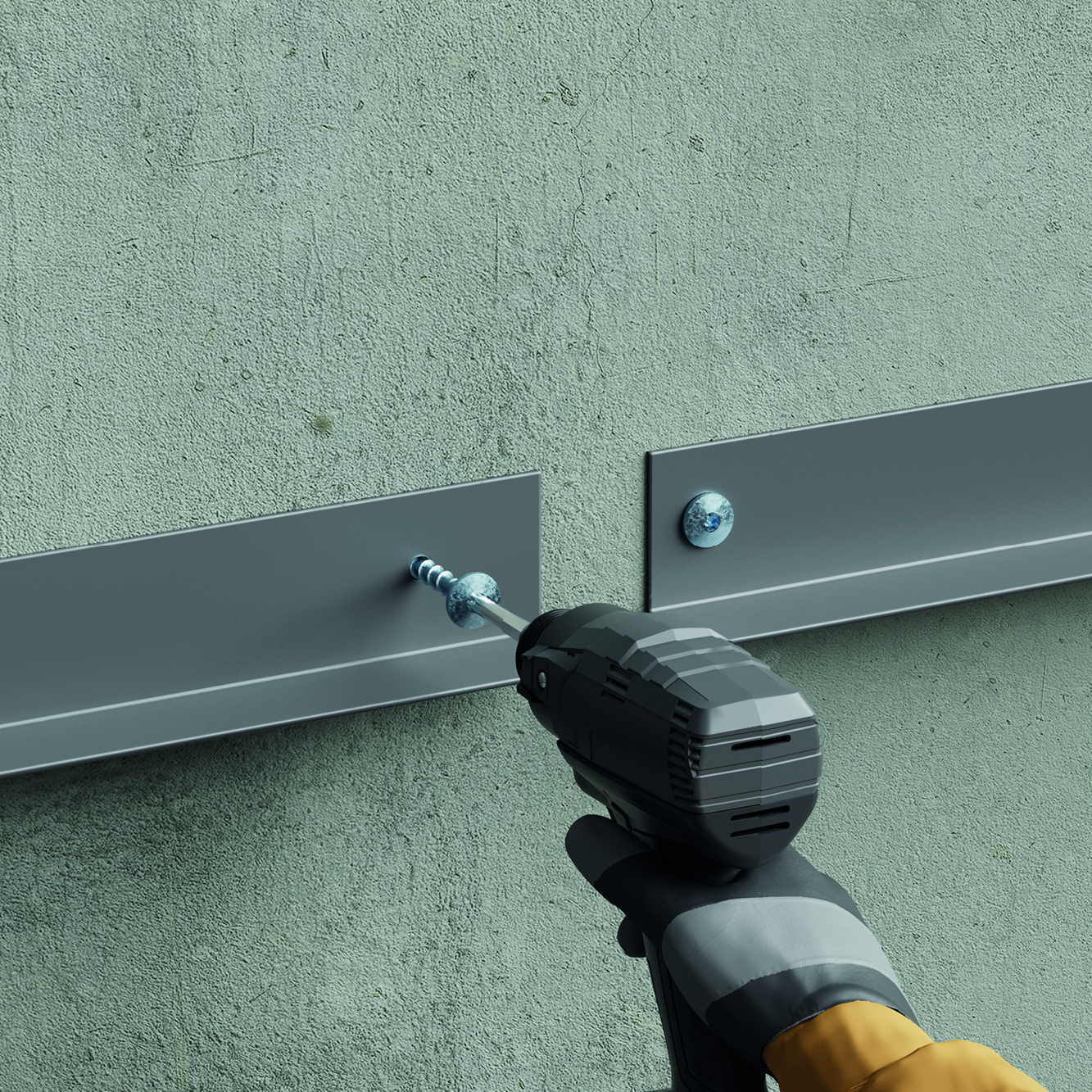

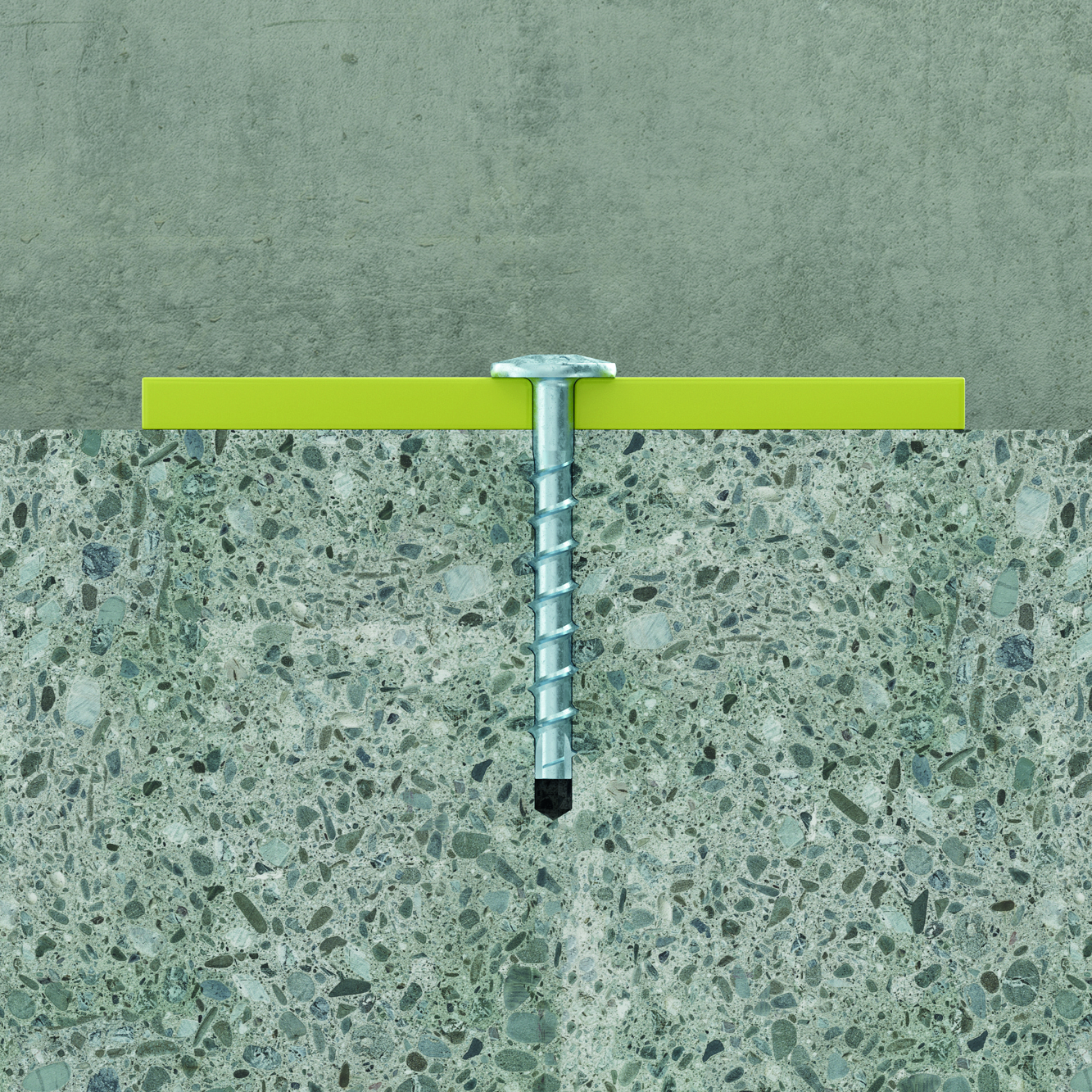

Pan-head screws are used in a lot of cases when small protrusion from the fixed object is preferred and when for aesthetical reasons the hexagonal head is not the best solution.

CE Marking

Seismic C1
Technical Data
Product dimensions
| Reference | Metallic fixings dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
| Item code | Other | Product Dimensions[mm] | ||||||
| Hole diameter [dₒ][mm] | Fixing thickness (tfix) for reduced embedment depth (hef,r) | Fixture thickness [tfᵢₓ] (¹)[mm] | Fixing thickness (tfix) for increased embedment depth (hef,max) | Qty per box[pcs] | Qty per outer box | Dim[mm] | ||
| CLR PLUS P 6x40 | 72106B0604000 | 6 | 5 | - | - | 100.0 | 400 | 6x40 |
| CLR PLUS P 6x60 | 72106B0606000 | 6 | 25 | 20 | 5 | 100.0 | 400 | 6x60 |
CAD and BIM Library
2D
CLR PLUS P 6x60
-
-
-
-
CLR PLUS P 6x40
-
-
-
-
3D
CLR PLUS P 6x60
-
-
-
-
-
CLR PLUS P 6x40
-
-
-
-
-
