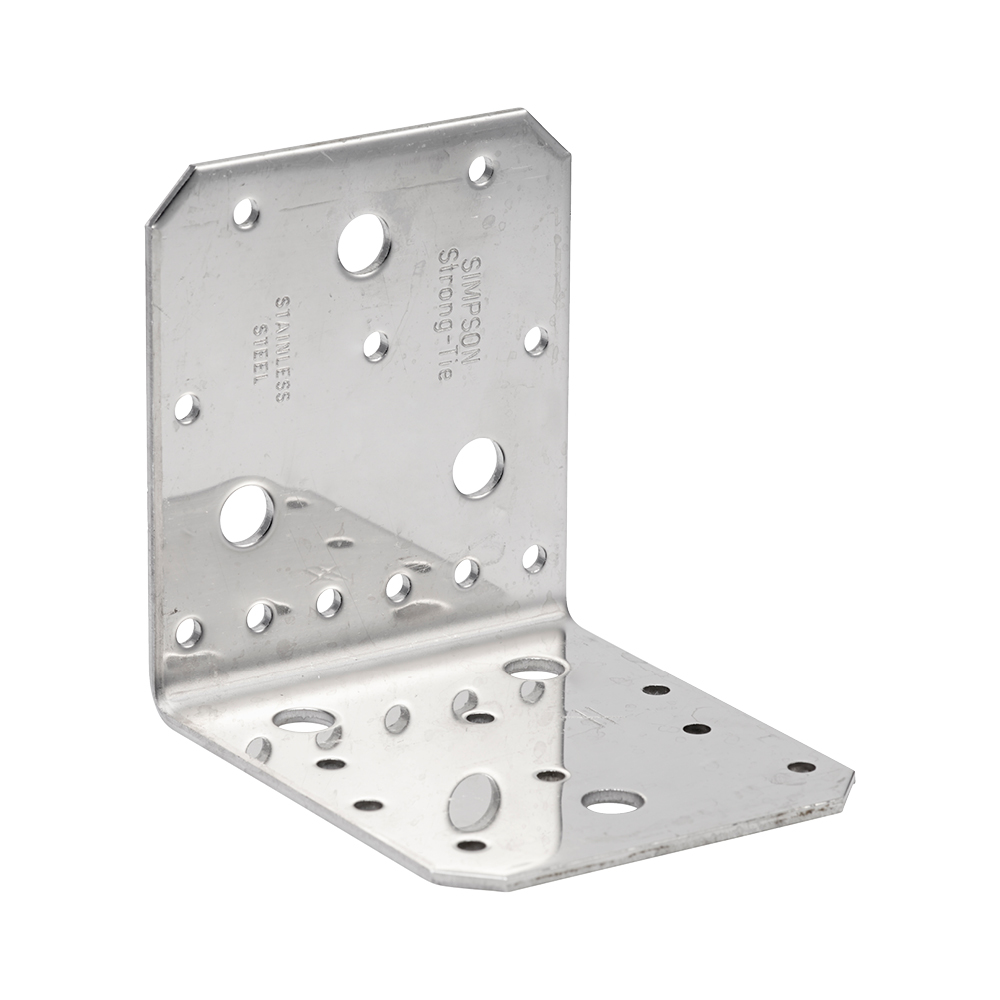

AB-S

No dimple-ribs, stainless steel (70 90 105)

They are suitable for joints in load-bearing wood construction. In the case of increased demands on load capacity, we recommend using the crease. AB angle is suitable as connecting means for the connection with a small load. They are suitable for joints in wood and other materials with nails or screws.
DoP:
DE-DoP-E06 / 0106

Technical Data Sheet

CE Marking

ETA

Stainless steel A4

Service class 3

EPD

Product Details

Images

Features

Material

Steel quality:
• Stainless steel 1.4401 or 1.4404 (V4A), in accordance with EN10088.
• Resistance to acid - A4

Benefits

• load distribution in all directions, improved values for load capacity

• Suitable for joints in wood and concrete using anchor bolts

• Suitable for attaching beams medium size.

Application

Applicable materials

• Suitable for connections wood-wood, concrete, steel.

Application area

• Angles AB70,90,105 without ribs are also suitable for transverse joints and beams and columns, in the case of increased demands on load capacity, we recommend using the crease.

Technical Data

Product Dimensions

Dimensions

Reference	Connector Dimensions
	Other				Product Dimensions[mm]				Joist[mm]			Flange B[mm]
	Tun / DB nr.	NOB nr.	Qty per Box	Weight[kg]	A[mm]	B[mm]	C[mm]	Thickness[mm]	Round			Round
	Tun / DB nr.	NOB nr.	Qty per Box	Weight[kg]	A[mm]	B[mm]	C[mm]	Thickness[mm]	Ø5[mm]	Ø8.5[mm]	Ø11[mm]	Ø5[mm]	Ø8.5[mm]	Ø11[mm]

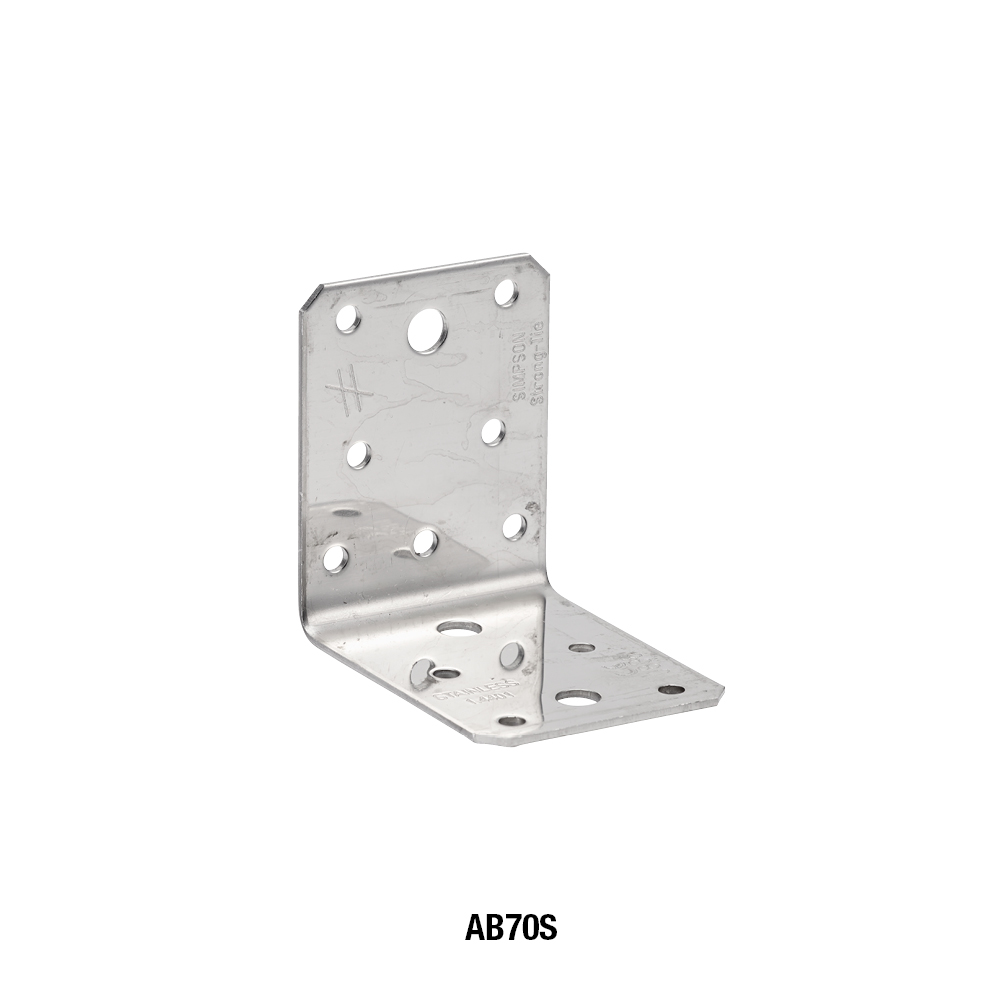

AB70S	5650114	22062855	100.0	0.11	70	70	55	2	4	2	-	7	1	-

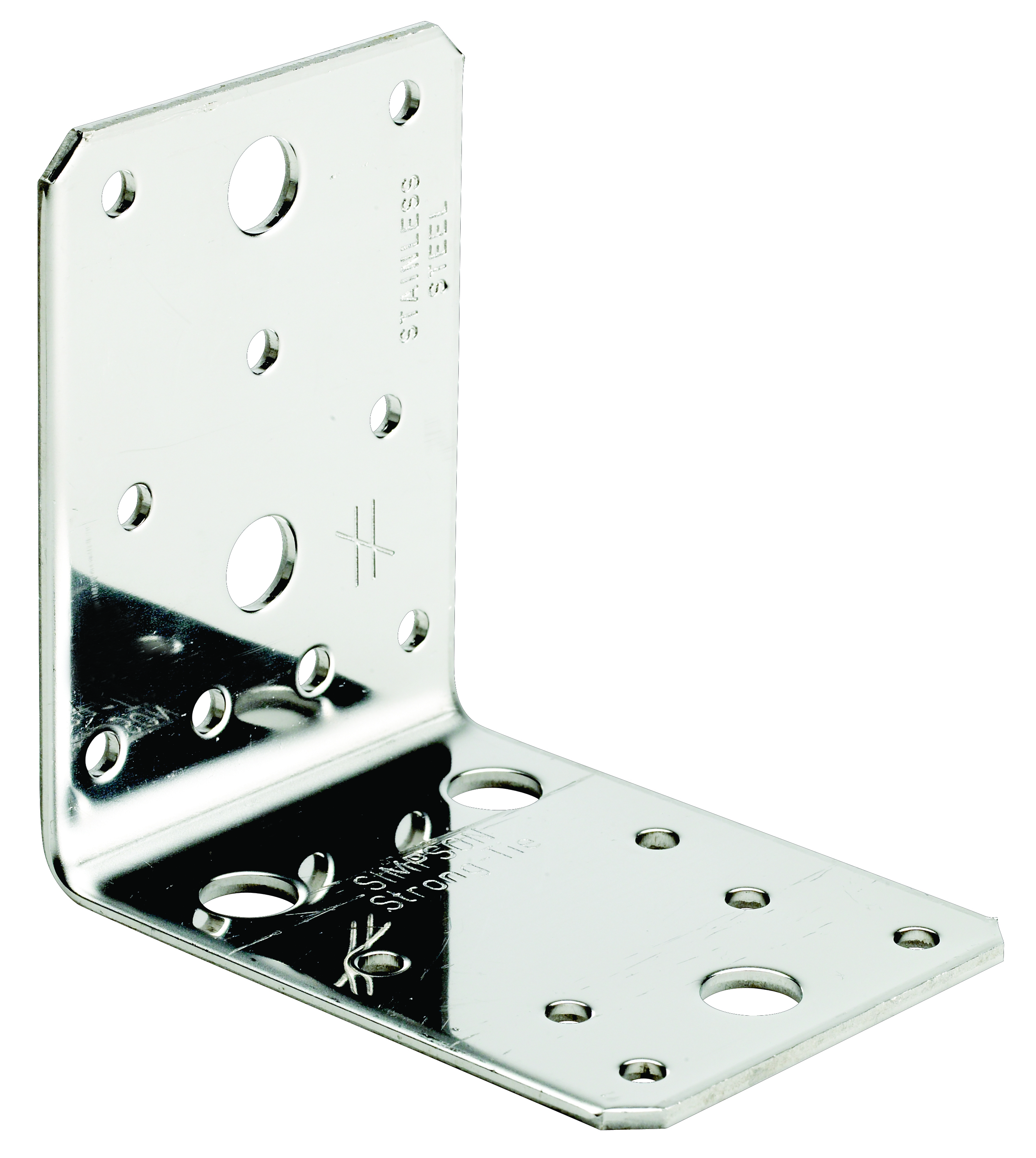

AB90S	2914711	21221387	100.0	0.2	88	88	65	2.5	6	-	3	9	-	2

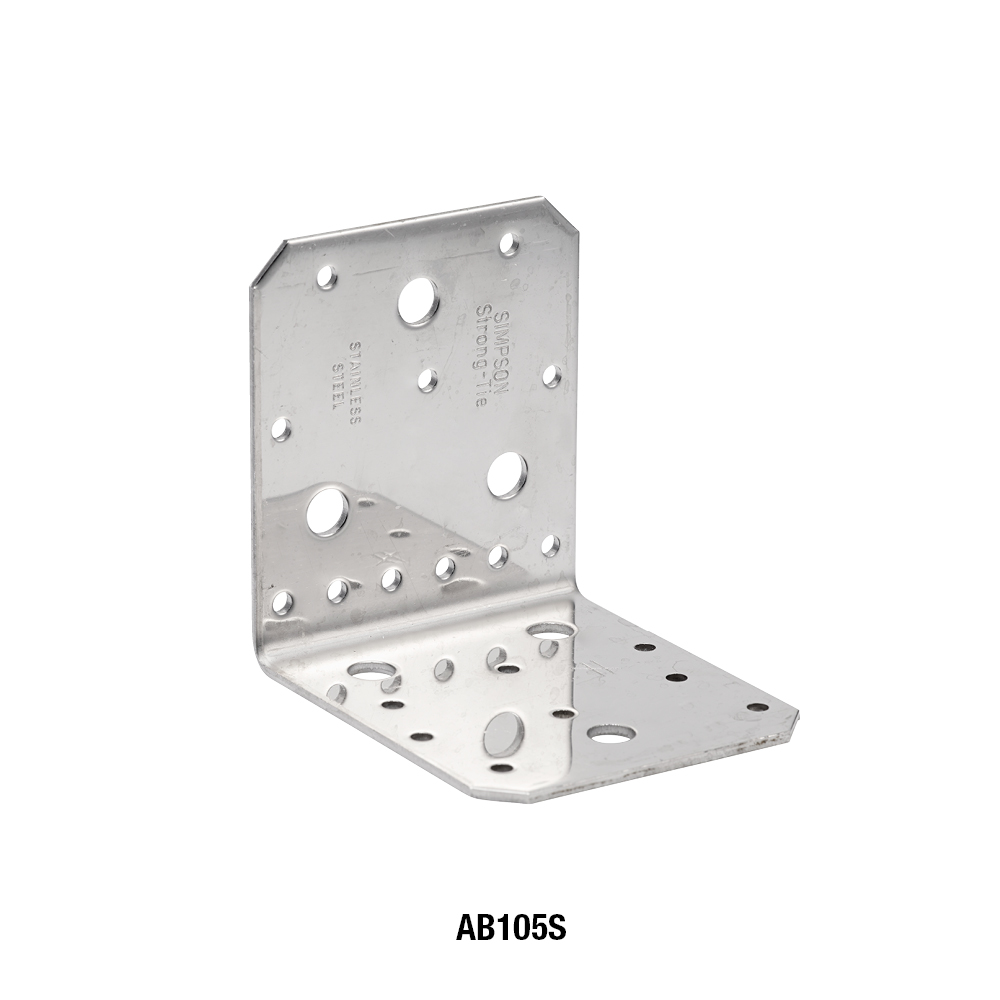

AB105S	2914661	21221403	50.0	0.38	103	103	90	3	8	-	3	11	-	3

Product capacities - Beam to beam - maximum nailing

Reference	Angle bracket capacity
	Product capacities - Beam to beam - Full nailing
	Characteristic Capacities - Timber C24 - 2 angle brackets per connection[kN]										Number of Fasteners
	R1.k (Tensile)				R2.k = R3.k (Shear)				R4,k = R5,k (1)		Joist	Flange B
	CNA4.0x35	CNA4.0x40	CNA4.0x50	CNA4.0x60	CNA4.0x35	CNA4.0x40	CNA4.0x50	CNA4.0x60	CNA4.0x40	CNA4.0x60	Qty	Qty
AB70S	3.1/kmod^0.3	3.8/kmod^0.3	5.0/kmod^0.3	-	-	5.3	-	-	1.4/kmod^0.3	-	4.0	7.0
AB90S	4.2/kmod^0.3	5.1/kmod^0.3	6.7/kmod^0.3	7.5/kmod^0.3, max: 6.9/kmod	6.8	7.1	9.4	10.4	1.9/kmod^0.3	2.5/kmod^0.5	6.0	9.0
AB105S	7.0/kmod^0.3	8.5/kmod^0.3	11.2/kmod^0.3	12.7/kmod^0.3	12.2	13.3	16.9	18.1	3.3/kmod^0.3	4.7/kmod^0.3	8.0	11.0

1) R_4/5,k is determined for beam width b = 75 mm and essentricity e = 130 mm. See ETA for other values of b and e.

Product capacitiues - Beam to beam - minimum nailing

Reference	Angle bracket capacity
	Capacities wood-wood connection / partialnailing
	Number of Fasteners		Characteristic Capacities - Timber C24 - 2 angle brackets per connection[kN]
	Joist	Flange B	R₁,ₖ		R2,k = R3,k		R4,k = R5,k(1)
	Qty	Qty	CNA4.0x40	CNA4.0x60	CNA4.0x40	CNA4.0x60	CNA4.0x40	CNA4.0x60
AB70S	2.0	3.0	3.8/kmod^0.3	-	3.8	-	1.4/kmod^0.3	-
AB90S	4.0	4.0	3.1/kmod^0.3	4.4/kmod^0.3	5.5	7.3	1.2/kmod^0.5	1.7/kmod^0.3
AB105S	4.0	5.0	5.2/kmod^0.3	7.4/kmod^0.3	4	7.5	2.1/kmod^0.5	2.9/kmod^0.4

The load capacity belongs to a load group with the modification factor k_mod.

1) R_4/5,k is determined for beam width b = 75 mm and essentricity e = 130 mm. See ETA for other values of b and e.

If the overall structure prevents the rotation of the purlin, the load values R_1,k and R_2/3,k in an assembly with only one bracket equal to half of the given value in table 2. See ETA if the purlin is able to rotate.

Product capacities - Beam to column

Reference	Angle bracket capacity
	Product capacities - Timber column to beam
	Number of Fasteners		Characteristic capacities - Timber C24 - 1 angle brackets per connection[kN]
	Joist	Flange B	R2,k = R3,k		R₁,ₖ
	Qty	Qty	CNA4.0x40	CNA4.0x60	Flap turned downwards		Flap turned upwards
	Qty	Qty	CNA4.0x40	CNA4.0x60	CNA4.0x40	CNA4.0x60	CNA4.0x40	CNA4.0x60
AB90S	4.0	4.0	0.7/ kmod	0.7/ kmod	4.0/ kmod^0.75	4.0/ kmod^0.75	5.2/ kmod^0.55	5.2/ kmod^0.55
AB105S	6.0	5.0	1.4/ kmod	1.4/ kmod	8.1/ kmod^0.75	8.1/ kmod^0.75	10,0; max:9,8/ kmod	9.4/ kmod^0.6

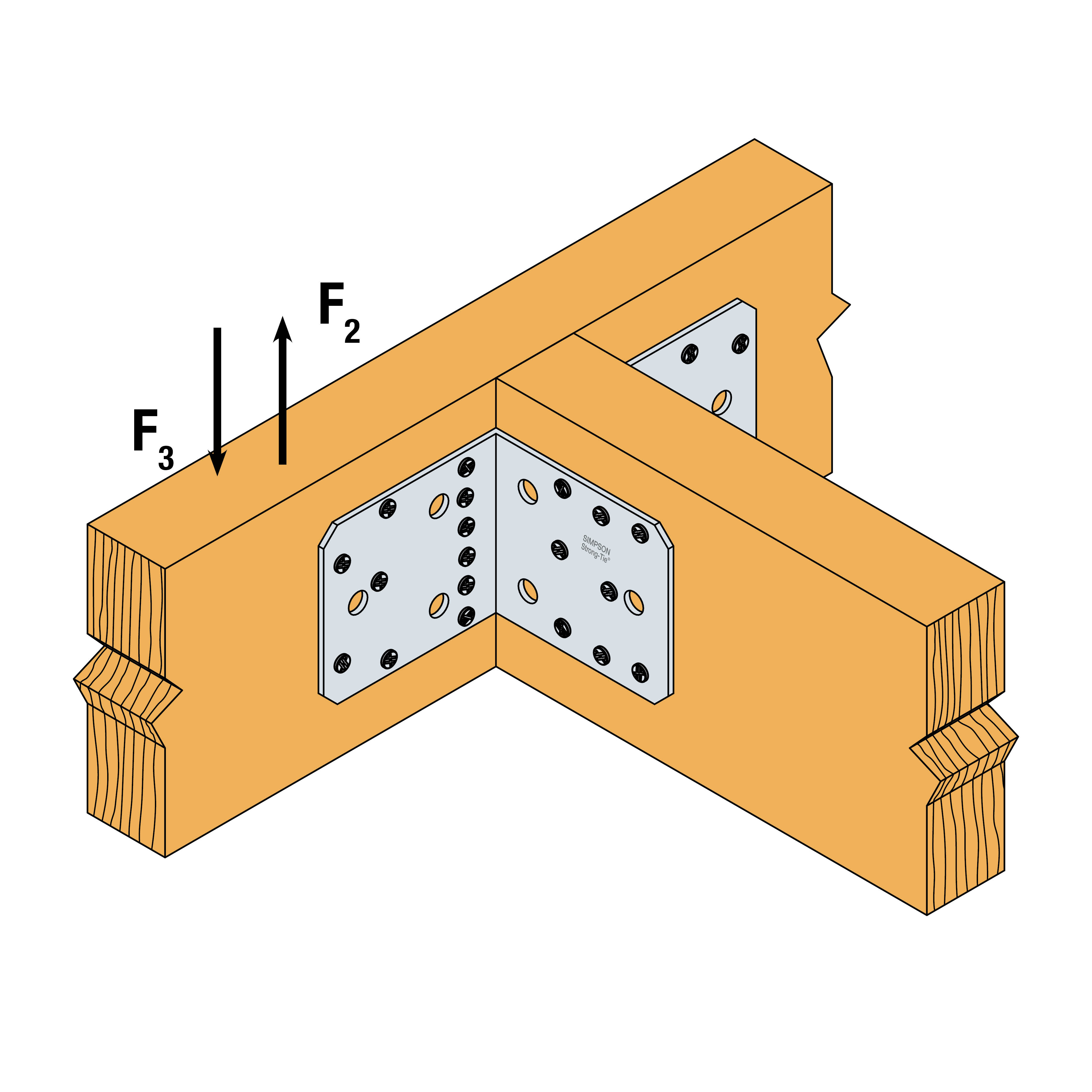

Product capacities - trimmer connection

Reference	Angle bracket capacity
	Product capacities - Trimmer connection
	Number of Fasteners		Characteristic Capacities - Timber C24 - 2 angle brackets per connection[kN]
	Joist	Flange B	R2,k = R3,k
	Qty	Qty	CNA4.0x40	CNA4.0x60
AB90S	9.0	6.0	7.2	10.2
AB105S	11.0	8.0	13.3	18.1

Product capacities - Timber to concrete

Reference	Angle bracket capacity
	Product capacities - Timber beam to concrete
	Number of Fasteners				Characteristic Capacities - Timber C24 - 2 angle brackets per connection[kN]
	Joist		Flange B		R₁,ₖ				R2,k = R3,k
	Qty	Type	Qty	Type	CNA4.0x35	CNA4.0x40	CNA4.0x50	CNA4.0x60	CNA4.0x35	CNA4.0x40	CNA4.0x50	CNA4.0x60
AB90S	5.0	CNA*	2.0	Ø10	5.4/kmod	5.4/kmod	5.4/kmod	5.4/kmod	4.73	5.03	6.3	6.66
AB105S	5.0	CNA*	2.0	Ø10	min(12.3 ; 11.3/kmod)	min(13.7 ; 11.3/kmod)	min(17.5 ; 11.3/kmod)	min(19.7 ; 11.3/kmod)	4.8	5.1	6.4	6.8

Simplified characteristic capacities - beam to beam

Reference	Angle bracket capacity
	Simplified product capacities - Timber to timber – Full nailing
	Number of Fasteners		Simplified characteristic capacities - Timber C24 - 2 angle brackets per connection[kN]
	Joist	Flange B	R1,k*		R2,k = R3,k*
	Qty	Qty	CNA4.0x35	CNA4.0x50	CNA4.0x35	CNA4.0x50
AB90S	6.0	9.0	4.3	6.9	6.8	9.4
AB105S	8.0	11.0	7.2	11.5	12.2	16.9

The published characteristic capacity is based on short term load duration and service class 2 according to EC5 (EN 1995) – k_mod = 0.9. For other load duration and service class, please refer to the ETA to get more accurate capacities.

Simplified characteristic capacities - beam to concrete

Reference	Angle bracket capacity
	Simplified product capacities - Timber to Concrete
	Number of Fasteners				Simplified characteristic capacities - Timber C24 - 2 angle brackets per connection[kN]
	Joist		Flange B		R₁,ₖ		R2,k = R3,k
	Qty	Type	Qty	Type	CNA4.0x35	CNA4.0x50	CNA4.0x35	CNA4.0x50
AB90S	5.0	CNA*	2.0	Ø10	6	6	4.7	6.25
AB105S	5.0	CNA*	2.0	Ø10	12.3	12.5	4.9	6.4
