nails SN

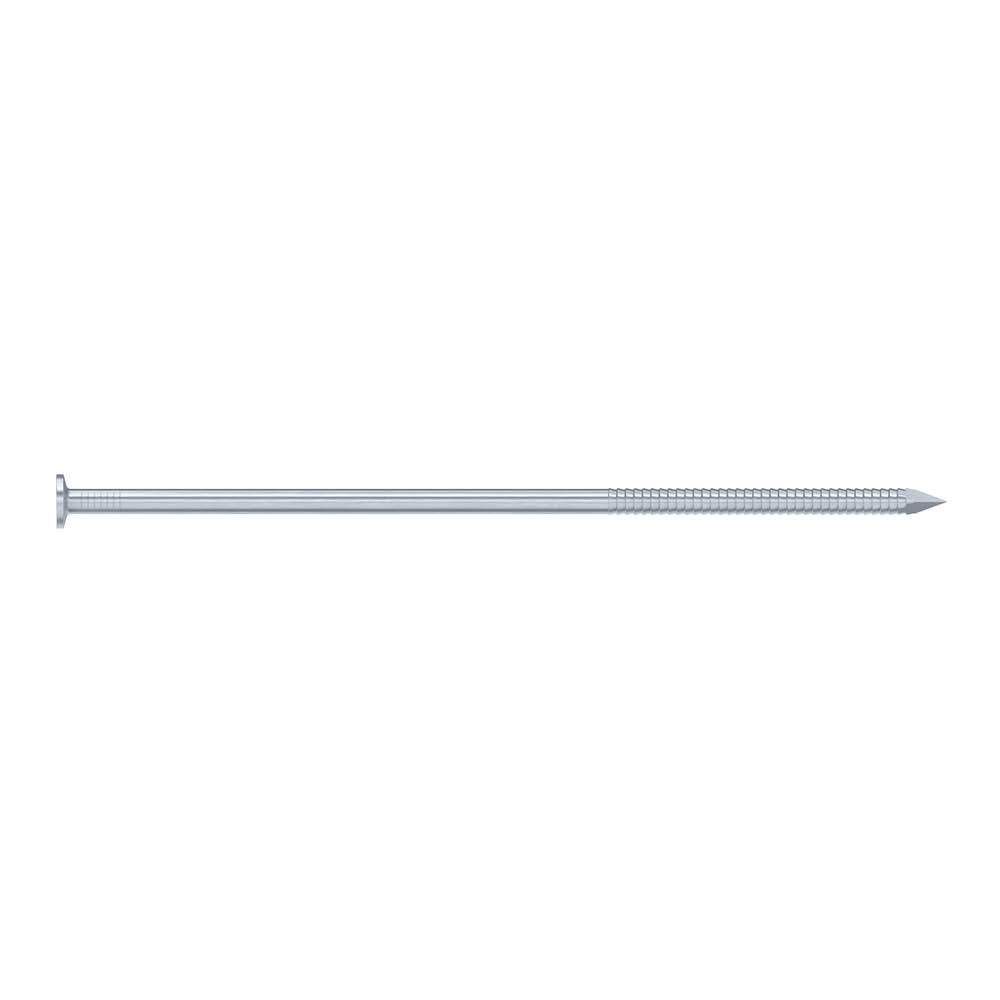

SN rafter nails are primarily intended for connection to the purlin rafters, or wherever it is needed for a longer spikes.

Technical Data Sheet

CE Marking

Service class 2

Acier électrozingué 7µm

Solid Wood

Product Details

Images

Features

Material

quality steel

according to DIN 17200 Material no. 1.0501 or 1.0503.

Corrosion protection:

Zinc electrolytic zinc layer thickness min. 7 microns
(equivalent to 50 g / m2 surface area).

Benefits

• SN rafter nails are special nails with a groove-shaped shank, which is used as a timber coupling means for supporting wooden structure
range
• etc for fixing rafters, purlins, rafters .; in roof structures, roof timbers, wood panels and other wood joints
Values for connection
R_ax = axial

R_lat side =

Galvanized 50 micron

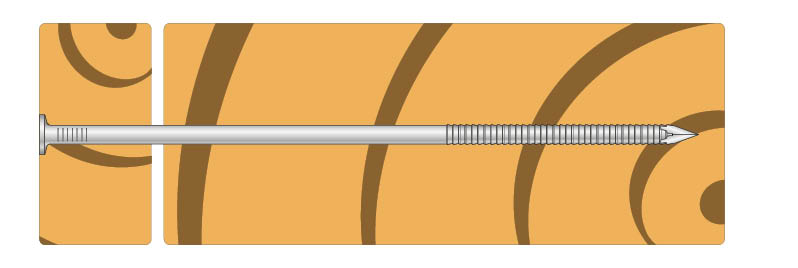

The strength of the wood must be at least 30 mm.
Mechanical strength (EN14592)

Application

Scope

For fastening rafters, purlins, roof trusses etc. In roof structures, half-timbered houses, wooden covers and other wood joints.

Technical Data

Dimensions

Product Dimensions

References	Fastener dimensions [mm]
References	d	l	d_h	A_h	h_t	l_g	l_p
SN6.0X80-DE	6	80	12.8	128.7	1.7	52	8
SN6.0X110-DE		110	12.8	128.7	1.7	72	8
SN6.0X150-DE		150	12.8	128.7	1.7	72	8
SN6.0X180-DE		180	12.8	128.7	1.7	72	8
SN6.0X210-DE		210	12.8	128.7	1.7	72	8
SN6.0X230-DE		230	12.8	128.7	1.7	72	8
SN6.0X260-DE		260	12.8	128.7	1.7	72	8
SN6.0X280-DE		280	12.8	128.7	1.7	72	8
SN6.0X300-DE		300	12.8	128.7	1.7	72	8
SN6.0X330-DE		330	12.8	128.7	1.7	72	8
SN6.0X350-DE		350	12.8	128.7	1.7	72	8

Product characteristic properties

References	Product characteristic properties
References	Characteristic Yield Moment – M_y,k [Nm]	Characteristic withdrawal parameter - f_ax,k,90° [N/mm²]	Characteristic head pull-through parameter - f_head,k [N/mm²]	Characteristic tensile capacity - f_tens,k [kN]
SN6.0X80-DE	25.9	7.3	12.7	19.4
SN6.0X110-DE	25.9	7.3	12.7	19.4
SN6.0X150-DE	25.9	7.3	12.7	19.4
SN6.0X180-DE	25.9	7.3	12.7	19.4
SN6.0X210-DE	25.9	7.3	12.7	19.4
SN6.0X230-DE	25.9	7.3	12.7	19.4
SN6.0X260-DE	25.9	7.3	12.7	19.4
SN6.0X280-DE	25.9	7.3	12.7	19.4
SN6.0X300-DE	25.9	7.3	12.7	19.4
SN6.0X330-DE	25.9	7.3	12.7	19.4
SN6.0X350-DE	25.9	7.3	12.7	19.4

Product characteristic capacities

References	Product characteristic capacities - Timber C24
	Timber to timber – 30 mm batten to truss
	R_ax.k [kN]	R_lat.k [kN]
SN6.0X80-DE	1.8	2.7
SN6.0X110-DE	2.1	2.8
SN6.0X150-DE	2.1	2.8
SN6.0X180-DE	2.1	2.8
SN6.0X210-DE	2.1	2.8
SN6.0X230-DE	2.1	2.8
SN6.0X260-DE	2.1	2.8
SN6.0X280-DE	2.1	2.8
SN6.0X300-DE	2.1	2.8
SN6.0X330-DE	2.1	2.8
SN6.0X350-DE	2.1	2.8
