ANPS

Nail plate angle bracket

he ANPS angle brackets are suitable for simple and light timber construction without static claim.

Technical Data Sheet
Service class 2
Service class 2
EPD
EPD
Electrogalvanized steel Z275
Electrogalvanized steel Z275

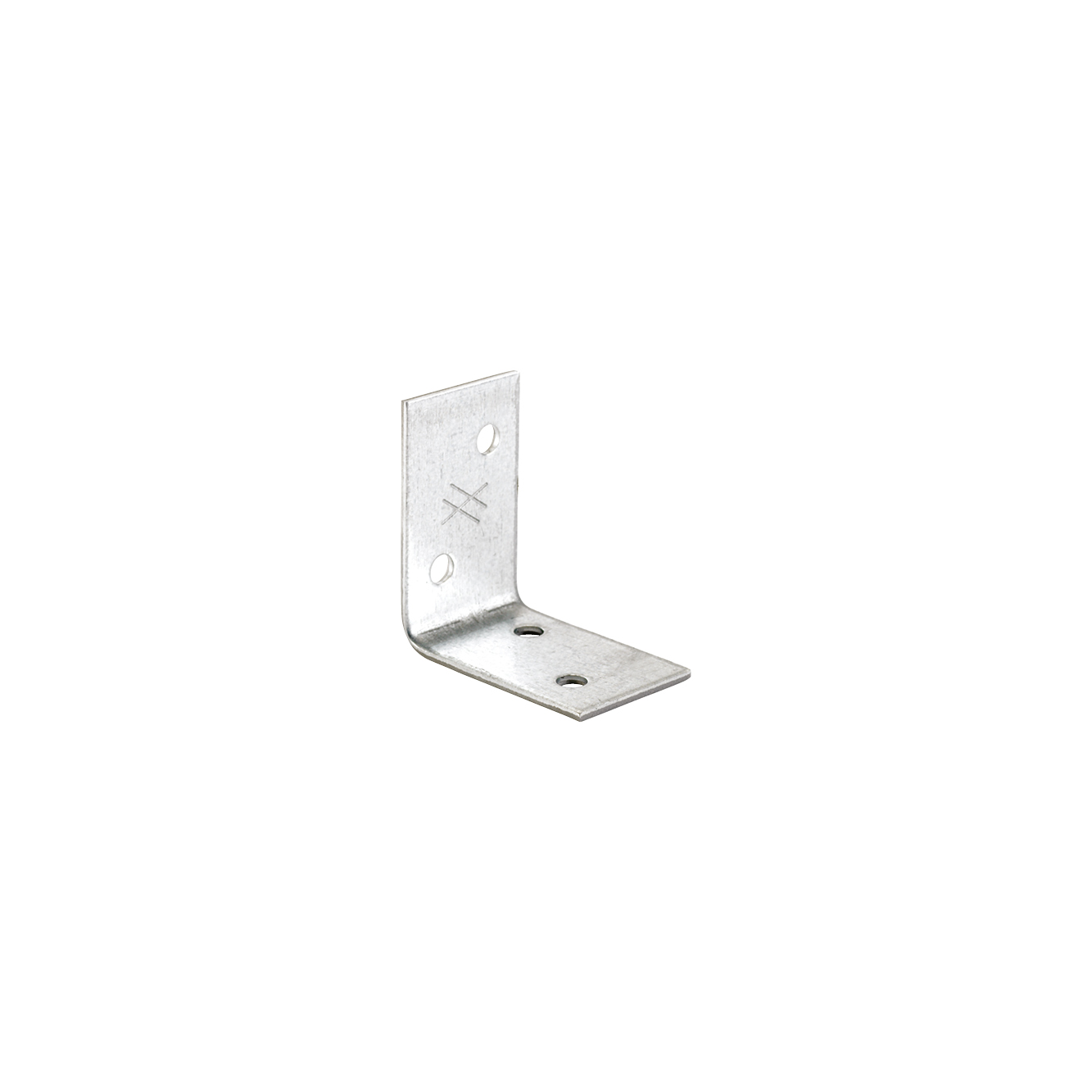

ANPS main image

Product Details

Images


Features

Material

Steel quality:
S250GD + Z275 according to DIN EN10346

Corrosion protection:
275 g / m galvanized on both sides 20mm



Benefits

• Optimal use in many areas. The number of openings allows different combinations of connectivity, load according to ETA



Application

Applicatons

Supporting member:
Solid wood, engineered wood

Supported member:
Solid wood, engineered wood

Scope

  • The ANP angle connector of perforated sheets are suitable for cross connections, replacements and beam / post connections.

Technical Data

Product Dimensions

Dimensions

Product Dimensions
Product Dimensions
ReferenceConnector Dimensions
OtherProduct Dimensions[mm]Joist[mm]Flange B[mm]
Tun / DB nr.NOB nr.Qty per BoxWeight[kg]A[mm]B[mm]C[mm]Thickness[mm]RoundRound
Ø5[mm]Ø5[mm]
ANPS204425473305121220850200.00.031424225222
ANPS204440510471743910746200.00.054424240233
ANPS204625473306921220868200.00.037624225232
ANPS204460129225242290254200.00.07424260255
ANPS206625473307721220876200.00.044626225233
ANPS206640530383043910765100.00.071626240255
ANPS206650141904946403352150.00.09626250266
ANPS206660129225342163342100.00.11626260288
ANPS206680580452042290265100.00.1462628021111
ANPS208860141905143910792100.00.1482826021010
ANPS20888053038324391080350.00.1982828021414

Installation

Installation

Fasteners

  • The fixing needs to be done with CNA4,0xl threaded nails or CSA5,0xl screws.

Certification

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors

CAD and BIM Library

2D

ANPS206640

ANPS206660

ANPS204440

ANPS208860

ANPS208880

ANPS206650

ANPS204625

ANPS206625

ANPS204460

ANPS206680

ANPS204425

3D

ANPS206640

ANPS206660

ANPS204440

ANPS208860

ANPS208880

ANPS206650

ANPS204625

ANPS206625

ANPS204460

ANPS206680

ANPS204425

3D Simplified

ANPS206640

ANPS206660

ANPS204440

ANPS208860

ANPS208880

ANPS206650

ANPS204625

ANPS206625

ANPS204460

ANPS206680

ANPS204425
