ANP

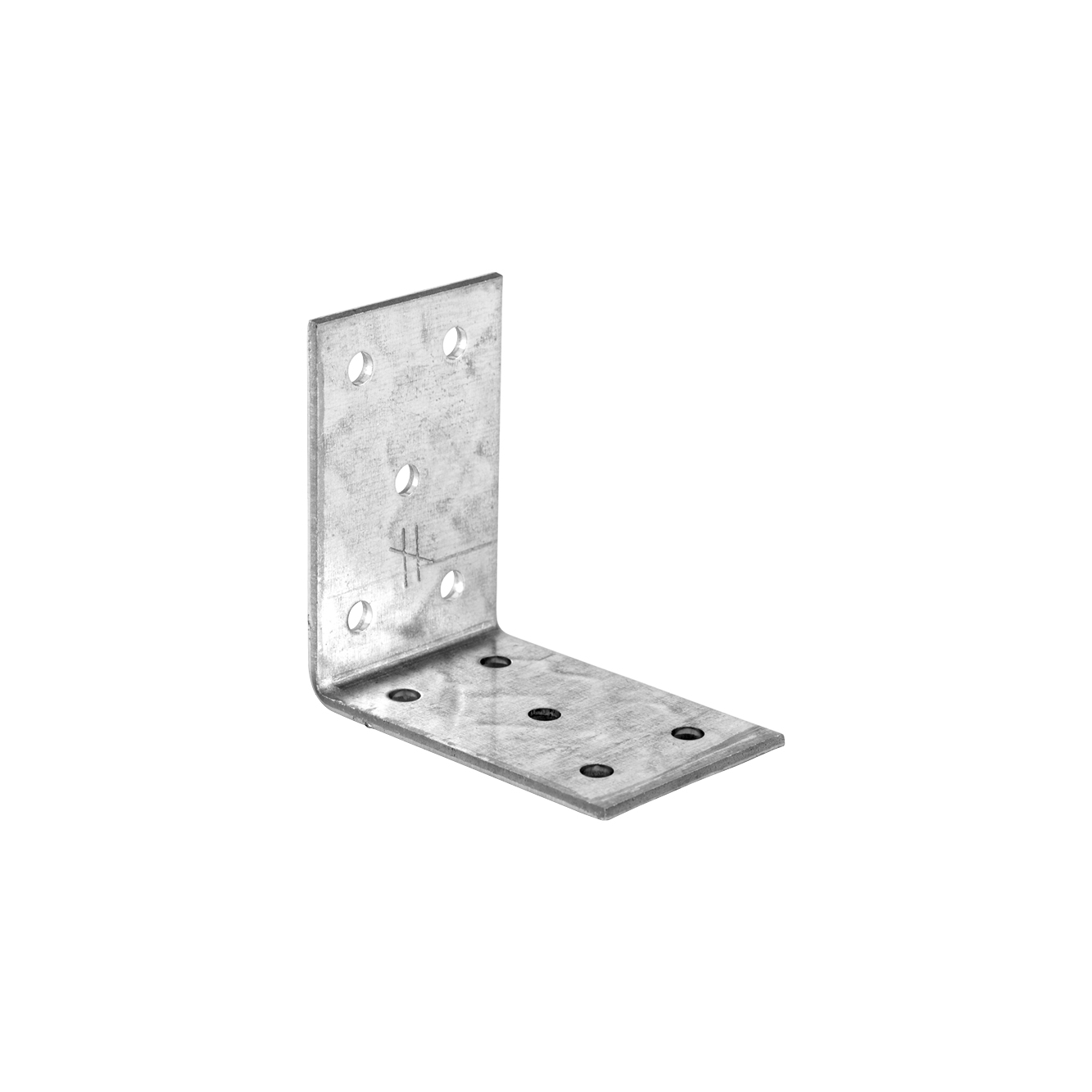

Nail plate angle bracket

The ANP angle brackets are suitable for crossing wood / wood connections, replacements and sleepers / post connections.


CE Marking
CE Marking
ETA
ETA
EPD
EPD
Service class 2
Service class 2
Available in Connector Selector
Available in Connector Selector

Product Details

Images

Features

Material

Steel quality:
S250GD + Z275 according to DIN EN10346

Corrosion protection:
275 g / m galvanized on both sides 20mm



Benefits

  • The angle connector of perforated sheets are available in many different sizes.
  • Optimal use in many areas. The number of openings allows different combinations of connectivity, load according to ETA.

Application

Applicatons

Supporting member:
Solid wood, engineered wood

Supported member:
Solid wood, engineered wood

Scope

  • The ANP angle connector of perforated sheets are suitable for cross connections, replacements and beam / post connections.

Technical Data

Product Dimensions

Dimensions

ReferenceConnector Dimensions
OtherProduct Dimensions[mm]Joist[mm]Flange B[mm]
Tun / DB nr.NOB nr.Qty per BoxWeight[kg]A[mm]B[mm]C[mm]Thickness[mm]RoundRound
Ø5[mm]Ø5[mm]
ANP254440 *774239828998490200.00.06242.542.5402.533
ANP254460 *164404621221080150.00.08942.542.5602.555
ANP254660825816221221098150.00.1142.562.5602.575
ANP256640 *168063621221114100.00.0962.562.5402.555
ANP256650565039521221015150.00.1162.562.5502.566
ANP256660461872421221122100.00.1462.562.5602.588
ANP256680164405321221130100.00.1862.562.5802.51111
ANP256610056533994391085650.00.2262.562.51002.51414
ANP256860 *825817021221148100.00.1662.582.5602.5108
ANP2561060825818821221106100.00.1862.5102.5602.5128
ANP258860565041143910875100.00.1882.582.5602.51010
ANP25888077424064391088650.00.2482.582.5802.51414
ANP258810016843694731314050.00.382.582.51002.51818
ANP2510106056533812899422650.00.22102.5102.5602.51313
ANP2510108058045512338309450.00.3102.5102.5802.51818
ANP25101010056533732899426750.00.37102.5102.51002.52323
ANP25102010018689342122094225.00.56202.5102.51002.54523

*) Currently without ETA / CE mark.





Capacities wood-wood connection - Full Nailing

ReferenceAngle bracket capacity
Product capacities - Timber to timber - Beam to beam - Full nailing
Number of FastenersCharacteristic capacity - 2 angle brackets per connection - full nailing[kN]
JoistFlange BR₁,ₖR₂,ₖ=R₃,ₖ[kN]
QtyQtyCNA4.0x40CNA4.0x50CNA4.0x60CNA4.0x40CNA4.0x50CNA4.0x60
ANP254660333.484.645.83.744.685.32
ANP256650222.823.43.962.883.583.96
ANP256660333.64.85.73.384.24.68
ANP256680445.126.287.426.027.58.42
ANP2566100555.97.849.267.969.9411.06
ANP2561060653.945.266.585.747.17.7
ANP258860453.884.95.923.964.945.54
ANP258880665.346.67.267.288.989.9
ANP2588100786.448.149.749.211.4612.7
ANP25101060653.884.966.045.867.227.88
ANP25101080885.466.57.167.769.6410.6
ANP2510101001086.488.39.6411.0213.6415
ANP25102010016107.189.5611.9613.1416.1417.52

Combined load:

\left(\frac{F_{1,d}} {R_{1,d}}\right)^2+\left(\frac{F_{2/3,d}} {R_{2/3,d}}\right)^2\le1

Product capacities - Column to beam - Maximum nailing

ReferenceAngle bracket capacity
Product capacities - Timber to timber - Partial nailing
Number of FastenersCharacteristic capacity - 2 angle brackets per connection - full nailing[kN]
JoistFlange BR₁,ₖR₂,ₖ=R₃,ₖ
QtyQtyCNA4.0x40CNA4.0x50CNA4.0x60CNA4.0x40CNA4.0x50CNA4.0x60
ANP25610604.05.03.945.266.583.083.784.1
ANP2588603.05.03.884.95.923.163.884.22
ANP2588804.06.05.346.67.265.146.427.02
ANP25881005.08.06.448.149.747.268.99.66
ANP251010605.05.03.884.966.044.96.066.68
ANP251010806.06.05.466.57.165.967.388.16
ANP2510101008.08.06.488.39.649.5611.812.96
ANP25102010013.010.07.189.5611.9611.213.7414.92
