Multi Angle Bracket

END type angle brackets have been completely redesigned for greater versatility in their applications.

Technical Data Sheet
Service class 2
Service class 2
EPD
EPD
Indoor
Indoor
Electrogalvanized steel Z275
Electrogalvanized steel Z275

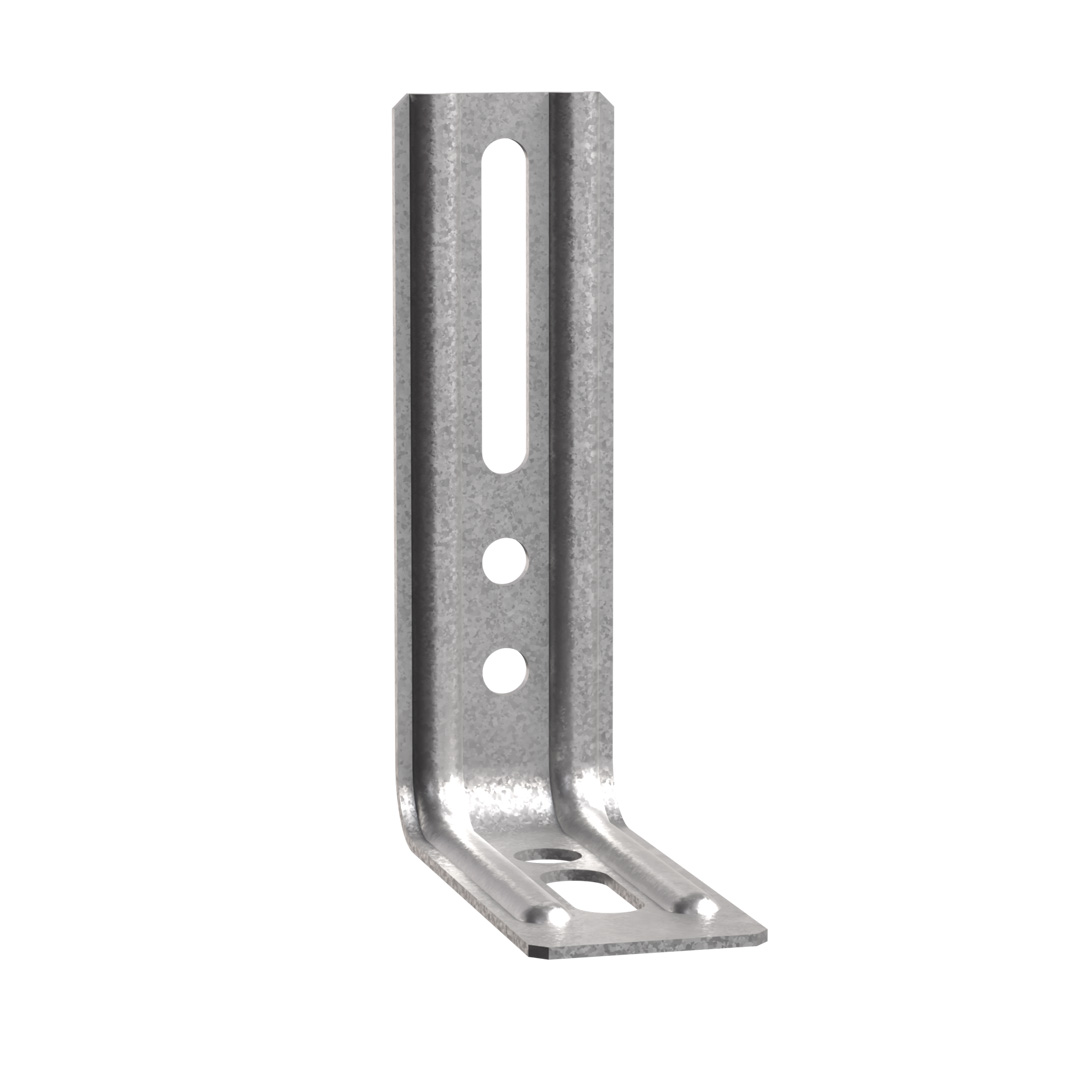

END main image

Product Details

Images

end-situation-2 2.jpg

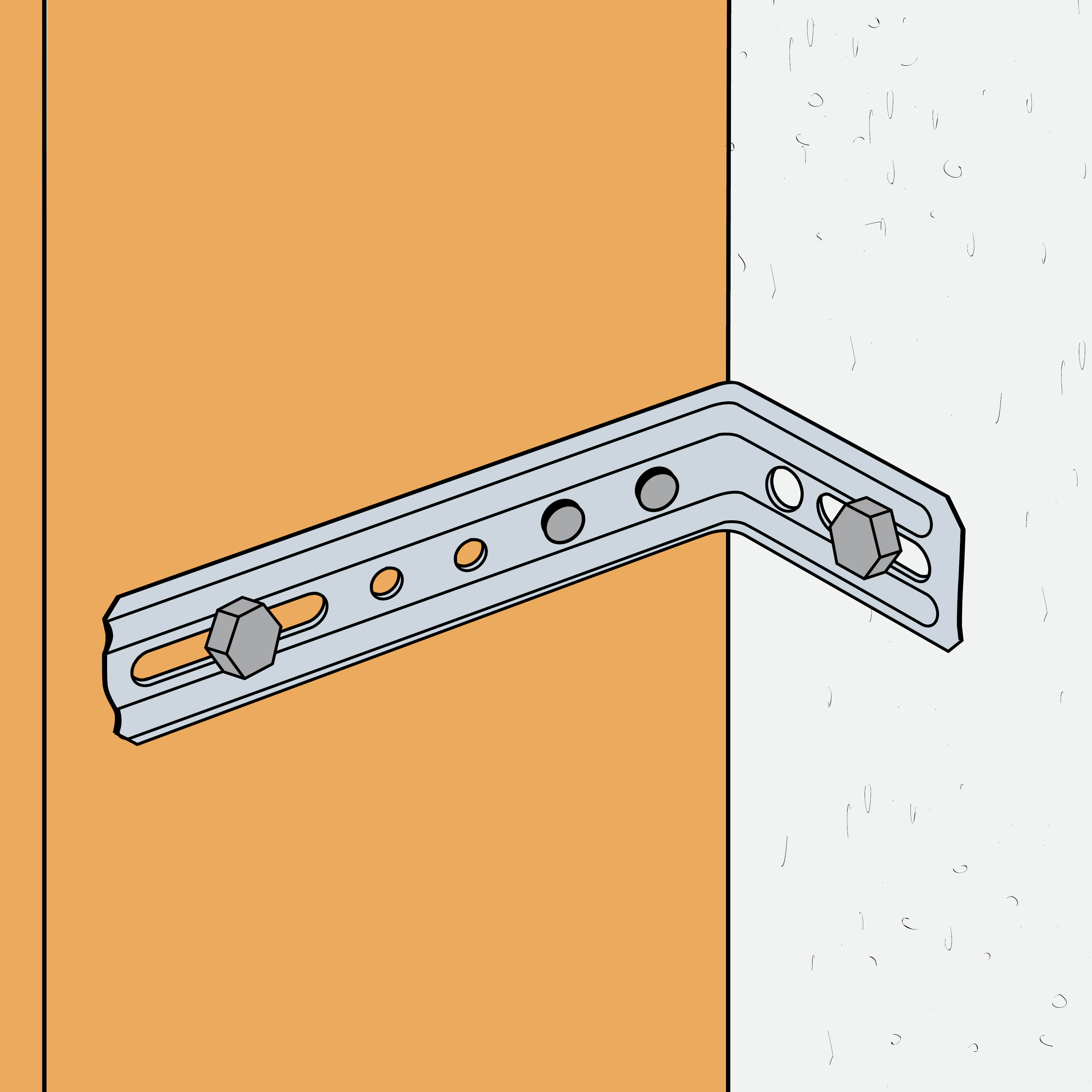

Timber to masonry connection
Timber to masonry connection

Features

Material

  • Galvanized steel S250GD + Z275 according to NF EN 10346.

Benefits

  • Wide variety of uses.
  • Wood to wood or wood to concrete.
  • Oblong slot for simpler alignment and adjustment.

Application

Header member

  • Supporting member: wood, concrete, steel, etc.
  • Supported member: PVC, wood, aluminium, steel joinery, etc.

For Use With

  • Fastening of interior and exterior joinery, etc.

Technical Data

Dimensions and Allowable values

Dimensions

Dimensions and Allowable values
Dimensions and Allowable values
ReferenceAngle bracket capacityConnector Dimensions
Other type of loadsProduct Dimensions[mm]JoistFlange BOther
Allowable loads according to DTU36.5[daN]A[mm]B[mm]C[mm]Thickness[mm]RoundObroundRound Obround Weight[kg]
R1,dØ6.5Ø6.5x20Ø6.5x30Ø6.5x45Ø9Ø9x20
END40/1.514.5 40 71.5 30 1.5----110.032
END55/1.514.5 55 71.5 30 1.5----110.036
END70/1.514.5 70 71.5 30 1.5----110.04
END85/1.514.5 85 71.5 30 1.51---110.045
END100/1.514.5 100 71.5 30 1.52---110.05
END115/1.514.5 115 71.5 30 1.53---110.055
END130/1.514.5 130 71.5 30 1.54---110.06

Installation

Installation

Fixing

On wood:

  • CNA annular ring-shank nails 4.0 mm.
  • CSA screw 5.0 mm.

On concrete:

  • HIPC 8-60/20 drive anchors.

On metal:

  • Bolts dia. 8 mm.

Installation

  • Use appropriate screws.
end-situation-2 2.jpg

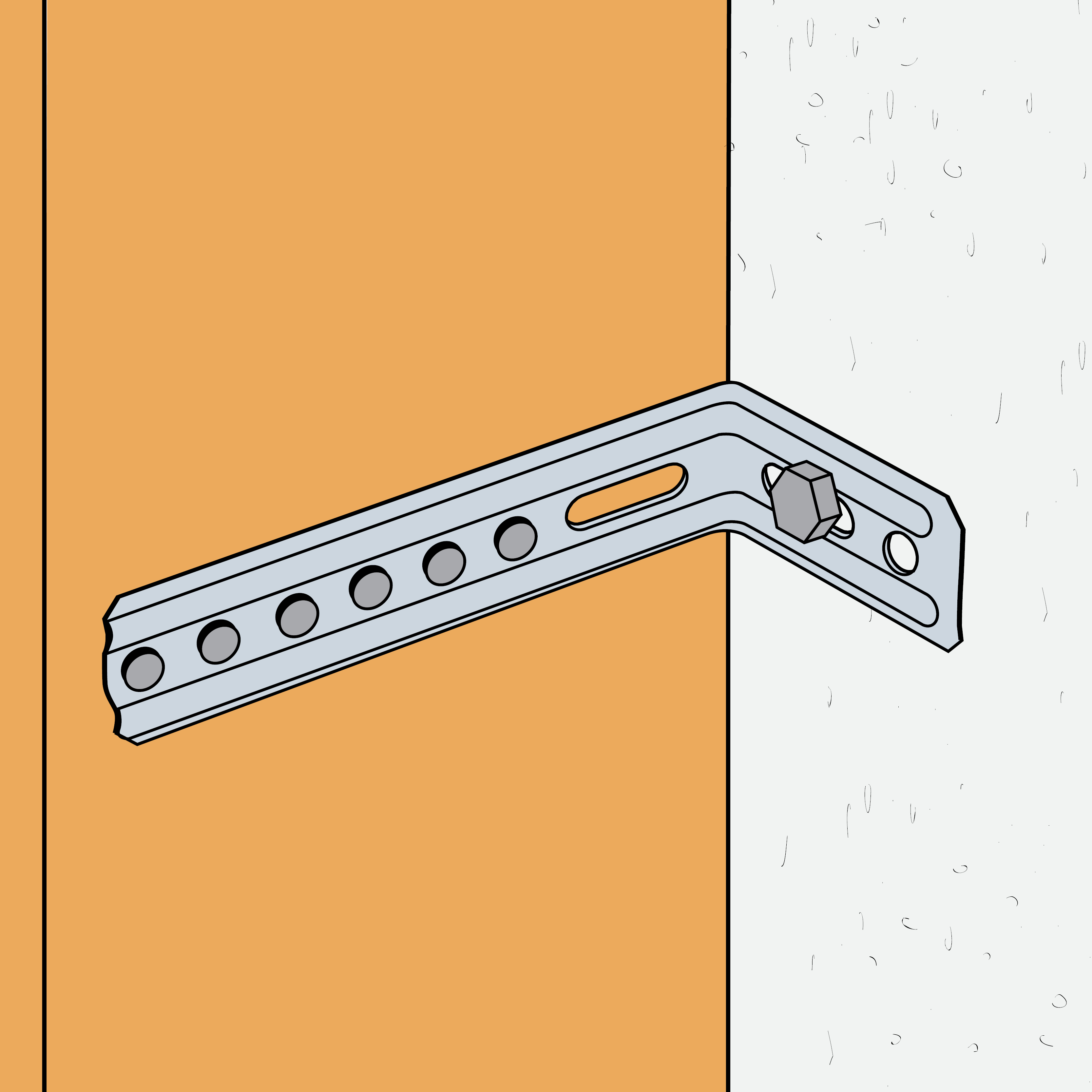

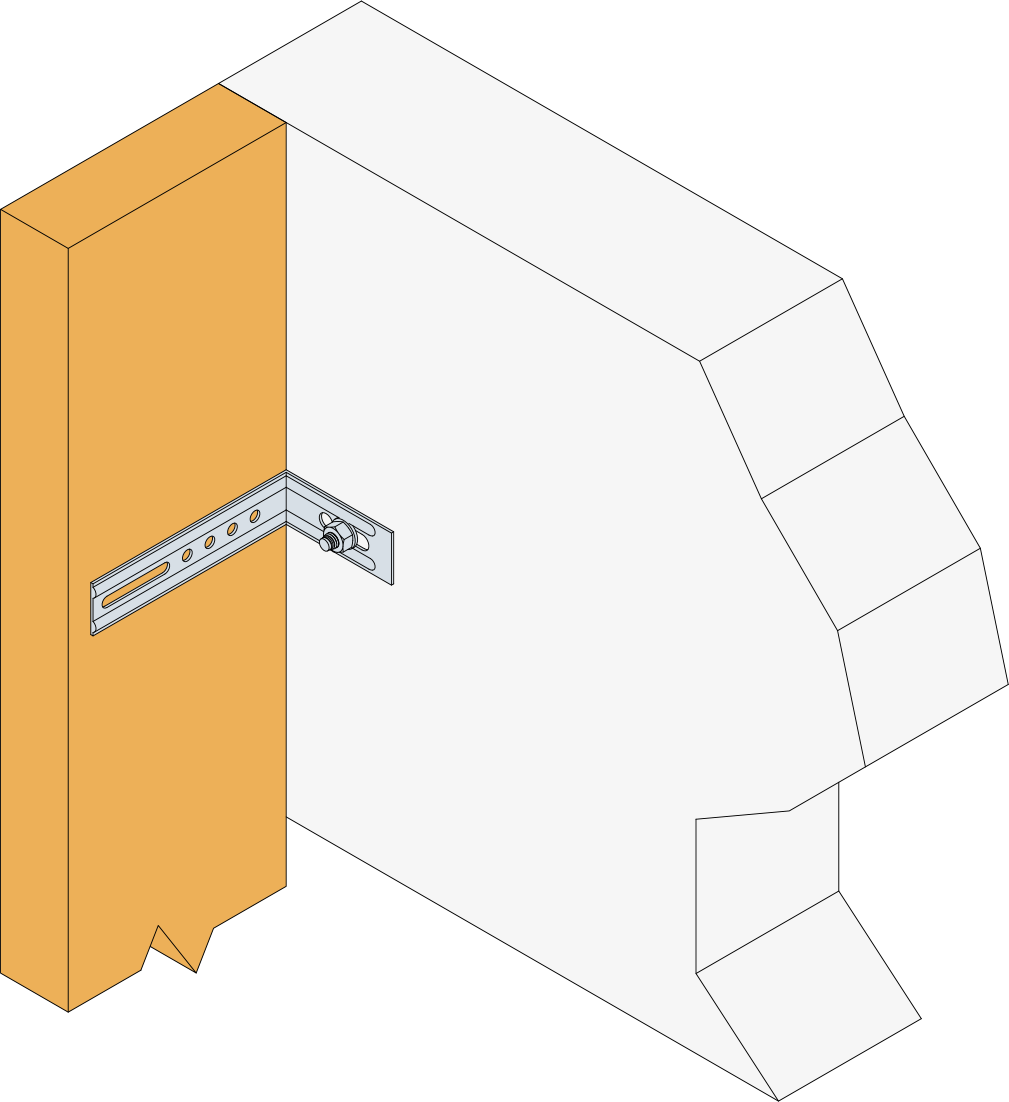

Timber to masonry connection
Timber to masonry connection

Certification

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors

Related Products

CAD and BIM Library

2D

END100/1.5

END85/1.5

END55/1.5

END115/1.5

END40/1.5

END70/1.5

END130/1.5

3D

END100/1.5

END85/1.5

END55/1.5

END115/1.5

END40/1.5

END70/1.5

END130/1.5
