EA

Light Reinforced Angle Bracket

Light reinforced angle brackets are used to assemble small structural joinery for internal and external applications.


Technical Data Sheet
Service class 2
Indoor
Electrogalvanized steel Z275
EPD

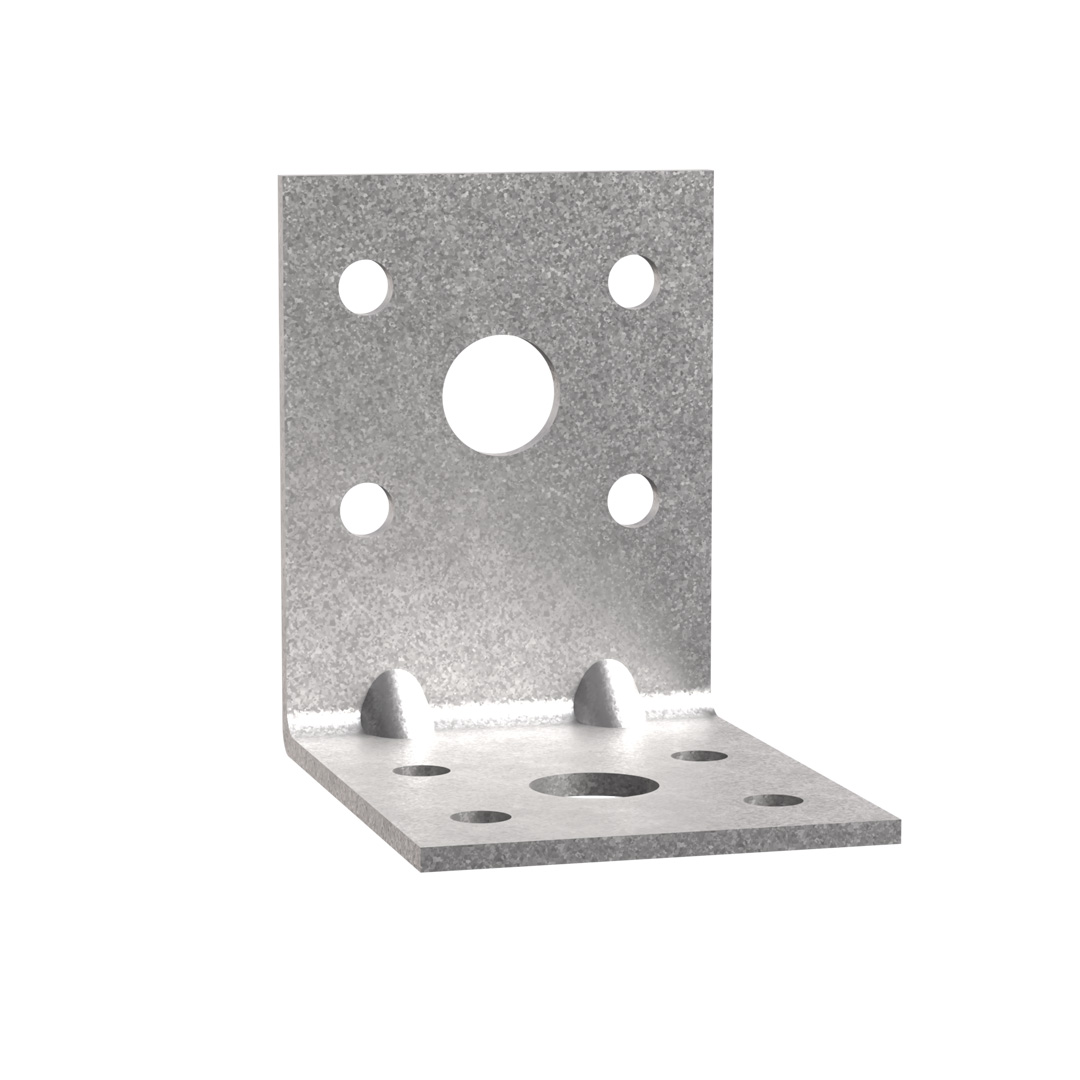

EA main image

Product Details

Images

EA in situ
EA in situ - zoom
EA in situ - from above
Wood to wood connection.
Timber to masonry connection
EA444/2

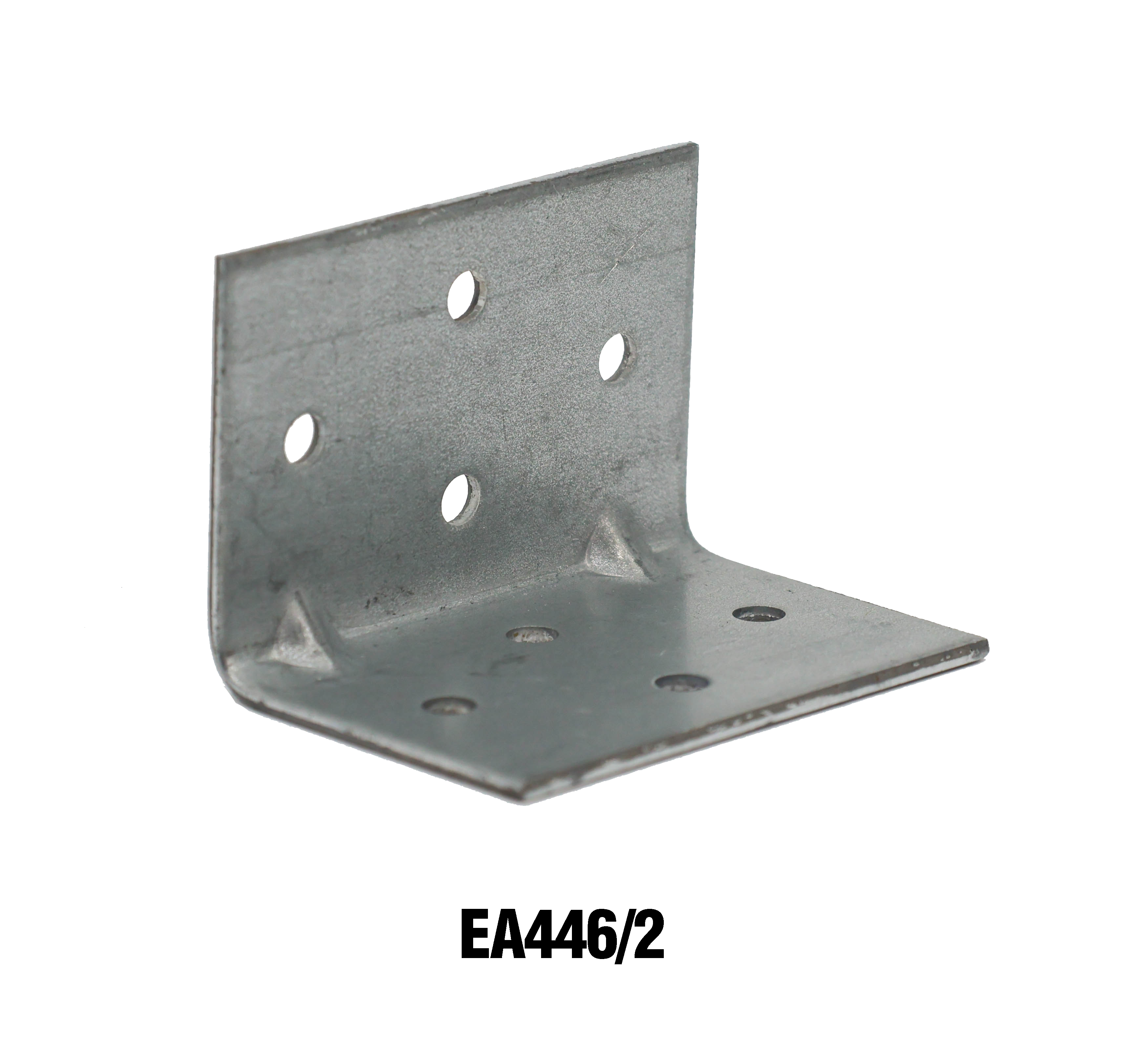

EA446/2

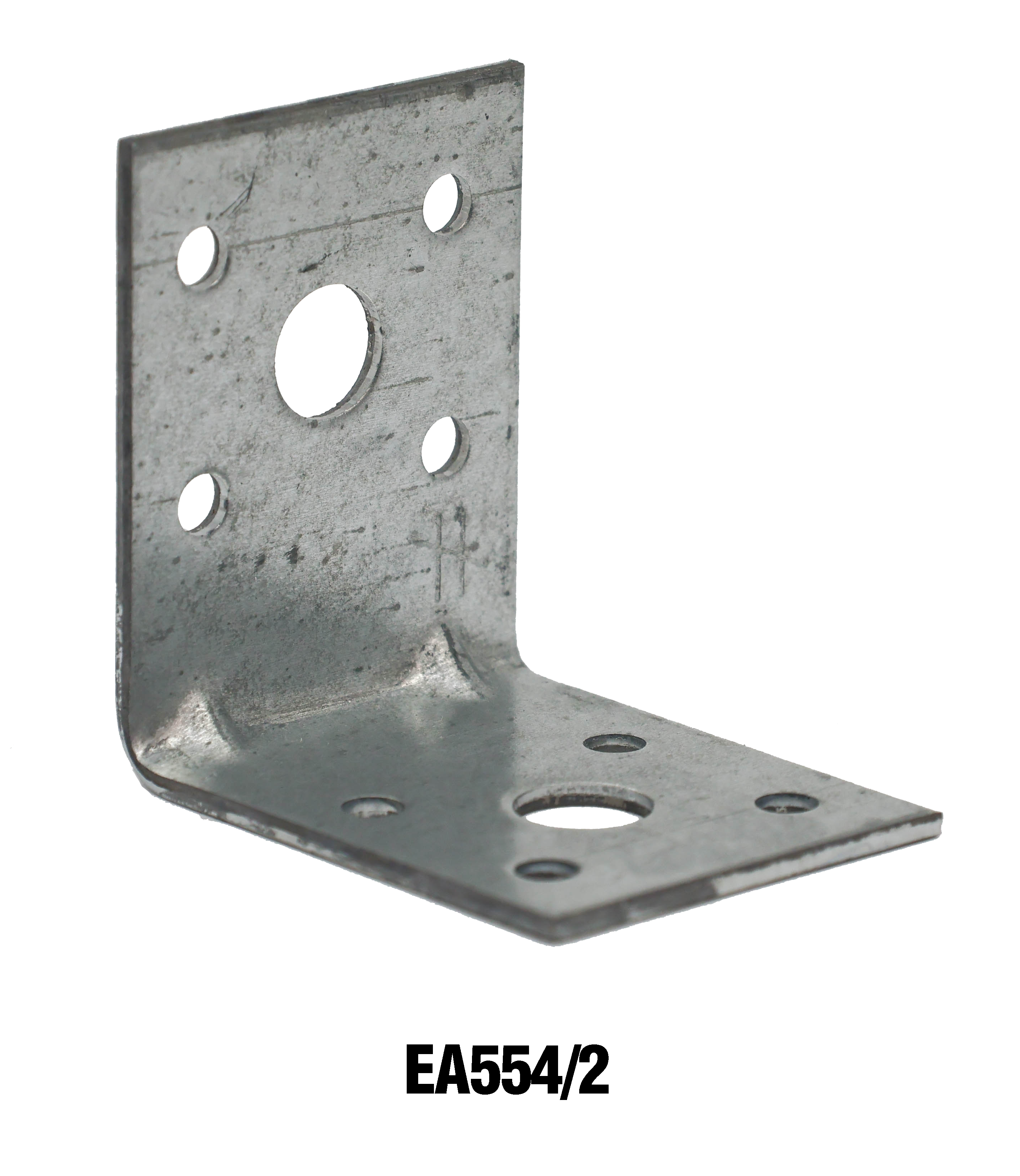

EA554/2

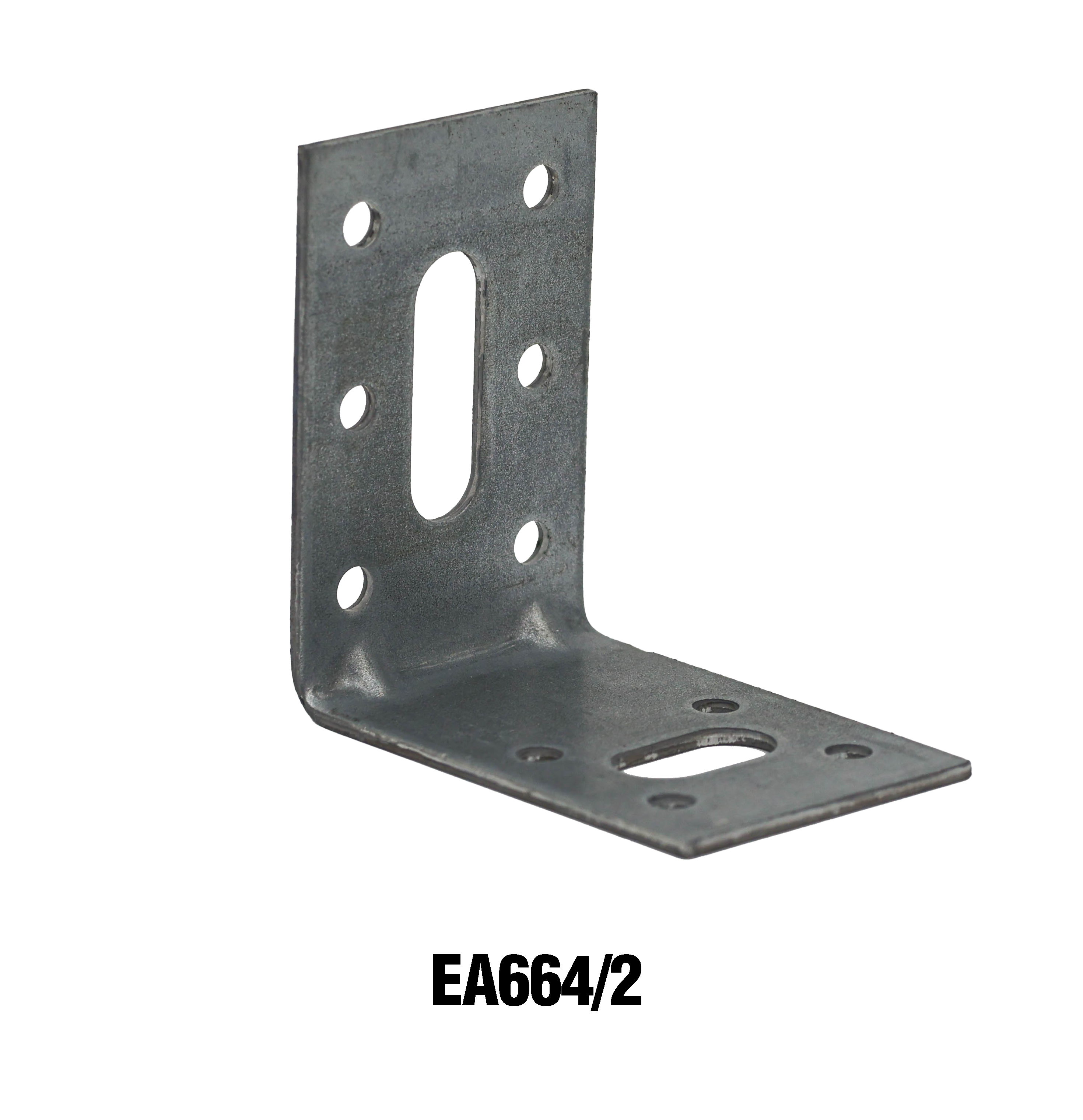

EA664/2
EA756/2

Features

Material

  • Pre-galvanised mild steel.

Benefits

  • Multiple applications.

Application

Header member

  • Supporting member: solid wood, composite lumber, glued-laminated wood, triangular trusses, profiles, etc.
  • Supported member: wood, concrete, steel, etc.

For Use With

  • Interior fittings.
  • Furniture.
  • Small frames, etc.

Technical Data

Dimensions


Product Dimensions

References Product Dimensions [mm] Weight [kg]
A B C t
EA442/24242 20 20.02
EA444/24242 40 20.04
EA554/25252 40 20.06
EA644/26242 40 20.06
EA664/26262 40 20.07
EA666/26262 60 20.1
EA754/27252 40 20.07
EA756/27252 60 20.1
EA844/28242 40 20.07

The EA844/2, EA954/2,5 and EA1064/2,5 do not have ribs in the angle.

Installation

Installation

Fixings

Onto wood:

  • 3.75 x 30mm square twist nail.
  • CNA annular ring-shank nails 4.0 mm.
  • CSA screw 5.0 mm.

Onto concrete:

  • HIPC 6-40/10 drive anchors or HIPC 8-60/20.
  • LMAS resin anchors with AT-HP resin

Onto metal:

  • Bolts.
  • HR bolts.
  • Tek Screws
  • Rivets, etc.

Installation

Fasteners to be specified by the engineer, depending on the application & fixing medium

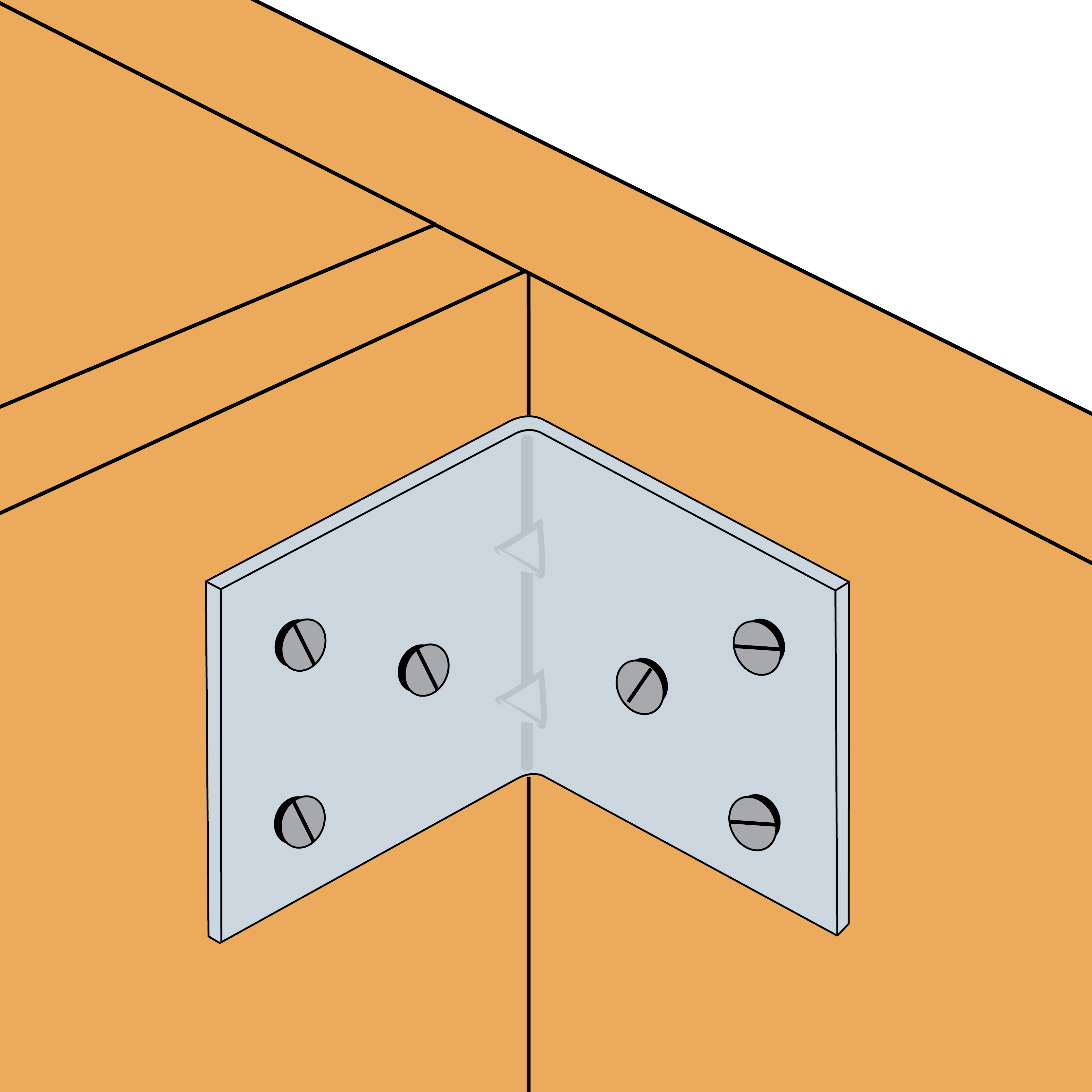

Wood to wood connection.
Timber to masonry connection

Certification

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors
