55L

L Flat

''L'' shaped bracket

Technical Data Sheet
Service class 2
Service class 2
Electrogalvanized steel Z275
Electrogalvanized steel Z275
Indoor
Indoor
55T main image

Product Details

Images


Features

Material

  • Pre-galvanised mild steel

Benefits

Reinforce timber structures.

Application

Header member

• Wood on wood

Applications

• Designed for home and garden

Technical Data

Dimensions

Dimensions

Dimensions
Dimensions
ReferenceConnector Dimensions
Dimensions and drill holes[mm]Holes[mm]Other
A[mm]B[mm]C[mm]Thickness[mm]RoundQty per BoxWeight[kg]
Ø4Ø4.3Ø11
55L120120321.55--1000.068

Installation

Installation

Fixing

  • Vis autoforeuses SD8 4,0x32 mm,
  • Pointes annelées CNA 3,7x50 mm,
  • CNA 3,1x3,5 mm.

Installation

  1. Approcher l'élément à fixer du support.
  2. Pointer la ferrure sur l'élément à fixer.
  3. Pointer la ferrure sur le support bois.

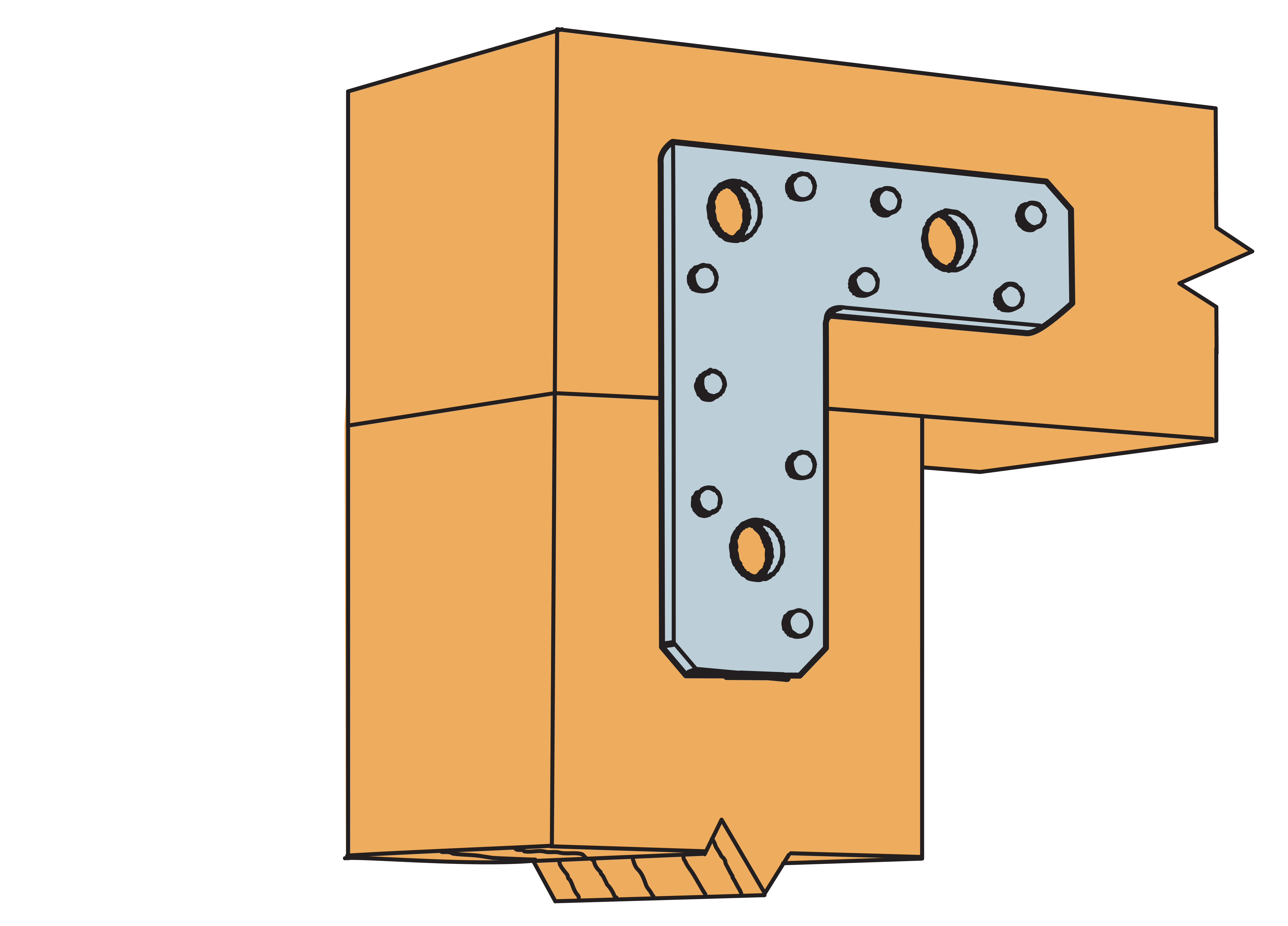

55L-situation
