66L

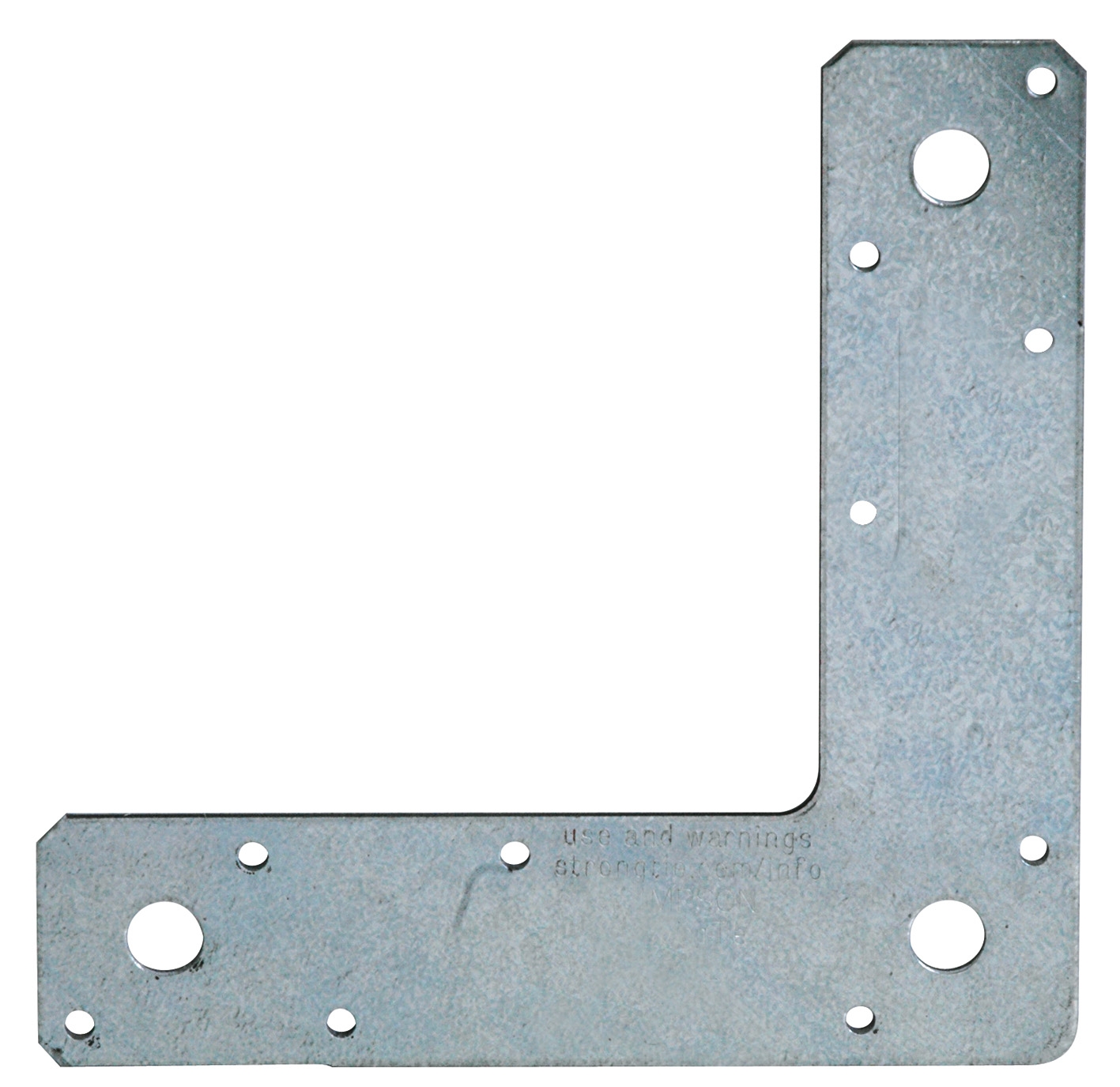

L bracket 66L

Cost-effective solution for positioning against a shifting girders and beams.

Technical Data Sheet
Service class 2
Service class 2
Electrogalvanized steel Z275
Electrogalvanized steel Z275
Indoor
Indoor

Product Details

Images

66L-situation

Features

Material

Steel quality:

S 250 GD + Z 275 according to DIN EN

Corrosion protection:

275 g / m galvanized on both sides 20mm

Benefits

• Cost-effective solution for positioning against a shifting girders and beams.

Application

Header member

Wood, wood products

For Use With

• Designed for home and garden

Technical Data

Dimensions

Dimensions

Dimensions
Dimensions
ReferenceConnector Dimensions
Dimensions and drill holes[mm]Holes[mm]Other
A[mm]B[mm]C[mm]Thickness[mm]Nb.∅Weight[kg]
66L38150150210.0Ø4 + 3 Ø110.15

Installation

Installation

Fixing

• Connection to the timber is made CNA nails or screws Ø 10th

Installation

  1. Approcher l'élément à fixer du support.
  2. Pointer la ferrure sur l'élément à fixer.
  3. Pointer la ferrure sur le support bois.

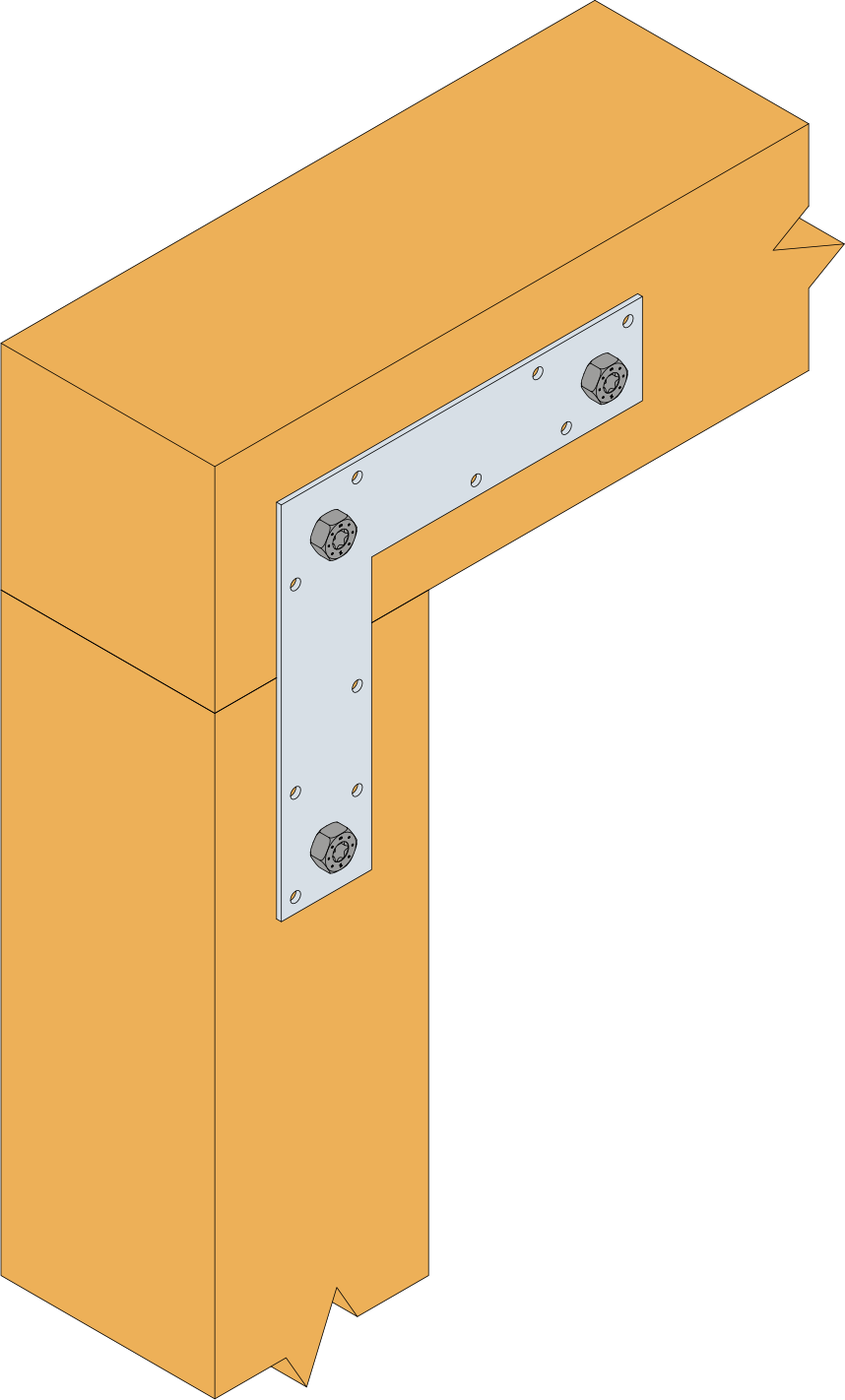

66L-situation

Related Products

CAD and BIM Library

2D

66L

3D

66L

3D Simplified

66L

ZIP Packages
