F1: tensile force in the central axis of the angle-bracket
Particular situation of a fastening with only one angle-bracket:

• If the overall structure prevents the rotation of the purlin or the post, the tensile strength is equal to half of the given value for two angle-brackets.
• Otherwise, the connection resistance depends on the « f » distance between the vertical contact surface and the point of load application.

F2 and F3: shear lateral force
Particular situation of a connection with only one angle-bracket:

• The resistance value to consider is equal to half of the one given for two angle-brackets.

F4 and F5: transversal force directed towards or opposite the angle-bracket

• The connection resistance depends on the « e » distance between the base of the angle-bracket and the point of load application.
• To consult corresponding loads, contact us.

Only F1, F2 and F3 forces for connections with 2 angle-brackets are present on this sheet.
For more information, contact us.

KOLLIBRODD® Load Stoppers are placed between pallets and the wooden or wood-based floors of transport vehicles to secure the load. They are used in conjunction with load-securing straps. When using hardwoods, check that the product can be pressed into the wood.

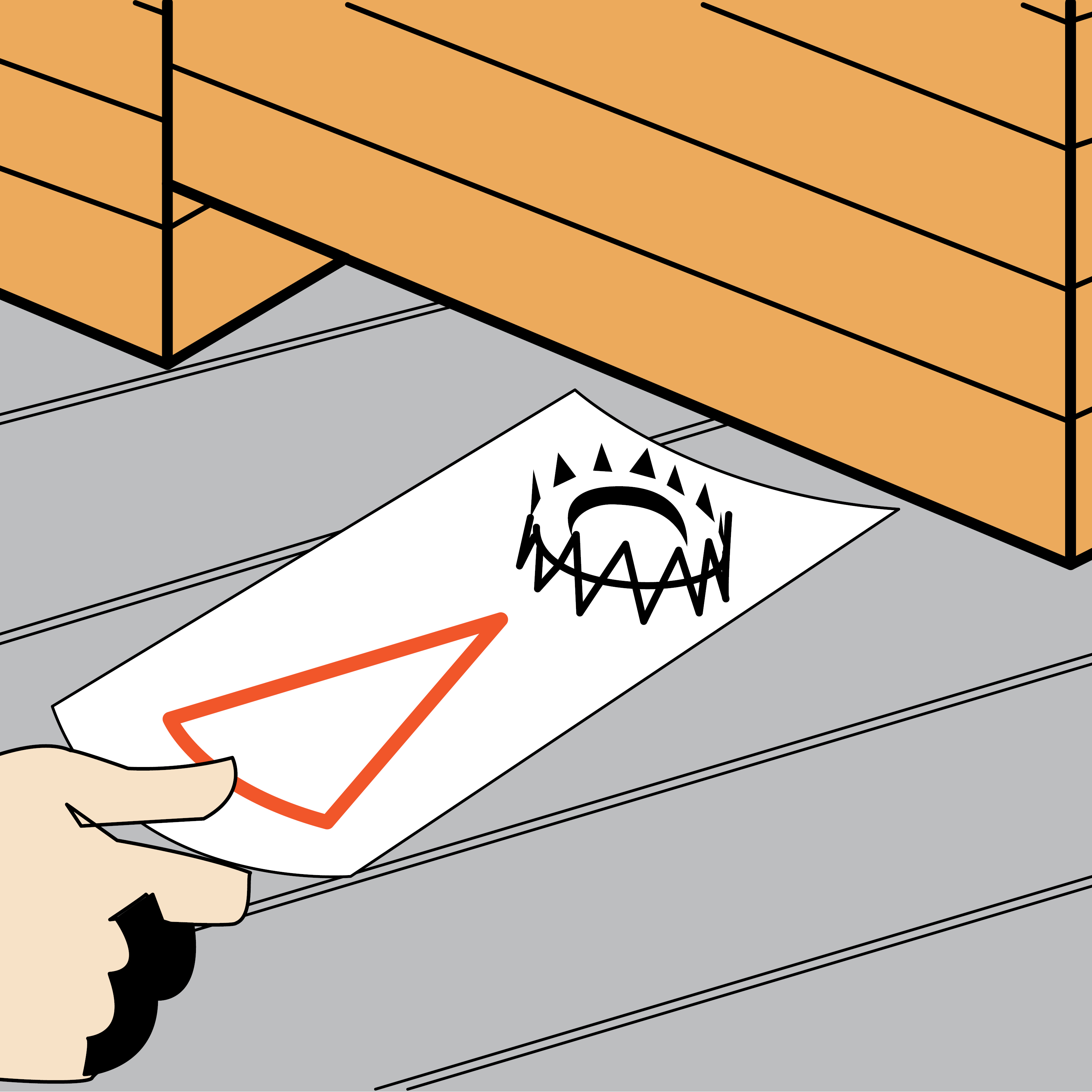

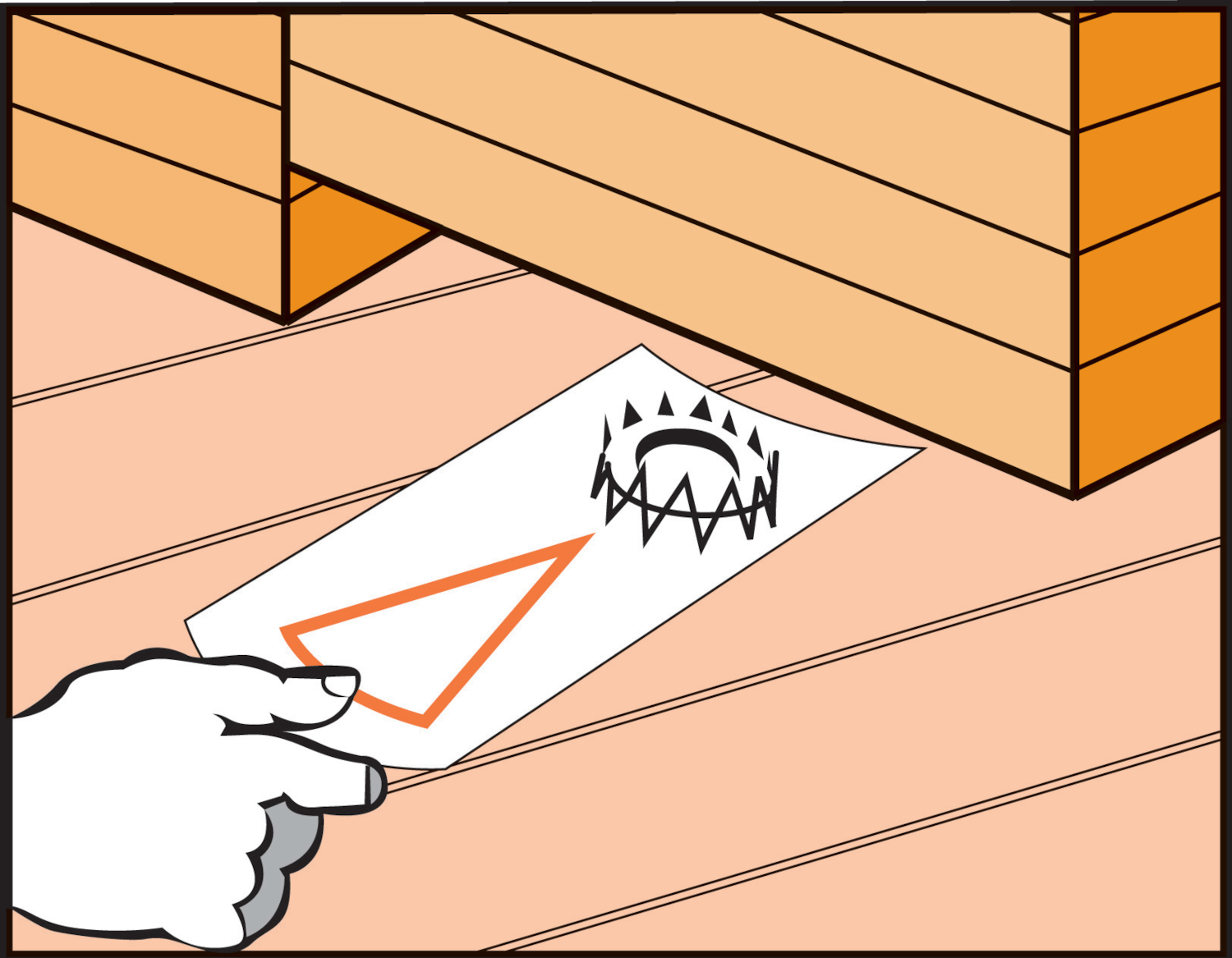

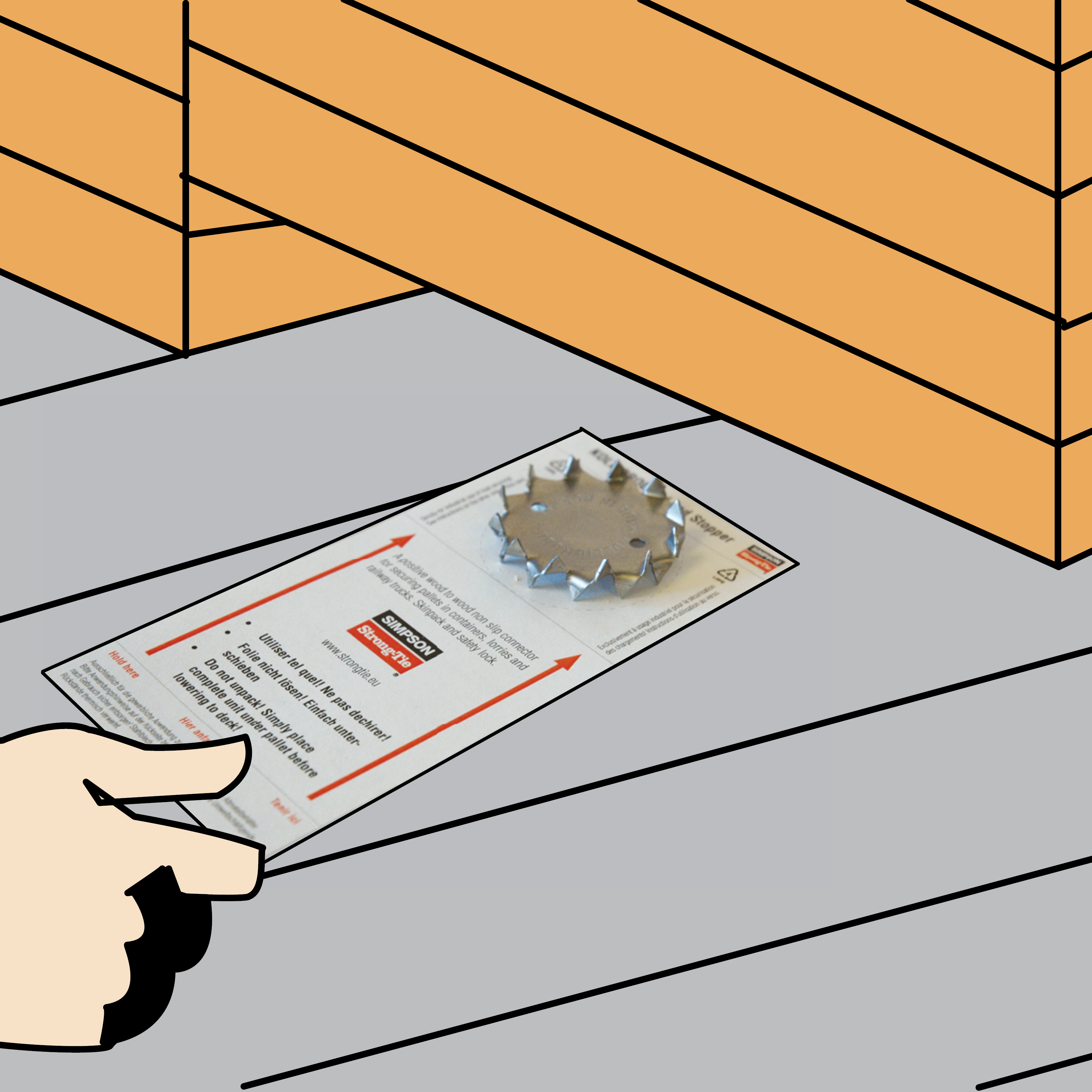

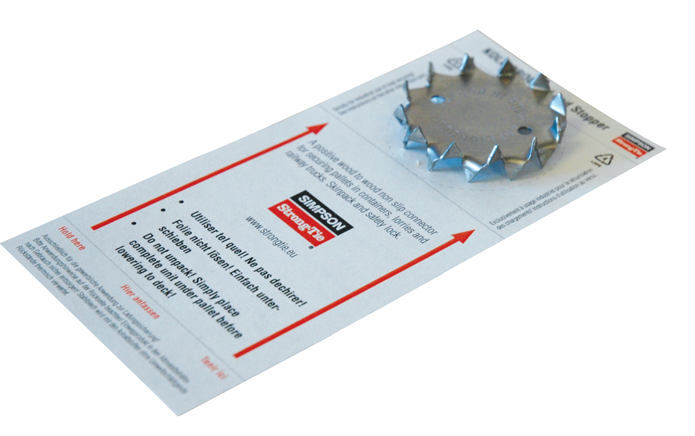

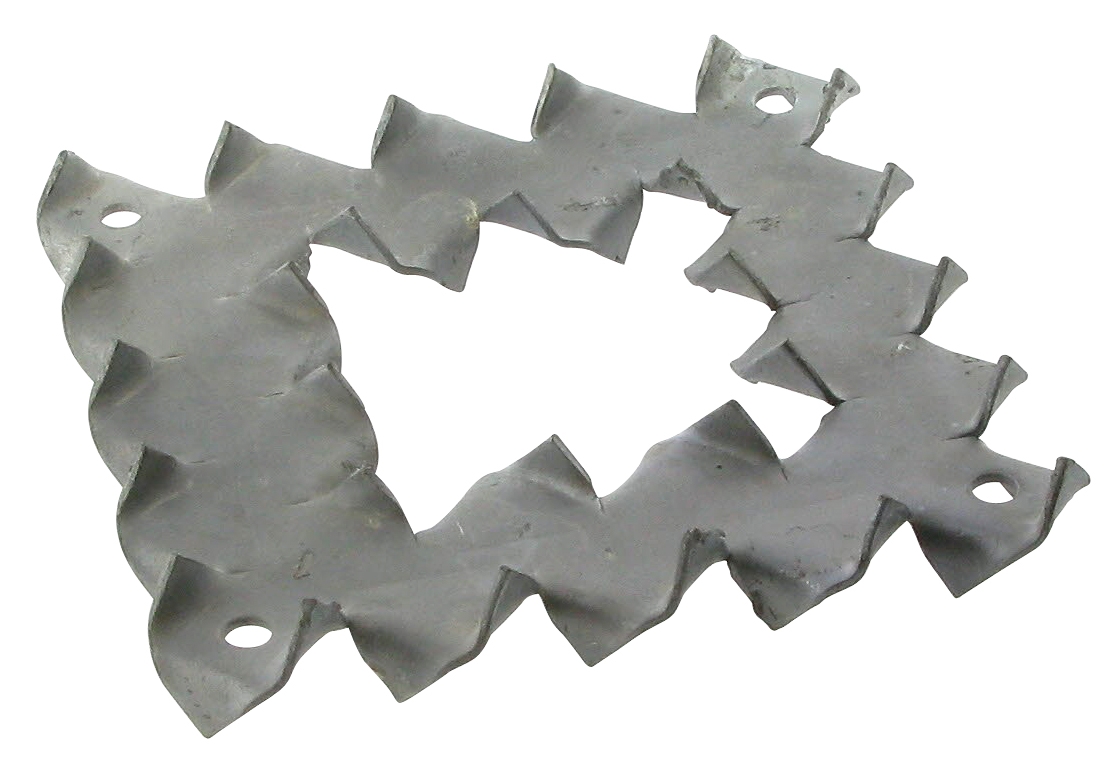

When in use, KOLLIBRODD® Load Stoppers remain in their skin packaging for easier handling, inspection, and retrieval. The square versions can be used for goods on pallets secured with strapping.
