JHMI

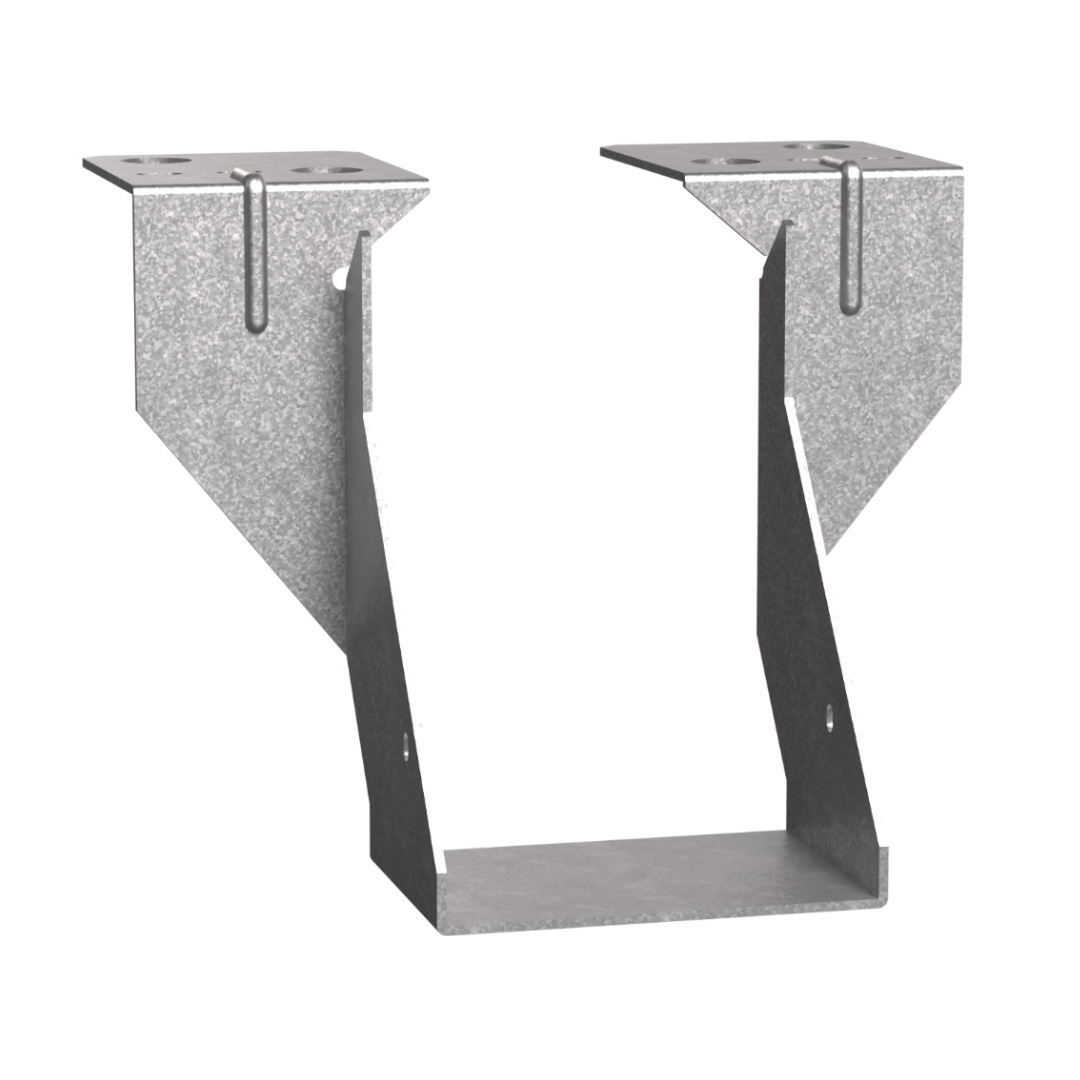

Joist Hanger for Masonry: I-Joists

The JHM and JHMI range of joist hangers can be used to connect solid sawn
joists, trusses and engineered joists to masonry walls or steel beams.

Technical Data Sheet

CE Marking

Product Details

Images

C_JHM_InstDtl_Ill_Instld_JHM_Steel_I-BEAM_CLOSEUP_UK_EN_CN (1).jpg

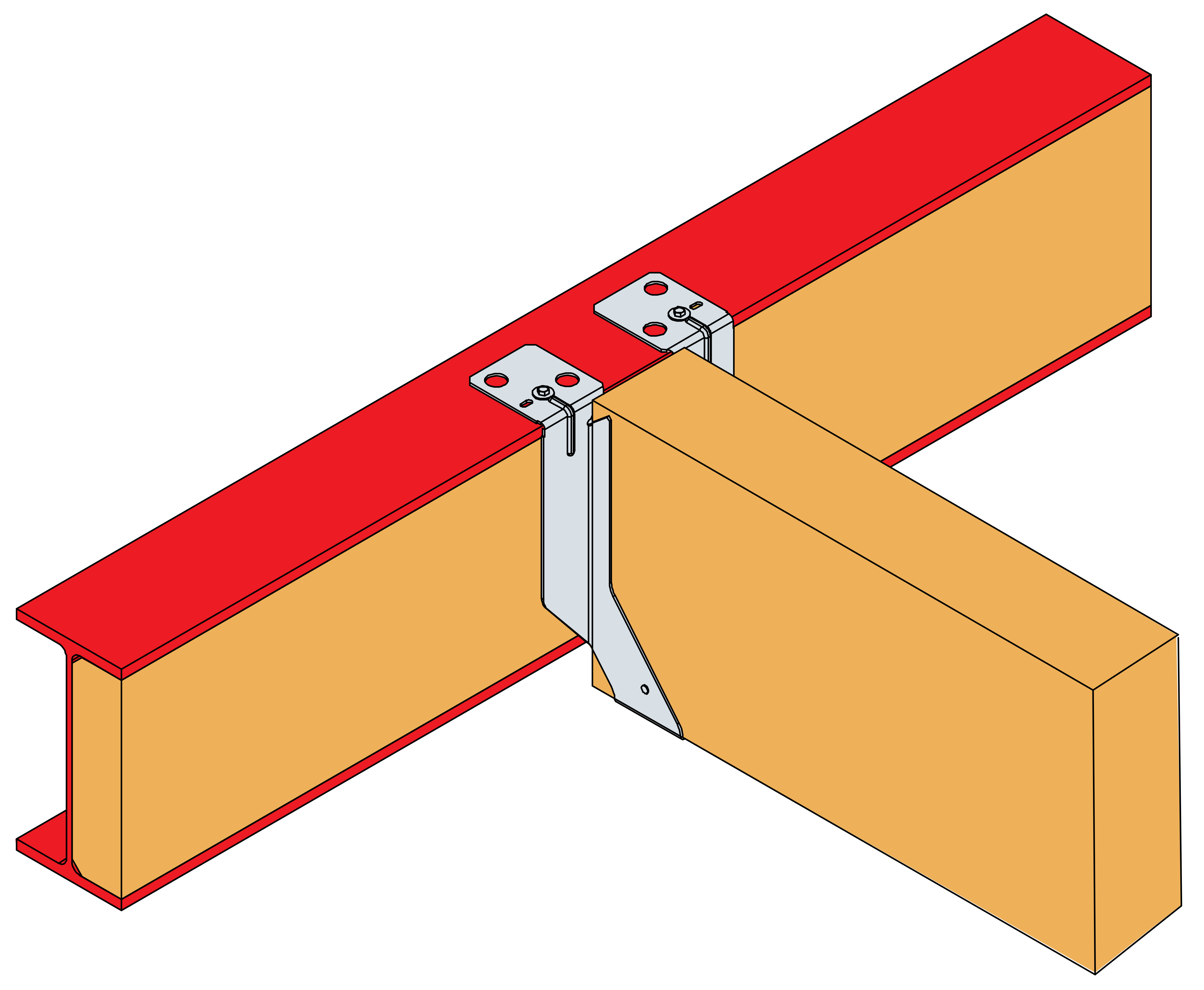

C_JHM_InstDtl_Ill_Instld_JHM_Steel_I-BEAM_UK_EN_CN (1).jpg

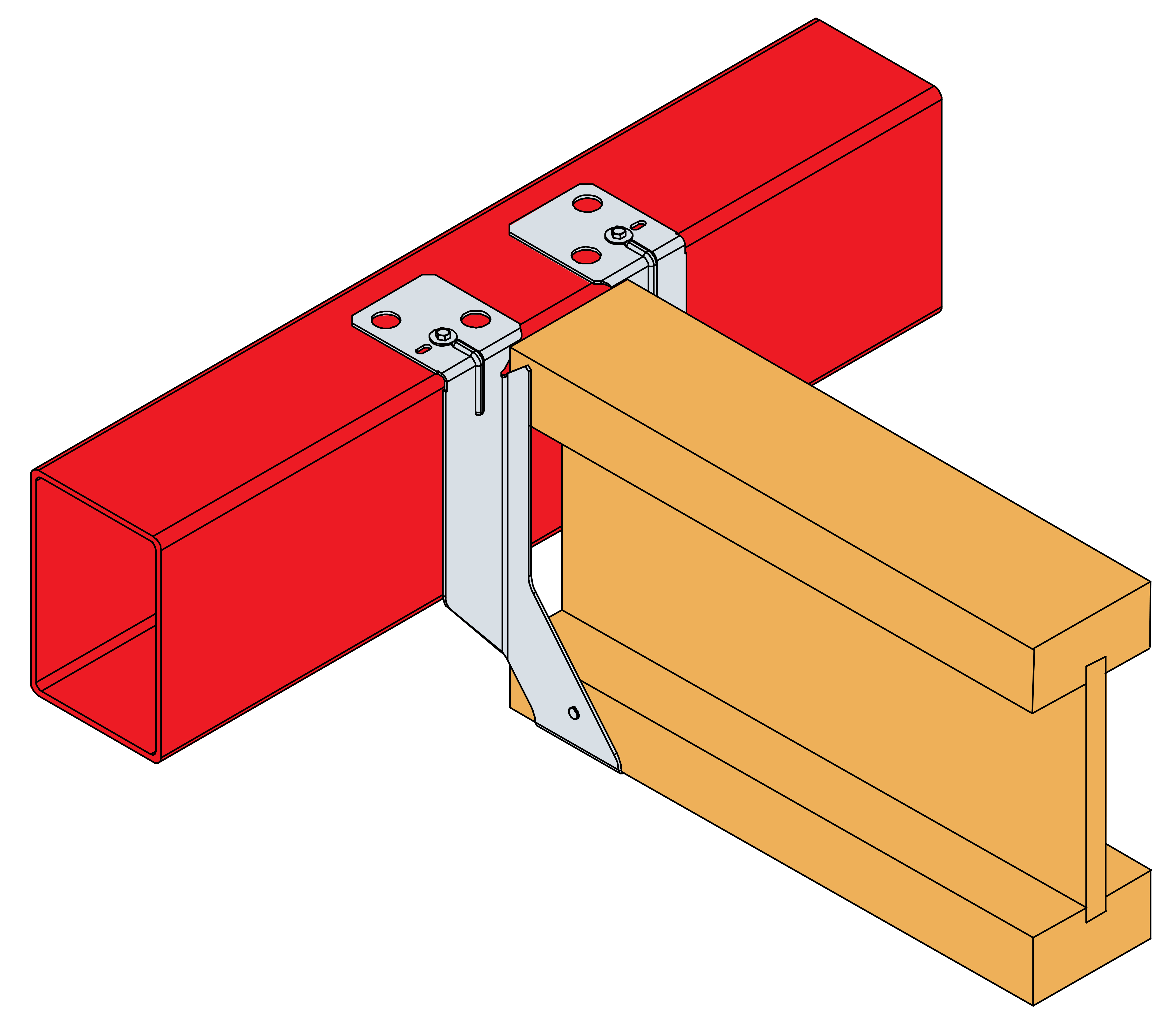

C_JHMI_InstDtl_Ill_Instld_JHMI_Hollow_Section_Steel_UK_EN_CN (1).jpg

Features

Material

Pre-galvanised mild steel

Benefits

Built-in inspection slot at the base of the hanger to aid inspection
from the ground.
Top flange provides widest area in contact with masonry support allowing superior performance.
Embossments on top flange, and holes, allow improved mortar keying.
Flanges on hangers are much higher than traditional style, providing greatly enhanced resistance to joist rotation.
Can be installed onto ‘I’ section or hollow section steel beams.

Mechanically Fixing to Steel

f-jhm-steel-18-2.pdf (102.34 KB)

Application

Options

Return configuration provides additional support by wrapping around three sides of the block. Designate "return" and length of return dimensions when ordering.
JHMI, JHMIR OR JHMIS HANGERS DO NOT SATISFY THE REQUIREMENTS FOR LATERAL RESTRAINT TYPE HANGERS UNLESS STRAPS ARE FITTED.
Straddle configuration provides two hangers connected across top of support enabling exact alignment on both sides of supporting wall. Designate "straddle" and length of straddle dimensions when ordering.
Other widths and heights available to order.

Technical Data

Dimensions

JHMI Enhanced Uplift

Model	Size Range		Joist Fasteners		Characteristic Capacity (kN)
	Width	Height	Qty	Specification	Enhanced Uplift

JHMI	38 - 47	140 - 400	6	3.75 x 30mm	3.16
JHMI	50 - 100	140-400	6	3.75 x 30mm	3.73

1) 3.75x30mm refers to 3.75 x 30mm square twist nails

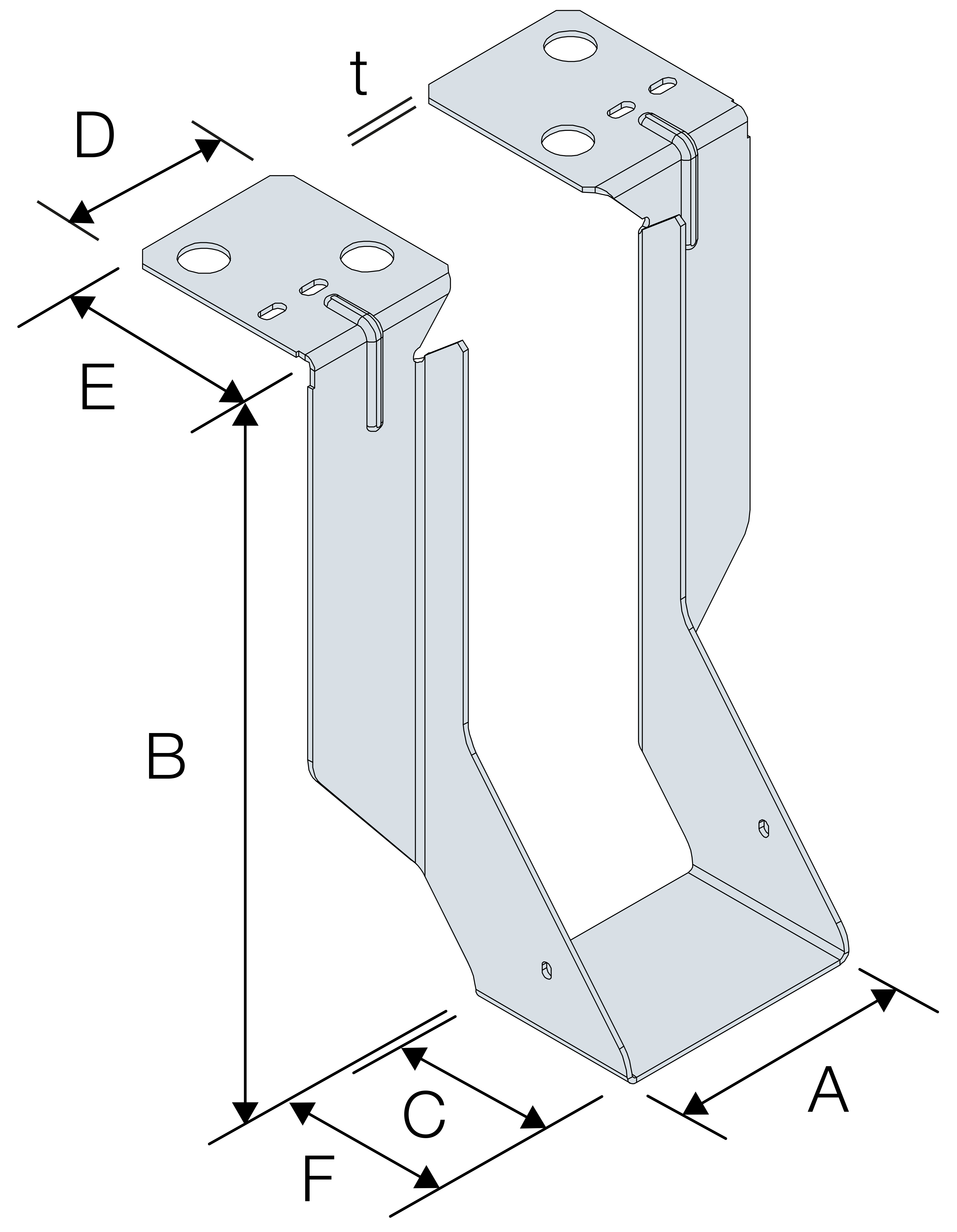

Product Dimensions

References	Joist dimensions [mm]		Hanger Dimensions [mm]							Joist holes
References	Width	Height	A	B	C	D	E	F	t	Ø4
JHMI195/40	38	195	40	195	64	64	75	75	2	2
JHMI225/40	38	220	40	225	64	64	75	75	2	2
JHMI240/40	38	240	40	240	64	64	75	75	2	2
JHMI300/40	38	300	40	300	64	64	75	75	2	2
JHMI145/47	45	145	47	145	64	64	75	75	2	2
JHMI195/47	45	195	47	195	64	64	75	75	2	2
JHMI200/47	45	200	47	200	64	64	75	75	2	2
JHMI225/47	45	220	47	225	64	64	75	75	2	2
JHMI240/47	45	240	47	240	64	64	75	75	2	2
JHMI300/47	45	300	47	300	64	64	75	75	2	2
JHMI350/47	45	350	47	350	64	64	75	75	2	2
JHMI400/47	45	400	47	400	64	64	75	75	2	2
JHMI225/50	47	220	50	225	64	64	75	75	2	2
JHMI240/50	47	240	50	240	64	64	75	75	2	2
JHMI300/50	47	300	50	300	64	64	75	75	2	2
JHMI200/61	58	200	61	200	64	64	75	75	2	2
JHMI400/61	58	400	61	400	64	64	75	75	2	2
JHMI225/66	63	220	66	225	64	64	75	75	2	2
JHMI235/66	63	235	66	235	64	64	75	75	2	2
JHMI240/66	63	240	66	240	64	64	75	75	2	2
JHMI245/66	63	245	66	245	64	64	75	75	2	2
JHMI300/66	63	300	66	300	64	64	75	75	2	2
JHMI200/72	70	200	72	200	64	64	75	75	2	2
JHMI225/72	70	220	72	225	64	64	75	75	2	2
JHMI240/72	70	240	72	240	64	64	75	75	2	2
JHMI300/72	70	300	72	300	64	64	75	75	2	2
JHMI400/72	70	400	72	400	64	64	75	75	2	2
JHMI195/75	72	195	75	195	64	64	75	75	2	2
JHMI225/75	72	220	75	225	64	64	75	75	2	2
JHMI235/75	72	235	75	235	64	64	75	75	2	2
JHMI245/75	72	245	75	245	64	64	75	75	2	2
JHMI300/75	72	300	75	300	64	64	75	75	2	2
JHMI350/75	72	350	75	350	64	64	75	75	2	2
JHMI400/75	72	400	75	400	64	64	75	75	2	2
JHMI225/78	2x38	220	78	225	64	64	75	75	2	2
JHMI235/78	2x38	235	78	235	64	64	75	75	2	2
JHMI240/78	2x38	240	78	240	64	64	75	75	2	2
JHMI300/78	2x38	300	78	300	64	64	75	75	2	2
JHMI195/91	2x45 or 89-90	195	91	195	64	64	75	75	2	2
JHMI200/91	2x45 or 89-90	200	91	200	64	64	75	75	2	2
JHMI225/91	2x45 or 89-90	220	91	225	64	64	75	75	2	2
JHMI235/91	2x45 or 89-90	235	91	235	64	64	75	75	2	2
JHMI240/91	2x45 or 89-90	240	91	240	64	64	75	75	2	2
JHMI245/91	2x45 or 89-90	245	91	245	64	64	75	75	2	2
JHMI300/91	2x45 or 89-90	300	91	300	64	64	75	75	2	2
JHMI350/91	2x45 or 89-90	350	91	350	64	64	75	75	2	2
JHMI400/91	2x45 or 89-90	400	91	400	64	64	75	75	2	2
JHMI225/96	2x47	220	96	225	64	64	75	75	2	2
JHMI240/96	2x47	240	96	240	64	64	75	75	2	2
JHMI300/96	2x47	300	96	300	64	64	75	75	2	2

Product Dimensions - Metal Web Joists

References	Joist dimensions		Hanger Dimensions [mm]							Joist holes
References	Width	Height	A	B	C	D	E	F	t	Ø4
JHMI114/40	-	-	40	114	64	64	75	75	2	2
JHMI140/40	-	-	40	140	64	64	75	75	2	2
JHMI184/40	-	-	40	184	64	64	75	75	2	2
JHMI195/40	-	-	40	195	64	64	75	75	2	2
JHMI225/40	-	-	40	225	64	64	75	75	2	2
JHMI240/40	-	-	40	240	64	64	75	75	2	2
JHMI300/40	-	-	40	300	64	64	75	75	2	2
JHMI350/40	-	-	40	350	64	64	75	75	2	2
JHMI145/47	-	-	47	145	64	64	75	75	2	2
JHMI184/47	-	-	47	184	64	64	75	75	2	2
JHMI195/47	-	-	47	195	64	64	75	75	2	2
JHMI200/47	-	-	47	200	64	64	75	75	2	2
JHMI225/47	-	-	47	225	64	64	75	75	2	2
JHMI240/47	-	-	47	240	64	64	75	75	2	2
JHMI300/47	-	-	47	300	64	64	75	75	2	2
JHMI350/47	-	-	47	350	64	64	75	75	2	2
JHMI400/47	-	-	47	400	64	64	75	75	2	2
JHMI145/50	-	-	50	145	64	64	75	75	2	2
JHMI195/50	-	-	50	195	64	64	75	75	2	2
JHMI225/50	-	-	50	225	64	64	75	75	2	2
JHMI235/50	-	-	50	235	64	64	75	75	2	2
JHMI240/50	-	-	50	240	64	64	75	75	2	2
JHMI245/50	-	-	50	245	64	64	75	75	2	2
JHMI300/50	-	-	50	300	64	64	75	75	2	2
JHMI350/50	-	-	50	350	64	64	75	75	2	2
JHMI400/50	-	-	50	400	64	64	75	75	2	2
JHMI240/53	-	-	53	240	64	64	75	75	2	2
JHMI300/53	-	-	53	300	64	64	75	75	2	2
JHMI350/53	-	-	53	350	64	64	75	75	2	2
JHMI400/53	-	-	53	400	64	64	75	75	2	2
JHMI195/61	-	-	61	195	64	64	75	75	2	2
JHMI200/61	-	-	61	200	64	64	75	75	2	2
JHMI225/61	-	-	61	225	64	64	75	75	2	2
JHMI235/61	-	-	61	235	64	64	75	75	2	2
JHMI240/61	-	-	61	240	64	64	75	75	2	2
JHMI245/61	-	-	61	240	64	64	75	75	2	2
JHMI300/61	-	-	61	300	64	64	75	75	2	2
JHMI350/61	-	-	61	350	64	64	75	75	2	2
JHMI400/61	-	-	61	400	64	64	75	75	2	2
JHMI195/66	-	-	66	195	64	64	75	75	2	2
JHMI225/66	-	-	66	225	64	64	75	75	2	2
JHMI235/66	-	-	66	235	64	64	75	75	2	2
JHMI240/66	-	-	66	240	64	64	75	75	2	2
JHMI245/66	-	-	66	245	64	64	75	75	2	2
JHMI300/66	-	-	66	300	64	64	75	75	2	2
JHMI350/66	-	-	66	350	64	64	75	75	2	2
JHMI400/66	-	-	66	400	64	64	75	75	2	2
JHMI225/70	-	-	70	225	64	64	75	75	2	2
JHMI240/70	-	-	70	240	64	64	75	75	2	2
JHMI245/70	-	-	70	245	64	64	75	75	2	2
JHMI300/70	-	-	70	300	64	64	75	75	2	2
JHMI350/70	-	-	70	350	64	64	75	75	2	2
JHMI400/70	-	-	70	400	64	64	75	75	2	2
JHMI200/72	-	-	72	200	64	64	75	75	2	2
JHMI225/72	-	-	72	225	64	64	75	75	2	2
JHMI240/72	-	-	72	240	64	64	75	75	2	2
JHMI300/72	-	-	72	300	64	64	75	75	2	2
JHMI350/72	-	-	72	350	64	64	75	75	2	2
JHMI400/72	-	-	72	400	64	64	75	75	2	2
JHMI195/75	72	195	75	195	64	64	75	75	2	2
JHMI225/75	72	225	75	225	64	64	75	75	2	2
JHMI235/75	-	-	75	235	64	64	75	75	2	2
JHMI245/75	-	-	75	245	64	64	75	75	2	2
JHMI300/75	-	-	75	300	64	64	75	75	2	2
JHMI350/75	-	-	75	350	64	64	75	75	2	2
JHMI400/75	-	-	75	400	64	64	75	75	2	2
JHMI114/78	-	-	78	114	64	64	75	75	2	2
JHMI140/78	-	-	78	140	64	64	75	75	2	2
JHMI184/78	-	-	78	184	64	64	75	75	2	2
JHMI225/78	-	-	78	225	64	64	75	75	2	2
JHMI235/78	-	-	78	235	64	64	75	75	2	2
JHMI240/78	-	-	78	240	64	64	75	75	2	2
JHMI300/78	-	-	78	300	64	64	75	75	2	2
JHMI350/78	-	-	78	350	64	64	75	75	2	2
JHMI184/91	-	-	91	184	64	64	75	75	2	2
JHMI195/91	-	-	91	195	64	64	75	75	2	2
JHMI200/91	-	-	91	200	64	64	75	75	2	2
JHMI225/91	-	-	91	225	64	64	75	75	2	2
JHMI235/91	-	-	91	235	64	64	75	75	2	2
JHMI240/91	-	-	91	240	64	64	75	75	2	2
JHMI245/91	-	-	91	245	64	64	75	75	2	2
JHMI300/91	-	-	91	300	64	64	75	75	2	2
JHMI350/91	-	-	91	350	64	64	75	75	2	2
JHMI400/91	-	-	91	400	64	64	75	75	2	2
JHMI195/96	-	-	96	195	64	64	75	75	2	2
JHMI225/96	-	-	96	225	64	64	75	75	2	2
JHMI235/96	-	-	96	235	64	64	75	75	2	2
JHMI240/96	-	-	96	240	64	64	75	75	2	2
JHMI245/96	-	-	96	245	64	64	75	75	2	2
JHMI300/96	-	-	96	300	64	64	75	75	2	2
JHMI350/96	-	-	96	350	64	64	75	75	2	2
JHMI400/96	-	-	96	400	64	64	75	75	2	2
JHMI195/100	-	195	100	195	64	64	75	75	2	2
JHMI225/100	-	225	100	225	64	64	75	75	2	2
JHMI240/100	-	240	100	240	64	64	75	75	2	2
JHMI245/100	-	245	100	245	64	64	75	75	2	2
JHMI300/100	-	300	100	300	64	64	75	75	2	2
JHMI350/100	-	350	100	350	64	64	75	75	2	2
JHMI400/100	-	400	100	400	64	64	75	75	2	2
JHMI	-	-	-	-	-	-	-	-	-	2
SPEC JHMSK	-	-	40-61	400-450	64	64	-	-	2.5	2

Product Capacities - Masonry

References	Joist Fasteners		Characteristic Capacity [kN]				Safe Working Loads
	Qty	Type	R_1,k			R_2,k	R_1,SWL			R_{2,SWL,Short Term}
	Qty	Type	2.8N/mm² Solid AAC	3.5N/mm² Solid LAC	7.0N/mm² Solid DAC	R_2,k	2.8N/mm² Solid AAC	3.5N/mm² Solid LAC	7.0N/mm² Solid DAC	R_{2,SWL,Short Term}
JHMI	2	3.75 x 30	10.5	12.8	20	1.8	5.2	6.4	10	1

Product Capacities - Masonry - Enhanced Uplift

References	Joist Fasteners		Characteristic Capacity [kN]				Safe Working Loads
	Qty	Type	R_1,k			R_2,k	R_1,SWL			R_{2,SWL,Short Term}
	Qty	Type	2.8N/mm² Solid AAC	3.5N/mm² Solid LAC	7.0N/mm² Solid DAC	R_2,k	2.8N/mm² Solid AAC	3.5N/mm² Solid LAC	7.0N/mm² Solid DAC	R_{2,SWL,Short Term}
JHMI114/40	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI140/40	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI184/40	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI195/40	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI225/40	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI240/40	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI300/40	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI350/40	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI145/47	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI184/47	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI195/47	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI200/47	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI225/47	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI240/47	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI300/47	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI350/47	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI400/47	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI145/50	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI195/50	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI225/50	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI235/50	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI240/50	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI245/50	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI300/50	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI350/50	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI400/50	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI240/53	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI300/53	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI350/53	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI400/53	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI195/61	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI200/61	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI225/61	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI235/61	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI240/61	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI245/61	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI300/61	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI350/61	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI400/61	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI195/66	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI225/66	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI235/66	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI240/66	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI245/66	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI300/66	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI350/66	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI400/66	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI225/70	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI240/70	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI245/70	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI300/70	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI350/70	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI400/70	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI200/72	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI225/72	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI240/72	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI300/72	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI350/72	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI400/72	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI195/75	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI225/75	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI235/75	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI245/75	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI300/75	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI350/75	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI400/75	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI114/78	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI140/78	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI184/78	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI225/78	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI235/78	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI240/78	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI300/78	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI350/78	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI184/91	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI195/91	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI200/91	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI225/91	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI235/91	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI240/91	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI245/91	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI300/91	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI350/91	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI400/91	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI195/96	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI225/96	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI235/96	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI240/96	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI245/96	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI300/96	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI350/96	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI400/96	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI195/100	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI225/100	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI240/100	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI245/100	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI300/100	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI350/100	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI400/100	6	3.75 x 30	10.5	12.8	20	3.1	5.2	6.4	10	-
JHMI	-	-	10.5	12.8	20	3.1	5.2	6.4	10	-
SPEC JHMSK	-	-	-	-	-	-	-	-	-	-

Product Capacities - Masonry & Skewed

References	Joist Fasteners		Safe Working Loads
	Qty	Type	R_1,SWL			R_{2,SWL,Short Term}
	Qty	Type	2.8N/mm² Solid AAC	3.5N/mm² Solid LAC	7.0N/mm² Solid DAC	R_{2,SWL,Short Term}
SPEC JHMSK	4	N3.75x30	5	5.1	5.1	-

1. Maximum skew 45º

Product Capacities - Shot Fired to Steel Girder

References	Number of Fasteners				Safe Working Loads
	Header		Joist		R_{1,SWL,Long Term}
	Qty	Type	Qty	Type	R_{1,SWL,Long Term}
JHMI	4	Shot Fire Pns*	2	N3.75x30	5.1

1.The above Safe Working Loads are based upon product tests using four No. Hilti 12mm X-EDNI steel pins fired through holes provided in the top flange of the hangers onto 4mm thick steel plate. Other pins may be used provided similar structural performance is verified by the pin manufacturer. Pin Head size must be sufficient to prevent pull through during loading.
2.The designer must ensure that the steel support member will support the imposed loads.
3.Install shot-fired pins in accordance with manufacturer’s instructions.

Product Performance - Mechanically Fixed to Steel Beam

References	Number of Fasteners				Safe Working Loads [kN]	Characteristic Load [kN]
	Header		Joist		R_{1, SWL, Long Term}	R_1,k
	Qty	Type	Qty	Type	R_{1, SWL, Long Term}	R_1,k
JHMI	2	XLQ114B1224	2	N3.75x30	10.8	19

The designer / engineer must ensure that the steel support can take the imposed loads
Suitable for Steel I-beams and Hollow Sections upto 12.5mm thick
Timber is required in the web of steel I-beam when the hanger depth is less than the steel depth. Timber must finish flush with outer edges of steel I-beam

Fastener Reference

Length

[mm]

Hex Head

[in]

Washer Diameter

[mm]

Shank Diameter

[mm]

Suitable Material Thickness

[mm]

Recommended Install Speed

[RPM]

XLQ114B1224

5/16"

5.5

3.5 - 12.5

1400

Installation

Ínstallation

Standard Masonry Installation

Use all specified fasteners. See table.
Hanger must be installed so that the back flange is tight against the face of the supporting member.
MINIMUM 3 COURSES OF SOLID BLOCK (675MM MASONRY)
REQUIRED ABOVE HANGER, WITH MORTAR FULLY CURED,
BEFORE APPLYING LOAD.
Do not stack blocks or heavy loads on the joists during construction unless the joists have additional support to take the full load of the blocks, vertically and horizontally.

Fixed to Steel Beams

The JHMI range can be mechanically fixed to steel beams of
thicknesses up to 12.5mm
Timber is required in the web of the ‘I’ section steel beam when
the hanger depth is less than the steel depth
Timber must be flush with the outer edges of the ‘I’ section steel
beam
The shot-fired pins must be installed by a qualified person in accordance with the manufacturer’s installation requirements.

Select one of our Websites

Connectors

Anchor System

Nails and Screws

Product Details

Images

Features

Material

Benefits

Mechanically Fixing to Steel

Application

Options

Technical Data

Dimensions

JHMI Enhanced Uplift

Product Dimensions

Product Dimensions - Metal Web Joists

Product Capacities - Masonry

Product Capacities - Masonry - Enhanced Uplift

Product Capacities - Masonry & Skewed

Product Capacities - Shot Fired to Steel Girder

Product Performance - Mechanically Fixed to Steel Beam

Installation

Installation

Ínstallation

Certification

Declaration of Performance (DoP)

JHMI145/47

JHMI145/50

JHMI195/40

JHMI195/47

JHMI195/50

JHMI195/66

JHMI195/75

JHMI195/91

JHMI195/96

JHMI200/125

JHMI200/150

JHMI200/47

JHMI200/61

JHMI200/75

JHMI200/91

JHMI225/100

JHMI225/125

JHMI225/150

JHMI225/40

JHMI225/47

JHMI225/50

JHMI225/61

JHMI225/66

JHMI225/72

JHMI225/75

JHMI225/78

JHMI225/91

JHMI225/96

JHMI235/96

JHMI240/100

JHMI240/40

JHMI240/47

JHMI240/50

JHMI240/61

JHMI240/66

JHMI240/72

JHMI240/78

JHMI240/91

JHMI240/96

JHMI245/100

JHMI245/50

JHMI245/66

JHMI245/75

JHMI245/96

JHMI300/100

JHMI300/40

JHMI300/47

JHMI300/50

JHMI300/61

JHMI300/66

JHMI300/70

JHMI300/72

JHMI300/75
