ICST

Invisible connector for timber studs

The ICST is a product for connecting e.g. wall elements, mainly for prefabricated houses.
2 pairs have to be used as a minimum for general use.

CE Marking
CE Marking
ETA
ETA
Fire resistance R 30
Fire resistance R 30
EPD
EPD
Indoor
Indoor
Fire resistance R 60
Fire resistance R 60
Service class 2
Service class 2
Electrogalvanized steel 20 µm
Electrogalvanized steel 20 µm

Product Details

Images

Two same parts
ICST face

Features

Material

2.0mm thick pre-galvanised mild steel, grade S250 with Z275 coating

Benefits

  • To use two same pieces on both timber elements.
  • Routing is necessary only on 1 side. It´s free to decide on which side it is.
  • More than 2 pairs can be used for higher loads or from constructive reasons.

Technical Data

Product dimensions

ReferenceConnector Dimensions
OtherProduct Dimensions[mm]
Tun / DB nr.Weight[kg]NOB nr.A[mm]B[mm]C[mm]D[mm]
ICST18622900.145116594078100152

Characteristic Values

Dimensions

ReferenceHanger capacityConnector Dimensions
Number of FastenersProduct characteristic capacities - Timber C24[kN]Product Dimensions[mm]
Primary memberSecondary MemberR₃,ₖR4,kA[mm]B[mm]C[mm]D[mm]
CNA4.0x35CNA4.0x40CNA4.0x50CNA4.0x60Any nails/screwsCNA4.0x35CNA4.0x40CNA4.0x50CNA4.0x60Any nails/screws
ICST101011.211.914.8min (15,9 ;16,9/kmod)min (6,72*Rlat,k;16,9/kmod)*2.42.93.94.9min( 4 x Rax,k;5.35/kmod)*78100152

*Rlat,k is the lateral capacity of the fasteners, Rax,k is the axial capacity of the fasteners, kmod is the modification factor for duration of load and moisture content.

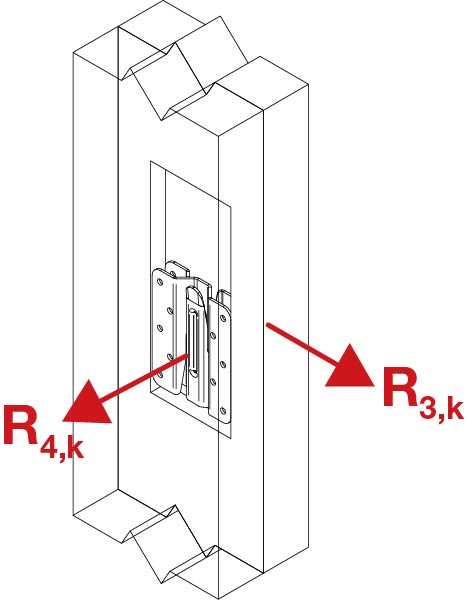

Characteristic R3,k

ReferenceHanger capacity
Number of FastenersProduct characteristic capacities - Timber C24[kN]
Primary memberSecondary MemberR4,k
CNA4.0x35CNA4.0x40CNA4.0x50CNA4.0x60Any nails/screws
ICST10102.42.93.94.9min( 4 x Rax,k;5.35/kmod)*

Installation

Installation

Options

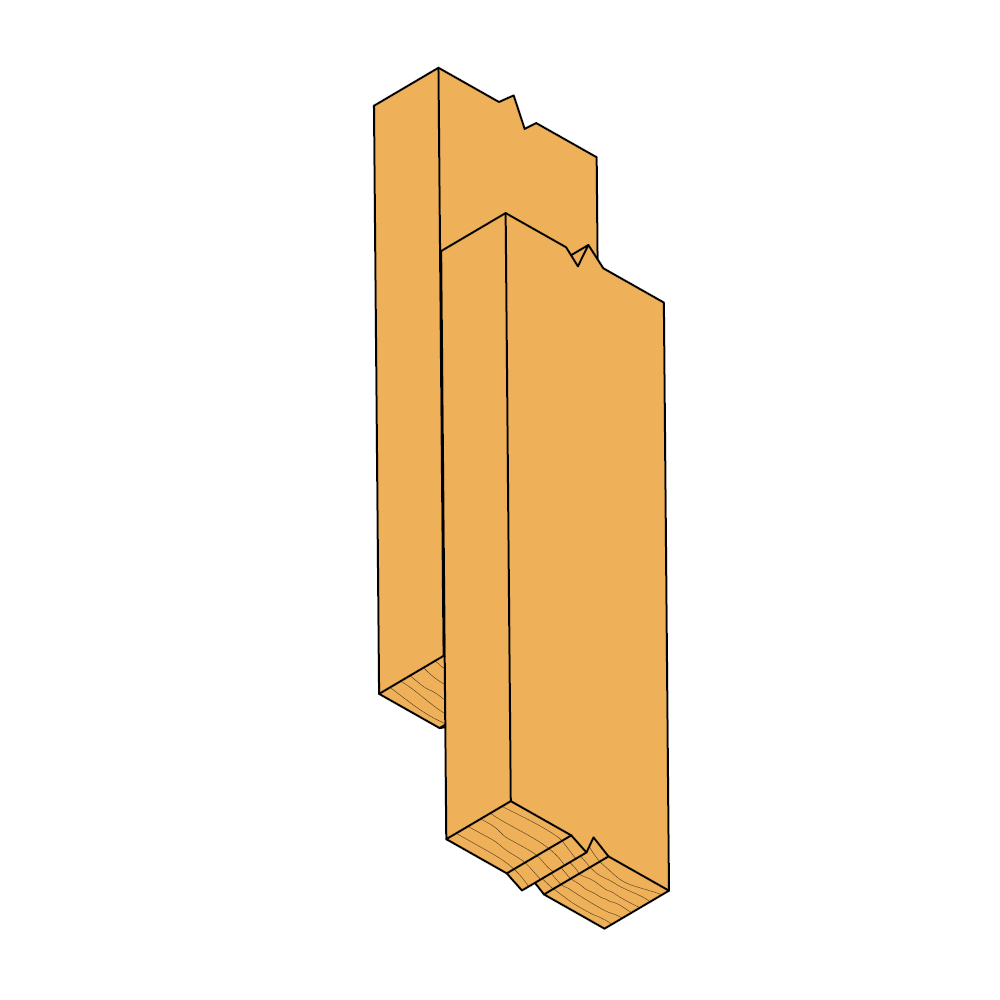

Free for different slopes and skews, only the gap has to be in one plain.

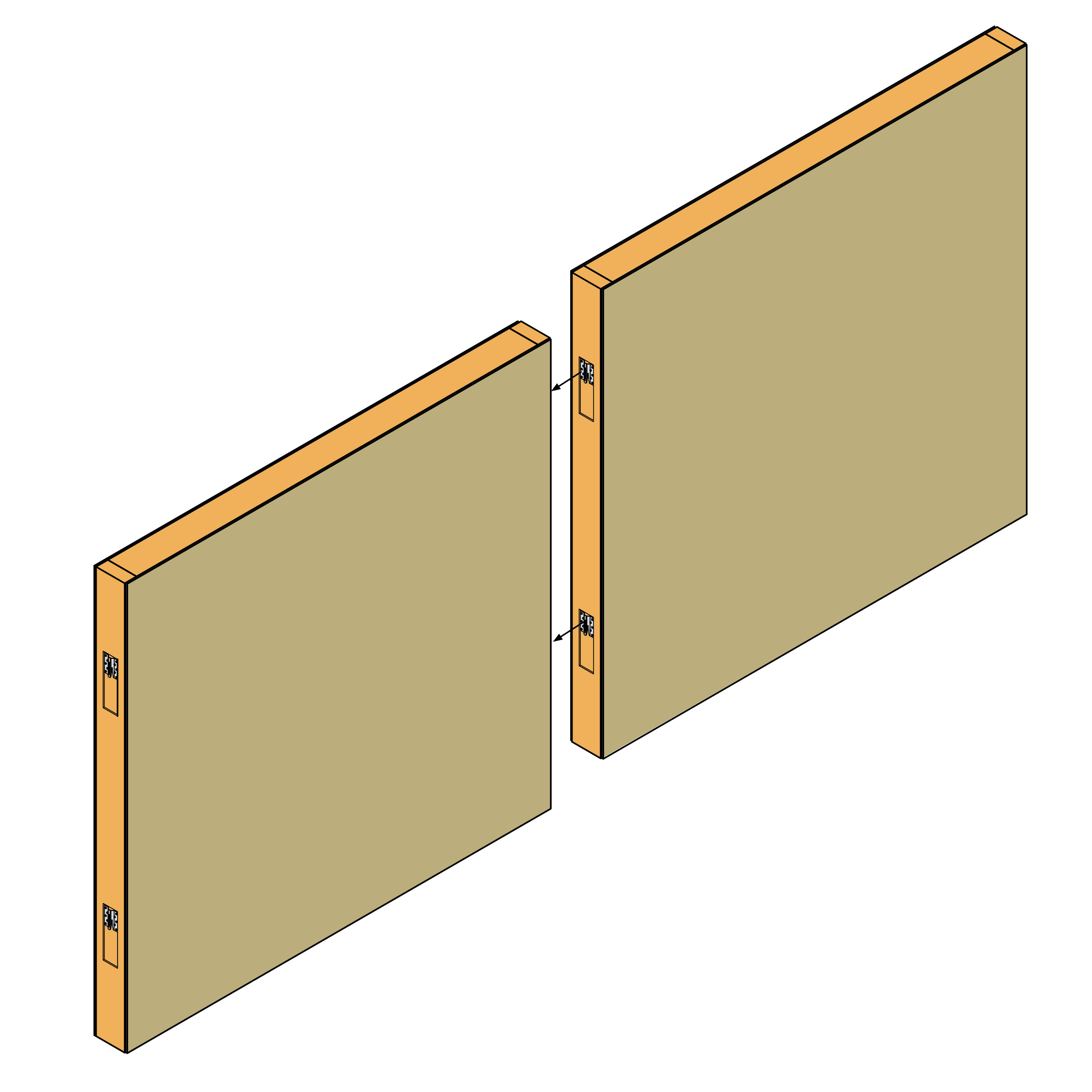

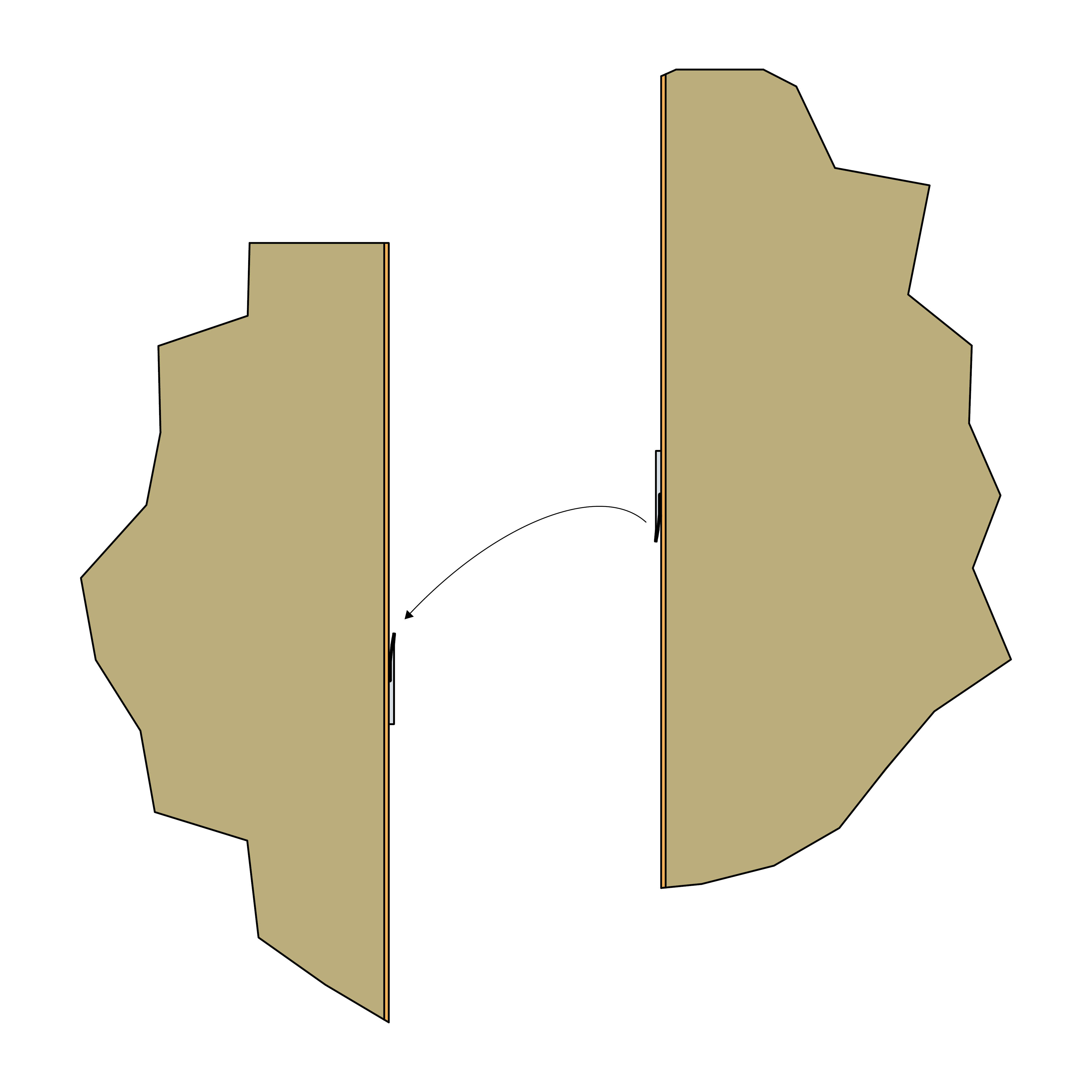

It´s to check the mounting sequence of the wall elements, because for the mounting is always drop down one to the other element.

Installation

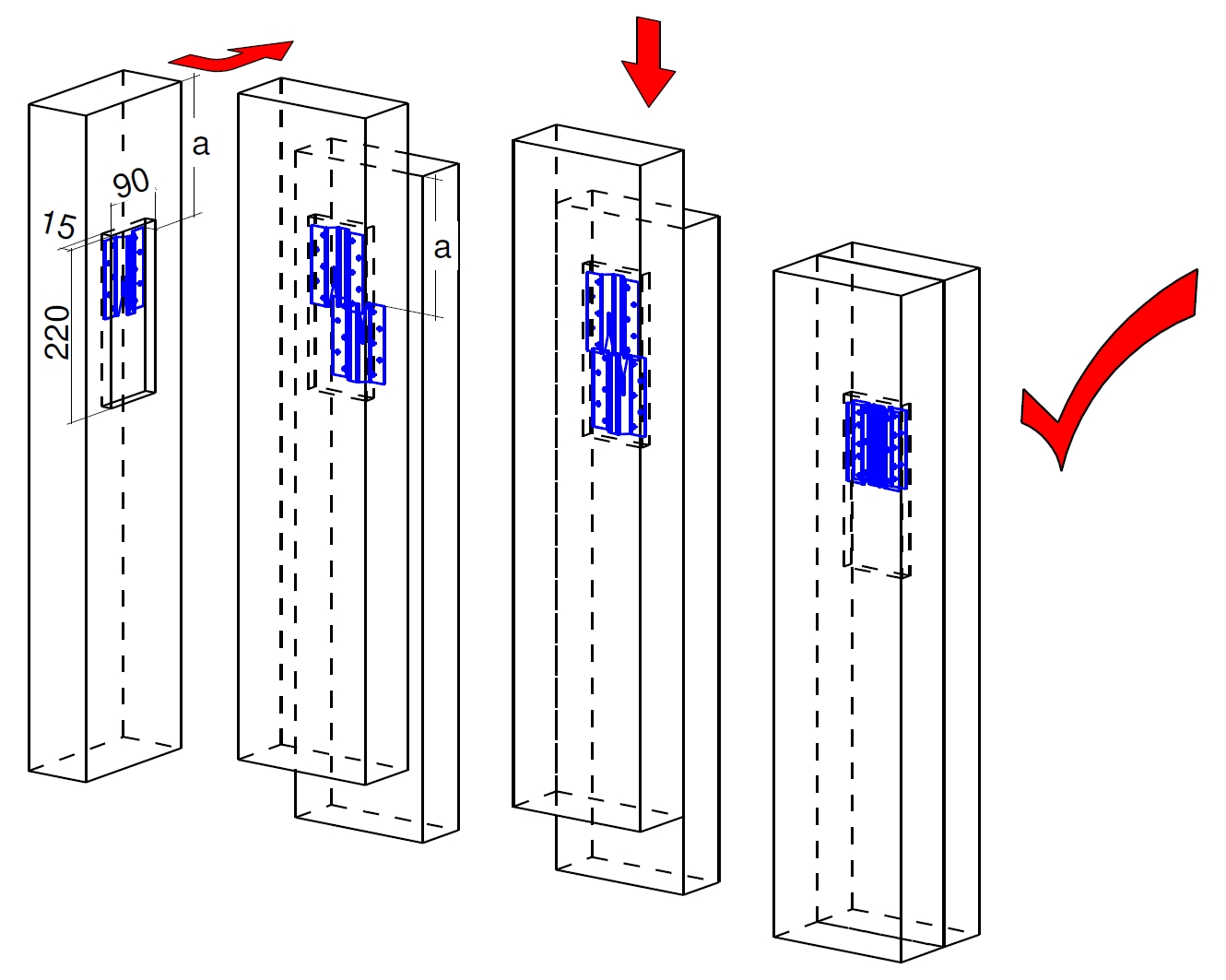

Routing is necessary on 1 side only. This routing should be 15 mm deep, 90 mm wide and 220 mm long as a minimum.

The distance between the ICST and the end of the timber elements should be 100 mm as a minimum.

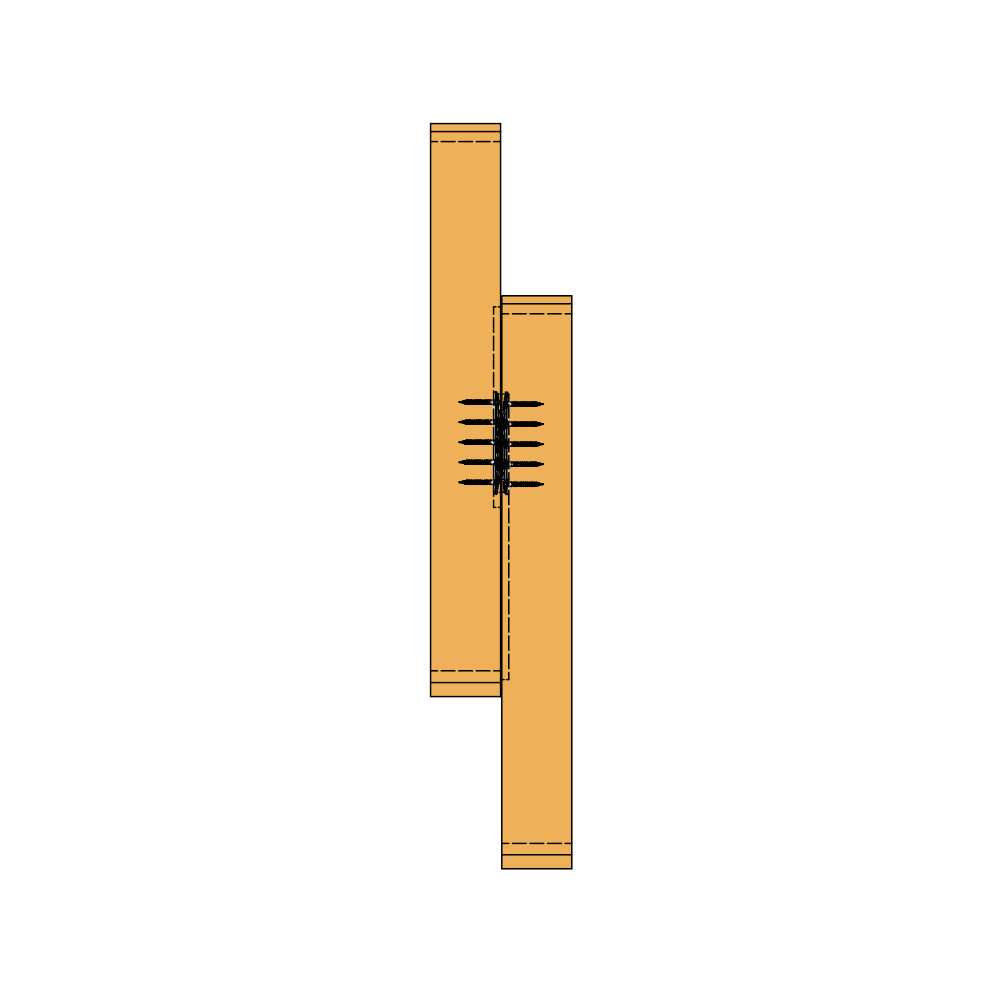

ICST is composed of two parts, which will be face to face in final position.

The guiding central part of the connector facilitates the timber assembly.

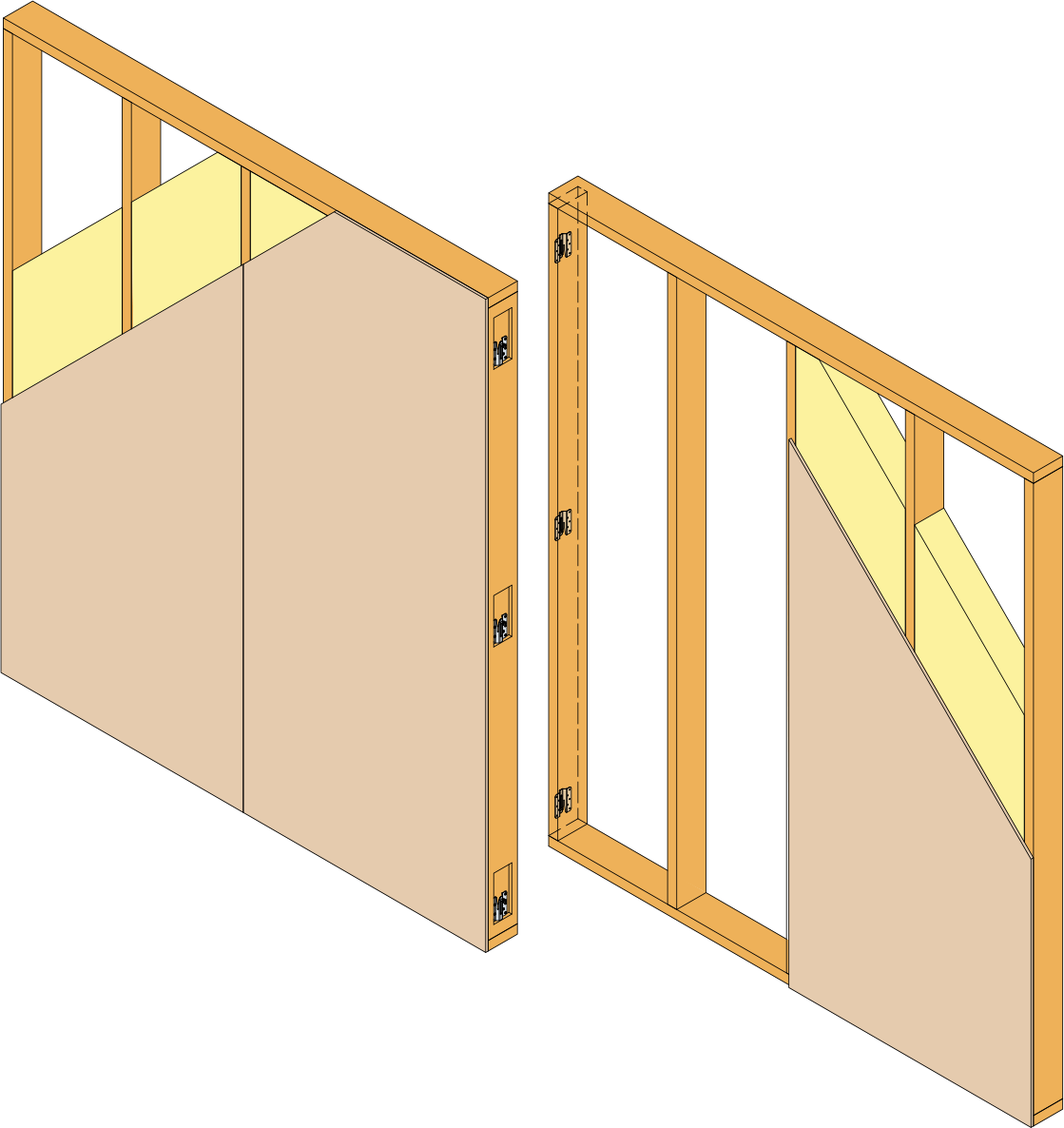

The ICST is preconized in the case of "closed" walls (exterior and interior wall coverings installed).
