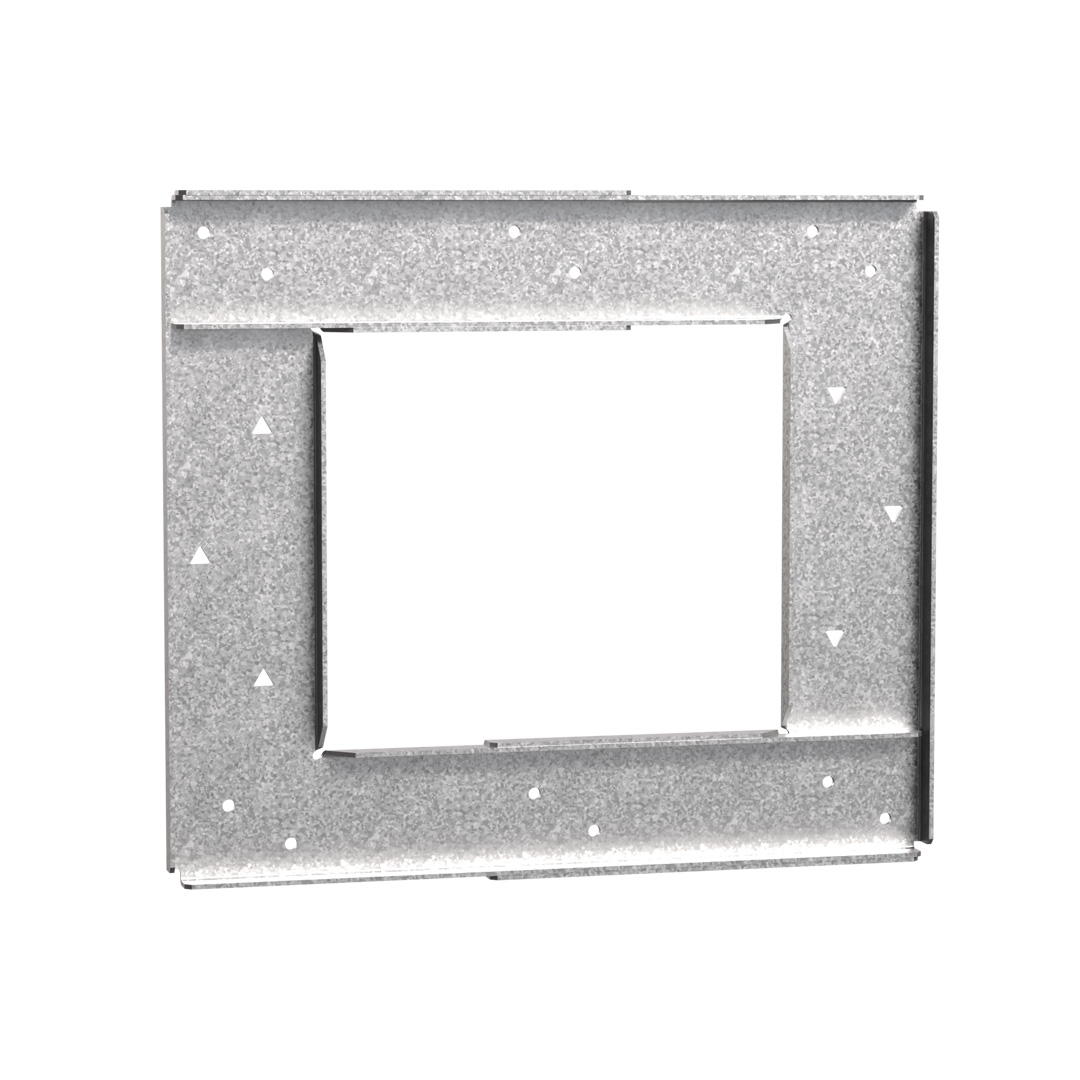

I-Joist Hole Support

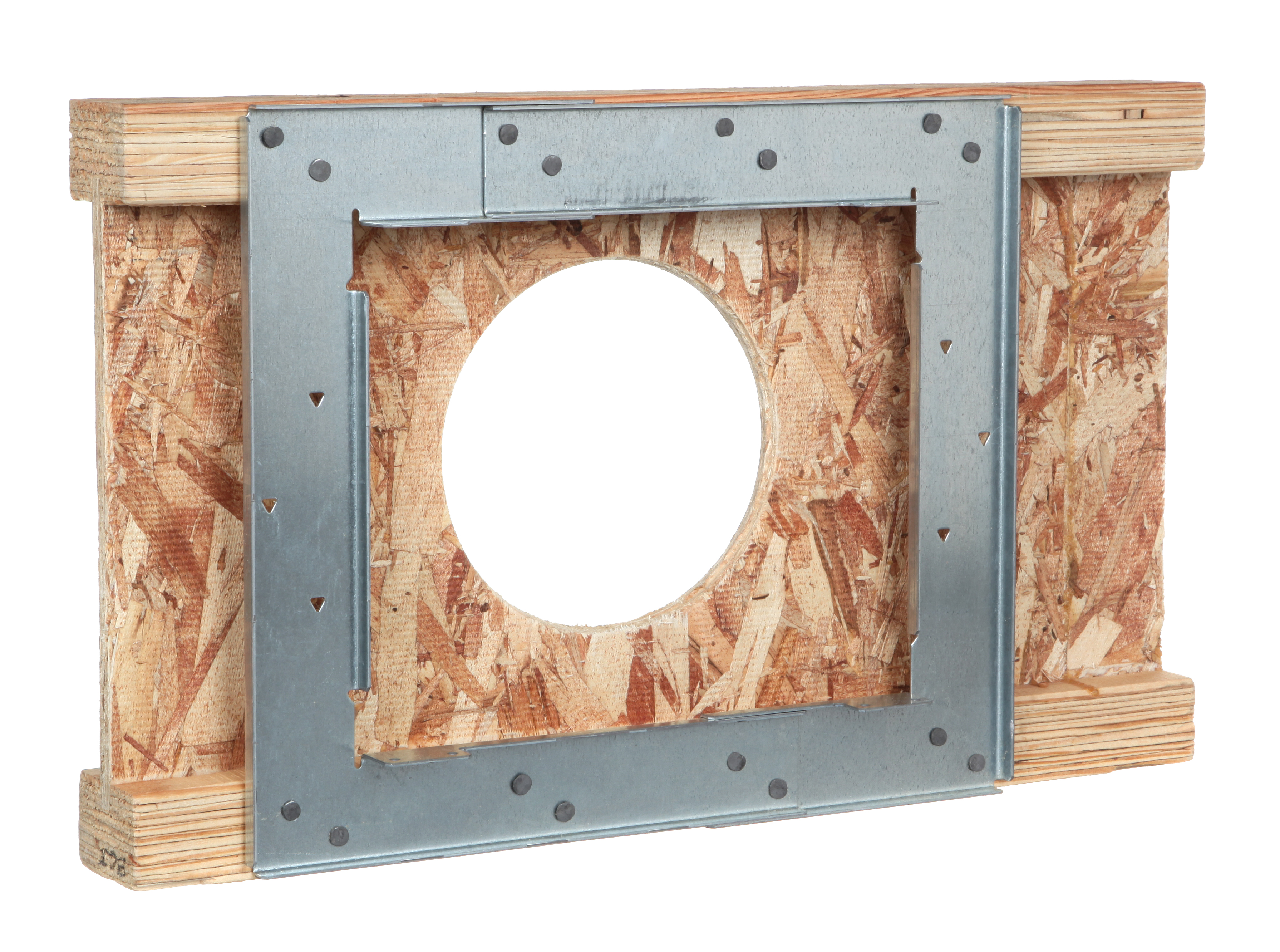

The IHS is designed to strengthen I-joists when holes are required to be cut in locations not normally permitted.

  • Allows holes to be cut 50mm from bearing point, which allows services to run close to external walls.
  • Variable hole sizes from 150mm to a maximum width of 250mm.

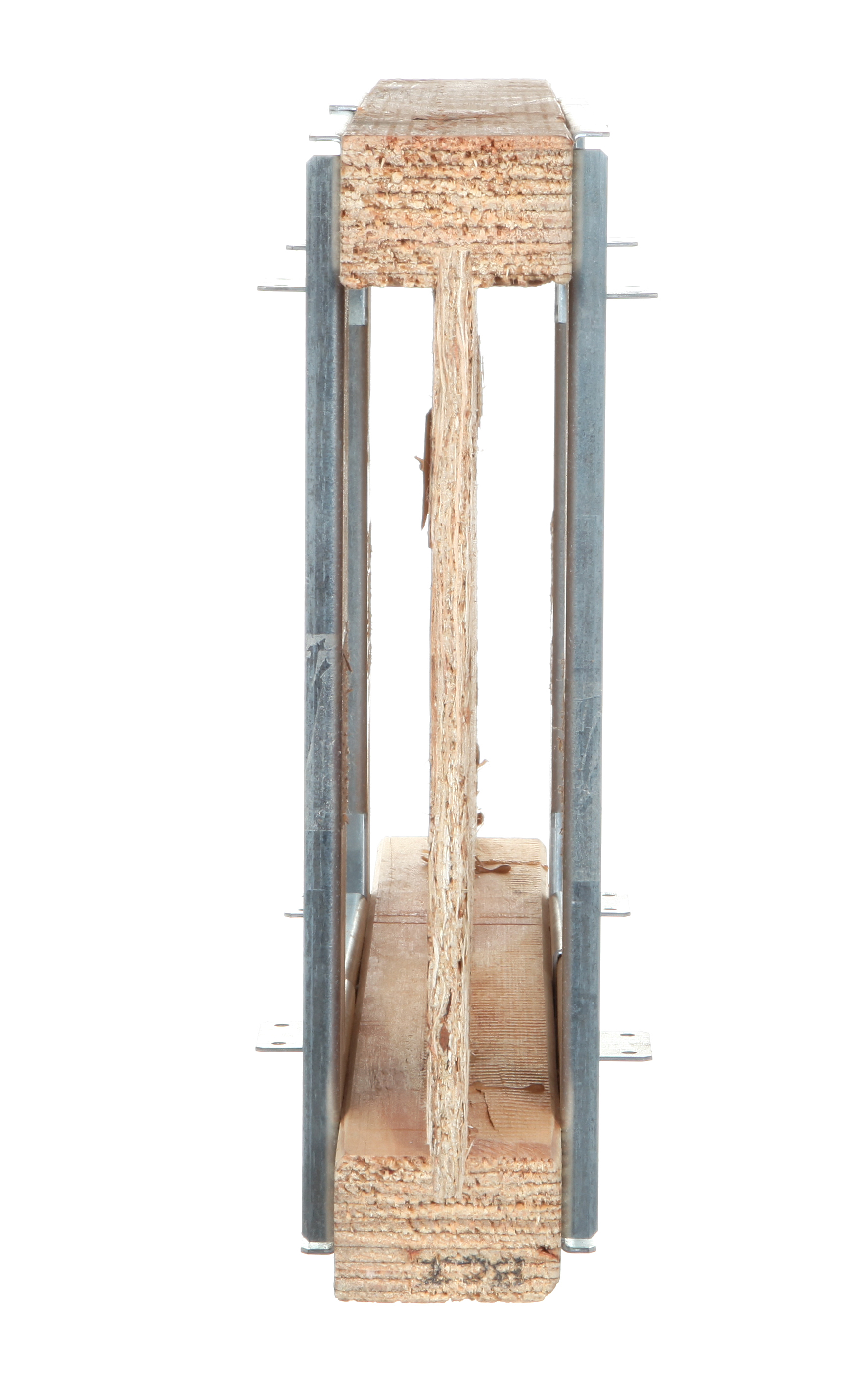

  • Supplied as 2 sets of 2 interlocking plates (1 set per side of I-joist) which always allows the IHS to be fitted, even when services are already in-situ.
  • Helps to eliminate expensive and time consuming joist trimming for SVP (soil vent pipe) runs.

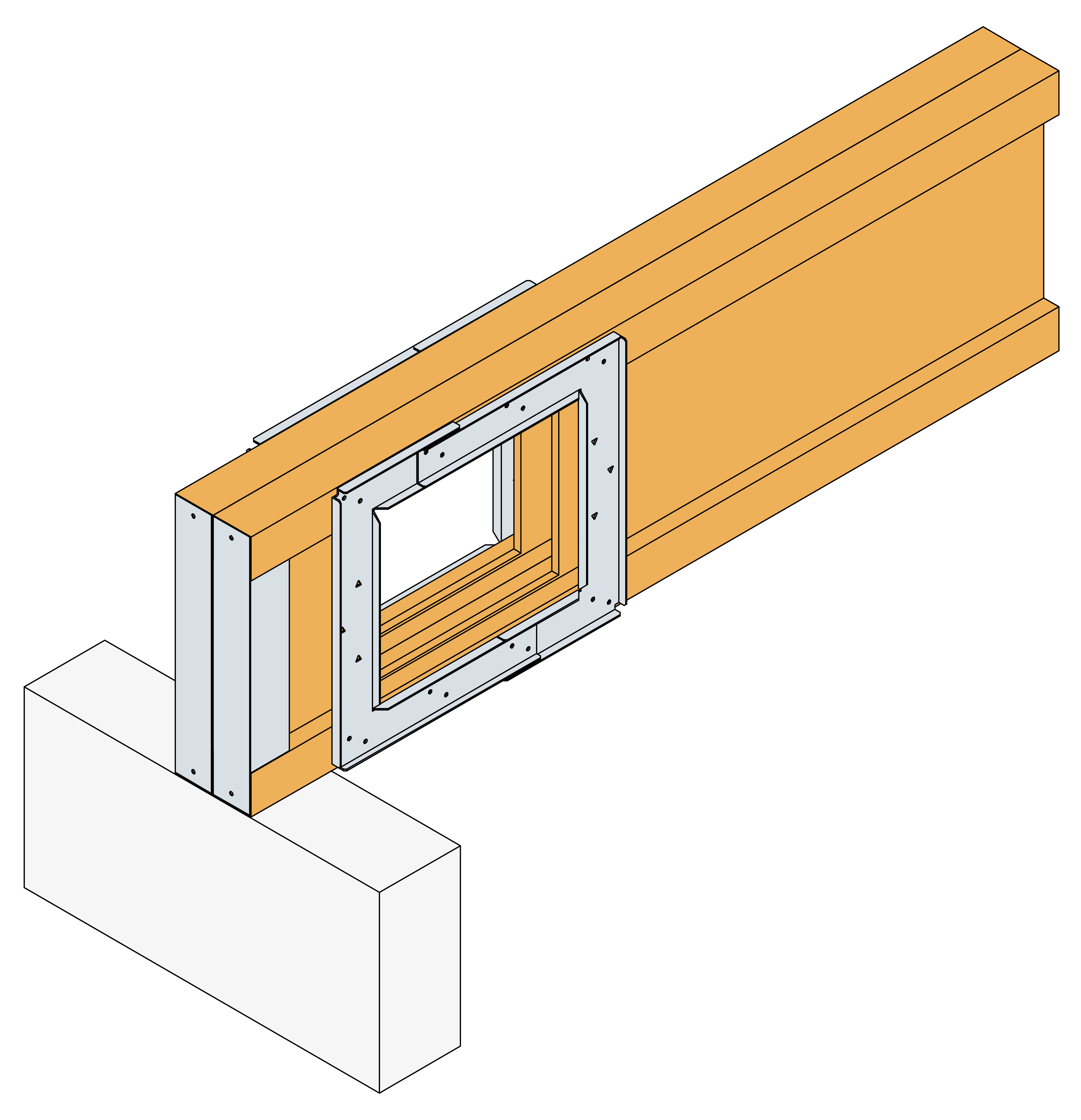

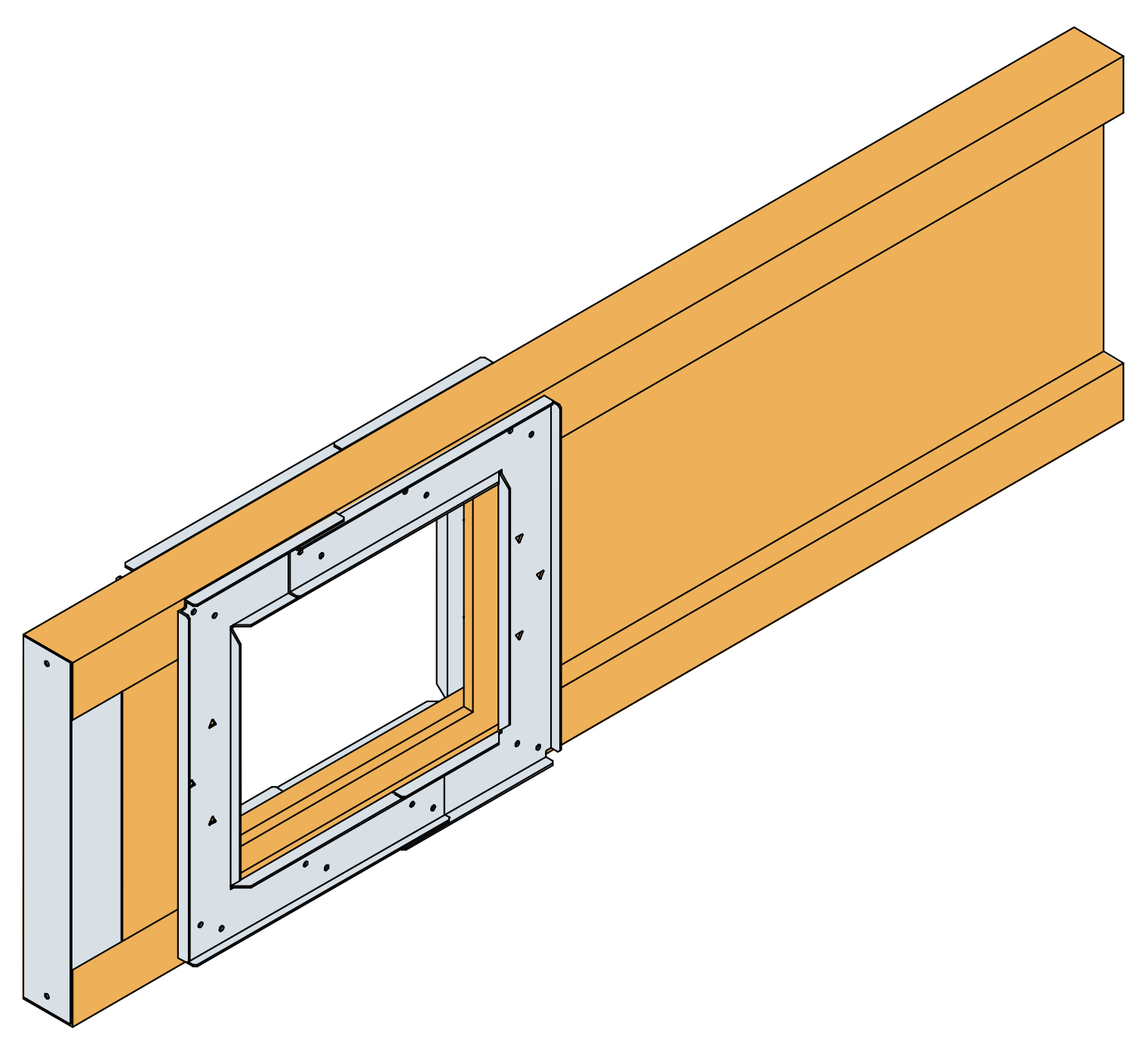

  • Can be used on single and double ply I-joists.
Service class 2
Service class 2
Electrogalvanized steel 20 µm
Electrogalvanized steel 20 µm
EPD
EPD

Product Details

Images

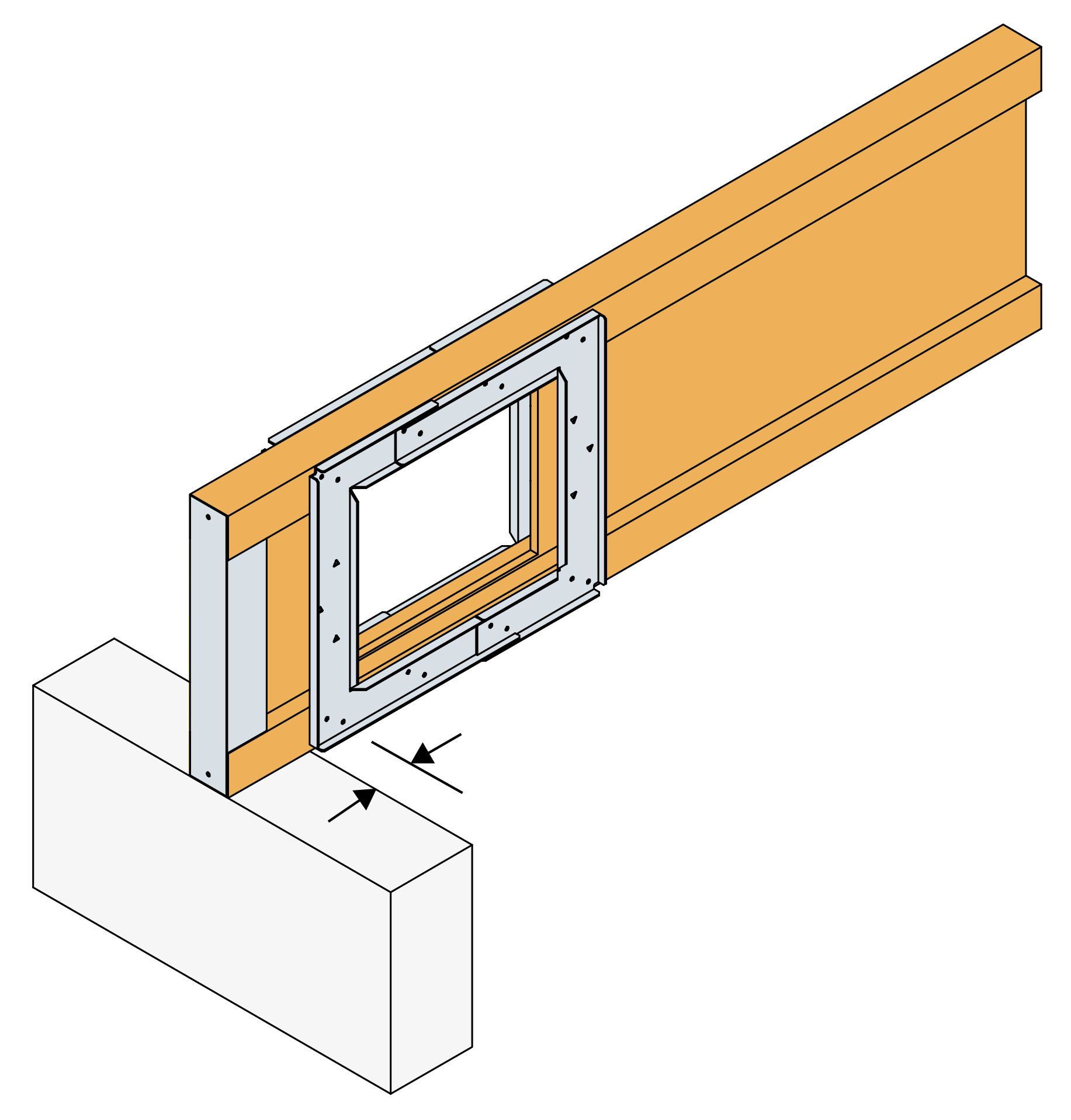

Ensure a minimum of 50mm from edge of cut hole to the bearing face.

Features

Materials

  • Pre-galvanised mild steel

Technical Data

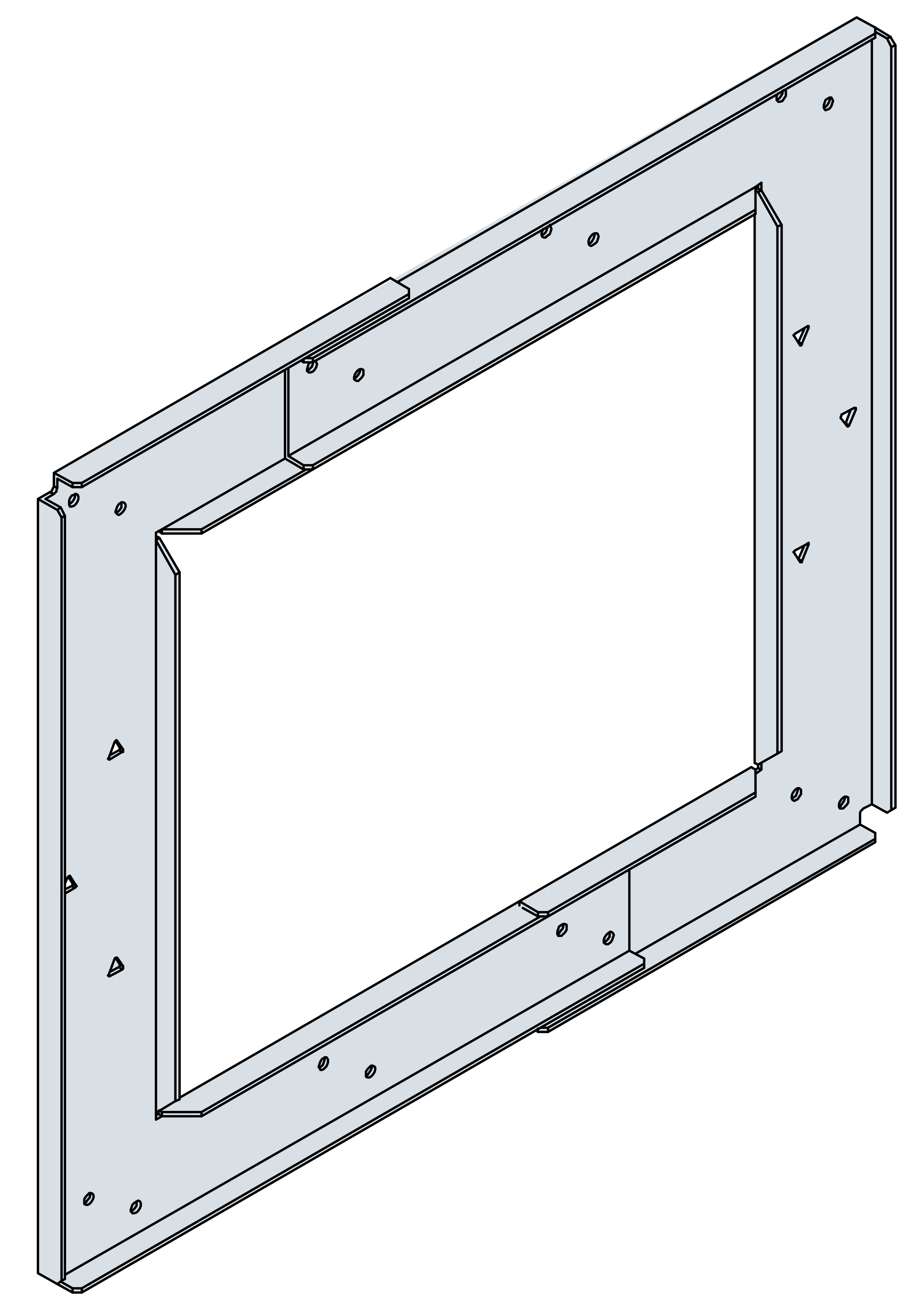

IHS Product Dimensions

Dimensions

ReferenceHanger capacity
Number of Fasteners
150 mm Bracket Opening250mm Bracket Opening
SpecificationQuantityQuantitySpecification
IHS2403.75x30mm24.032.03.75x30mm
IHS3003.75x30mm24.032.03.75x30mm

1) Use 3.75x30mm Square Twist Nails

2) Number of fasteners is per hole in joist

Dimensions Br46

Dimensions

ReferenceConnector Dimensions
Other
NOBB no.
IHS240-
IHS300-
IHS350-

IHS Characteristc Performance : Boise I-Joist - 60mm

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (Boise I-Joist - 60mm)
Joist Type (Boise I-Joist - 60mm)Joist HeightMaximum Allowable Rectangular Hole
Size with IHS (d x w in mm)
Characteristic CapacitiesPermissible loads (Intermediate Floor Joist Applications)
Vₖ,ₕₒₗₑ (IHS Installed)Vₕₒₗₑ (IHS Installed)
1 plyDouble Ply1 plyDouble Ply
IHS240BCI60241150 x 2506.769.832.513.65
IHS300BCI60302200 x 2508.2411.983.064.45
IHS350-------

IHS Performance: Boise (BCI90) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (Boise I-Joist - 60mm)
Joist Type (Boise (BCI90) I-Joist)Joist HeightMaximum Allowable Rectangular Hole
Size with IHS (d x w in mm)
Characteristic CapacitiesPermissible loads (Intermediate Floor Joist Applications)
Vₖ,ₕₒₗₑ (IHS Installed)Vₕₒₗₑ (IHS Installed)
1 plyDouble Ply1 plyDouble Ply
IHS240BCI90241150 x 2506.769.832.513.65
IHS300BCI90302200 x 2508.2411.983.064.45
IHS350-------

IHS Performance: Boise (BCI4500) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (Boise (BCI4500) I-Joist)[kN]
Joist Type (Boise (BCI4500) I-Joist)Joist HeightMaximum Allowable Rectangular Hole
Size with IHS (d x w in mm)
Permissible loads (Intermediate Floor Joist Applications)Characteristic Capacities
Vₕₒₗₑ (IHS Installed)Vₖ,ₕₒₗₑ (IHS Installed)
1 plyDouble Ply1 plyDouble Ply
IHS240BCI4500241150 x 2501.772.224.785.97
IHS300BCI4500302200 x 2502.172.715.857.31
IHS350-------

IHS Performance: Boise (BCI6000) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (Boise (BCI6000) I-Joist)
Joist Type (Boise (BCI6000) I-Joist)Joist HeightMaximum Allowable Rectangular Hole
Size with IHS (d x w in mm)
Characteristic CapacitiesPermissible loads (Intermediate Floor Joist Applications)[kN]
Vₖ,ₕₒₗₑ (IHS Installed)Vₕₒₗₑ (IHS Installed)
1 plyDouble Ply1 plyDouble Ply
IHS240BCI6000241150 x 2504.785.971.772.22
IHS300BCI6000302200 x 2505.857.312.172.71
IHS350-------

IHS Performance: James Jones (JJI A+) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (James Jones (JJI A+) I-Joist)[kN]
Joist Type (James Jones (JJI A+) I-Joist)Joist Height (JJI-Joist)[mm]Max. allowable hole size with IHS (d x w) (JJI-Joist)Characteristic CapacitiesPermissible loads (Intermediate Floor Joist Applications)
Vₖ,ₕₒₗₑ (IHS Installed)Vₕₒₗₑ (IHS Installed)
1 plyDouble Ply1 plyDouble Ply
IHS240JJI-Joist A+ (47mm)245150 x 2507.259.662.973.96
IHS300JJI-Joist A+ (47mm)300200 x 2508.3211.093.414.55

IHS Performance: James Jones (JJI B+) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (James Jones (JJI B+) I-Joist)[kN]
Joist Type (James Jones (JJI B+) I-Joist)Joist Height (JJI-Joist)[mm]Max. allowable hole size with IHS (d x w) (JJI-Joist)Permissible loads (Intermediate Floor Joist Applications)Characteristic Capacities
Vₕₒₗₑ (IHS Installed)Vₖ,ₕₒₗₑ (IHS Installed)
1 plyDouble Ply1 plyDouble Ply
IHS240JJI-Joist B+ (63 mm)245150 x 2503.254.337.9110.55
IHS300JJI-Joist B+ (63 mm)300200 x 2503.674.898.9511.93

IHS Performance: James Jones (JJI C) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (James Jones (JJI C) I-Joist)[kN]
Joist Type (James Jones (JJI C) I-Joist)Joist Height (JJI-Joist)[mm]Max. allowable hole size with IHS (d x w) (JJI-Joist)Permissible loads (Intermediate Floor Joist Applications)Characteristic Capacities
Vₕₒₗₑ (IHS Installed)Vₖ,ₕₒₗₑ (IHS Installed)
1 plyDouble Ply1 plyDouble Ply
IHS240JJI-Joist C (72 mm)245150 x 2503.44.538.2811.04
IHS300JJI-Joist C (72 mm)300200 x 2503.815.089.2912.39

IHS Performance: James Jones (JJI D) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (James Jones (JJI D) I-Joist)[kN]
Joist Type (James Jones (JJI D) I-Joist)Joist Height (JJI-Joist)[mm]Max. allowable hole size with IHS (d x w) (JJI-Joist)Characteristic CapacitiesPermissible loads (Intermediate Floor Joist Applications)
Vₖ,ₕₒₗₑ (IHS Installed)Vₕₒₗₑ (IHS Installed)
1 plyDouble Ply1 plyDouble Ply
IHS240JJI-Joist D (97 mm)245150 x 2509.2412.323.795.05
IHS300JJI-Joist D (97 mm)300200 x 25010.2413.664.25.6

IHS Performance: LP Building Products(LPI20Plus 63mm) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (LPI20Plus I-Joist)[kN]
Joist Type (LPI20Plus I-Joist)Joist Height (LPI20Plus I-Joist)[mm]Max. allowable hole size with IHS (d x w) (LPI20Plus I-Joist)Permissible loads (Intermediate Floor Joist Applications)Characteristic Capacities
Vₕₒₗₑ (IHS Installed)Vₖ,ₕₒₗₑ (IHS Installed)
1 plyDouble Ply1 plyDouble Ply
IHS240-------
IHS300-------
IHS350-------

IHS Performance: Masonite H (47mm Flange) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (Masonite)[kN]
Joist Type (Masonite H)Joist Height (Masonite)[mm]Max. allowable hole size with IHS (d x w) (Masonite)[mm]Permissible loads (Intermediate Floor Joist Applications)Characteristic Capacities
Vₕₒₗₑ (IHS Installed)Vₖ,ₕₒₗₑ (IHS Installed)
1 PlyDouble Ply1 PlyDouble Ply
IHS240H240140 x 2502.452.948.249.89
IHS300H300200 x 2503.053.6610.2612.31

IHS Performance: Masonite HM (60mm Flange) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (Masonite)[kN]
Joist Type (Masonite HM)Joist Height (Masonite)[mm]Max. allowable hole size with IHS (d x w) (Masonite)[mm]Permissible loads (Intermediate Floor Joist Applications)Characteristic Capacities
Vₕₒₗₑ (IHS Installed)Vₖ,ₕₒₗₑ (IHS Installed)
1 PlyDouble Ply1 PlyDouble Ply
IHS240HM240140 x 2502.452.948.249.89
IHS300HM300200 x 2503.053.6610.2612.31

IHS Performance: Masonite HI (70mm flange) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (Masonite)[kN]
Joist Type (Masonite HI)Joist Height (Masonite)[mm]Max. allowable hole size with IHS (d x w) (Masonite)[mm]Permissible loads (Intermediate Floor Joist Applications)Characteristic Capacities
Vₕₒₗₑ (IHS Installed)Vₖ,ₕₒₗₑ (IHS Installed)
1 PlyDouble Ply1 PlyDouble Ply
IHS240HI240140 x 2502.452.948.249.89
IHS300HI300200 x 2503.053.6610.2612.31

IHS Performance: Masonite HB (97mm flange) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (Masonite HB)[kN]
Joist Type (Masonite HB)Joist Height (Masonite)[mm]Max. allowable hole size with IHS (d x w) (Masonite)[mm]Permissible loads (Intermediate Floor Joist Applications)Characteristic Capacities
Vₕₒₗₑ (IHS Installed)Vₖ,ₕₒₗₑ (IHS Installed)
1 PlyDouble Ply1 PlyDouble Ply
IHS240HB240140 x 2502.52.98.29.9
IHS300HB300200 x 2503.13.710.312.3

IHS Performance: MetsaWood (FinnJoist 38mm) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (FinnJoist 38mm)[kN]
Joist Type (FinnJoist 38mm)Joist Height (FinnJoist)[mm]Max. allowable hole size with IHS (d x w) (FinnJoist)Permissible loads (Intermediate Floor Joist Applications)Characteristic Capacities
Vₕₒₗₑ (IHS Installed)1 plyVₖ,ₕₒₗₑ (IHS Installed)
1 plyDouble PlyDouble Ply
IHS240FJI 38240145 x 2502.833.36.787.91
IHS300FJI 38300200 x 2503.413.988.189.54
IHS350-------

IHS Performance: MetsaWood (FinnJoist 45mm) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (FinnJoist 38mm)[kN]
Joist Type (FinnJoist 38mm)Joist Height (FinnJoist)[mm]Max. allowable hole size with IHS (d x w) (FinnJoist)Characteristic CapacitiesPermissible loads (Intermediate Floor Joist Applications)
Vₖ,ₕₒₗₑ (IHS Installed)Vₕₒₗₑ (IHS Installed)
1 plyDouble Ply1 plyDouble Ply
IHS240FJI 45240145 x 2507.028.192.933.41
IHS300FJI 45300200 x 2508.489.893.534.12

IHS Performance: MetsaWood (FinnJoist 53mm) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (FinnJoist 53mm)[kN]
Joist Type (FinnJoist 53mm)Joist Height (FinnJoist)[mm]Max. allowable hole size with IHS (d x w) (FinnJoist)Permissible loads (Intermediate Floor Joist Applications)Characteristic Capacities
Vₕₒₗₑ (IHS Installed)Vₖ,ₕₒₗₑ (IHS Installed)
1 plyDouble Ply1 plyDouble Ply
IHS240FJI 58240145 x 2503.123.647.488.73
IHS300FJI 58300200 x 2503.764.399.0910.54

IHS Performance: MetsaWood (FinnJoist 69mm) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (FinnJoist 69mm)[kN]
Joist Type (FinnJoist 69mm)Joist Height (FinnJoist)[mm]Max. allowable hole size with IHS (d x w) (FinnJoist)Permissible loads (Intermediate Floor Joist Applications)Characteristic Capacities
Vₕₒₗₑ (IHS Installed)Vₖ,ₕₒₗₑ (IHS Installed)
1 plyDouble Ply1 plyDouble Ply
IHS240FJI 70240145 x 2503.223.767.739.02
IHS300FJI 70300200 x 2503.894.539.3210.88

IHS Performance: MetsaWood (FinnJoist 96mm) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (FinnJoist 96mm)[kN]
Joist Type (FinnJoist 96mm)Joist Height (FinnJoist)[mm]Max. allowable hole size with IHS (d x w) (FinnJoist)Permissible loads (Intermediate Floor Joist Applications)Characteristic Capacities
Vₕₒₗₑ (IHS Installed)Vₖ,ₕₒₗₑ (IHS Installed)
1 plyDouble Ply1 plyDouble Ply
IHS240FJI 89240145 x 2503.223.767.739.02
IHS300FJI 89300200 x 2503.894.539.3210.88

IHS Performance: Steico (SJL 45mm) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (Steico (SJL 45mm))[kN]
Joist Type (Steico (SJL 45mm))Joist Height (Steico)[mm]Max. allowable hole size with IHS (d x w) (Steico)Permissible loads (Intermediate Floor Joist Applications)Characteristic Capacities
Vₕₒₗₑ (IHS Installed)Vₖ,ₕₒₗₑ (IHS Installed)
1 plyDouble Ply1 plyDouble Ply
IHS240SJL 45240150 x 2501.622.276.388.93
IHS300SJL 45300200 x 2501.952.737.6810.75

IHS Performance: Steico (SJL 60mm) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (Steico (SJL 60mm))[kN]
Joist Type (Steico (SJL 60mm))Joist Height (Steico)[mm]Max. allowable hole size with IHS (d x w) (Steico)Permissible loads (Intermediate Floor Joist Applications)Characteristic Capacities
Vₕₒₗₑ (IHS Installed)Vₖ,ₕₒₗₑ (IHS Installed)
1 plyDouble Ply1 plyDouble Ply
IHS240SJL 60240150 x 2501.62.256.328.85
IHS300SJL 60300200 x 2501.932.77.5910.62

IHS Performance: Steico (SJL 90mm) I-Joist

ReferenceHanger capacity
Joist TypeJoist HeightMax. allowable hole size with IHS (d x w)Shear Capacity at Location of IHS (Steico (SJL 90mm))[kN]
Joist Type (Steico (SJL 90mm))Joist Height (Steico)[mm]Max. allowable hole size with IHS (d x w) (Steico)Permissible loads (Intermediate Floor Joist Applications)Characteristic Capacities
Vₕₒₗₑ (IHS Installed)Vₖ,ₕₒₗₑ (IHS Installed)
1 plyDouble Ply1 plyDouble Ply
IHS240SJL 90240150 x 2501.592.226.268.76
IHS300SJL 90300200 x 2501.92.667.4910.48
IHS350-------

Installation

Installation

Applications

c

Installation

  • Each IHS consists of 2 sets of 2 interlocking plates with one set required for each side of the I-joist.
  • The outer edge of the holes cut into the web of the I-joist can be a minimum of 50mm from the inner face of the blockwork.
  • Holes can be cut into the web of the I-joist before or after installation of the IHS.
  • Holes must fit within the internal aperture of the IHS.

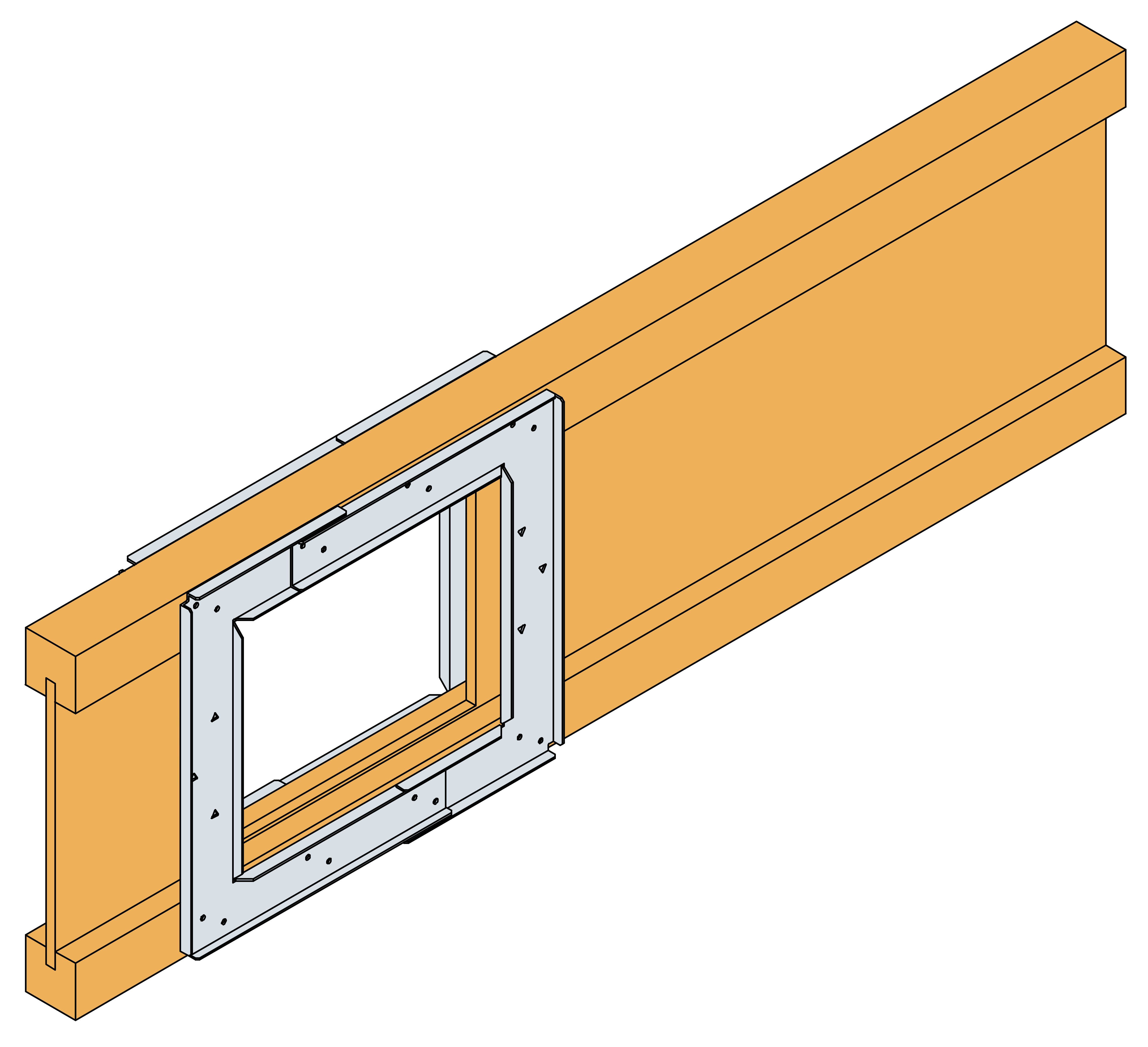

  • Place the IHS onto the I-joist so that the top and bottom sliding flanges are aligned vertically central onto the top and bottom chords of the I-joist.
  • Open or close the IHS to the required width, ensuring that the two sections overlap by at least one row of nails (minimum overlap of 45mm).
  • Install 3.75x30mm square twist nails through all round holes into the top and bottom chords of the I-joist.
  • Repeat the above steps to install plates on the other side of the I-joist, completing the installation.
