CLR Plus H A4

Hex-Head Concrete Screws Stainless Steel A4

The stainless steel hexagonal head version is the standard version used for the most applications in corrosive environments, specially with greatest diameters and higest loads to fix metallic and timber carpentry.

Technical Data Sheet
CE Marking
CE Marking
ETA
ETA
Seismic C1
Seismic C1
Severe
Severe
Stainless steel A4
Stainless steel A4

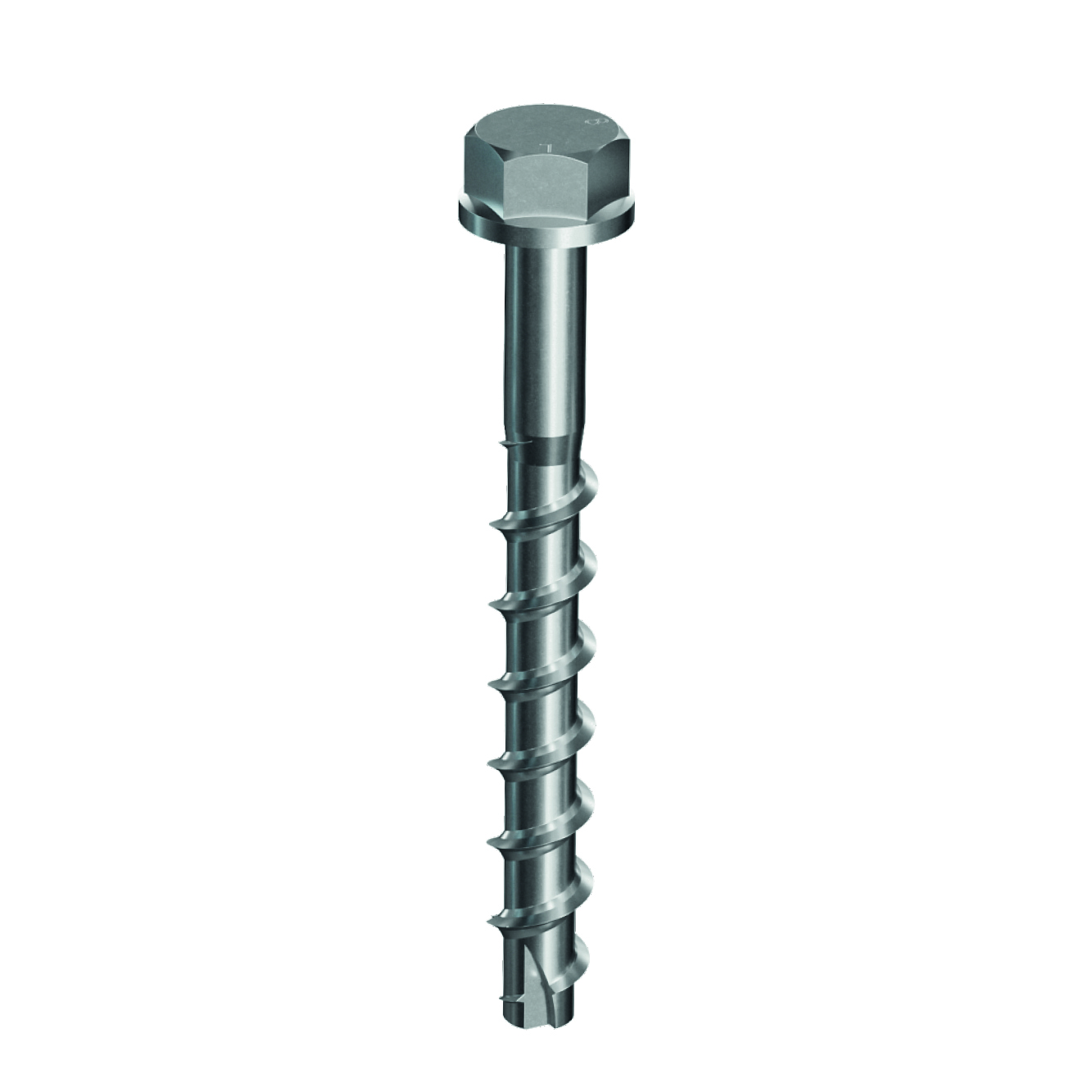

CLR Plus H A4 main

Product Details

Images

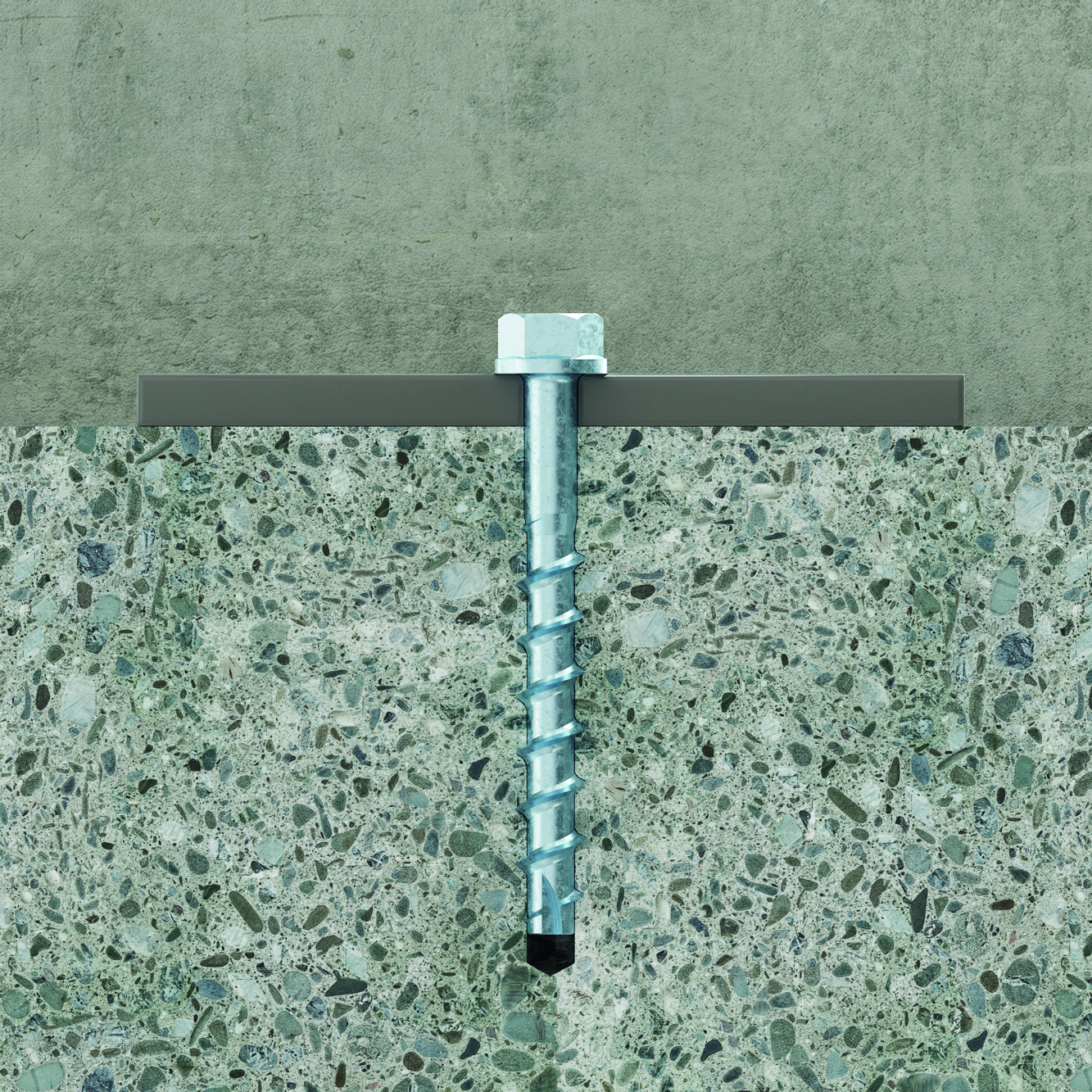

CLR Plus H Application Frontal

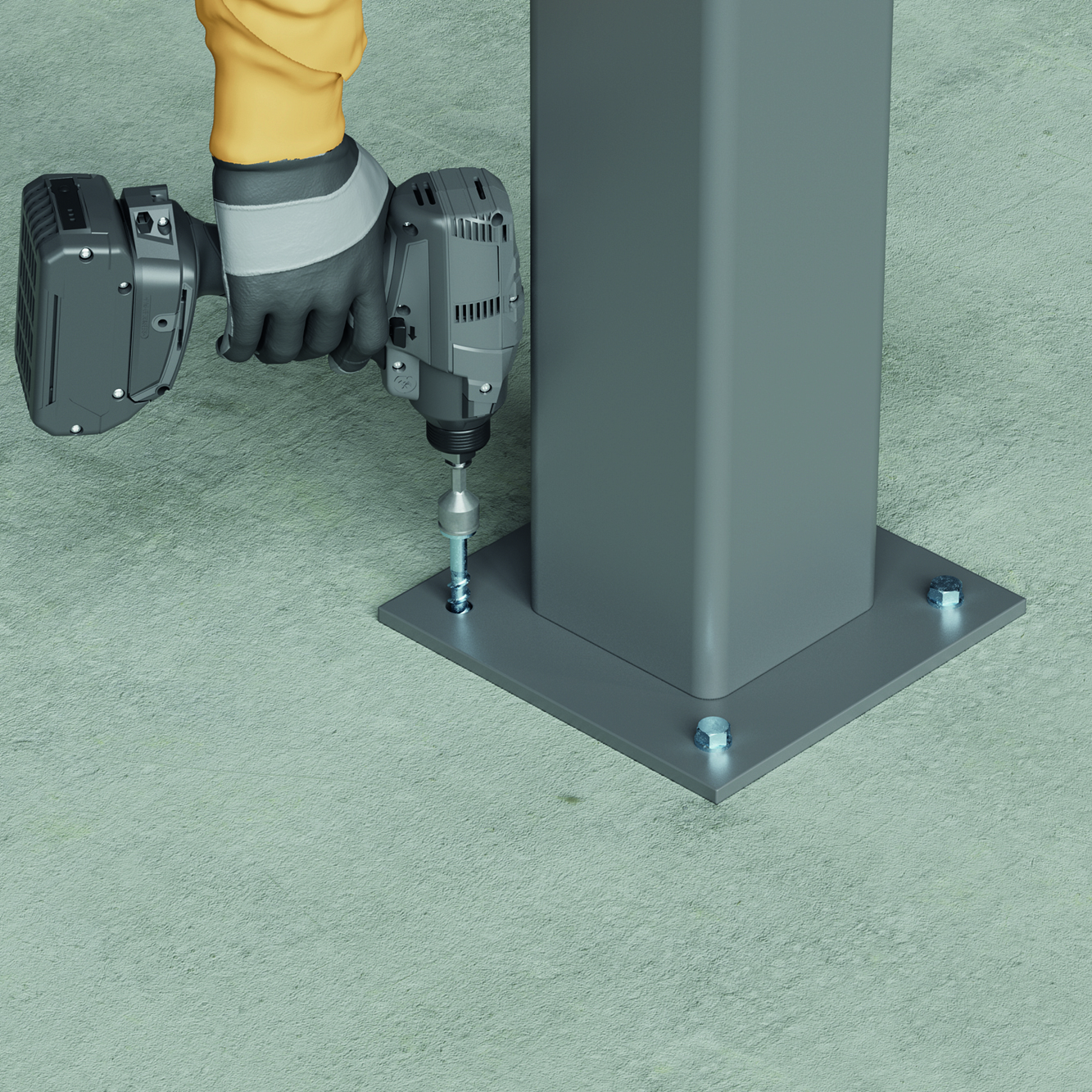

CLR Plus H Application

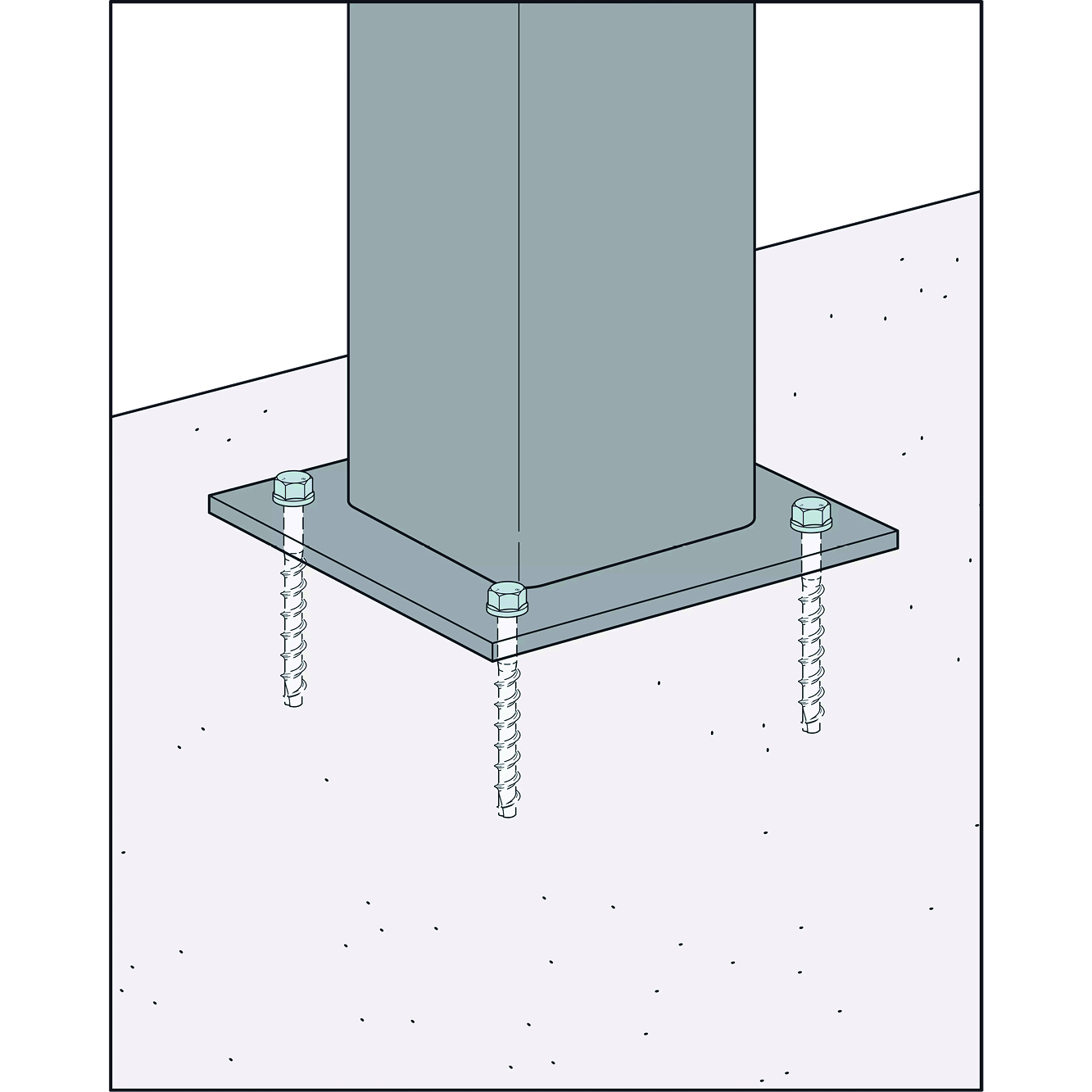

CLR Plus H Illustration

Application

Material

  • A4 Stainless steel

Suitable on

  • Cracked and uncracked concrete

Technical Data

Product dimensions

ReferenceMetallic fixings dimensions
Item codeOtherProduct Dimensions[mm]
Hole diameter [dₒ][mm]Fixing thickness (tfix) for reduced embedment depth (hef,r)Fixture thickness [tfᵢₓ] (¹)[mm]Fixing thickness (tfix) for increased embedment depth (hef,max)Qty per box[pcs]Dim[mm]
CLR Plus H A4 8x807210500808000835251550.08x80
CLR Plus H A4 10x10072105010100001045251550.010x100

Certification

European Technical Assessment (ETA)

eta-25-0252-multiple-use-en.pdf
No history available
eta-25-0253-option-1-c1-en.pdf
No history available

CAD and BIM Library

2D

CLR Plus H A4 8x80

CLR Plus H A4 10x100

3D

CLR Plus H A4 8x80

CLR Plus H A4 10x100
