CLR Plus H

Hex-Head Concrete Screws

The hexagonal head version is the standard version used for the most applications, specially with greatest diameters and higest loads to fix metallic and timber carpentry.

Technical Data Sheet
CE Marking
CE Marking
ETA
ETA
Seismic C1 C2
Seismic C1 C2

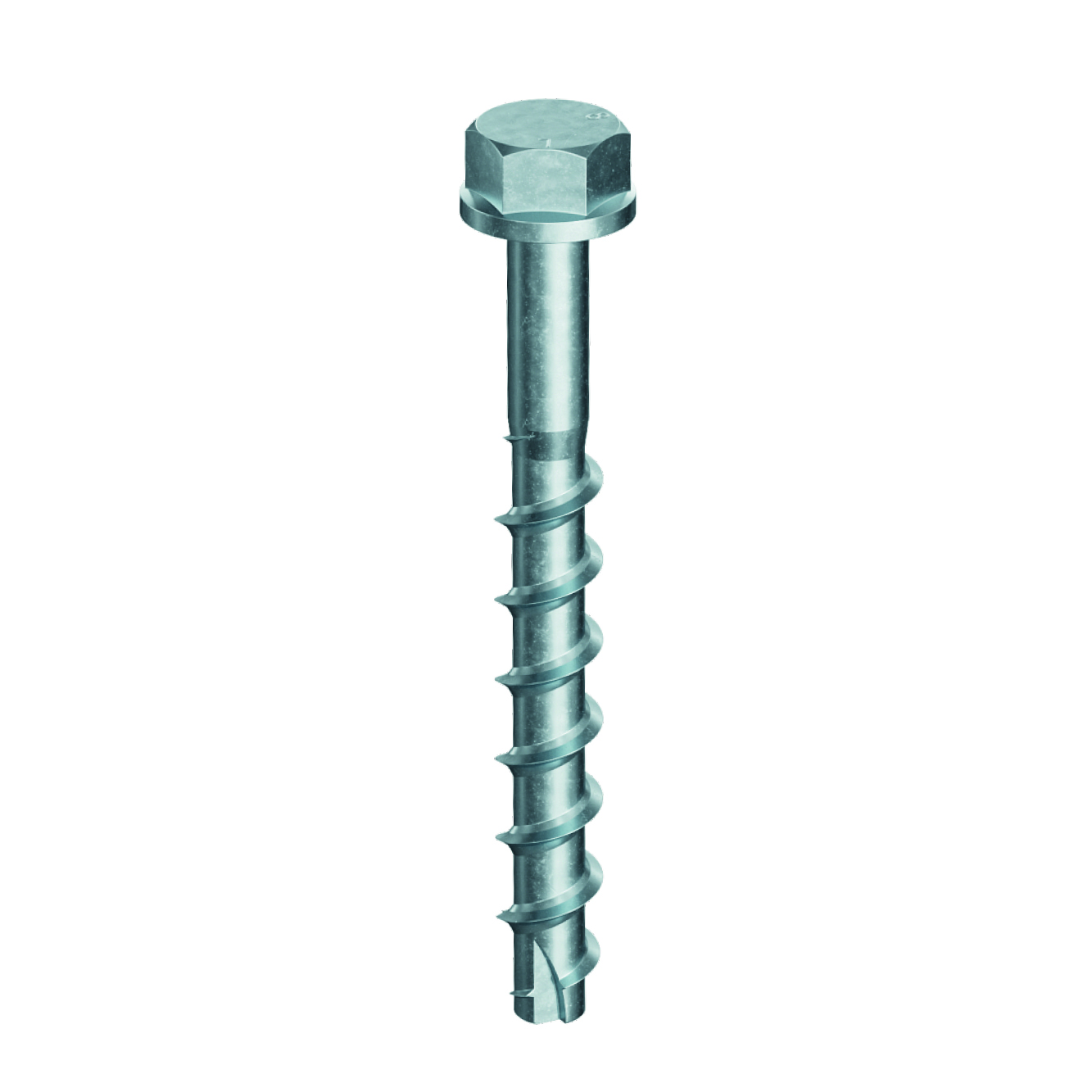

CLR Plus H main

Product Details

Images

CLR Plus H Application Frontal
CLR Plus H Application
CLR Plus H Illustration

Application

Material

  • Electro-galvanized steel

Suitable on

  • Cracked and uncracked concrete

Technical Data

Product dimensions

ReferenceMetallic fixings dimensions
Item codeOtherProduct Dimensions[mm]
Hole diameter [dₒ][mm]Fixing thickness (tfix) for reduced embedment depth (hef,r)Fixture thickness [tfᵢₓ] (¹)[mm]Fixing thickness (tfix) for increased embedment depth (hef,max)Qty per box[pcs]Dim[mm]
CLR Plus H 10x24072105B10240001018516515525.010x240
CLR Plus H 10x28072105B10280001022520519525.010x280
CLR Plus H 10x32072105B10320001026524523525.010x320
CLR Plus H 10x40072105B10400001034532531525.010x400
CLR Plus H 12x8072105B12080001215--25.012x80
CLR Plus H 12x11072105B12110001245251025.012x110
CLR Plus H 12x13072105B12130001265453025.012x130
CLR Plus H 12x15072105B12150001285655025.012x150
CLR Plus H 14x8072105B1408000145--25.014x80
CLR Plus H 14x11072105B1411000143510-25.014x110
CLR Plus H 14x13072105B14130001455301525.014x130
CLR Plus H 14x15072105B14150001475503525.014x150

Certification

European Technical Assessment (ETA)

eta-25-0131-masonry-en.pdf
No history available
eta-25-0251-option-1-c1-c2-en.pdf
No history available
eta-25-0252-multiple-use-en.pdf
No history available
