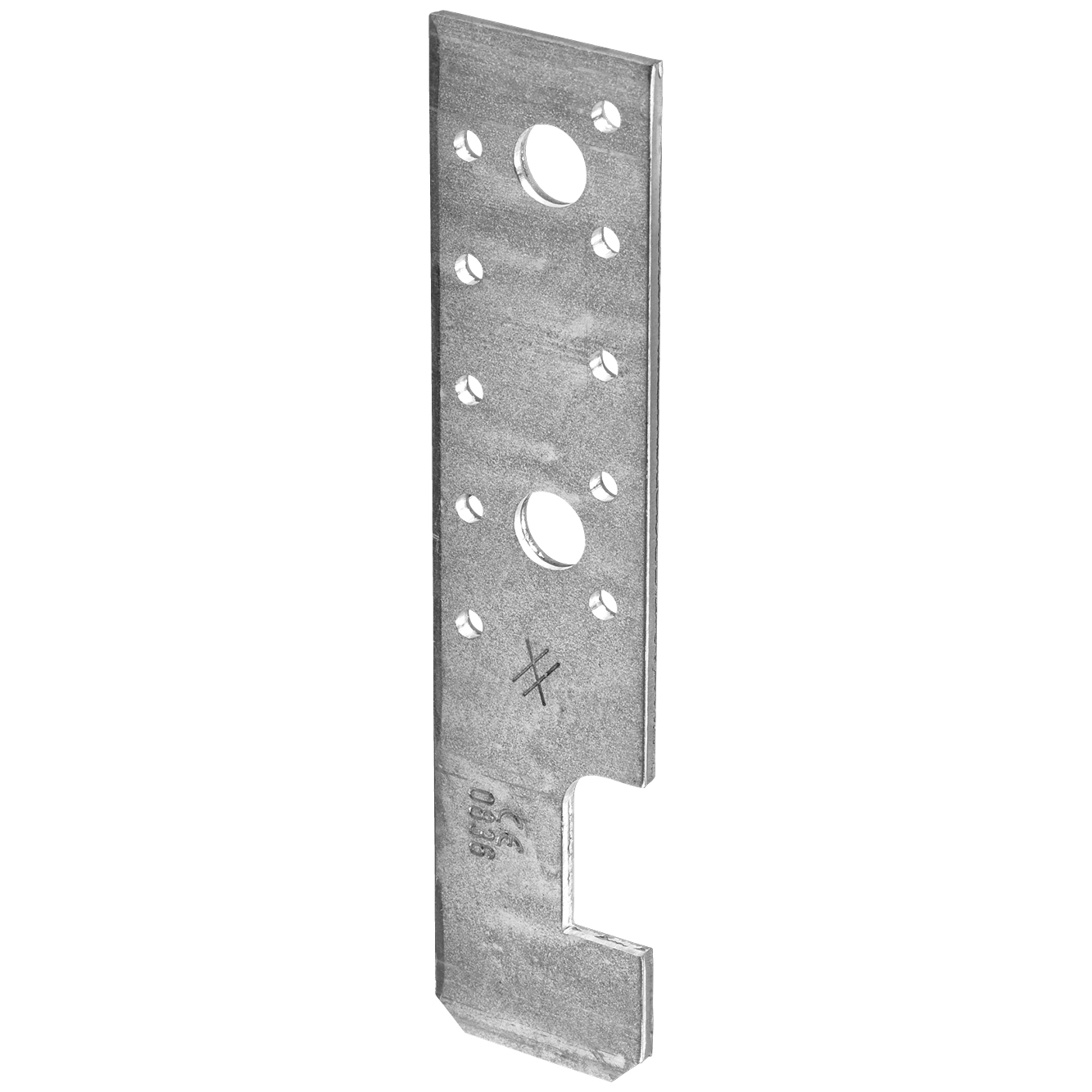

HE
HE profile anchor
HE anchors have been developed to absorb tensile forces and are arranged opposite..
The length may be made in accordance with the ETA, from ground can be 315 mm to 359 mm.
CE Marking
ETA
EPD
Indoor
Electrogalvanized steel 20 µm
Service class 2
Product Details
Images

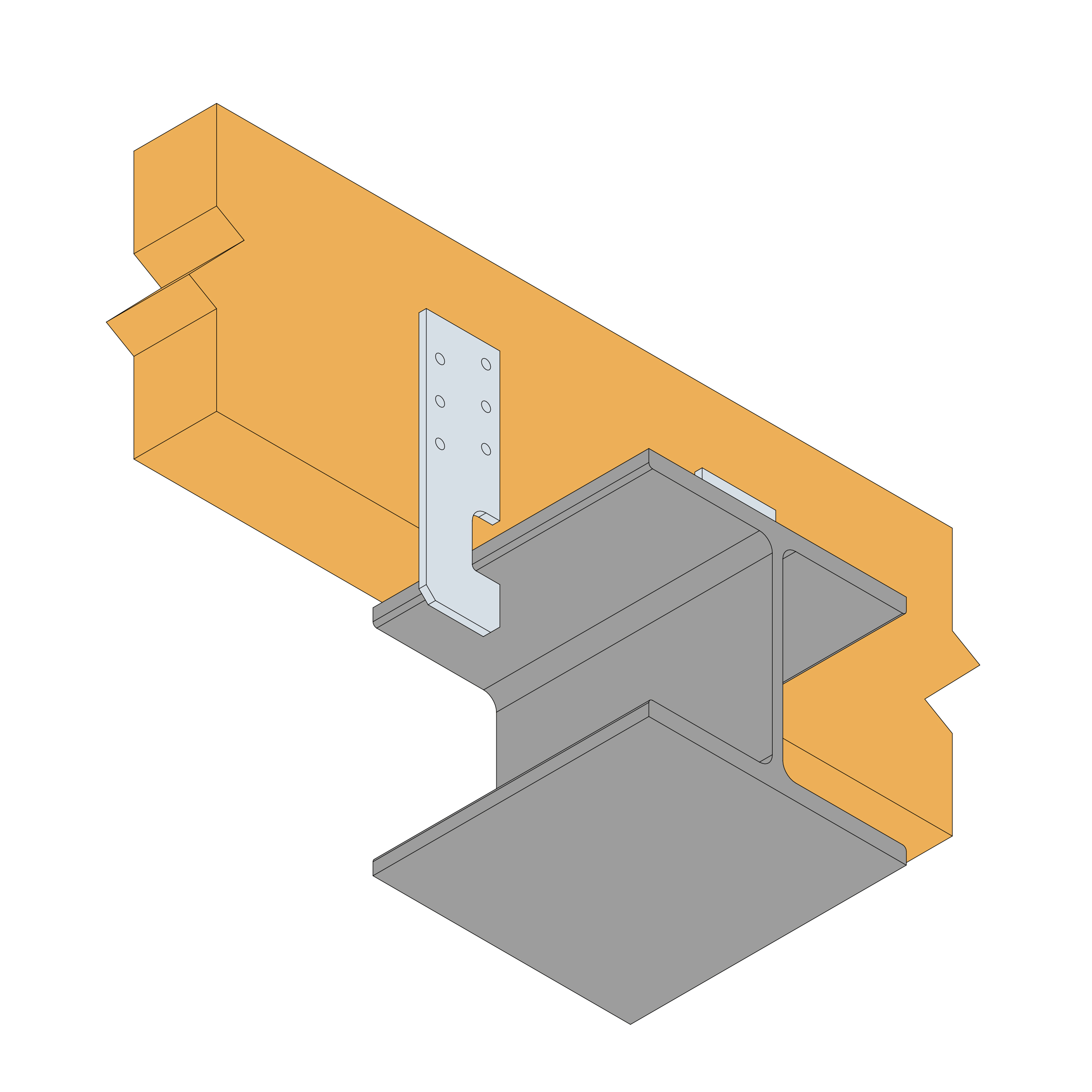

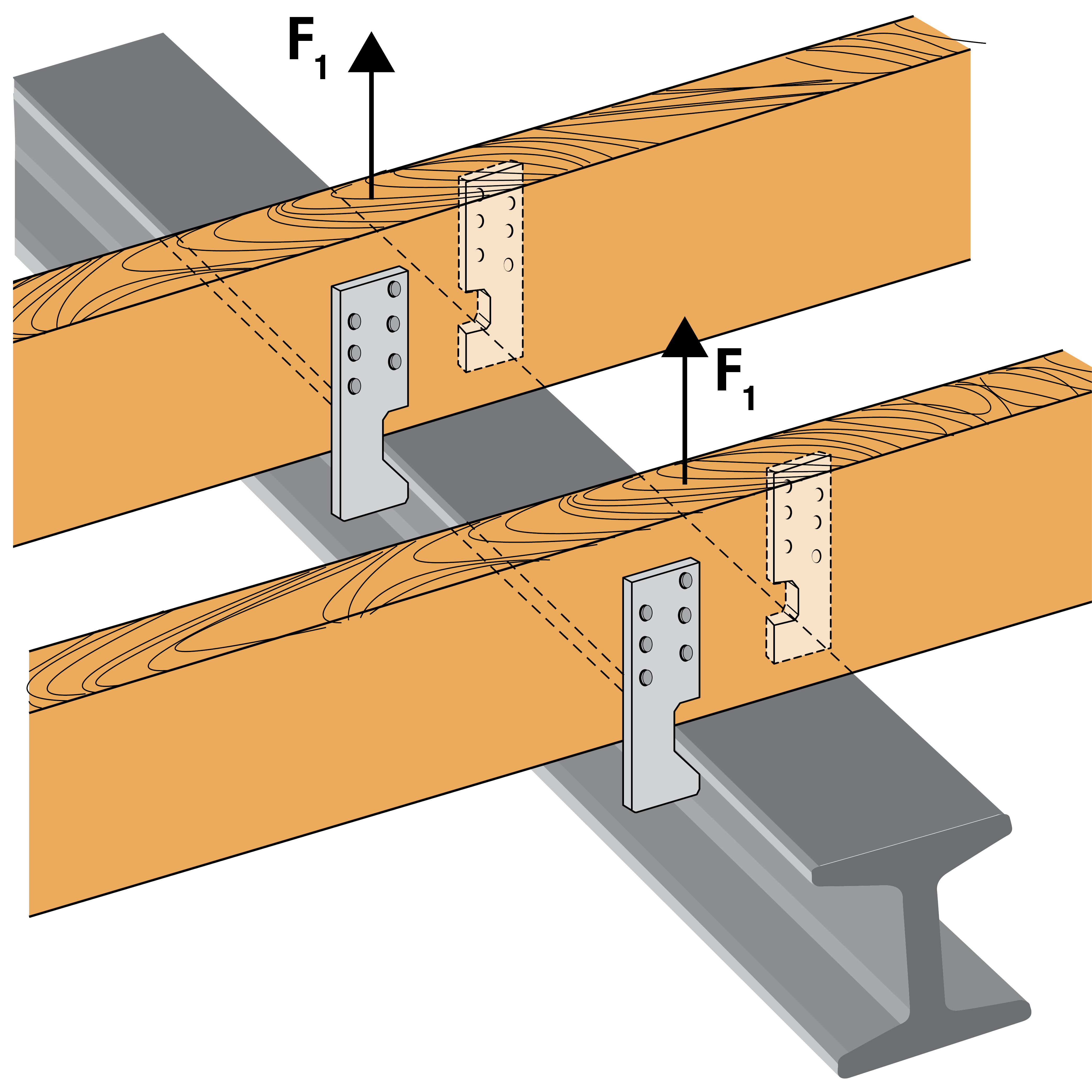

Attached timber joist to IPN with 2 AI
Features
Application
Technical Data
Product dimensions
Dimensions
| Reference | Connector Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Other | Dimensions[mm] | Holes[mm] | |||||||||
| DB. nr. | NOB nr. | Qty per Box | Weight[kg] | A[mm] | B[mm] | C[mm] | D[mm] | t[mm] | Round | ||
| Ø5 | Qty | ||||||||||
| HE135 | 1837230 | 46450297 | 75 | 0.15 | 135 | 40 | 30 | 15 | 4 | 6 | - |
| HE175 | 8977894 | 21593900 | 75 | 0.18 | 175 | 40 | 30 | 15 | 4 | 10 | 2 |

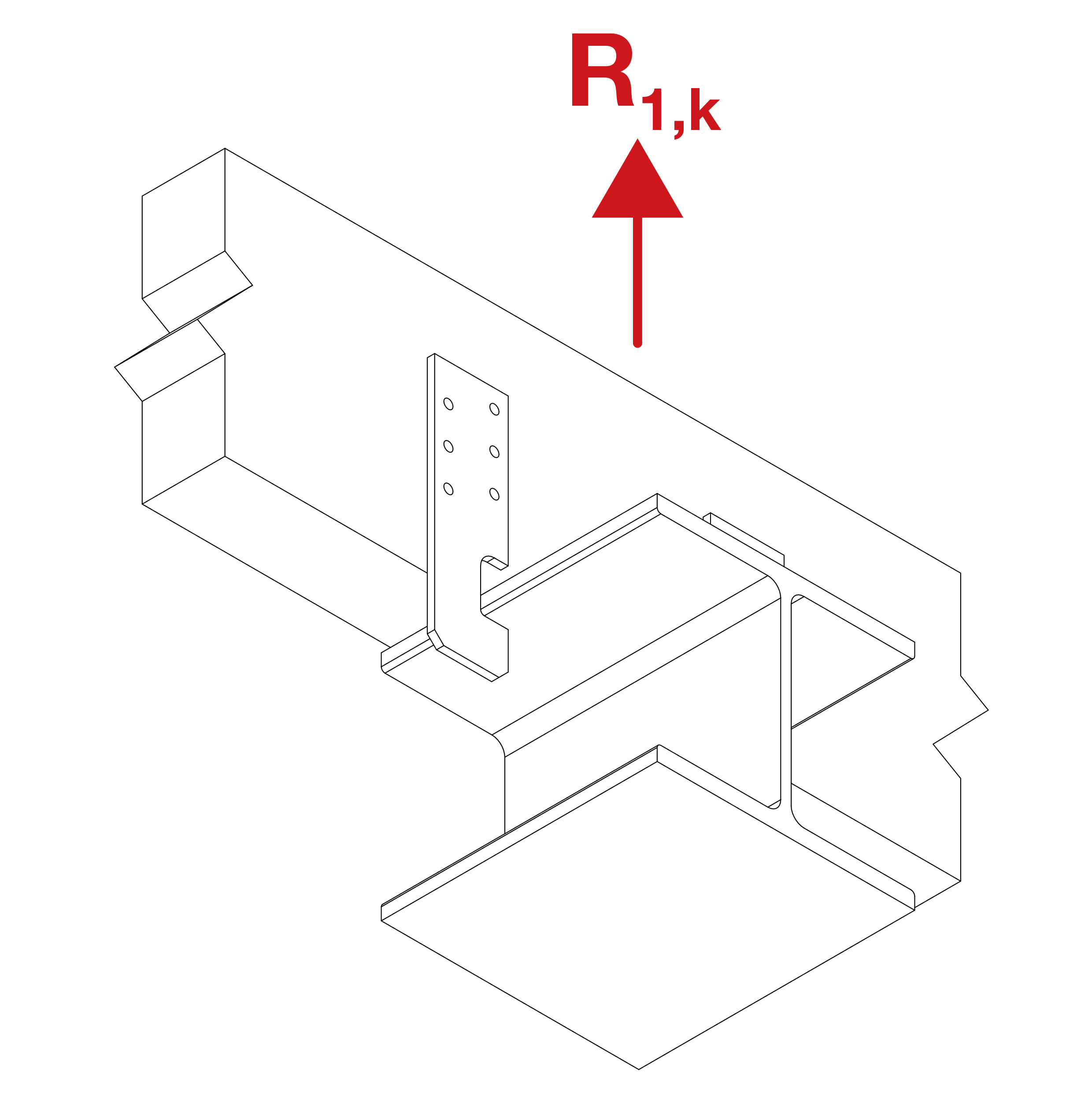

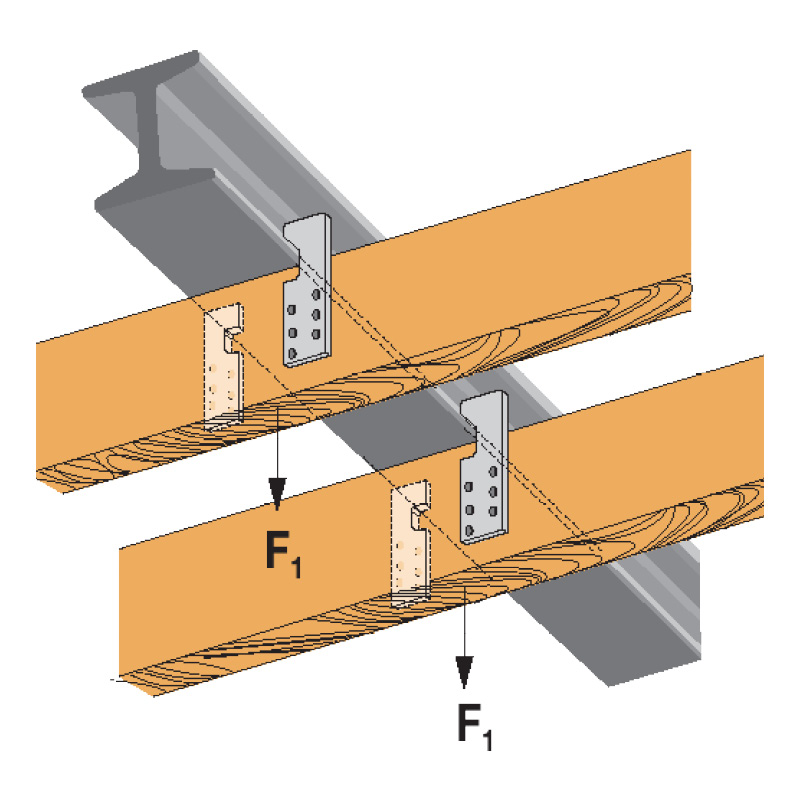

Product capacities - 2 HE profile anchors per connection
Dimensions
| Reference | Ties capacity | |||||||
|---|---|---|---|---|---|---|---|---|
| Characteristic load-bearing capacity, two beam anchor price. collection[kN] | ||||||||
| With CNA4.0x40 | ||||||||
| n = 3 | n = 4 | n = 5 | n = 6 | n = 7 | n = 8 | n = 9 | n = 10 | |
| HE135 | min (17/kmod ; 10.7) | min (17/kmod ; 13.6) | min (17/kmod ; 15.7) | min (17/kmod ; 16.8) | - | - | - | - |
| HE175 | min (17/kmod ; 10.7) | min (17/kmod ; 13.6) | min (17/kmod ; 15.7) | min (17/kmod ; 16.8) | min (17/kmod ; 21.8) | min (17/kmod ; 23.6) | min (17/kmod ; 28.6) | min (17/kmod ; 30.7) |
n = qty of fasteners
Installation
Installation
ZIP Packages
-
2D
2D DWG ZIP3D/3D Simplified
SAT ZIP
