DSPROA4
Hardwood Decking Screw - Stainless Steel A4

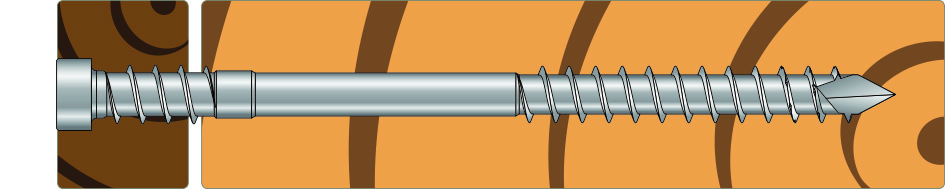

The DSPROA4 hardwood decking screw is a powerful fastening solution for hardwood decking such as IPE, Cumaru, Bankirai and others. Made from A4 stainless steel allows for the screw to be used in marine environments. The screw is designed to resist movement of the deck with a trim head for a neat, professional finish. The additional second thread helps pull the deck boards to the joist providing a more secure clamping effect.
Recommend pre-drilling with 4.0mm drill bit and pre countersinking close to the edge.
CE Marking
New
Service class 3
EPD
Stainless steel A4
Severe
Product Details
Images
Features
Application
Technical Data
Product dimensions
Dimensions
| Reference | Fasteners Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Other | Dimensions[mm] | Installation | ||||||||
| Packaging | Weight[kg] | d[mm] | l[mm] | dₕ | d₁[mm] | lg₁ | lg₂ | Driver Bit[mm] | m² / box | |
| DSPROA45.5X50 | 150 | 0.005 | 5.5 | 50 | 7 | 3.8 | 22.5 | 10.5 | T-25 | 4.4 |
| DSPROA45.5X60 | 150 | 0.005 | 5.5 | 60 | 7 | 3.8 | 27.5 | 10.5 | T-25 | 4.4 |
| DSPROA45.5X70 | 150 | 0.005 | 5.5 | 70 | 7 | 3.8 | 32.5 | 10.5 | T-25 | 4.4 |
| DSPROA45.5X80 | 150 | 0.006 | 5.5 | 80 | 7 | 3.8 | 37.5 | 10.5 | T-25 | 4.4 |
CAD and BIM Library
2D
DSPROA45.5X70
-
-
-
-
DSPROA45.5X50
-
-
-
-
DSPROA45.5X80
-
-
-
-
DSPROA45.5X60
-
-
-
-
3D
DSPROA45.5X70
-
-
-
-
-
DSPROA45.5X50
-
-
-
-
-
DSPROA45.5X80
-
-
-
-
-
