PPJST

Garden post bases

PPJST are recommended for creating small structures such as garden fences. Very easy to disassembled, they are particularly suitable for temporary structures. PPJST must be screwed into the ground.


Technical Data Sheet
EPD
EPD
Hot-dip galvanised steel
Hot-dip galvanised steel
Outdoor
Outdoor
PPJST

Product Details

Images


Features

Material

  • Steel DD11 according to NF EN 10111.
  • Hot-dip galvanized finish according to NF EN ISO 1461.

Benefits

  • Precut plate corners for improved safety.

Application

Header member

  • Supporting member: solid wood, glued-laminated wood, composite lumber, etc.
  • Supported member: solid wood, glued-laminated wood, composite lumber, etc.

Applications

  • Fastening of fences.
  • Fastening of light structures for gardens.
  • Fastening of temporary structures.

Technical Data

Product Dimensions

Dimensions

Product Dimensions
Product Dimensions
ReferenceConnector Dimensions
OtherDimensions and drill holes[mm]Holes
Weight[kg]A[mm]B[mm]C[mm]D[mm]Thickness[mm]Round
Ø11Ø18
PPJST70/6601.97114571515282
PPJST90/6602.29114591515282

Installation

Installation

Fixing

Post:

  • Bolts.
  • Lag screws dia. 10 mm.

Mise en garde

The garden range is not suitable for structural applications subjected to significant forces (wind, etc.). The structures must also be correctly designed and installed in order to withstand lateral loads caused by wind (knee brace, etc.).

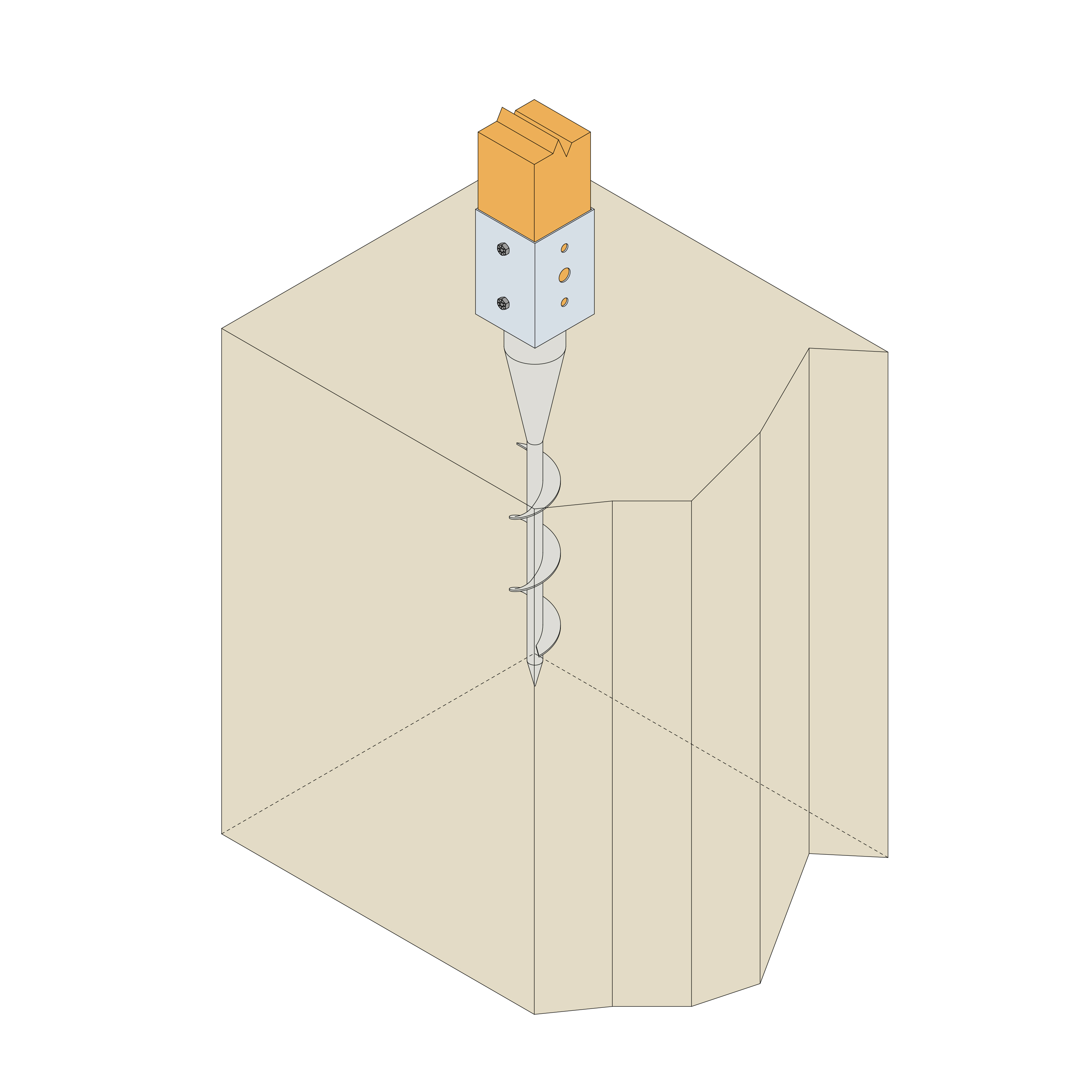

PPJST montage

Certification

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors
