Connectors

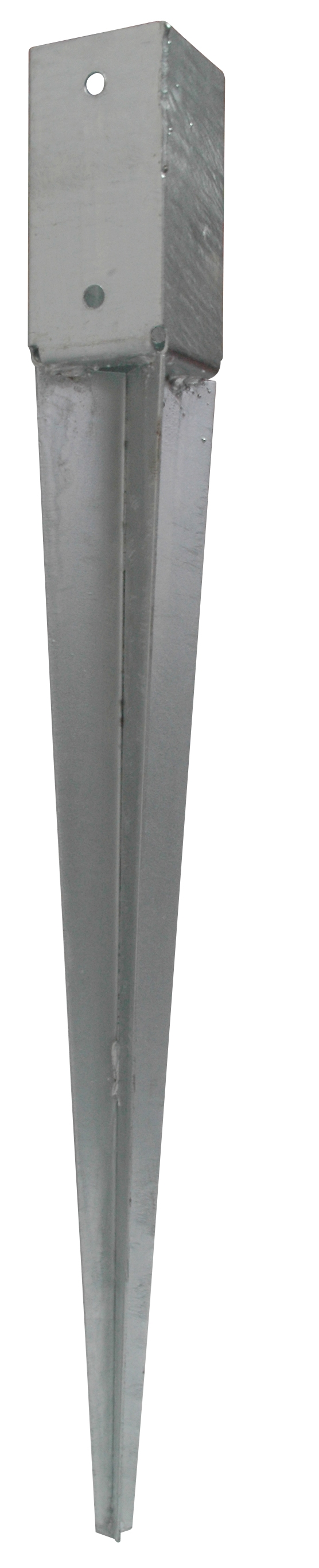

PPJET

Garden post bases

PPJET are recommended for creating small structures such as garden fences. Very easy to disassembled, they are particularly suitable for temporary structures. PPJET must be sunk.

Technical Data Sheet

Outdoor

EPD

Hot-dip galvanised steel

Product Details

Images

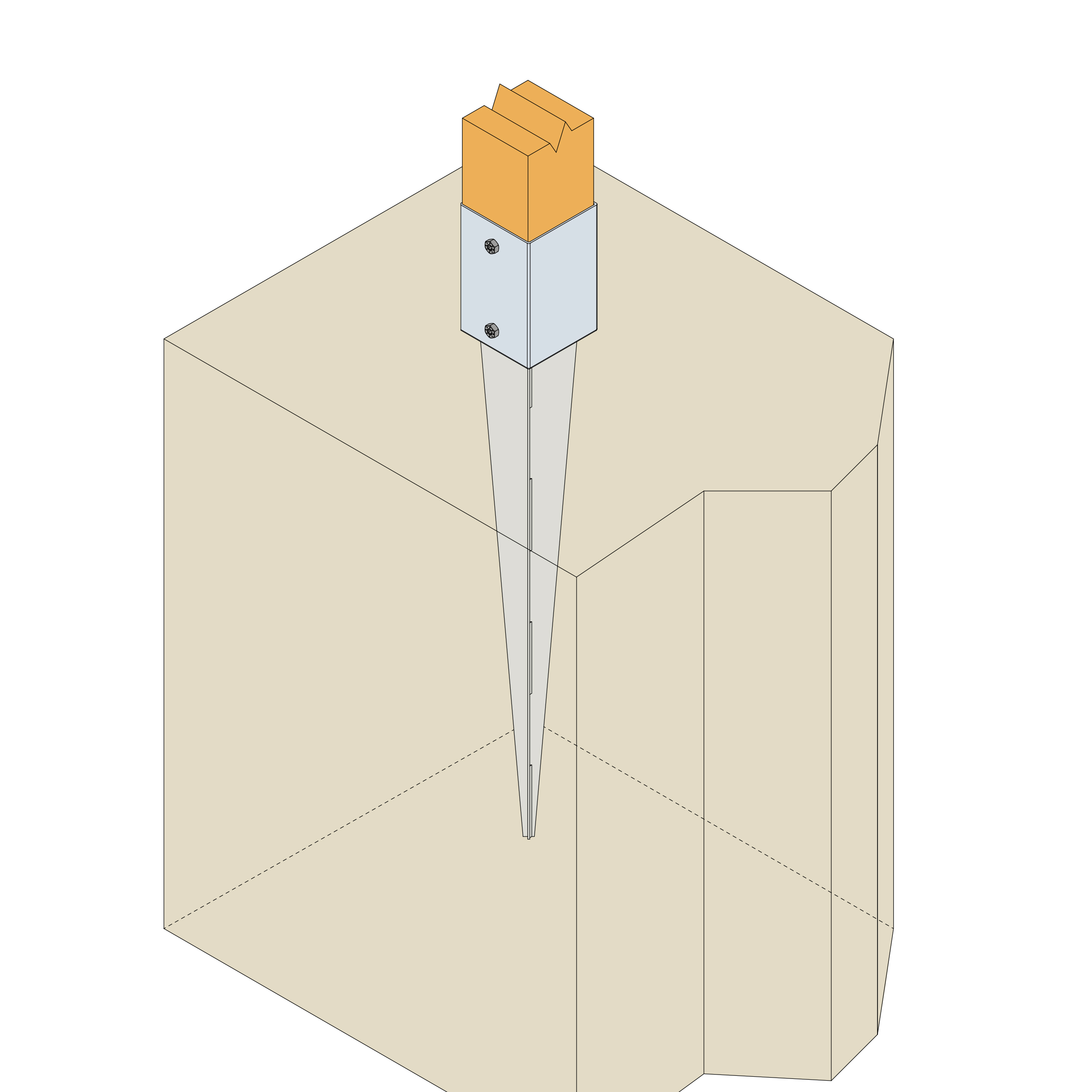

C_PPJET_InstIll_Ill_Instld_ SSH_EU_FR_C0.jpg

Installation

Installation

Features

Material

Steel DD11 according to NF EN 10111.
Hot-dip galvanized finish according to NF EN ISO 1461.

Advantages

Precut plate corners for improved safety.

Application

Suitable On

Supporting member: solid wood, glued-laminated wood, composite lumber, etc.
Supported member: solid wood, glued-laminated wood, composite lumber, etc.

When to Use

Fastening of fences.
Fastening of light structures for gardens.
Fastening of temporary structures

Technical Data

Product Dimensions

Dimensions

Reference	Connector Dimensions
	Other			Dimensions and drill holes[mm]						Holes
	Tun / DB nr.	NOB nr.	Weight[kg]	A[mm]	B[mm]	C[mm]	D[mm]	t₁[mm]	t₂[mm]	Round
	Tun / DB nr.	NOB nr.	Weight[kg]	A[mm]	B[mm]	C[mm]	D[mm]	t₁[mm]	t₂[mm]	Ø11
PPJET50/50/750G	1393551	23382914	1.1	50	150	50	600	2	2	4
PPJET75/75/750G	1393571	23382930	2	75	150	75	600	2	2	4
PPJET100/100/750G	1393572	23382948	-	100	150	100	600	2	2	4
PPJET70/70/750G	1393574	28994150	1.9	70	150	70	600	2	2	4
PPJET90/90/900G	-	-	2.7	90	150	90	750	2	2	4
PPJET90/90/750G	1393579	28994168	2.4	90	150	90	600	2	2	4
PPJE100/100/750G	1393572	23382948	2.6	100	150	100	600	2	2	4

Installation

-

The garden range is not suitable for structural applications subjected to significant forces (wind, etc.). The structures must also be correctly designed and installed in order to withstand lateral loads caused by wind (knee brace, etc.).

Fixing

Post:

Bolts.
Lag screws dia. 10 mm.

Installation

Installation

Certification

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors

ZIP Packages

2D
2D DWG ZIP

3D/3D Simplified
SAT ZIP
