RSND34G

Framing Nail 34° Paper tape - Clipped Head, Ring shank - HDG

The framing nail is used for wood to wood constructions. The clipped head and the tight collation means that more nails can be loaded in the tools and the ring shank increases the withdrawal capacity.

Technical Data Sheet
CE Marking
CE Marking
Service class 3
Service class 3
EPD
EPD
Hot-dip galvanised steel
Hot-dip galvanised steel
Outdoor
Outdoor
Fastener Designer
Fastener Designer
RSND34G Main Image.jpg

Product Details

Images

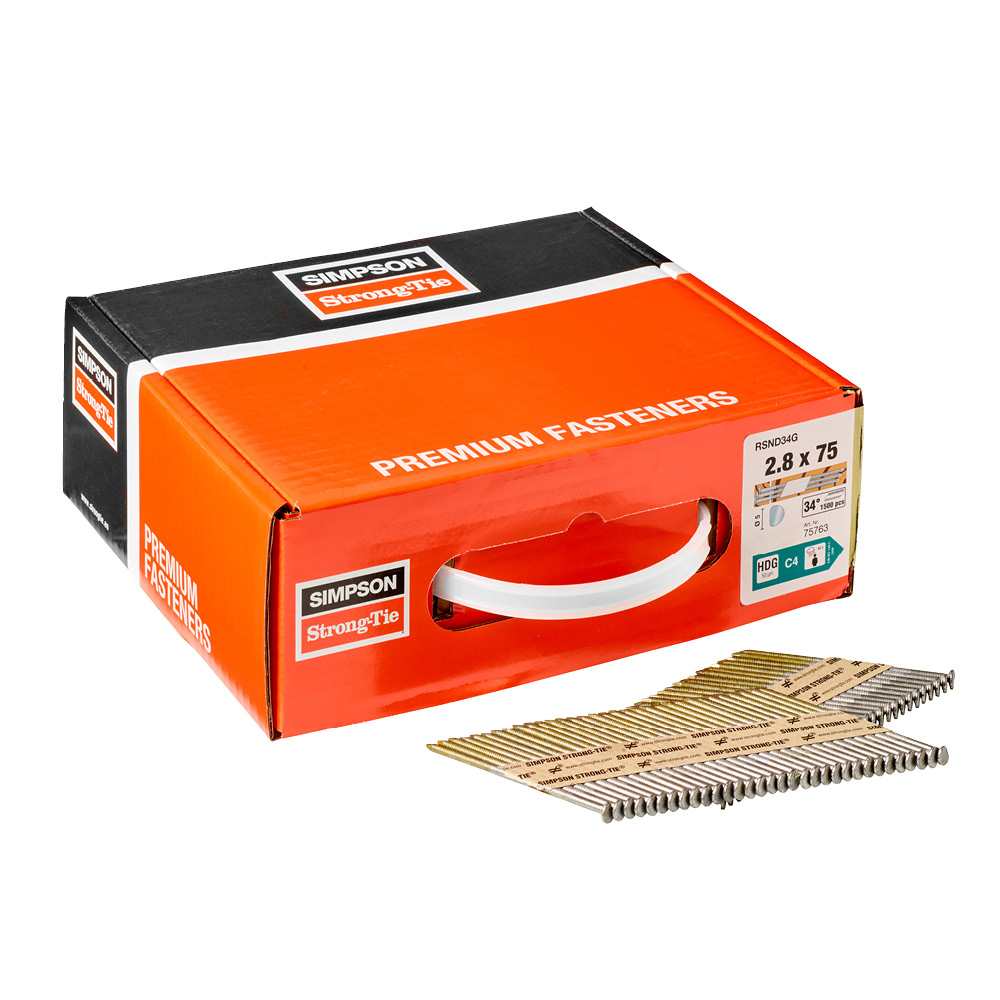

RSND34G Prod image.jpg
RSND34G Main Image.jpg

Features

Advantages

  • Clipped head (D-head)
  • High withdrawal capacity
  • Hot dip galvanised
  • Annular ring thread
  • Paper tape 34°

Application

Support

  • Framing wood to wood

Technical Data

Product dimensions

ReferenceFasteners Dimensions
Item CodeOtherDimensions[mm]
Tun / DB nr.NOB nr.Box QuantityWeight[kg]d[mm]l[mm]dh[mm]Ah[mm]ht[mm]tfix[mm]
RSND34G2.8X657576220561095583775517000.0042.865519.61.148.2
RSND34G2.8X757576320561105583776615000.0042.875519.61.158.2
RSND34G3.1X907576420561115583774010000.0063.1885.322.11.269.4

Product characteristic properties

ReferenceNail characteristic parameters
Characteristic parameters
Characteristic Yield Moment My,k[Nm]Characteristic Withdrawal Parameter fax,k,90°[N/mm²]Characteristic Head Pull-Through Parameter fhead,k[N/mm²]Characteristic tensile capacity - fₜₑₙₛ,ₖ[kN]
RSND34G2.8X653.29.322.93.1
RSND34G2.8X753.29.322.93.1
RSND34G3.1X904.78.6-3.1

Certification

Declaration of Performance (DoP)

uk-dop-h19-0011-s02-0.pdf
Show history
uk-dop-h19-0011-s1-0.pdf

Environmental Product Declarations (EPD)

epd-certificate-sst-nails

CAD and BIM Library

2D

RSND34G2.8X75

RSND34G2.8X65

RSND34G3.1X90

3D

RSND34G2.8X75

RSND34G2.8X65

RSND34G3.1X90
