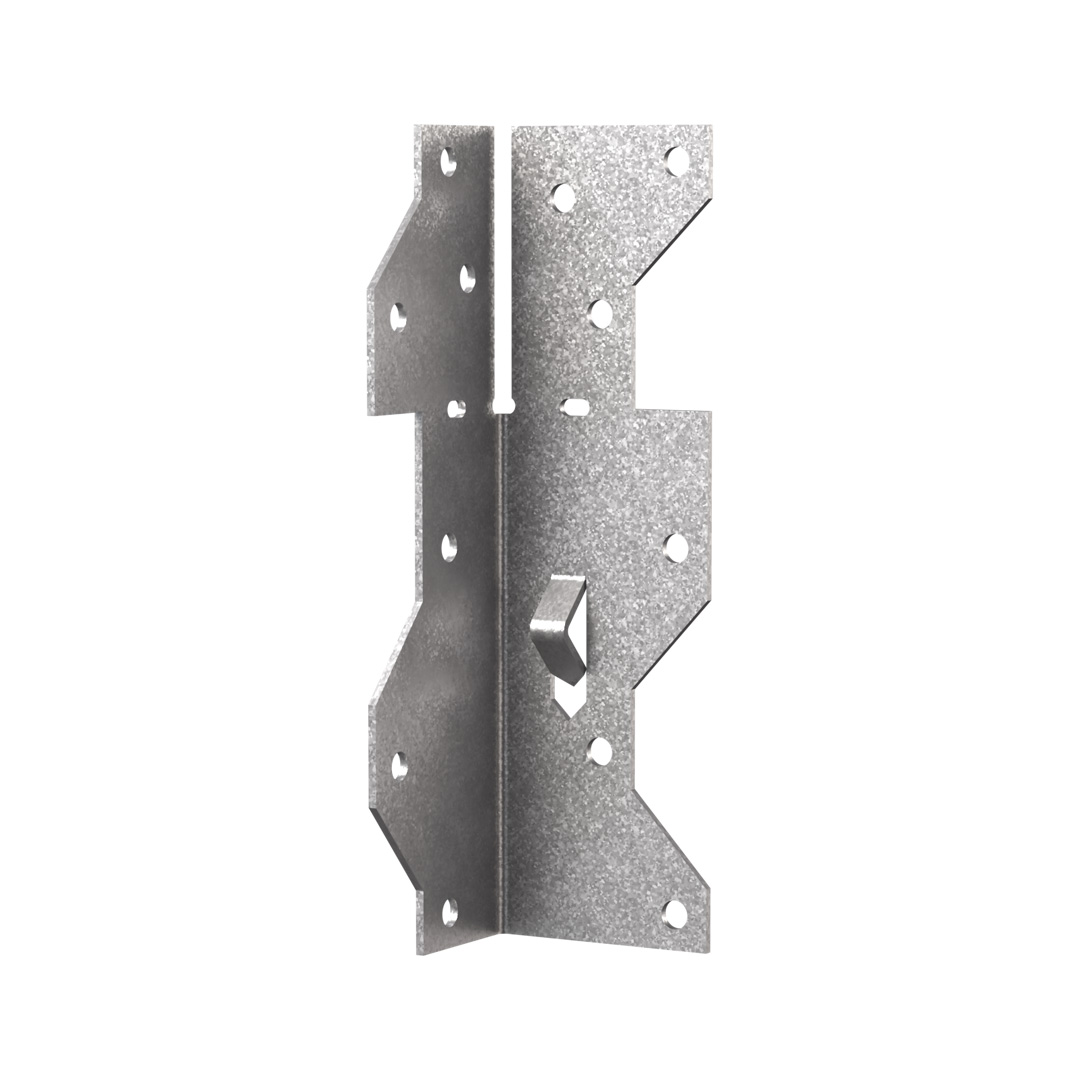

A35E
Framing Anchors
The A35E anchor’s exclusive bending slot allows instant, accurate bending on site for all two and three-way connections.
• Balanced, completely reversible design allows the A35E to be used to secure a wide variety of connections.
CE Marking
ETA
Electrogalvanized steel 20 µm
Indoor
EPD
Service class 2
Product Details
Images

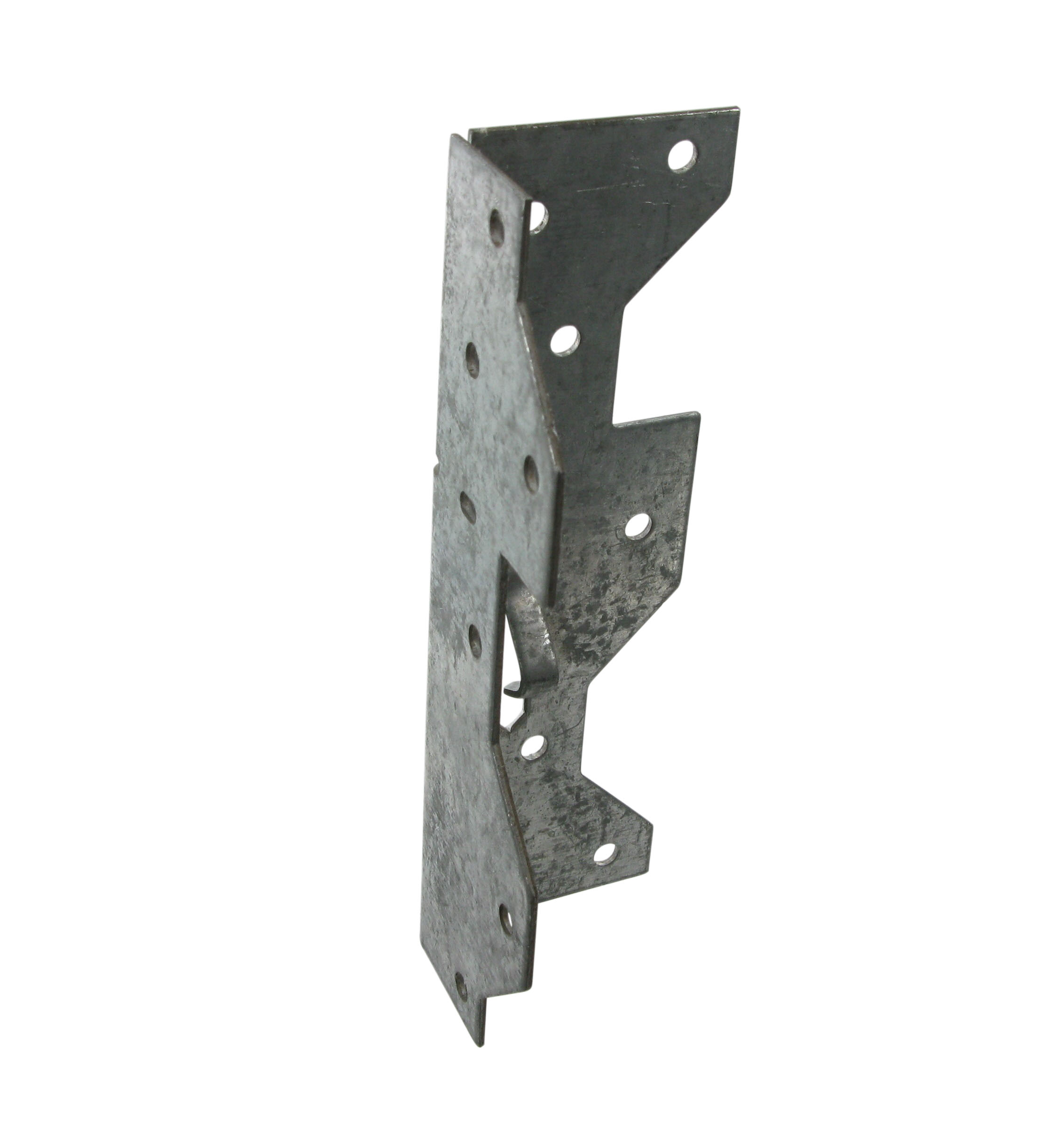

A35
Features
Application
Technical Data
Product Dimensions
Dimensions
| Reference | Connector Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
| Dimensions[mm] | Joist | Holes flange B | Other | |||||
| A[mm] | B[mm] | C[mm] | E[mm] | t[mm] | Round | Round | Weight[kg] | |
| Ø3.8 | Ø3.8 | |||||||
| A35E | 33 | 33 | 114 | 39 | 1.2 | 6 | 6 | 0.07 |
Product capacities - Timber to timber - Full nailing - 2 brackets
Dimensions
| Reference | Ties capacity | |||
|---|---|---|---|---|
| Product Characteristic capacities - Timber to timber - Full nailing | ||||
| Characteristic capacity - Timber C24 2 connectors[kN] | ||||

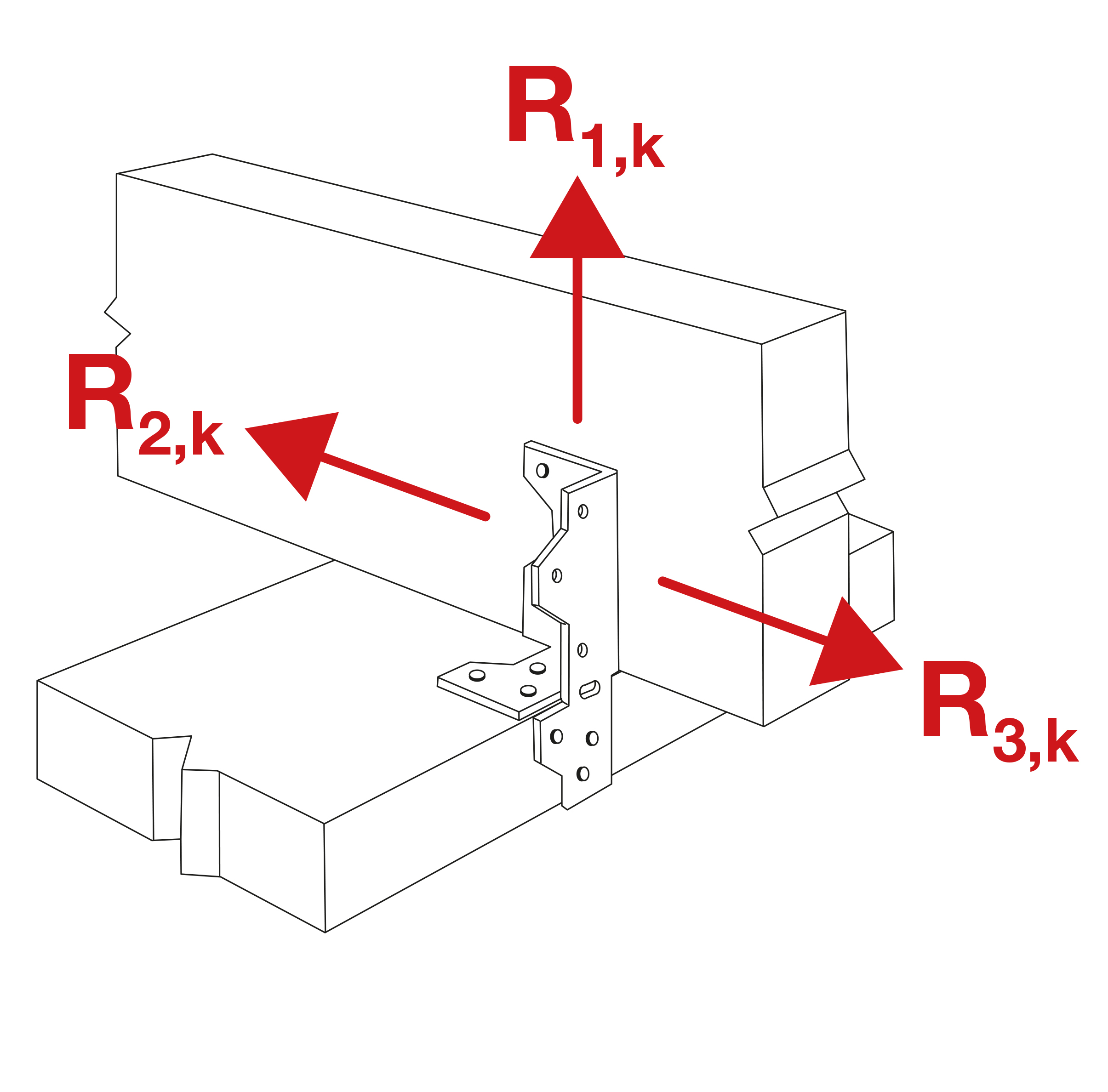

| R₁,ₖ | R2,k = R3,k | |||
| CNA3.1x35 | N3.75x30 | CNA3.1x35 | N3.75x30 | |
| A35E | 4.6 | 1.3 | 3.1 | 0.89 |

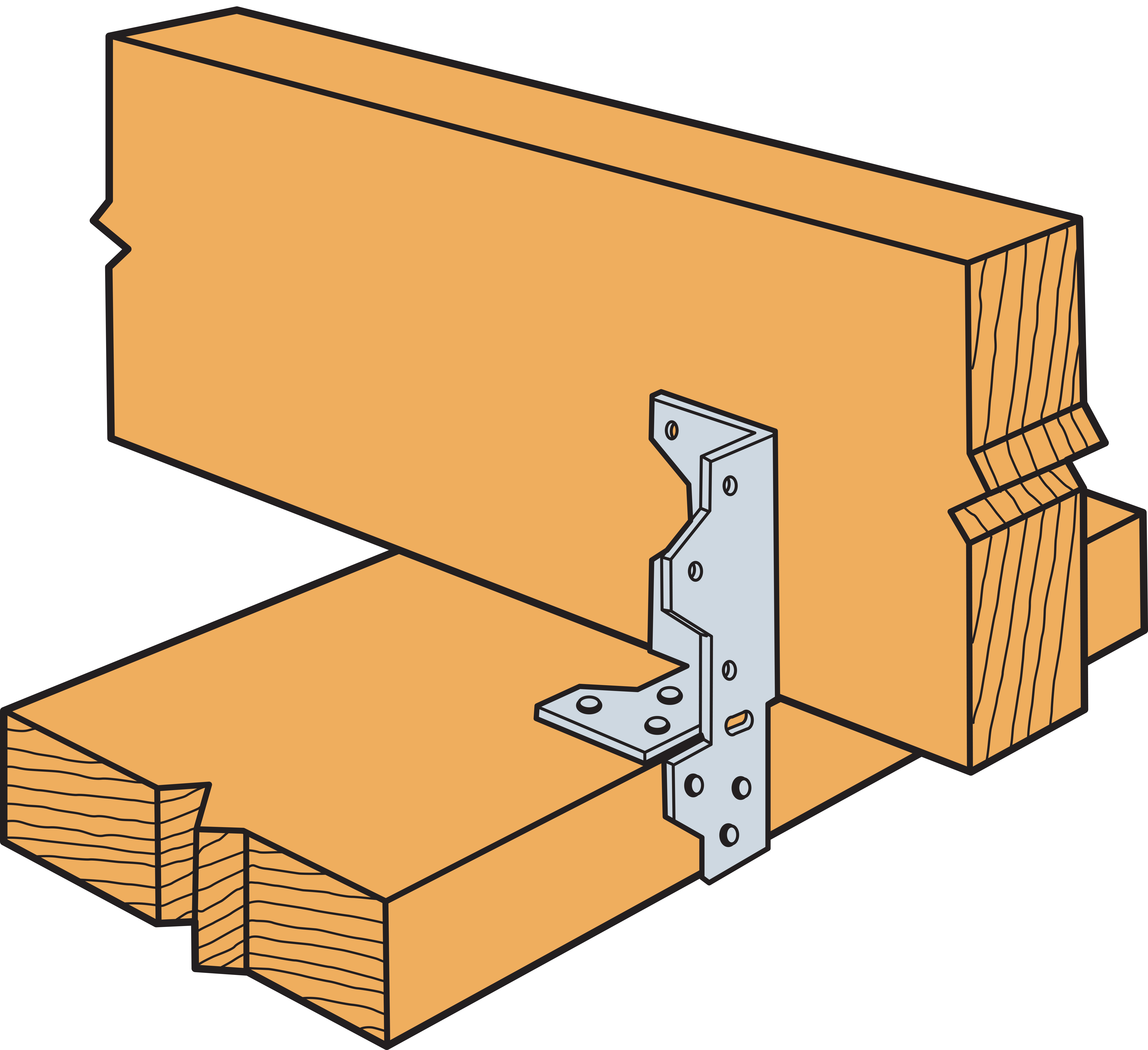

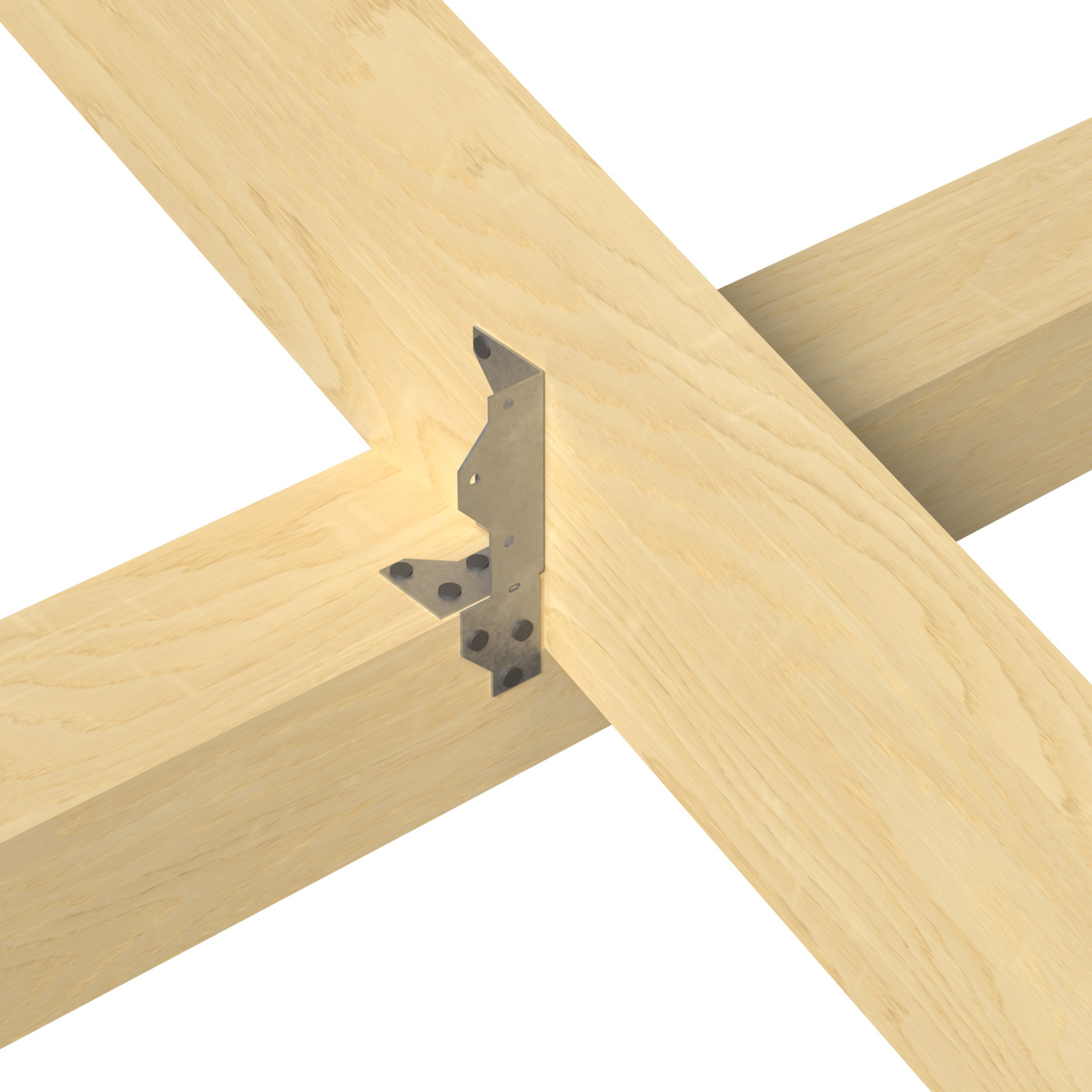

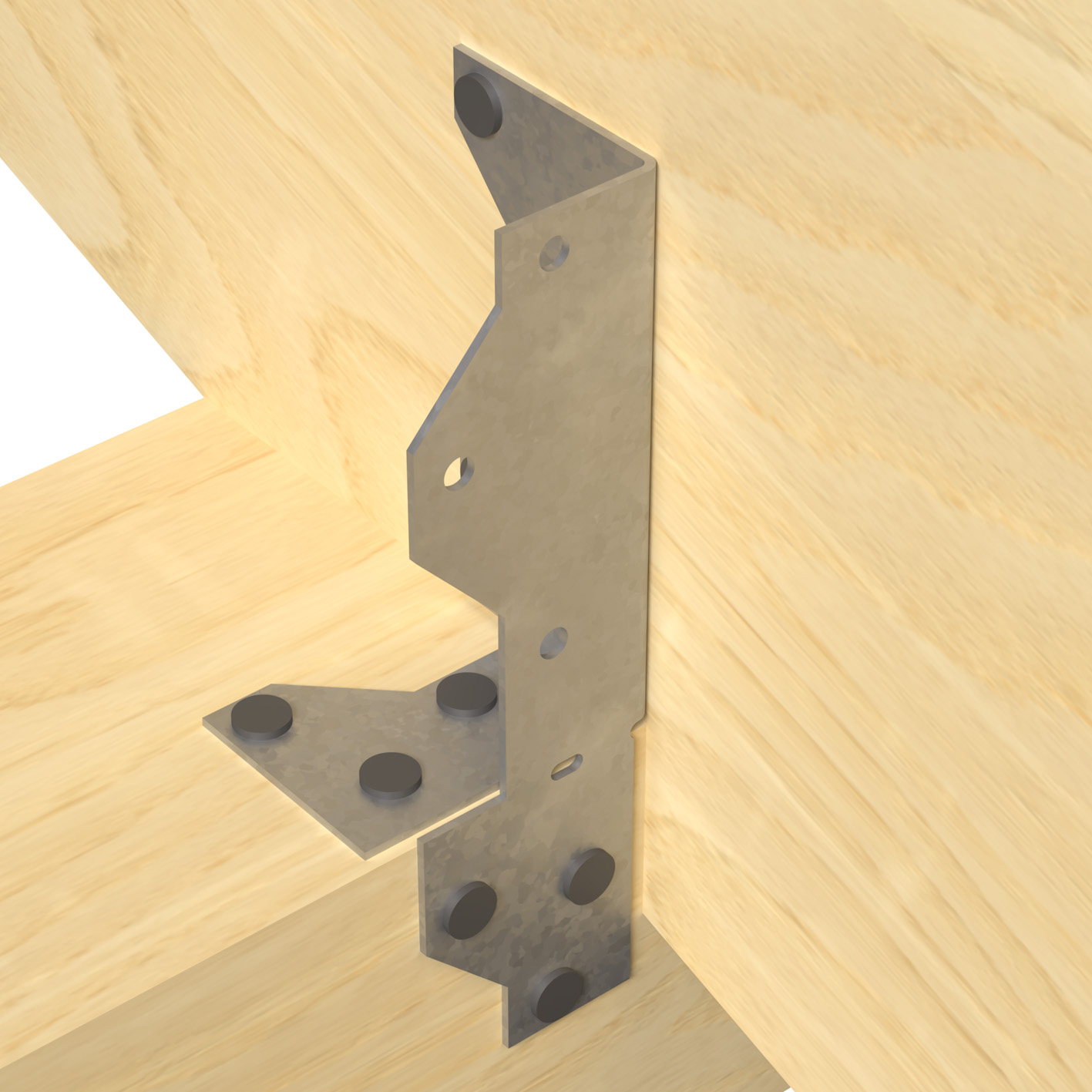

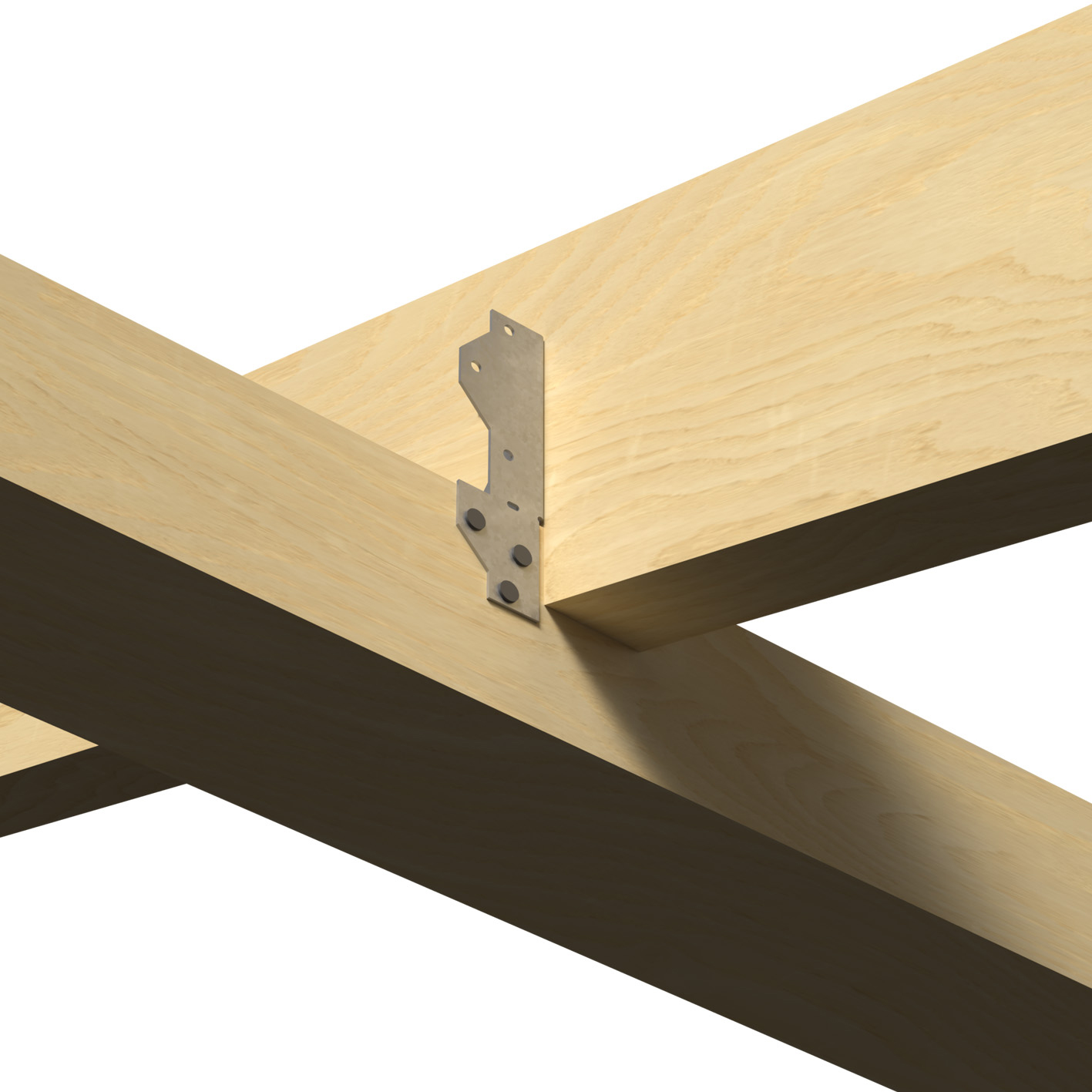

Installation
Installation
CAD and BIM Library
2D
3D
A35E
-
-
-
-
-
3D Simplified
