FPHSD

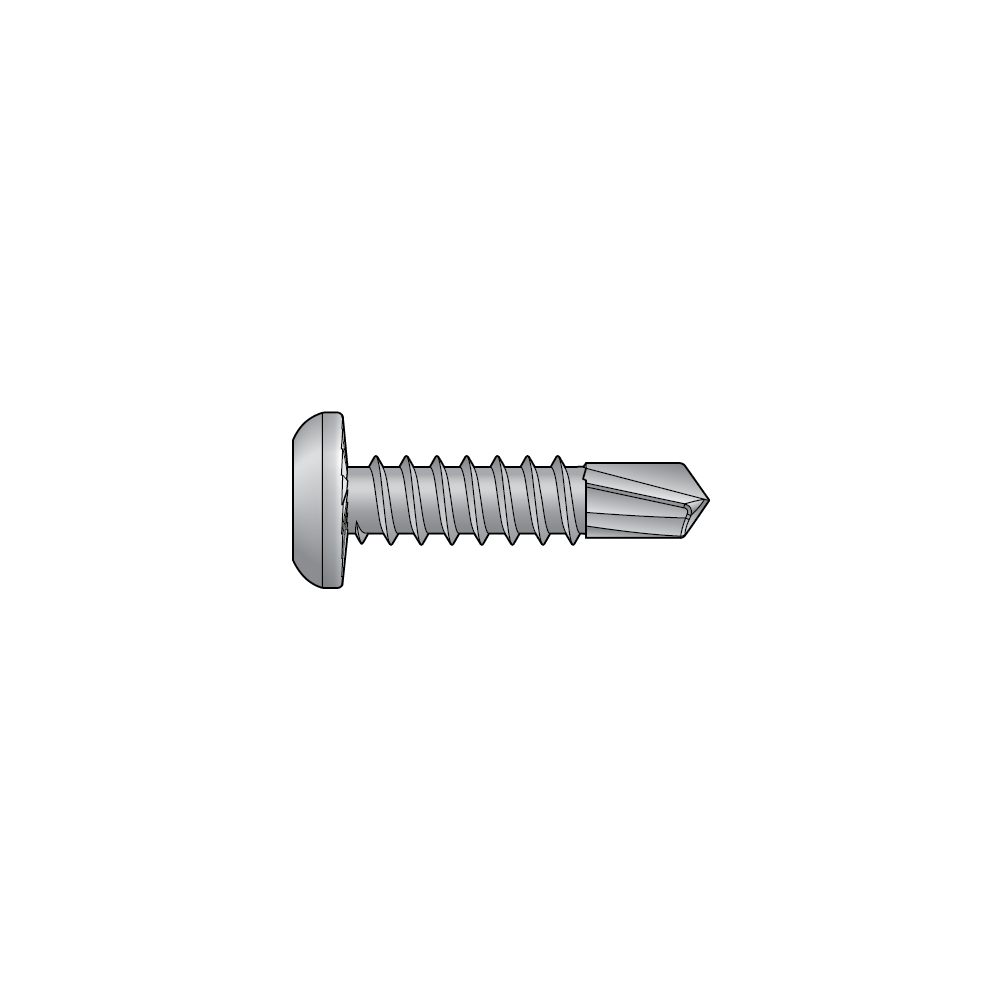

FPHSD STEEL FRAMING Screw, Flat Head

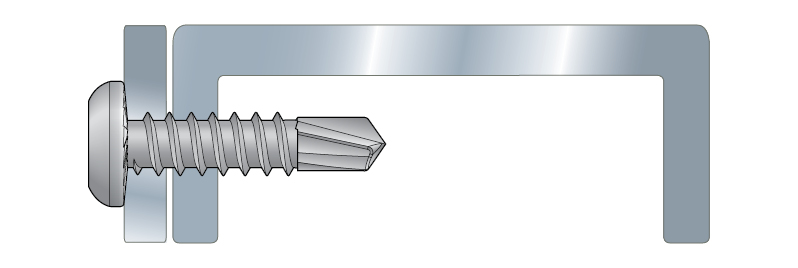

FPHSD is a self-drilling flat pan head screw with a #3 drill point tip suitable for light gauge steel frame assembly. The #3 drill point allows the screw to penetrate the steel without the need for a pilot hole. Driver bits included with boxes of Quik Drive collated screws.
Available as loose screws in bulk quantity of 100,000 screws under code FPHSD34S1214R. Driver bits not included with loose screws.
Service class 2
Electro-galvanized steel
Indoor
Product Details
Images
Features
Application
Technical Data
Dimensions
Dimensions and caracteristics values
| References | Head width [mm] | Thread Ø [mm] | Length of the screw [mm] | Qty per strip | Qty per carton | Compatible tools | Max. RPM [tr/min] |
|---|---|---|---|---|---|---|---|
| FPHSD34S1016 | 9 | 4.8 | 19 | 23 | 2500 | QDPROPP38 | 2500 |
| FPHSD34S1214 | 5.5 | 19 | 23 | 2500 | QDPROPP38 | 2500 |
