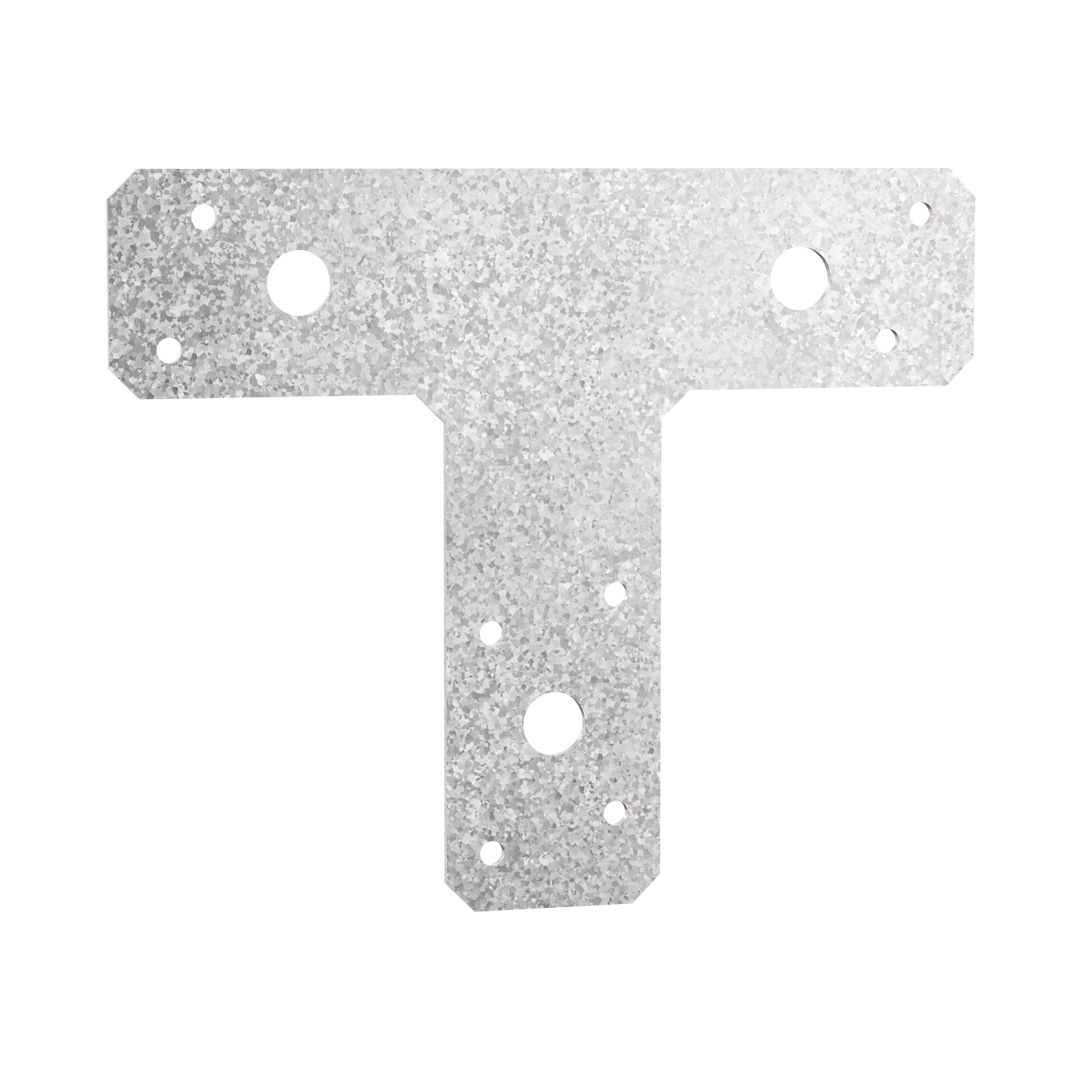

66T

Flat T Shaped Bracket

''T'' Shaped Bracket

Technical Data Sheet

Service class 2

Indoor

Electrogalvanized steel Z275

EPD

Product Details

Images

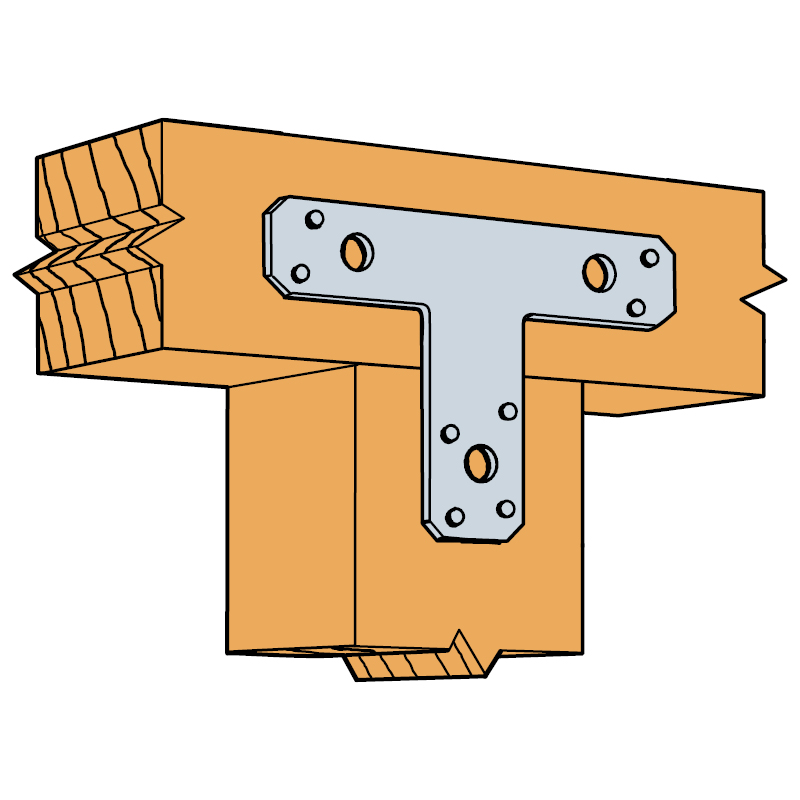

Installation example

Features

Material

Pre-galvanised Mild Steel

Benefits

Can be used to reinforce the ''T'' junction in post to beam/column to beam connection in timber structures.

Application

Header member

Column to beam connections.

For Use With

Post to beam.

Technical Data

Dimensions

Reference	Connector Dimensions
	Dimensions and drill holes[mm]				Holes[mm]		Other
	A[mm]	B[mm]	C[mm]	Thickness[mm]	Round		Qty per Box	Weight[kg]
	A[mm]	B[mm]	C[mm]	Thickness[mm]	Ø4.1	Ø11	Qty per Box	Weight[kg]
66T	152	127	38	2	8	3	10	0.14

Installation

Fixing

Boulons,
Pointes annelées CNA 3,1x35 mm ou CNA 3,7x50 mm...

Installation

Approcher l'élément à fixer du support,
Pointer la ferrure sur l'élément à fixer,
Pointer la ferrure sur le support bois.

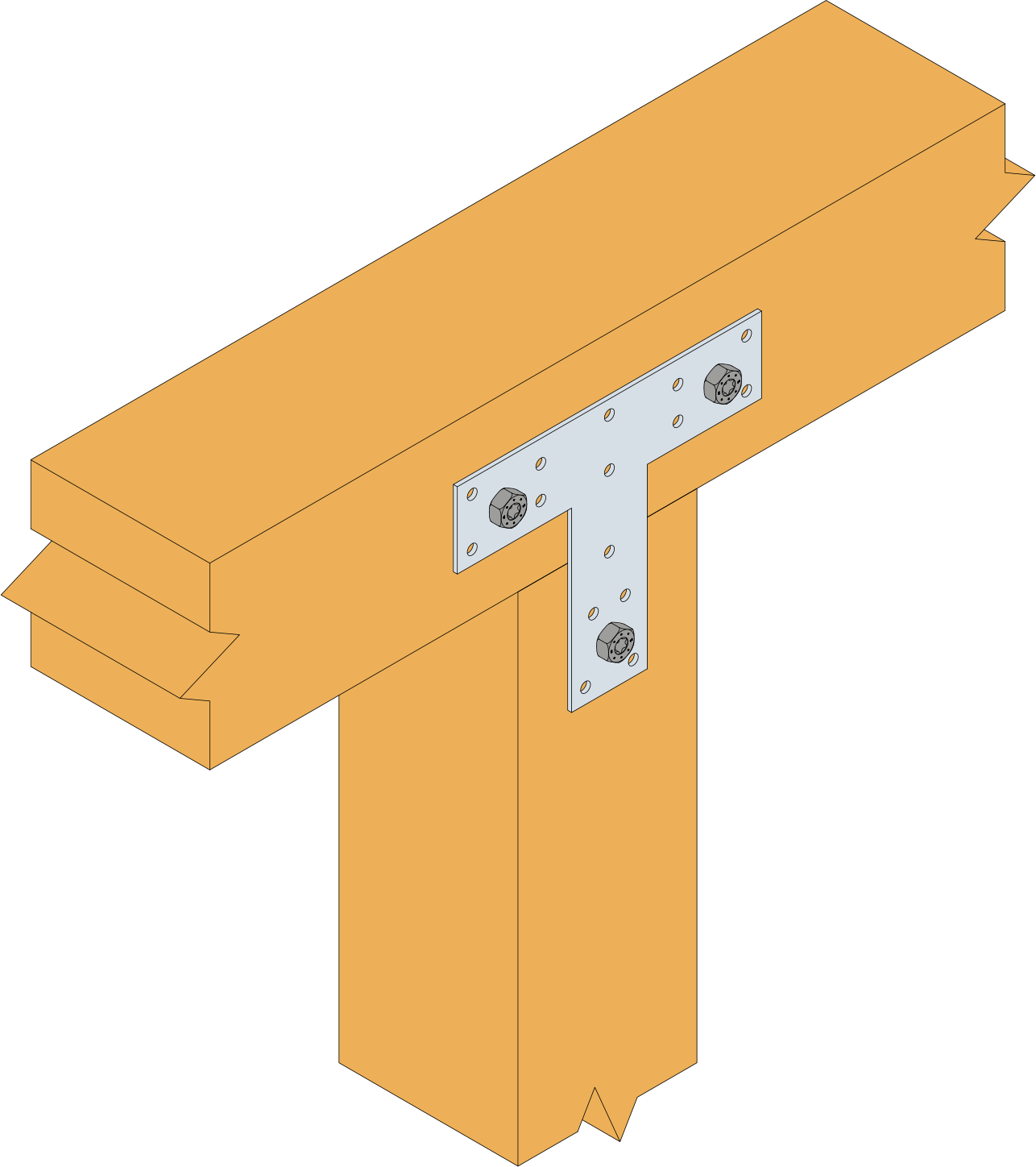

Installation example

Certification

Environmental Product Declarations (EPD)

epd-certificate-sst-connectors
