FB20
Fixing Band
FB20 fixing band is for all general light strapping needs.
Perfect for DIY, industrial and agricultural applications. Comes in convenient 10 metre rolls.
FB20 comes supplied in a rugged plastic dispenser, making it much easier to transport and work with.

CE Marking

Service class 2

Electrogalvanized steel Z275

Indoor
Product Details
Features
Material
- Galvanized steel S250GD + Z275 according to BS EN 10346.
Advantages
- Can be used in lot of situation
Application
Header member
- Header: solid timber, engineered timber, glulam,...
- Joist: solid timber, engineered timber, glulam,...
Applications
Truss
Features
- Supplied on a 10 metre roll.
- Suitable for internal applications only
- Strap is punched with two different sized round holes and 1 square hole, to enable a variety of different fixings to be used
- Nails
- Screws
- Coach Screws
Technical Data

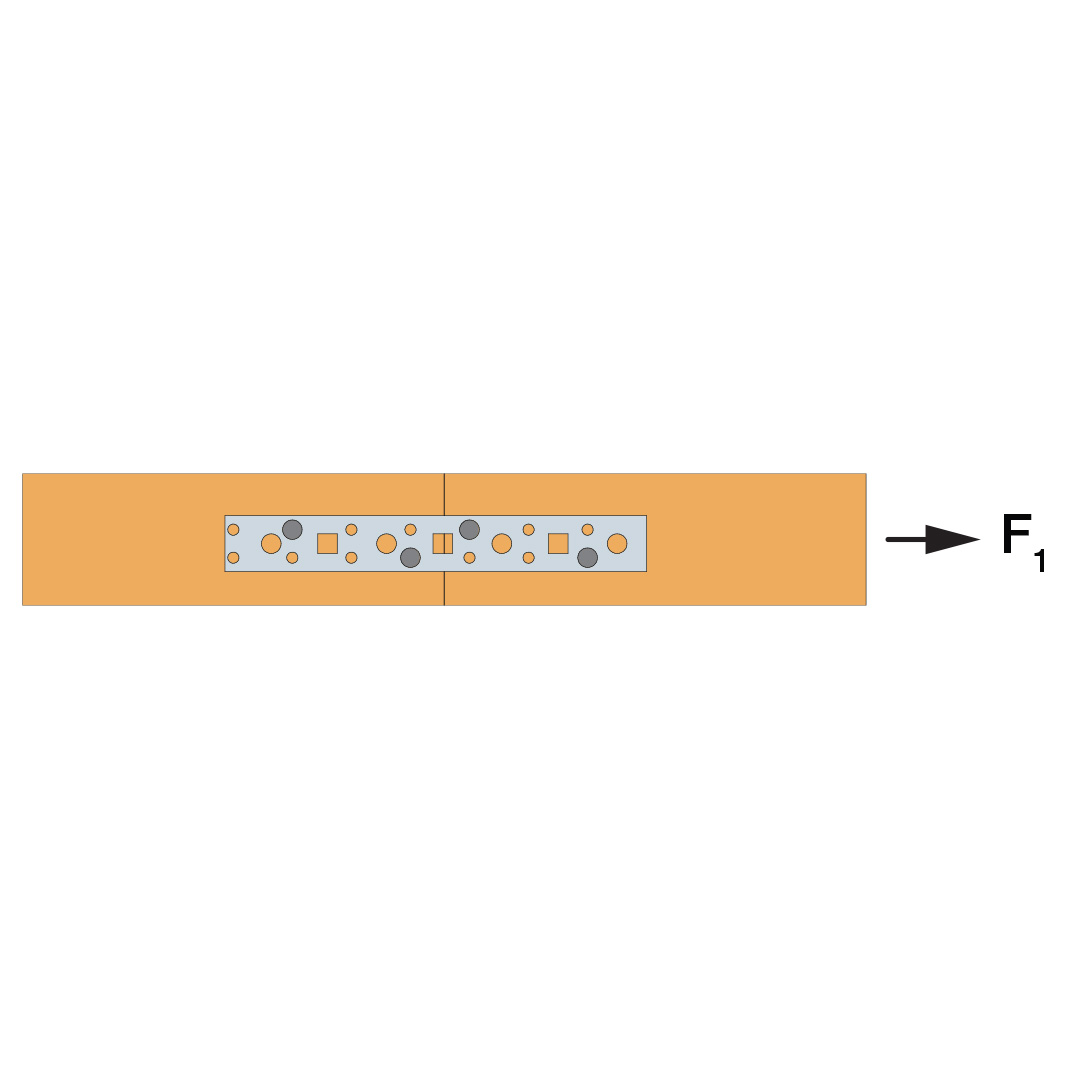

Product capacities
| Reference | Straps capacity | ||||
|---|---|---|---|---|---|
| Characteristic capacities - Timber C24[kN] | |||||
| R₁,ₖ[kN] | |||||
| Steel | 35 | 40 | 50 | CNA4.0x60 | |
| FB20 | 3,2 / kmod | 1,66 x n | 1,85 x n | 2,22 x n | 2,36 x n |
*capacity R1,k is calculated from the nails capacities but mustn’t exceed the maximum value.
n = effective number of nails in the row according to Eurocode 5 – 8.3.1.1 (8)
Characteristic Capacities
| Reference | Straps capacity |
|---|---|
| Strap Characteristic Tensile Capacity[kN] | |
| R₁,ₖ | |
| FB20 | 3 |
Note:
- The capacity of the connection is the lower of the straps declared characteristic tensile capacity or the fixing capacity.
- The quanity, type and size of fixings along with its spacings, edge distances and fixing substrates should be considered when determining the capacity of the connection.
Installation
Installation
Fixings
- Nails
- Screws
- Coach Screws
Certification
Declaration of Performance (DoP)
