FHSD

FHSD MEZZANINE FLOOR Screw

FHSD is a ribbed head screw with a winged drill point suitable for wood to light gauge steel installations such as mezzanine floors.

Technical Data Sheet
Service class 2
Service class 2
Yellow electro-galvanised steel
Yellow electro-galvanised steel
EPD
EPD
Indoor
Indoor
FHSD-WING main image.jpg

Product Details

Images

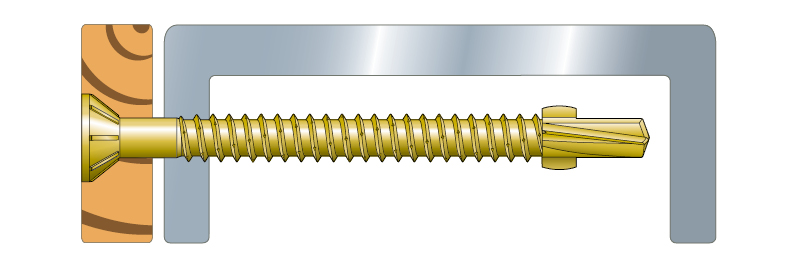

FHSD-WING install image.jpg

Features

Material

  • Yellow zinc dichromate finish

Benefits

  • Wood to light gauge steel (2.0 to 4.0 mm thickness) application
  • Winged drill point to help clear hole and penetrate steel
  • Bit (BIT3SE) included
  • Countersunk head with ribs


Application

Suitable for:

  • Mezzanine floors with a steel thickness of 2 to 4mm
  • Use with Quik Drive tool QDHSD60 or QDHSD75

Technical Data

Dimensions and drill holes

Dimensions

Dimensions and drill holes
Dimensions and drill holes
ReferenceFasteners Dimensions
Fastener dimensions[mm]Other
Head width[mm]Weight[kg]
FHSD64E80.01

Product Dimensions

Dimensions

Product Dimensions
Product Dimensions
ReferenceFasteners Dimensions
Fastener dimensions[mm]Other
Head diameter[mm]Weight[kg]
FHSD64E9.90.01

Capacities

ReferenceScrew Loads
Product Characteristic capacities - Timber C24 to steel[kN]
Head pull-through - Fhead,k - Timber>15mmWithdrawal - Rax.kShear - Rlat.k
Steel thickness[mm]Steel thickness[mm]
2[mm]3[mm]4[mm]5[mm]2[mm]3[mm]4[mm]5[mm]
FHSD64E1.336.27.210.62.12.11.61.9

Certification

Declaration of Performance (DoP)

uk-dop-h25-0001-01-s.pdf
No history available

Environmental Product Declarations (EPD)

epd-certificate-sst-screws
