BSNN

Face Fix Hangers

BSNN ranges are heavy-duty hangers designed for applications requiring additional strength. Hangers are nailed using system CNA nails but have bolt holes for 12mm fasteners into the face. The hanger depth is to be at least 2/3 of the carried member heights to prevent rotation, unless additional lateral restraint is added to the top of the carried member.

CE Marking
ETA
Service class 2
Electrogalvanized steel 20µm

Product Details

Features

Material

  • Pre-galvanised steel S250GD + Z275 according to EN 10346 (Thickness : 2mm)

Benefits

  • The BSNN joist hangers are also approved for three-axle loads.
  • Connections to concrete, steel and masonry are permissible, see static values.

Application

Header member

  • Header : Solid sawn, SCL, Glulam, Steel, Concrete
  • Joist : Solid sawn, SCL, Glulam

Intend Use

  • Joist, purlin, beam
  • Cladding plate, rafter
  • Reinforcement of existing assemblies

Technical Data

Dimensions

Product Dimensions

References Tun / DB nr. NOB nr. Joist Size [mm] Product Dimensions [mm] Header holes Joist holes
Width Height A B C D F t Ø5 [mm] Ø11.5 [mm] Ø5 [mm]
Min Max. Min Max.
BSNN36/142 1971609 53490761 34 36 152 213 36 142 60 27 63 2 16 2 10
BSNN40/95 1971612 53490795 38 40 105 143 40 95 60 27 63 2 8 2 6
BSNN40/110 1971610 53490776 38 40 120 165 40 110 60 27 63 2 12 2 6
BSNN40/140 1971611 53490780 38 40 150 210 40 140 60 27 63 2 16 2 10
BSNN45/93 1971617 53490844 43 45 102 139 45 92 60 27 63 2 8 2 6
BSNN45/108 1971613 53490806 43 45 118 161 45 108 60 27 63 2 12 2 6
BSNN45/138 1971614 53490814 43 45 148 206 45 138 60 27 63 2 16 2 10
BSNN45/168 1971615 53490825 43 45 178 251 45 168 60 27 63 2 18 4 12
BSNN45/198 1971616 53490833 43 45 208 296 45 198 60 27 63 2 22 4 14
BSNN48/91 1971621 53490897 46 48 101 136 48 91 60 27 63 2 8 2 6
BSNN48/136 1971618 53490852 46 48 146 204 48 136 60 27 63 2 16 2 10
BSNN48/166 1971619 53490863 46 48 176 249 48 166 60 27 63 2 18 4 12
BSNN48/226 1971620 53490882 46 48 236 339 48 226 60 27 63 2 26 4 16
BSNN51/90 1971626 53490946 49 51 100 134 51 90 60 27 63 2 8 2 6
BSNN51/105 1971622 53490901 49 51 114 157 51 104 60 27 63 2 12 2 6
BSNN51/135 1971623 53490916 49 51 144 202 51 134 60 27 63 2 16 2 10
BSNN51/164 1971624 53490920 49 51 174 247 51 164 60 27 63 2 18 4 12
BSNN51/195 1971625 53490935 49 51 204 292 51 194 60 27 63 2 22 4 14
BSNN60/100 1971627 53490954 58 60 110 150 60 100 60 27 63 2 12 2 6
BSNN60/130 1971628 53490965 58 60 140 195 60 130 60 27 63 2 16 2 10
BSNN60/160 1971629 53490973 58 60 170 240 60 160 60 27 63 2 18 4 12
BSNN60/190 1971630 53490984 58 60 200 285 60 190 60 27 63 2 22 4 14
BSNN60/220 1971631 53490992 58 60 230 330 60 220 60 27 63 2 26 4 16
BSNN64/98 1971633 53491018 62 64 108 147 64 98 60 27 63 2 12 2 6
BSNN64/128 1971632 53491003 62 64 138 192 64 128 60 27 63 2 16 2 10
BSNN66/217 1971634 53491022 64 66 227 326 66 217 60 27 63 2 26 4 16
BSNN70/125 1971635 53491037 68 70 135 188 70 125 60 27 63 2 16 2 10
BSNN70/155 1971636 53491041 68 70 165 232 70 155 60 27 63 2 18 4 12
BSNN73/124 1971637 53491056 71 73 134 185 73 124 60 27 63 2 16 2 10
BSNN73/154 1971638 53491060 71 73 164 230 73 154 60 27 63 2 18 4 12
BSNN73/184 1971639 53491075 71 73 194 275 73 184 60 27 63 2 22 4 14
BSNN76/122 1971640 53491086 74 76 132 183 76 122 60 27 63 2 16 2 10
BSNN76/152 1971641 53491094 74 76 162 228 76 152 60 27 63 2 18 4 12
BSNN76/182 1971642 53491105 74 76 192 273 76 182 60 27 63 2 22 4 14
BSNN80/120 1971643 53491113 78 80 130 180 80 120 60 27 63 2 16 2 10
BSNN80/150 1971644 53491124 78 80 160 225 80 150 60 27 63 2 18 4 12
BSNN80/180 1971645 53491132 78 80 190 270 80 180 60 27 63 2 22 4 14
BSNN80/210 1971646 53491143 78 80 220 315 80 210 60 27 63 2 26 4 16
BSNN90/145 1971647 53491158 88 90 155 218 90 145 60 27 63 2 18 4 12
BSNN90/205 1971648 53491162 88 90 215 308 90 205 60 27 63 2 26 4 16
BSNN98/141 1971649 53491177 96 98 151 212 98 141 60 27 63 2 18 4 12
BSNN100/100 2084730 - 97 100 110 150 100 100 60 27 63 2 14 2 8
BSNN100/110 1971599 53490666 98 100 120 165 100 110 60 27 63 2 16 2 10
BSNN100/140 1971600 53490674 98 100 150 210 100 140 60 27 63 2 18 4 12
BSNN100/170 1971601 53490685 98 100 180 255 100 170 60 27 63 2 22 4 14
BSNN100/200 1971602 53490693 98 100 210 300 100 200 60 27 63 2 26 4 16
BSNN115/163 1971603 53490704 113 115 172 244 115 162 60 27 63 2 22 4 14
BSNN115/193 1971604 53490712 113 115 202 289 115 192 60 27 63 2 26 4 16
BSNN120/110 - - 117 120 120 180 120 110 60 27 63 2 12 2 8
BSNN120/160 1971605 53490723 118 120 170 240 120 160 60 27 63 2 22 4 14
BSNN140/120 - - 137 140 150 210 140 120 60 27 63 2 16 2 10
BSNN120/190 1971606 53490738 118 120 200 285 120 190 60 27 63 2 26 4 16
BSNN140/150 1971607 53490742 138 140 160 225 140 150 60 27 63 2 22 4 14
BSNN140/180 1971608 53490757 138 140 190 270 140 180 60 27 63 2 26 4 16

Product capacities - Timber to timber - full nailing

References Characteristic capacities - Timber to timber - Full nailing
Number of Fasteners Product characteristic capacities - Timber C24 [kN]

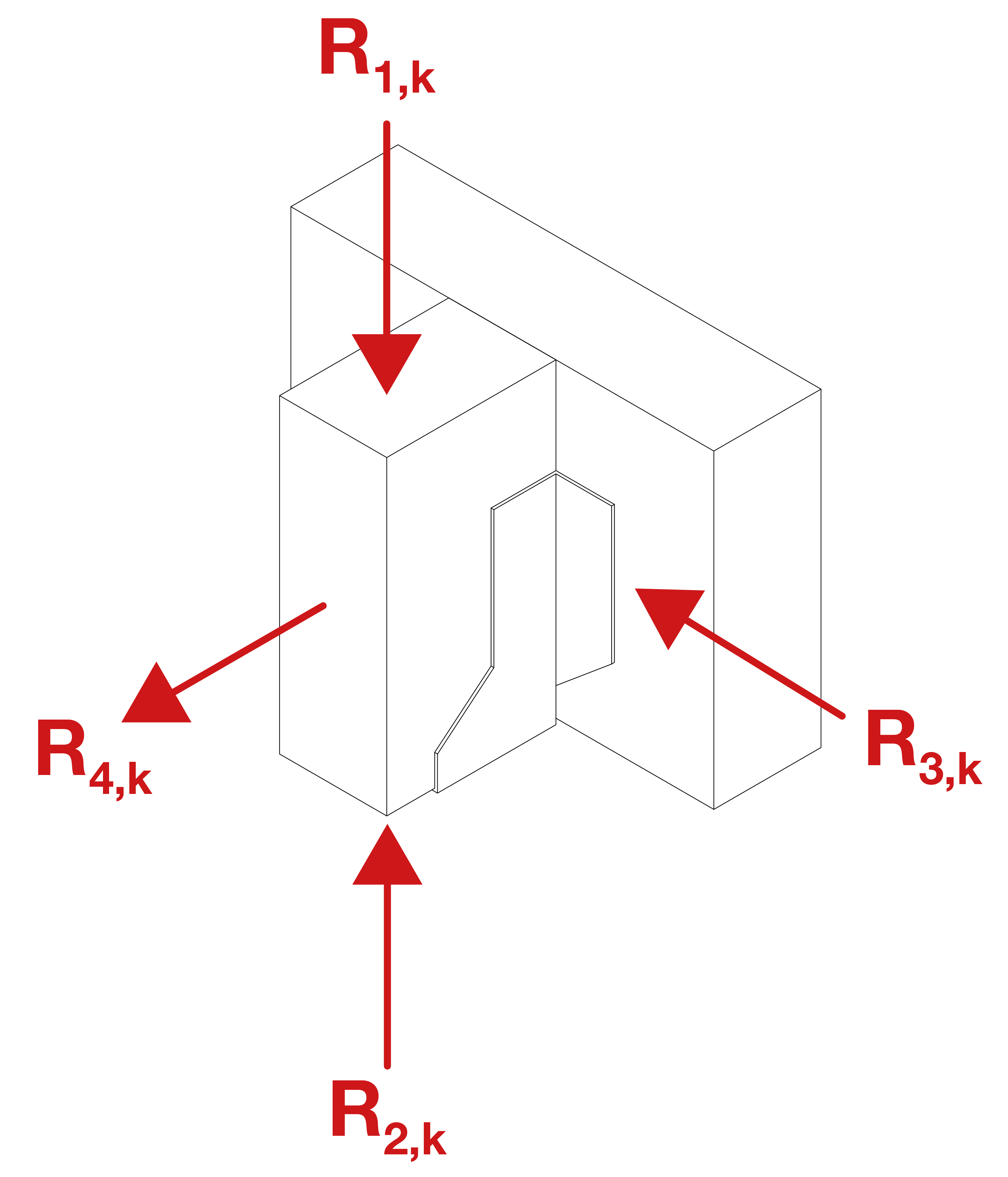

Header Joist R1.k R2.k R3.k R4.k
Qty Qty CNA 4.0x35 CNA 4.0x40 CNA 4.0x50 CNA 4.0x60 CNA 4.0x35 CNA 4.0x40 CNA 4.0x50 CNA 4.0x60 CNA 4.0x35 CNA 4.0x40 CNA 4.0x50 CNA 4.0x60 CNA 4.0x35 CNA 4.0x40 CNA 4.0x50 CNA 4.0x60
BSNN36/142 16 10 17.7 - - - 5.4 - - - 6.7 - - - 6.1 - - -
BSNN40/95 8 6 7.6 8.9 - - 4.3 4.3 - - 3.4 3.9 - - 3.7 4.4 - -
BSNN40/110 12 6 11.8 13.8 - - 5.1 5.1 - - 4.8 5.5 - - 4.9 5.9 - -
BSNN40/140 16 10 17.5 20.3 - - 5.9 5.9 - - 6.7 7.7 - - 6.1 7.4 - -
BSNN45/93 8 6 7.2 8.4 - - 4.7 4.7 - - 3.4 3.9 - - 3.7 4.4 - -
BSNN45/108 12 6 11.4 13.4 - - 5.7 5.7 - - 4.8 5.5 - - 4.9 5.9 - -
BSNN45/138 16 10 17.1 19.9 - - 6.6 6.6 - - 6.7 7.7 - - 6.1 7.4 - -
BSNN45/168 18 12 22.1 25.4 - - 7.4 7.4 - - 7.8 9 - - 7.3 8.9 - -
BSNN45/198 22 14 26.6 29.3 - - 8.2 8.2 - - 9.2 10.6 - - 8.5 10.4 - -
BSNN48/91 8 6 7.1 8.4 - - 5 5 - - 3.4 3.9 - - 3.7 4.4 - -
BSNN48/136 16 10 16.9 19.7 - - 7 7 - - 6.7 7.7 - - 6.1 7.4 - -
BSNN48/166 18 12 21.9 25.2 - - 7.9 7.9 - - 7.8 9 - - 7.3 8.9 - -
BSNN48/226 26 16 29.9 32.9 - - 9.4 9.4 - - 10.5 12.1 - - 9.8 11.8 - -
BSNN51/90 8 6 6.9 8.2 10.5 - 5.2 5.2 5.2 - 3.4 3.9 5 - 3.7 4.4 5.9 -
BSNN51/105 12 6 11 12.9 16.6 - 6.3 6.3 6.3 - 4.8 5.5 6.9 - 4.9 5.9 7.8 -
BSNN51/135 16 10 16.7 19.4 24.7 - 7.4 7.4 7.4 - 6.7 7.7 9.7 - 6.1 7.4 9.8 -
BSNN51/164 18 12 21.7 25 31.1 - 8.3 8.3 8.3 - 7.8 9 11.4 - 7.3 8.9 11.8 -
BSNN51/195 22 14 26.6 29.3 35.5 - 9.2 9.2 9.2 - 9.2 10.6 13.5 - 8.5 10.4 13.7 -
BSNN60/100 12 6 10.3 12.1 15.6 18.4 7.2 7.2 7.2 7.2 4.8 5.5 6.9 7.9 4.9 5.9 7.8 9.8
BSNN60/130 16 10 16 18.7 23.8 27.6 8.5 8.5 8.5 8.5 6.7 7.7 9.7 11.3 6.1 7.4 9.8 12.3
BSNN60/160 18 12 21.2 24.4 30.8 33 9.7 9.7 9.7 9.7 7.8 9 11.4 13.2 7.3 8.9 11.8 14.8
BSNN60/190 22 14 26.6 29.3 35.5 37.8 10.7 10.7 10.7 10.7 9.2 10.6 13.5 15.6 8.5 10.4 13.7 17.2
BSNN60/220 26 16 29.9 32.9 40 42.5 11.6 11.6 11.6 11.6 10.5 12.1 15.4 17.9 9.8 11.8 15.7 19.7
BSNN64/98 12 6 10 11.8 15.2 18 7.6 7.6 7.6 7.6 4.8 5.5 6.9 7.9 4.9 5.9 7.8 9.8
BSNN64/128 16 10 15.7 18.3 23.4 27.2 9 9 9 9 6.7 7.7 9.7 11.3 6.1 7.4 9.8 12.3
BSNN66/217 26 16 29.9 32.9 40 42.5 12.7 12.7 12.7 12.7 10.5 12.1 15.4 17.9 9.8 11.8 15.7 19.7
BSNN70/125 16 10 15.2 17.8 22.8 26.5 9.7 9.7 9.7 9.7 6.7 7.7 9.7 11.3 6.1 7.4 9.8 12.3
BSNN70/155 18 12 20.5 23.7 30 33 11.1 11.1 11.1 11.1 7.8 9 11.4 13.2 7.3 8.9 11.8 14.8
BSNN73/124 16 10 14.9 17.5 22.4 26.2 10.1 10.1 10.1 10.1 6.7 7.7 9.7 11.3 6.1 7.4 9.8 12.3
BSNN73/154 18 12 20.3 23.5 29.7 33 11.5 11.5 11.5 11.5 7.8 9 11.4 13.2 7.3 8.9 11.8 14.8
BSNN73/184 22 14 26.6 29.3 35.5 37.8 12.7 12.7 12.7 12.7 9.2 10.6 13.5 15.6 8.5 10.4 13.7 17.2
BSNN76/122 16 10 14.7 17.2 22.1 25.8 10.4 10.4 10.4 10.4 6.7 7.7 9.7 11.3 6.1 7.4 9.8 12.3
BSNN76/152 18 12 20.1 23.3 29.5 33 11.9 11.9 11.9 11.9 7.8 9 11.4 13.2 7.3 8.9 11.8 14.8
BSNN76/182 22 14 26.6 29.3 35.5 37.8 13.2 13.2 13.2 13.2 9.2 10.6 13.5 15.6 8.5 10.4 13.7 17.2
BSNN80/120 16 10 14.3 16.8 21.6 25.3 10.8 10.8 10.8 10.8 6.7 7.7 9.7 11.3 6.1 7.4 9.8 12.3
BSNN80/150 18 12 19.8 23 29.1 33 12.4 12.4 12.4 12.4 7.8 9 11.4 13.2 7.3 8.9 11.8 14.8
BSNN80/180 22 14 26.4 29.3 35.5 37.8 13.8 13.8 13.8 13.8 9.2 10.6 13.5 15.6 8.5 10.4 13.7 17.2
BSNN80/210 26 16 29.9 32.9 40 42.5 15.1 15.1 15.1 15.1 10.5 12.1 15.4 17.9 9.8 11.8 15.7 19.7
BSNN90/145 18 12 19 22.2 28.2 32.3 13.7 13.7 13.7 13.7 7.8 9 11.4 13.2 7.3 8.9 11.8 14.8
BSNN90/205 26 16 29.9 32.9 40 42.5 16.7 16.7 16.7 16.7 10.5 12.1 15.4 17.9 9.8 11.8 15.7 19.7
BSNN98/141 18 12 18.4 21.5 27.3 31.5 14.6 14.6 14.6 14.6 7.8 9 11.4 13.2 7.3 8.9 11.8 14.8
BSNN100/100 14 8 9.9 11.8 15.3 18.4 11.3 12.1 12.1 12.1 5.6 6.4 8.1 9.4 4.9 5.9 7.8 9.8
BSNN100/110 16 10 12.4 14.7 19 22.6 12.8 12.8 12.8 12.8 6.7 7.7 9.7 11.3 6.1 7.4 9.8 12.3
BSNN100/140 18 12 18.2 21.3 27.1 31.3 14.9 14.9 14.9 14.9 7.8 9 11.4 13.2 7.3 8.9 11.8 14.8
BSNN100/170 22 14 24.9 28.9 35.5 37.8 16.7 16.7 16.7 16.7 9.2 10.6 13.5 15.6 8.5 10.4 13.7 17.2
BSNN100/200 26 16 29.9 32.9 40 42.5 18.3 18.3 18.3 18.3 10.5 12.1 15.4 17.9 9.8 11.8 15.7 19.7
BSNN115/163 22 14 23.7 27.5 34.9 37.8 18.7 18.7 18.7 18.7 9.2 10.6 13.5 15.6 8.5 10.4 13.7 17.2
BSNN115/193 26 16 29.9 32.9 40 42.5 20.6 20.6 20.6 20.6 10.5 12.1 15.4 17.9 9.8 11.8 15.7 19.7
BSNN120/110 12 8 11.5 13.5 17.2 20 11.9 13.2 13.2 13.2 5.9 6.8 8.6 9.9 4.9 5.9 7.8 9.8
BSNN120/160 22 14 23.2 27.1 34.4 37.8 19.3 19.3 19.3 19.3 9.2 10.6 13.5 15.6 8.5 10.4 13.7 17.2
BSNN140/120 16 10 15 17.6 22.5 26.3 12.8 15.1 18.9 18.9 7 8.1 10.2 11.8 6.1 7.4 9.8 12.3
BSNN120/190 26 16 29.9 32.9 40 42.5 21.4 21.4 21.4 21.4 10.5 12.1 15.4 17.9 9.8 11.8 15.7 19.7
BSNN140/150 22 14 21.4 25 32 37.1 21.7 21.7 21.7 21.7 9.2 10.6 13.5 15.6 8.5 10.4 13.7 17.2
BSNN140/180 26 16 29 32.9 40 42.5 24.1 24.1 24.1 24.1 10.5 12.1 15.4 17.9 9.8 11.8 15.7 19.7

Combined load:

\sum\left(\frac{F_{i,d}} {R_{i,d}}\right)^2\le1

Product capacities - Timber to timber - Partial nailing

References Capacities - Timber to timber - Partial nailing
Number of Fasteners Product characteristic capacities - Timber C24 [kN]
Header Joist R1.k R2.k R3.k R4.k
Qty Qty CNA 4.0x35 CNA 4.0x40 CNA 4.0x50 CNA 4.0x60 CNA 4.0x35 CNA 4.0x40 CNA 4.0x50 CNA 4.0x60 CNA 4.0x35 CNA 4.0x40 CNA 4.0x50 CNA 4.0x60 CNA 4.0x35 CNA 4.0x40 CNA 4.0x50 CNA 4.0x60
BSNN36/142 10 6 11.9 - - - 5.4 - - - 2.4 - - - 6.1 - - -
BSNN40/95 6 3 6.6 7.7 - - 3.8 4.3 - - 1.3 1.4 - - 2.8 3.1 - -
BSNN40/110 8 4 8.5 9.9 - - 5.1 5.1 - - 2 2.2 - - 4.9 5.9 - -
BSNN40/140 10 6 11.7 13.5 - - 5.9 5.9 - - 2.4 2.7 - - 6.1 7.4 - -
BSNN45/93 6 3 6.4 7.4 - - 3.8 4.5 - - 1.3 1.4 - - 2.8 3.1 - -
BSNN45/108 8 4 8.3 9.7 - - 5.7 5.7 - - 2 2.2 - - 4.9 5.9 - -
BSNN45/138 10 6 11.5 13.3 - - 6.6 6.6 - - 2.4 2.7 - - 6.1 7.4 - -
BSNN45/168 12 6 13.3 14.6 - - 7.4 7.4 - - 2.9 3.2 - - 7.3 8.9 - -
BSNN45/198 14 8 16.6 18.3 - - 8.2 8.2 - - 3.3 3.6 - - 8.5 10.4 - -
BSNN48/91 6 3 6.3 7.4 - - 3.8 4.5 - - 1.3 1.4 - - 2.8 3.1 - -
BSNN48/136 10 6 11.4 13.2 - - 7 7 - - 2.4 2.7 - - 6.1 7.4 - -
BSNN48/166 12 6 13.3 14.6 - - 7.9 7.9 - - 2.9 3.2 - - 7.3 8.9 - -
BSNN48/226 16 8 16.6 18.3 - - 9.4 9.4 - - 3.7 4.1 - - 9.8 11.8 - -
BSNN51/90 6 3 6.2 7.2 9.2 - 3.8 4.5 5.2 - 1.3 1.4 1.7 - 2.8 3.1 3.8 -
BSNN51/105 8 4 8 9.4 12 - 5.9 6.3 6.3 - 2 2.2 2.7 - 4.9 5.9 7.5 -
BSNN51/135 10 6 11.3 13.1 16.5 - 7.4 7.4 7.4 - 2.4 2.7 3.3 - 6.1 7.4 9.8 -
BSNN51/164 12 6 13.3 14.6 17.8 - 8.3 8.3 8.3 - 2.9 3.2 3.8 - 7.3 8.9 11.3 -
BSNN51/195 14 8 16.6 18.3 22.2 - 9.2 9.2 9.2 - 3.3 3.6 4.4 - 8.5 10.4 13.7 -
BSNN60/100 8 4 7.6 8.9 11.4 13.3 5.9 7 7.2 7.2 2 2.2 2.7 2.9 4.9 5.9 7.5 8
BSNN60/130 10 6 10.9 12.6 16 18.3 8.3 8.5 8.5 8.5 2.4 2.7 3.3 3.5 6.1 7.4 9.8 12
BSNN60/160 12 6 13.3 14.6 17.8 18.9 9.7 9.7 9.7 9.7 2.9 3.2 3.8 4.1 7.3 8.9 11.3 12
BSNN60/190 14 8 16.6 18.3 22.2 23.6 10.7 10.7 10.7 10.7 3.3 3.6 4.4 4.7 8.5 10.4 13.7 16
BSNN60/220 16 8 16.6 18.3 22.2 23.6 11.6 11.6 11.6 11.6 3.7 4.1 4.9 5.2 9.8 11.8 15.1 16
BSNN64/98 8 4 7.4 8.7 11.1 13 5.9 7 7.6 7.6 2 2.2 2.7 2.9 4.9 5.9 7.5 8
BSNN64/128 10 6 10.7 12.4 15.7 18.1 8.3 9 9 9 2.4 2.7 3.3 3.5 6.1 7.4 9.8 12
BSNN66/217 16 8 16.6 18.3 22.2 23.6 12.7 12.7 12.7 12.7 3.7 4.1 4.9 5.2 9.8 11.8 15.1 16
BSNN70/125 10 6 10.4 12.1 15.4 17.7 8.3 9.7 9.7 9.7 2.4 2.7 3.3 3.5 6.1 7.4 9.8 12
BSNN70/155 12 6 13.3 14.6 17.8 18.9 10 11 11.1 11.1 2.9 3.2 3.8 4.1 7.3 8.9 11.3 12
BSNN73/124 10 6 10.2 12 15.2 17.5 8.3 9.8 10.1 10.1 2.4 2.7 3.3 3.5 6.1 7.4 9.8 12
BSNN73/154 12 6 13.3 14.6 17.8 18.9 10 11 11.5 11.5 2.9 3.2 3.8 4.1 7.3 8.9 11.3 12
BSNN73/184 14 8 16.6 18.3 22.2 23.6 12.7 12.7 12.7 12.7 3.3 3.6 4.4 4.7 8.5 10.4 13.7 16
BSNN76/122 10 6 10.1 11.8 15 17.3 8.3 9.8 10.4 10.4 2.4 2.7 3.3 3.5 6.1 7.4 9.8 12
BSNN76/152 12 6 13.3 14.6 17.8 18.9 10 11 11.9 11.9 2.9 3.2 3.8 4.1 7.3 8.9 11.3 12
BSNN76/182 14 8 16.6 18.3 22.2 23.6 13.2 13.2 13.2 13.2 3.3 3.6 4.4 4.7 8.5 10.4 13.7 16
BSNN80/120 10 6 9.9 11.5 14.7 17.1 8.3 9.8 10.8 10.8 2.4 2.7 3.3 3.5 6.1 7.4 9.8 12
BSNN80/150 12 6 13.3 14.6 17.8 18.9 10 11 12.4 12.4 2.9 3.2 3.8 4.1 7.3 8.9 11.3 12
BSNN80/180 14 8 16.6 18.3 22.2 23.6 13.3 13.8 13.8 13.8 3.3 3.6 4.4 4.7 8.5 10.4 13.7 16
BSNN80/210 16 8 16.6 18.3 22.2 23.6 13.3 14.6 15.1 15.1 3.7 4.1 4.9 5.2 9.8 11.8 15.1 16
BSNN90/145 12 6 13.2 14.6 17.8 18.9 10 11 13.3 13.7 2.9 3.2 3.8 4.1 7.3 8.9 11.3 12
BSNN90/205 16 8 16.6 18.3 22.2 23.6 13.3 14.6 16.7 16.7 3.7 4.1 4.9 5.2 9.8 11.8 15.1 16
BSNN98/141 12 6 12.7 14.6 17.8 18.9 10 11 13.3 14.2 2.9 3.2 3.8 4.1 7.3 8.9 11.3 12
BSNN100/100 8 4 7.3 8.6 11 12.9 6.6 7 8.9 9.4 2 2.2 2.7 2.9 4.9 5.9 7.5 8
BSNN100/110 10 6 11.6 13.4 17 18.9 8.3 9.8 12.7 12.8 2.4 2.7 3.3 3.5 6.1 7.4 9.8 12
BSNN100/140 12 6 12.6 14.6 17.8 18.9 10 11 13.3 14.2 2.9 3.2 3.8 4.1 7.3 8.9 11.3 12
BSNN100/170 14 8 16.6 18.3 22.2 23.6 13.3 14.6 16.7 16.7 3.3 3.6 4.4 4.7 8.5 10.4 13.7 16
BSNN100/200 16 8 16.6 18.3 22.2 23.6 13.3 14.6 17.8 18.3 3.7 4.1 4.9 5.2 9.8 11.8 15.1 16
BSNN115/163 14 8 15.8 18.3 22.2 23.6 13.3 14.6 17.8 18.7 3.3 3.6 4.4 4.7 8.5 10.4 13.7 16
BSNN115/193 16 8 16.6 18.3 22.2 23.6 13.3 14.6 17.8 18.9 3.7 4.1 4.9 5.2 9.8 11.8 15.1 16
BSNN120/110 8 4 8.3 9.6 12.3 14.1 5.9 7 8.9 9.4 2.3 2.5 3 3.2 4.9 5.9 7.5 8
BSNN120/160 14 8 15.6 18.1 22.2 23.6 13.3 14.6 17.8 18.9 3.3 3.6 4.4 4.7 8.5 10.4 13.7 16
BSNN140/120 10 6 9.7 11.3 14.5 16.8 8.3 9.8 12.6 14.2 2.7 3 3.6 3.8 6.1 7.4 9.8 12
BSNN120/190 16 8 16.6 18.3 22.2 23.6 13.3 14.6 17.8 18.9 3.7 4.1 4.9 5.2 9.8 11.8 15.1 16
BSNN140/150 14 8 14.4 16.8 21.4 23.6 13.3 14.6 17.8 18.9 3.3 3.6 4.4 4.7 8.5 10.4 13.7 16
BSNN140/180 16 8 16.6 18.3 22.2 23.6 13.3 14.6 17.8 18.9 3.7 4.1 4.9 5.2 9.8 11.8 15.1 16

Combined load:

\sum\left(\frac{F_{i,d}} {R_{i,d}}\right)^2\le1

Installation

Installation

Fasteners

Joist:

• Connector nails CNA Ø4.0x50
• Connector nails CNA Ø4.0x35 for thickness less than 64mm
• Connector screws CSA Ø5.0x40
• Connector screws CSA Ø5.0x35 for thickness less than 60mm

Header:

Timber header:

• Connector nails CNA Ø4.0x50
• Connector nails CNA Ø4.0x35 for thickness less than 64mm
• Connector screws CSA Ø5.0x40
• Connector screws CSA Ø5.0x35 for thickness less than 60mm

Steel Header:

• Bolt Ø10mm
The difference between diameter of the hole and the bolt can't be more than 2mm

Concrete Header:

• Mechanical Anchor: Throughbolt WA M10/78/5
• Chemical Anchor: AT-HP with LMAS M10/10

Certification

European Technical Assessment (ETA)

CAD Library

DWG (2D) REVIT (2D) DWG (3D) REVIT (3D) SAT XML
No items available.
No items available.
No items available.

Buy from Distributor

No items available.
