Fasteners
Screws
UGTS

Exterior Sheathing to Steel or Wood Screw

For fixing exterior sheathing to timber battens and steel joists of 1.0 mm maximum thickness. The head is suited to the requirements of fitting exterior plasterboard.

Technical Data Sheet
CE Marking
CE Marking
Outdoor
Outdoor
EPD
EPD
Protec® +
Protec® +
Service class 2
Service class 2

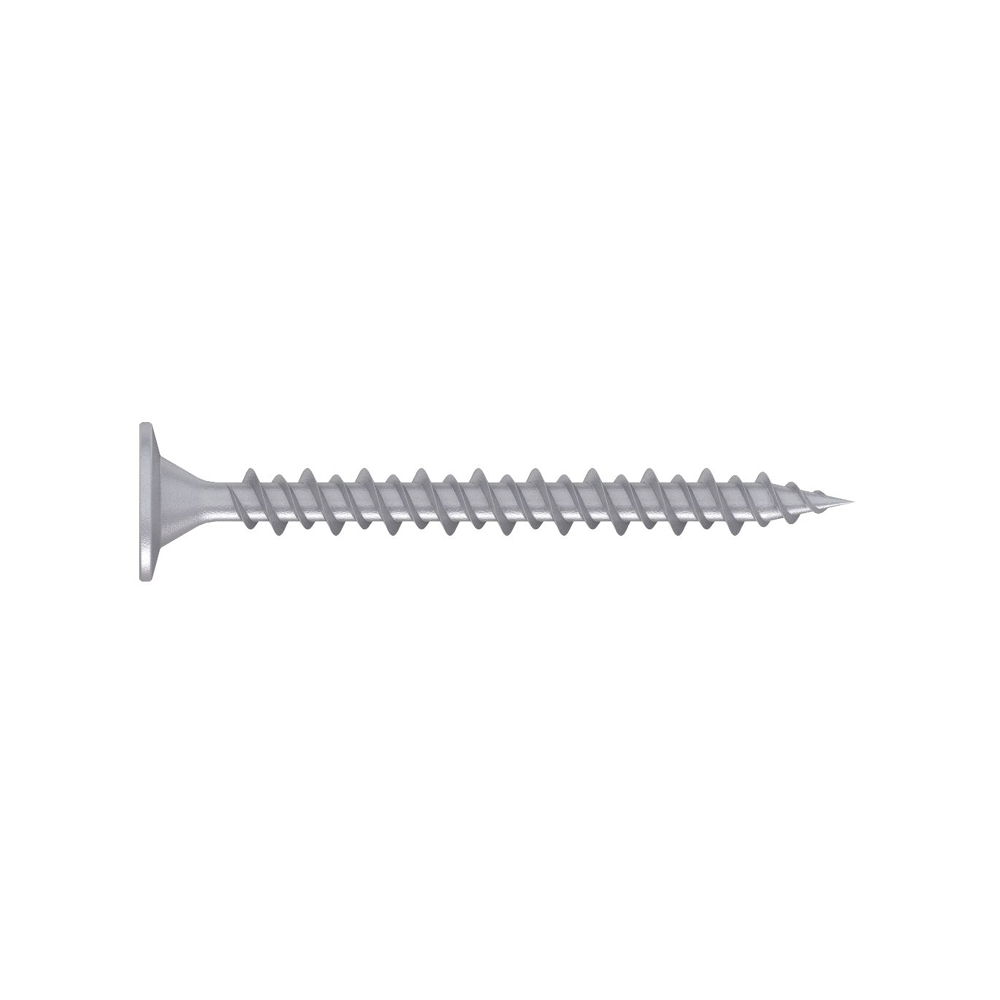

UGTS main image.jpg

Product Details

Images

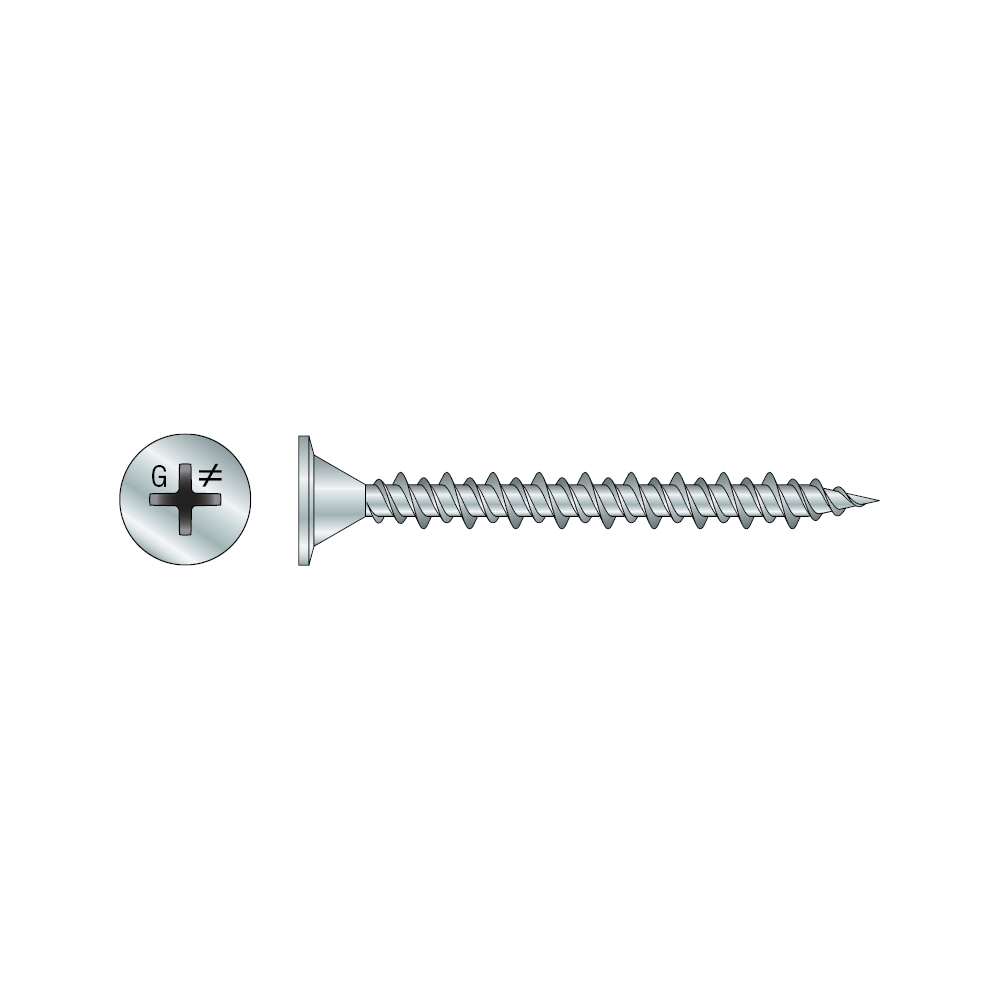

UGTS photo gallery.jpg

Features

Features

  • Cross point drive.
  • Extended bugle head.
  • Sharp point.
  • High-low thread.
  • Protec coating.

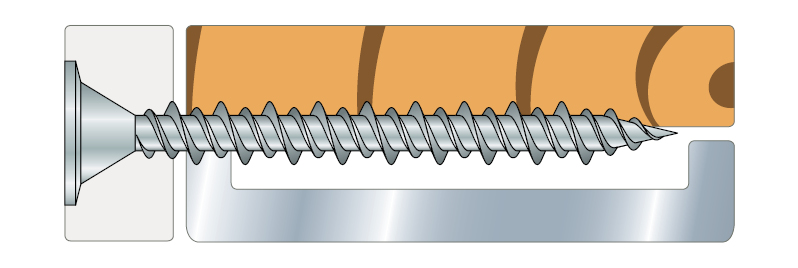

Application

Suitable For

  • Exterior drywall and wind board to wood.
  • Exterior drywall and wind board to steel.

Technical Data

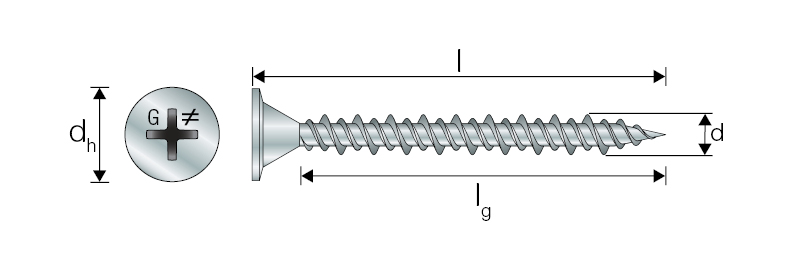

Product Dimensions

ReferenceFasteners Dimensions
Item CodeOtherProduct Dimensions[mm]
Tun / DB nr.NOB nr.Weight[kg]d[mm]l[mm]dh[mm]bit[mm]
UGTS3.9X30743071949835532925930.0013.9308.9PH2

UGTS Collated Screws

ReferenceFasteners Dimensions
Item CodeOtherProduct Dimensions[mm]
Tun / DB nr.NOB nr.d[mm]l[mm]dh[mm]bit[mm]
UGTS3.9X30 Collated743051949834532926043.9308.9PH2

* Flat tape collated for standard auto-feed screwdrivers

Certification

Declaration of Performance (DoP)

uk-dop-h17-0003-s1-0.pdf
No history available

Environmental Product Declarations (EPD)

epd-certificate-sst-screws
