DSPROA2
DSPROA2 A2 stainless steel hardwood decking screws
The popular DSPRO hardwood decking screw is now also available in A2 stainless steel. The screw offers a powerful fastening solution for hardwood decking such as ipé, cumaro, bankirai and others.

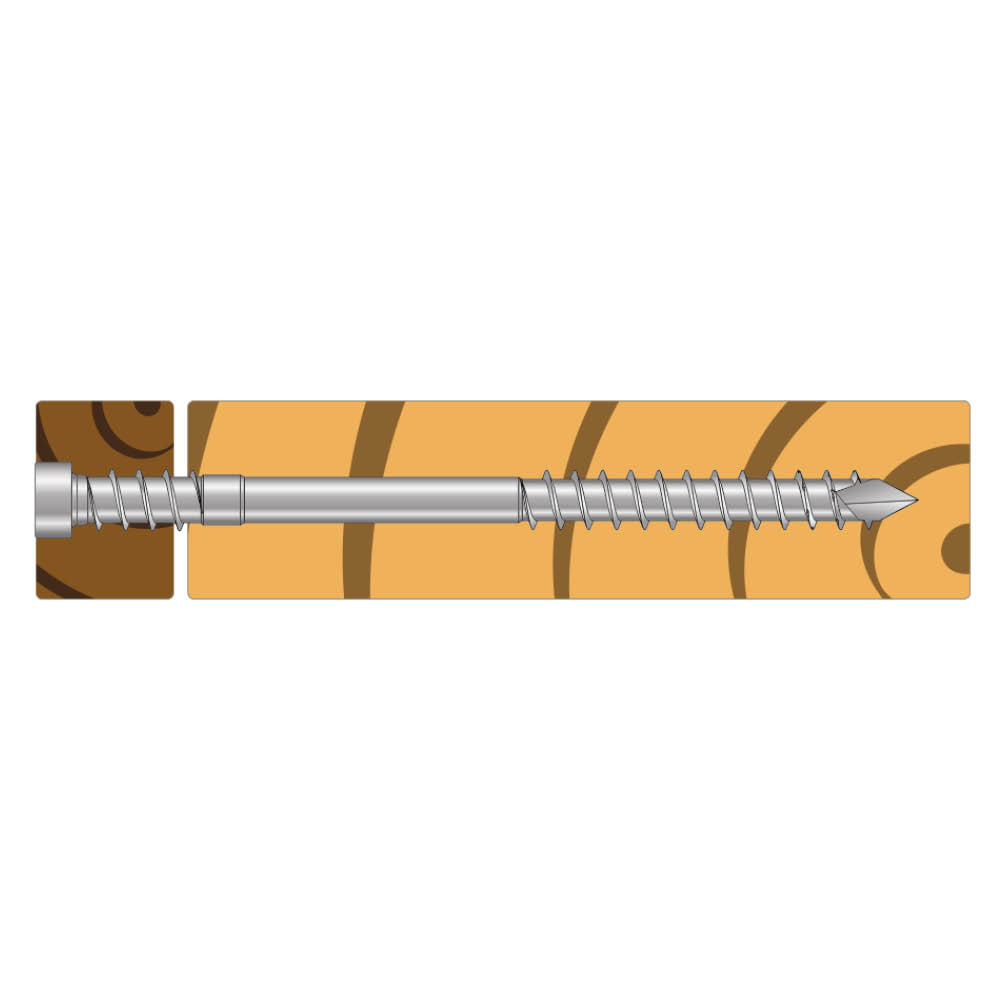

The screw is designed to resist movement of the deck, with a small head for a more professional finish and an additional thread to better pull the deck boards to the joist, creating a firm assembly.
Pre-drilling with the Simpson Strong-Tie 3,9 mm DBWOODDSPRO pre-drilling tool is recommended.
New
Stainless steel A2
Outdoor
Service class 3
EPD
Product Details
Images
Features
Application
Technical Data
Product dimensions
Dimensions
| Reference | Fasteners Dimensions | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Other | Dimensions[mm] | ||||||||||
| Tun / DB nr. | NOB nr. | Packaging | Weight[kg] | d[mm] | l[mm] | dₕ | lg₁ | lg₂ | Driver Bit[mm] | Thread[mm] | ||
| DSPROA25.5X50 | 76545 | - | - | 150 | 0.005 | 5.5 | 50 | 6.5 | 22.5 | 15.4 | T-25 | - |
| DSPROA25.5X60 | 76546 | - | - | 150 | 0.005 | 5.5 | 60 | 6.5 | 27.5 | 15.4 | T-25 | - |
| DSPROA25.5X70 | 76547 | - | - | 150 | 0.005 | 5.5 | 70 | 6.5 | 32.5 | 15.4 | T-25 | - |
CAD and BIM Library
2D
DSPROA25.5X70
-
-
-
-
DSPROA25.5X60
-
-
-
-
DSPROA25.5X50
-
-
-
-
3D
DSPROA25.5X70
-
-
-
-
-
DSPROA25.5X60
-
-
-
-
-
