DWC

Drywall to Timber Screw

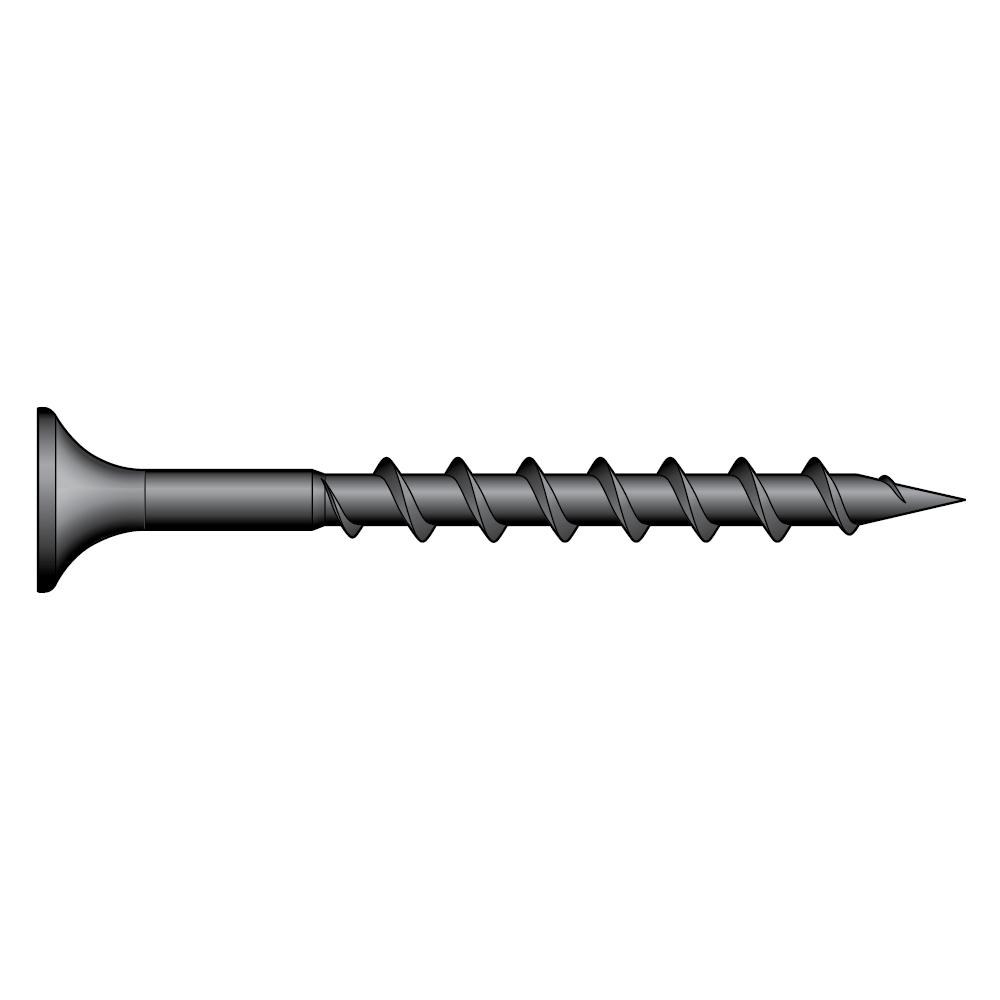

The DWC screw is designed for fixing drywall to timber. The screw features a sharp point, coarse thread and bugle head which provides a neat finish in the drywall. The DWC is CE marked to EN14566 and has a grey phosphate coating making it suitable for use indoors.



CE Marking
CE Marking
Service class 1
Service class 1
Phosphated
Phosphated
EPD
EPD
Indoor
Indoor

Product Details

Images

Features

Material

  • Steel - Grey phosphate coating

Benefits

  • CE marked to EN14566
  • Bugle head
  • Sharp point
  • Coarse thread
  • PH2 driver bits included (BIT2PE)

Application

Support

  • Suitable for fixing to solid wood, composite wood, glued laminate and OSB

Common Applications

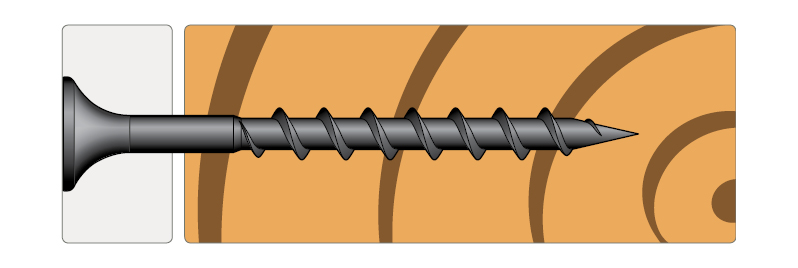

  • Plasterboard to timber

Technical Data

Dimensions and characteristics values

Dimensions

ReferenceFasteners Dimensions
Product Dimensions[mm]QD informationOther

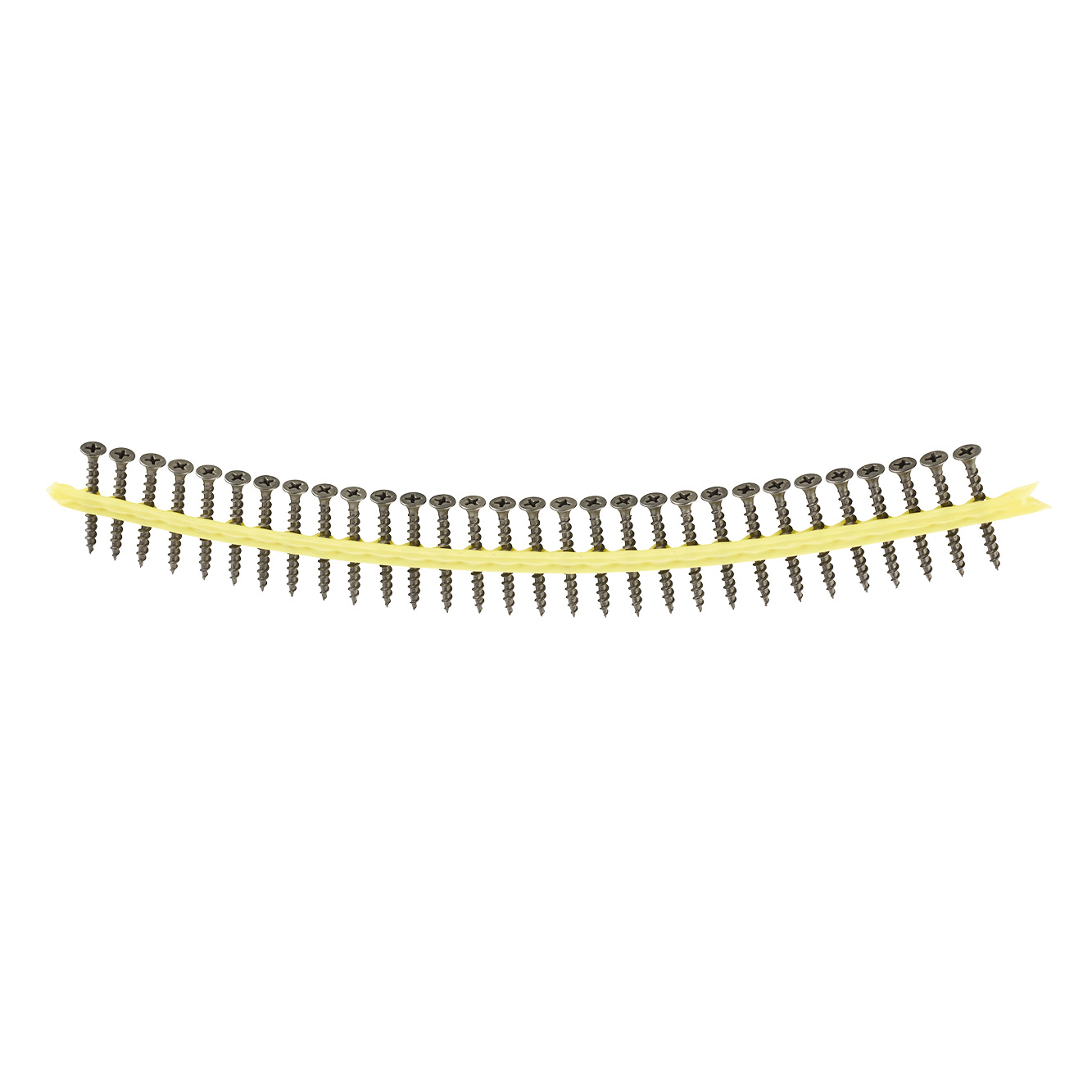

l[mm]Screws qty per stripCompatible deviceScrews qty per boxWeight[kg]
DWC3925PE2530.0QDPRO51E / QD76KE2500.00.002
DWC3930PE3030.0QDPRO51E / QD76KE2500.00.002
DWC3935PE3530.0QDPRO51E / QD76KE2500.00.002
DWC3940PE4030.0QDPRO51E / QD76KE2500.00.002
DWC3945PE4530.0QDPRO51E / QD76KE2000.00.003
DWC3955PE5530.0QD76KE2000.00.003
DWC3965PE6530.0QD76KE1500.00.005

Product Dimensions UK

Dimensions

ReferenceFasteners Dimensions
OtherProduct Dimensions[mm]QD information
Tun / DB nr.NOB nr.Screws qty per boxWeight[kg]Ø Head[mm]Thread diameter[mm]d1[mm]l[mm]Screws qty per stripMax. rotation speed[tr/min]Compatible device
DWC3925PE--2500.00.0028.142.52530.02500 - 6000QDPRO51E / QD76KE
DWC3930PE1382538429475462500.00.0028.142.53030.02500 - 6000QDPRO51E / QD76KE
DWC3935PE--2500.00.0028.142.53530.02500 - 6000QDPRO51E / QD76KE
DWC3940PE1382540-2500.00.0028.142.54030.02500 - 6000QDPRO51E / QD76KE
DWC3945PE--2000.00.0038.142.54530.02500 - 6000QDPRO51E / QD76KE
DWC3955PE1382548429475842000.00.0038.142.55530.02500 - 6000QD76KE
DWC3965PE1382554429475921500.00.0058.142.56530.02500 - 6000QD76KE

Certification

Declaration of Performance (DoP)

No history available

Environmental Product Declarations (EPD)
