DWF

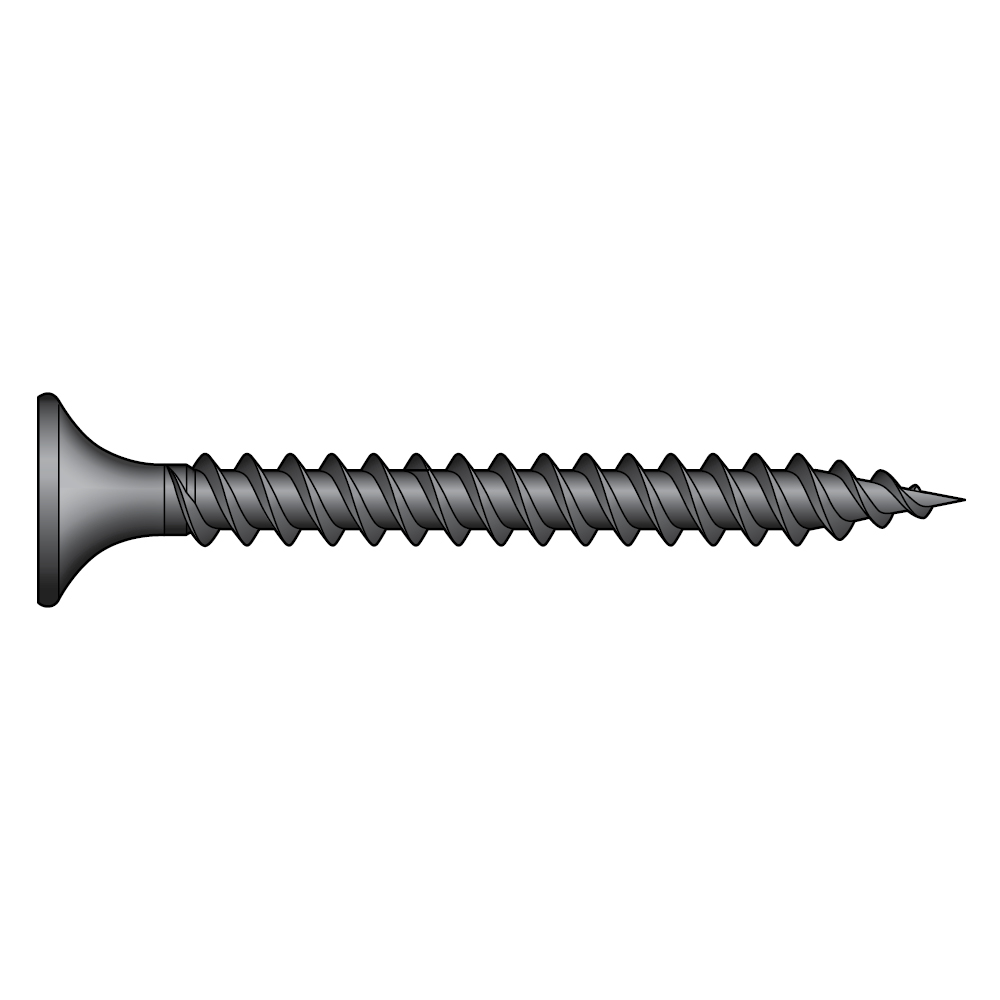

Drywall to Steel Screw

The DWF screw has been designed to fix drywall to light gauge steel (0.6 - 0.9 mm thick). The sharp point allows for faster drilling whilst the bugle head provides a neat finish in the drywall. The DWF has a fine thread and is CE marked to EN14566. It has grey phosphate coating and is suitable for use indoors.

CE Marking
CE Marking
Service class 1
Service class 1
Phosphated
Phosphated
Indoor
Indoor
EPD
EPD

Product Details

Images

Features

Material

  • Steel - Grey phosphate coating

Benefits

  • CE marked to EN14566
  • Bugle haed
  • Sharp point
  • Fine thread
  • PH2 driver bits included

Application

Support

  • Suitable for fixing to 0.6 - 0.9 mm steel

Common Applications

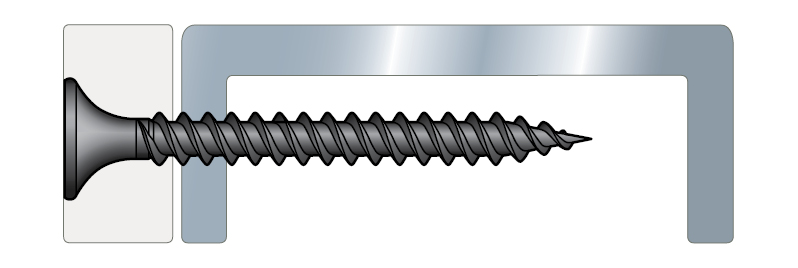

  • Drywall to steel

Technical Data

Product Dimensions

Dimensions

ReferenceFasteners Dimensions
OtherProduct Dimensions[mm]QD information

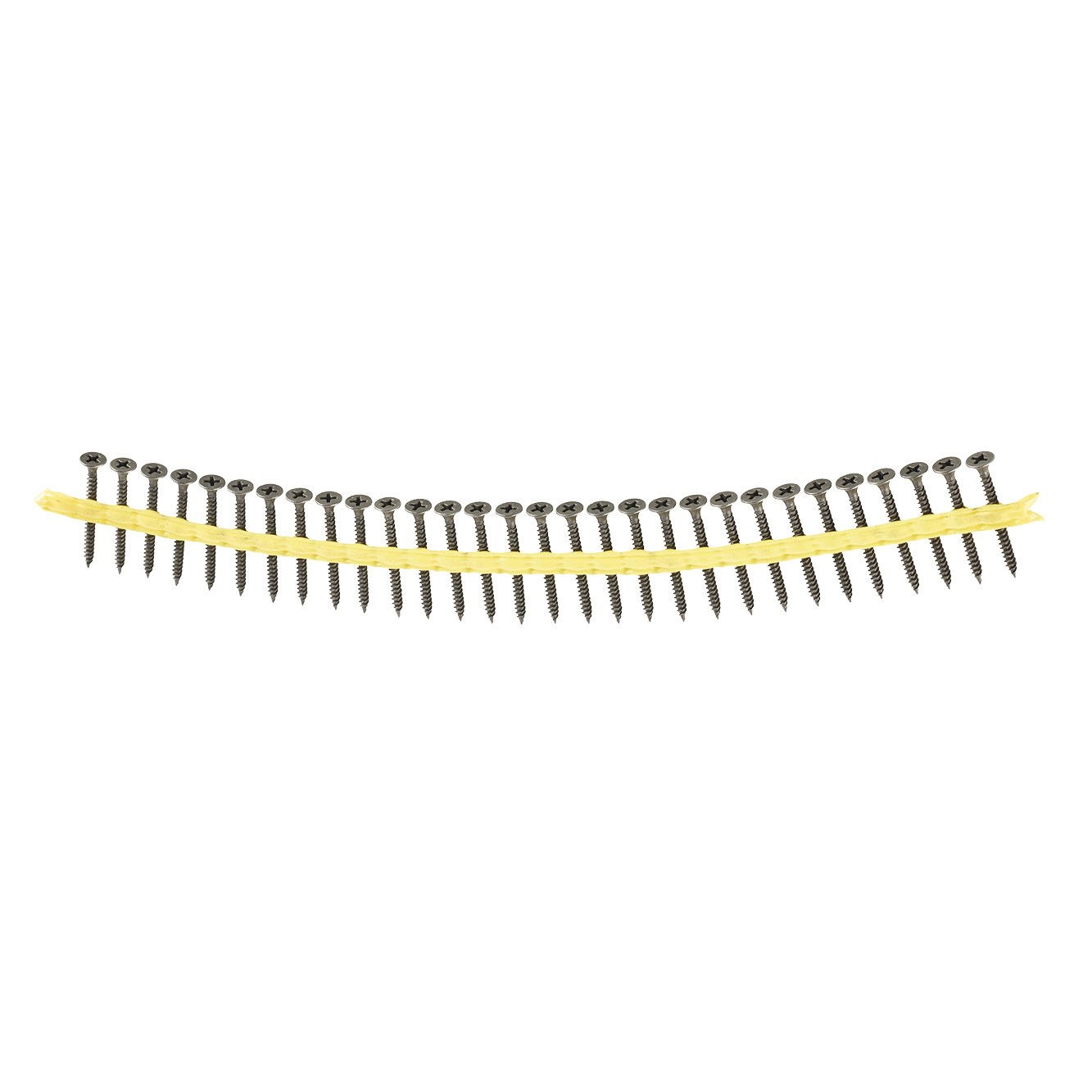

Screws qty per boxThread diameter[mm]l[mm]Screws qty per strip
DWF3925PE2500.03.92530.0
DWF3930PE2500.03.93030.0
DWF3935PE2500.03.93530.0
DWF3940PE2500.03.94030.0
DWF3945PE2000.03.94530.0

Product Dimensions UK

Dimensions

ReferenceFasteners Dimensions
Product Dimensions[mm]QD informationOther
Ø Head[mm]Thread diameter[mm]l[mm]d1[mm]Thread length[mm]Screws qty per stripMax. rotation speed[tr/min]Compatible deviceScrews qty per boxWeight[kg]
DWF3925PE8.13.9252.419.530.02500 - 6000QDPRO51E / QD76KE2500.00.002
DWF3930PE8.13.9302.424.530.02500 - 6000QDPRO51E / QD76KE2500.00.002
DWF3935PE8.13.9352.429.530.02500 - 6000QDPRO51E / QD76KE2500.00.002
DWF3940PE8.13.9402.434.530.02500 - 6000QDPRO51E / QD76KE2500.00.002
DWF3945PE8.13.9452.439.530.02500 - 6000QDPRO51E / QD76KE2000.00.003

Certification

Declaration of Performance (DoP)

No history available

Environmental Product Declarations (EPD)
