HD2P

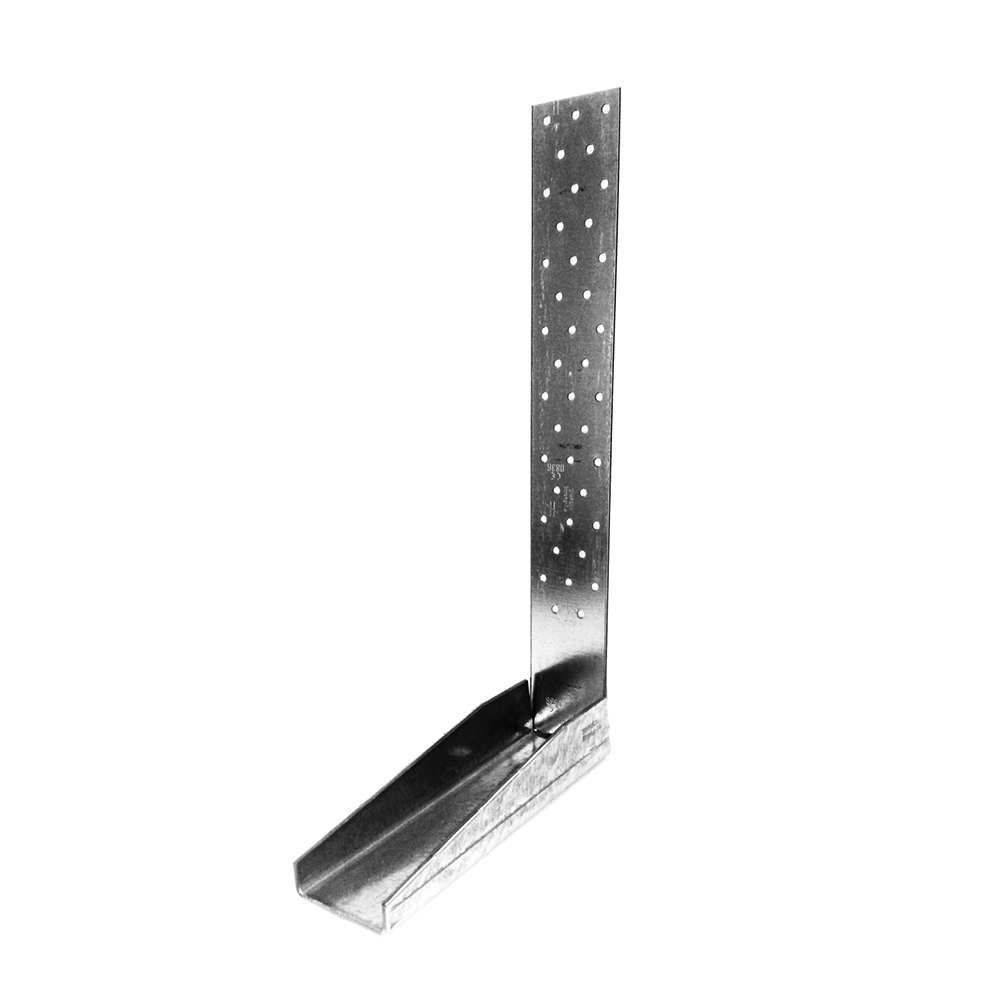

Double tension tie HD2P

The two-part tension anchors have a large number of possible combinations. A total of 46 variants of combinations. As you can see we look at the individual needs of each problem and find a suitable optimal solution.
In the lower part are adapted for different sizes of loads and the required distances between the holes for the screws.

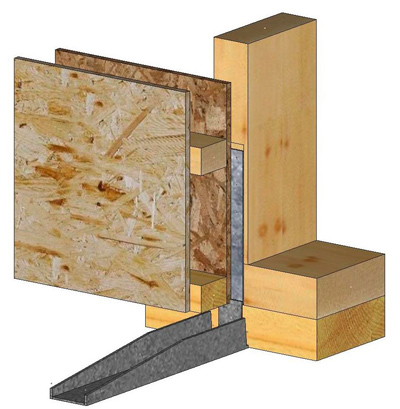

For example, at the tie rod HDBU379 suitable offset in relation to the prefabricated wall elements with a mounting plane, the distance of the screw hole to about 60 mm inward ..



CE Marking
ETA
Service class 2
Electrogalvanized steel 20 µm
Indoor

Product Details

Features

Material

Steel quality:

S 250 GD + Z 275 according to DIN EN

Corrosion protection:

275 g / m galvanized on both sides 20mm


Benefits

• Setting up the base on site, does not interfere with traffic protruding metal parts and reduce the risk of injury.

Application

Applicatons

Concrete, steel, wood, wood products.

Scope

• Two-part tension anchors have a large number of possible combinations. A total of 46 variants of combinations.
• As you can see, we look at the individual needs of each problem and find a suitable optimal solution.

Products with the HDU, HDB must be connected to the basics specified number of e-Jot screws JT2-3 / 5,5x25.

HD2P60G The product consists of a top part and a bottom part HDUF400G HDBU220G,

HD2PL40G The product consists of a top part and a bottom part HDUF250G HDBU379G.

* The weight of the upper / lower part

The lower part HDBU ... along with washers US40 / 50 / 10G used at the bottom HDBU220G and HBDU379G with U-disk US50 / 50 / 8G ..

These pads and e-jot screws must be ordered separately.

** Time to customer
n = nef according to ES5, Table 8.1;

Rlat.k = characteristic resistance CNA nail to cut

Rax.k = characteristic resistance CNA nail for recovery

* When using CNA4,0x50

** Full nailed 20 nails CNA

*** Partial nailed 14 nails CNA

Low values ​​of the upper and lower parts

Anchor bolt evidence of the power factor screws F1.dx.
y = the upper and lower parts are packaged separately (and order)

S = the upper part are manufactured on request in the appropriate length

HD2P60G, HD2PL40G = are supplied in sets, or top and bottom

Technical Data

Dimensions

Product Dimensions

References Tun / DB nr. NOB nr. Product Dimensions [mm] Holes in flange A Holes in flange B
A B C D E t Ø5 [mm] Ø6 [mm] Ø [mm] number
HDUF250GTUN160NOB432250-40--211---
HDUF400GTUN161NOB433400-60--240---
HDUS336GTUN168NOB4383362366044-212---
HDUS348-80G--3482488079-232---
HDUL380GTUN164NOB434380535565315220---
HDUR380GTUN166NOB436380535565315220---
HDUL465GTUN165NOB4354655355150315220---
HDUR465GTUN167NOB4374655355150315220---
HDUF40XGTUN162-≥250 **-40--2>11---
HDUF60XGTUN163-≥250 **-60--2>20---
HDBU163GTUN04NOB4266516340-504-2131
HDBU220GTUN05NOB4276522054-554-5181
HDBU379GTUN06NOB4286537940-1144-2181
HDBU379-84-16G--6537974-554-617.51
HDBW60GTUN09NOB43182655015274-213.51
HDBW160GTUN07NOB429651605015274-213.51
HDBW200GTUN08NOB430652226020374-517.51
HD2P60G143369742163299400/65*22060/54*-552/440-17.51
HD2PL40G143370142291105250/65*37940/40*-1142/411-17.51
HD2P-U379S80--348/8437980/74-552/432-17.51

The products starting with HDU .. are the upper parts, starting with HDB .. are the lower parts and are to be connected with the stated number of E-Jot screws JT2-3/5,5x25.

The article HD2P60G is composed of the upper part HDUF400G and the lower part HDBU220G,

The article HD2PL40G is composed of the upper part HDUF250G  and the lower part HDBU379G.

The article HD2P-U379S80 is composed of the upper part HDUS348-90G and the lower part HDBU379-84-16G

* Dimensions for upper part / Lower part


The lower parts HDBU ... are to be used together with washers US40/50/10G, the lower parts HDBU220G and HBDU379G are used with washer US50/50/8G and the lower part HDUS348-80G is used with US71-91-15G-C

The washers and the E-JOT screws are to be ordered separately.

** Length on customer request

Capacities

References Number of Fasteners Characteristic capacities - Timber C24 [kN] Number of Fasteners Characteristic capacities - Timber C24
Joist Flange B R1.k Bolt factor Joist Flange B R1,k Bolt Factor
Qty Qty Type Self-tapping screws CNA4.0x35 CNA4.0x40 CNA4.0x50 CNA4.0x60 Qty Qty Type Self-tapping screws
HDUF250G11---18.318.918.918.9-max. 11---min. (n x Rlat.k; 17.0/kmod)-
HDUF400G40---29.729.729.729.7-max. 40---min. (n x Rlat.k; 26.7/kmod)-
HDUS336G12---21.321.321.321.3-max. 12---min. (21.3 ; 23.1/kmod)*-
HDUS348-80G32---36.740.546.746.7-max. 32---min. (n x 0.691 x Rlat.k ; 42.0/kmod)****-
HDUL380G20---13.115.82126.3-max. 20---min. (11.7 x Rlat.k; 21.4 x Rax.k)**-
HDUR380G20---13.115.82126.3-max. 20---min. (8.1 x Rlat.k; 21.4 x Rax.k)***-
HDUL465G20---13.115.82126.3-max. 20---min. (11.7 x Rlat.k; 21.4 x Rax.k)**-
HDUR465G20---13.115.82126.3-max. 20---min. (8.1 x Rlat.k; 21.4 x Rax.k)***-
HDUF40XG-------------min. (n x Rlat.k; 17.0/kmod)-
HDUF60XG-------------min. (n x Rlat.k; 26.7/kmod)-
HDBU163G-1M12214.214.214.214.21.55-1M12212.8/kmod1.55
HDBU220G-1M16321.321.321.321.31.4-1M16319.2/kmod1.4
HDBU379G-1M16214.214.214.214.21.46-1M16212.8/kmod1.46
HDBU379-84-16G-1M16533.333.333.333.31.17-1M16530.0/kmod1.17
HDBW60G-1M12214.214.214.214.22-1M12212.8/kmod2
HDBW160G-1M12214.214.214.214.21.24-1M12212.8/kmod1.24
HDBW200G-1M16321.321.321.321.31.23-1M16319.2/kmod1.23
HD2P60G401M16321.321.321.321.31.4max. 401M163min. (n x Rlat.k; 19.2/kmod)1.4
HD2PL40G111M16214.214.214.214.21.46max. 111M162min. (n x Rlat.k; 12.8/kmod)1.46
HD2P-U379S80321M16533.333.333.333.31.17max. 32 *1M165min. (ntot x 0.691 x Rlat.k ; 30.0/kmod)*1.17

The published characteristic capacity is based on instantaneous load duration and service class 2 according to EC5 (EN 1995) - kmod = 1.1. For other load duration and service class, please refer to the ETA-07/0285 to get more accurate capacities

n = nef according to EC5, Table 8.1;
Rlat.k = characteristic capacity of the CNA nail on shearing
Rax.k = characteristic capacity of the CNA nail for pulling out

* fill nail holes symetrically starting from top and bottom rows

**  full nailing , 20 CNA
*** partial nailing, 14 CNA

The small value of upper and lower part is decisive.
The anchor bolt must be detected for a tensile force of F1.d x factor bolts.

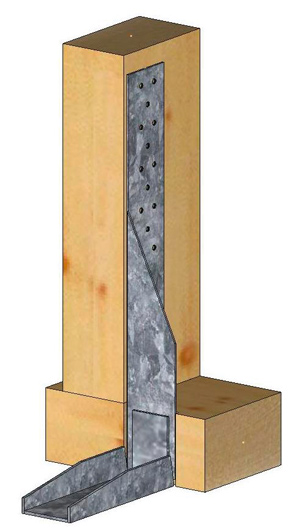

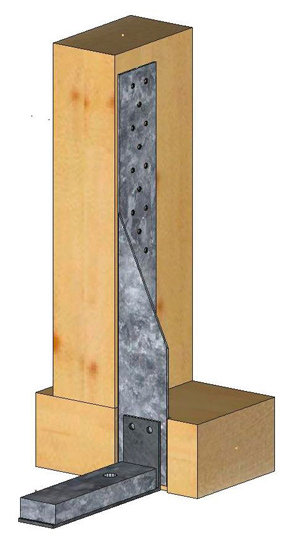

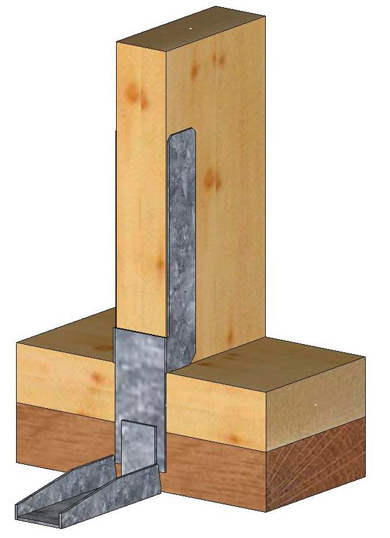

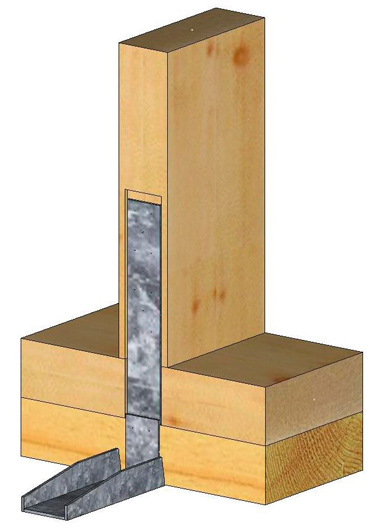

Combinations

References Vertical parts
HDUF250G HDUF400G HDUS336G HDUS348-80G HDUL380G HDUR380G HDUL465G HDUR465G HDUF40XG HDUF60XG
HDBU163Gyyy-yyyyS-
HDBU220G-HD2P60G--yyyy-S
HDBU379GHD2PL40Gyy-yyyySS
HDBU379-84-16G---HD2P-U379S80------
HDBW60Gyyy-yyyyS-
HDBW160Gyyy-yyyyS-
HDBW200G-yy-yyyy-S

y = The upper and lower parts are packed separately (to order)
S = Upper parts are produced according to the customer 's requirements

HD2P60G, HD2PL40G , HD2)-U379S80 = are delivered in sets or as upper and lower parts

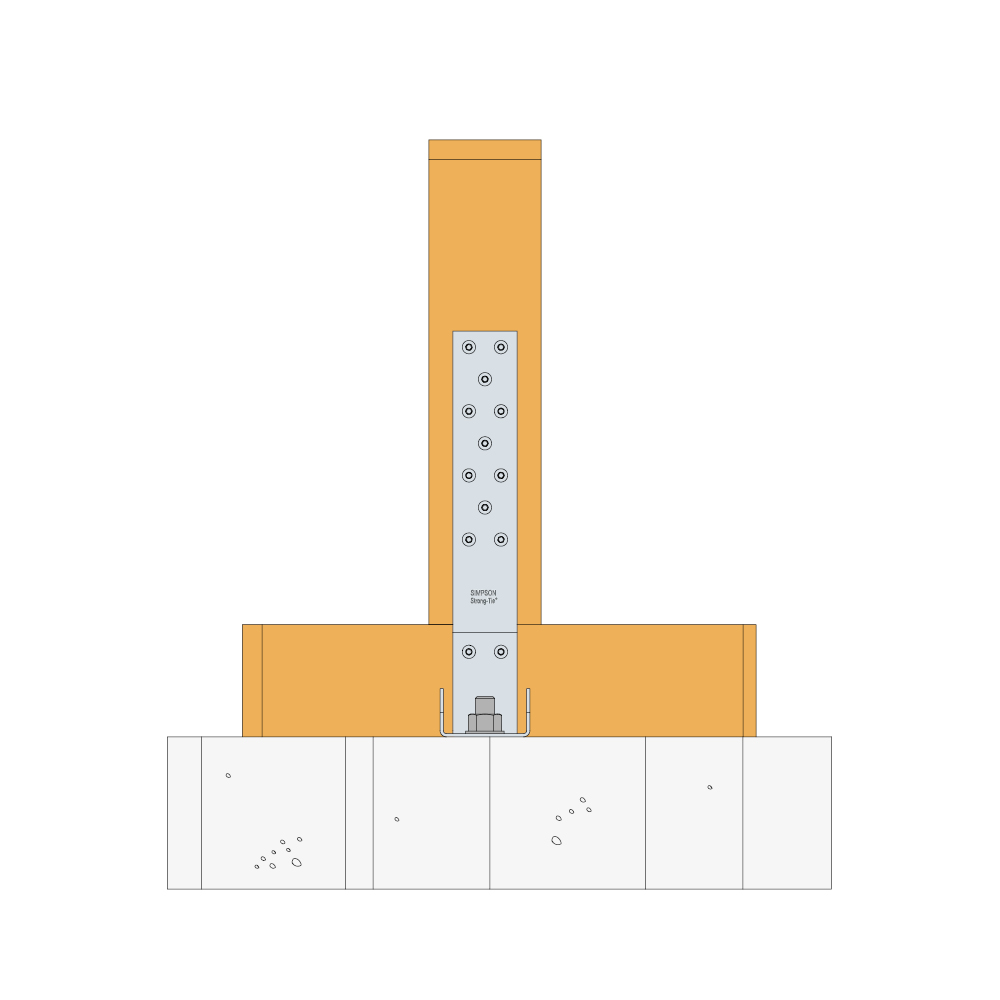

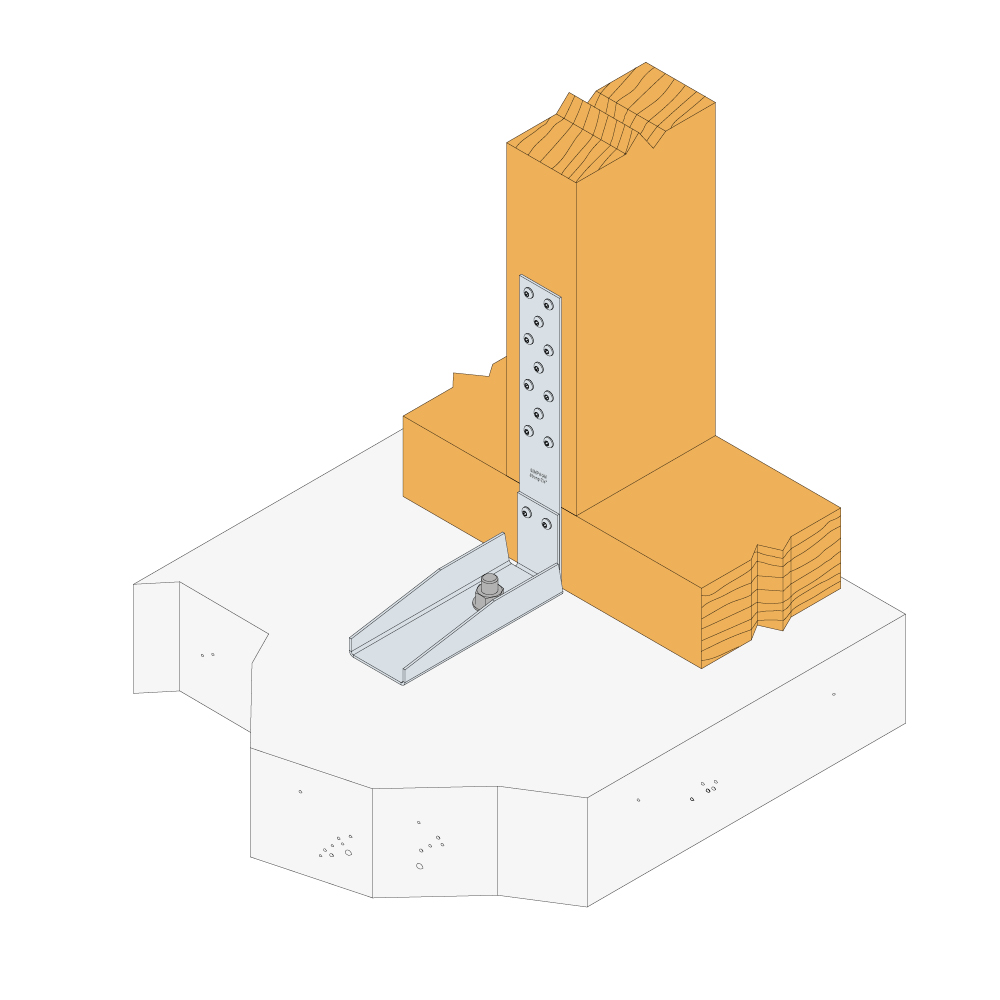

Installation

Installation

Fasteners

CNA4,0xℓ are attached nails or screws CSA5,0xℓ.
