DSPIX4
Decking Screw Pro - Impreg®X4

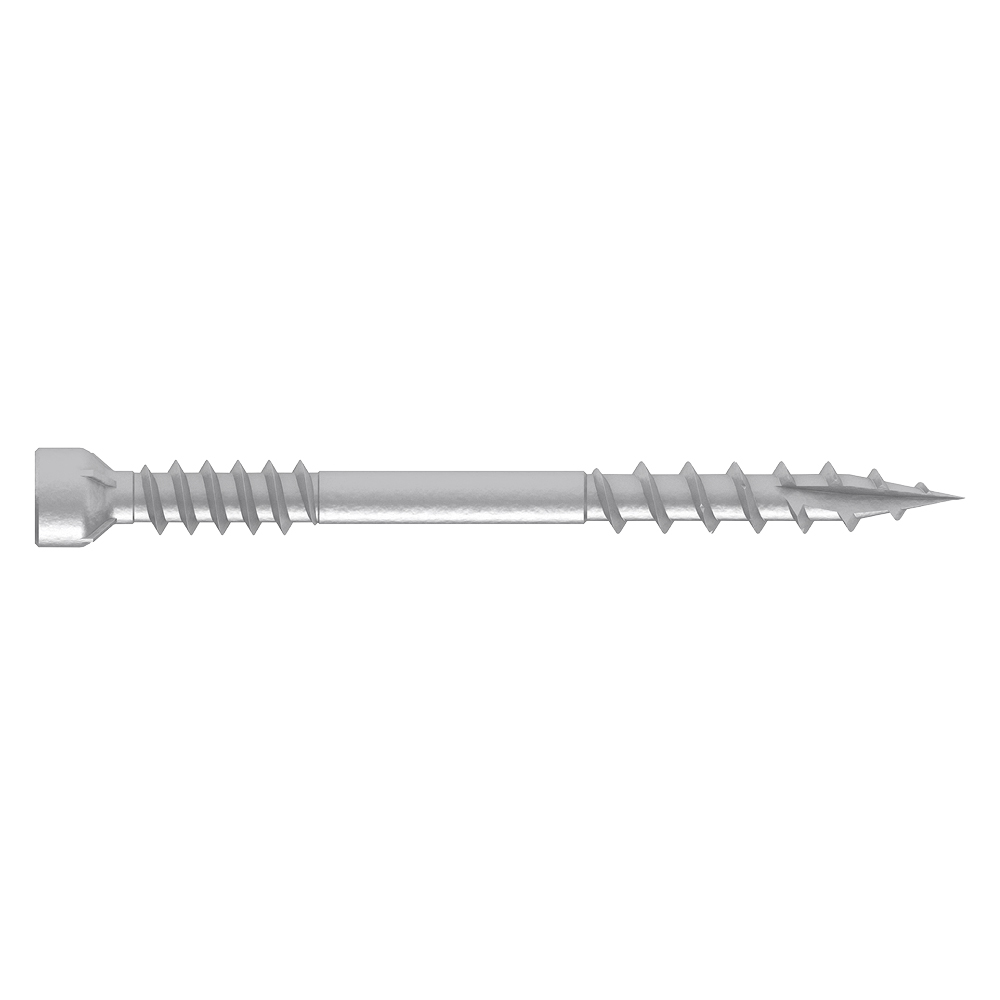

The decking screw is designed for treated timber. It has a 6 lobe recess to ensure good grip. The cut point drives the screw efficiently and prevents splitting.
The upper thread helps pull the timber tight up against the substrate. Although the screw is wider than the DISX, the narrow cap head provides a more dicrete, yet robust installation.
CE Marking
New
Impreg® x4
Outdoor
EPD
Fastener Designer
Product Details
Images
Features
Application
Technical Data
Product Dimensions
Dimensions
| Reference | Fasteners Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Other | Dimensions[mm] | |||||||||
| Tun / DB nr. | NOB nr. | Weight[kg] | d[mm] | l[mm] | dₕ | d₁[mm] | lg₁ | lg₂ | Driver Bit[mm] | ||
| DSPIX44.8X60 | 74356 | 1949815 | 53293705 | 0.005 | 4.8 | 60 | 6.5 | 3.1 | 26 | 12 | T-20 |
| DSPIX44.8X70 | 74357 | 1949816 | 53293713 | 0.005 | 4.8 | 70 | 6.5 | 3.1 | 32 | 18 | T-20 |
| DSPIX45.5X80 | 74358 | 1949817 | 53293724 | 0.009 | 5.5 | 80 | 7 | 3.8 | 37.5 | 20 | T-25 |
| DSPIX46.5X95 | 74359 | 1949818 | 53293732 | 0.015 | 6.5 | 95 | 8 | 4 | 40 | 29 | T-30 |
