DSIX4
Decking Screw - Impreg®X4

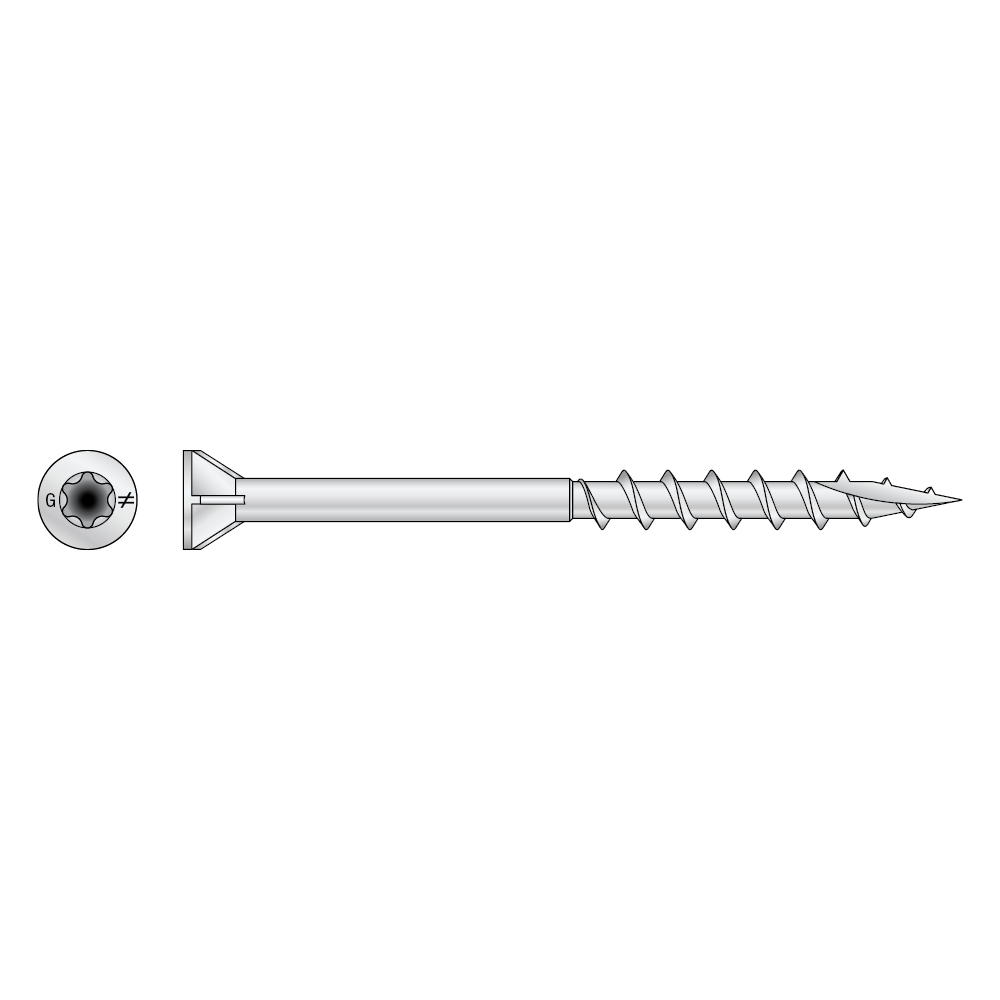

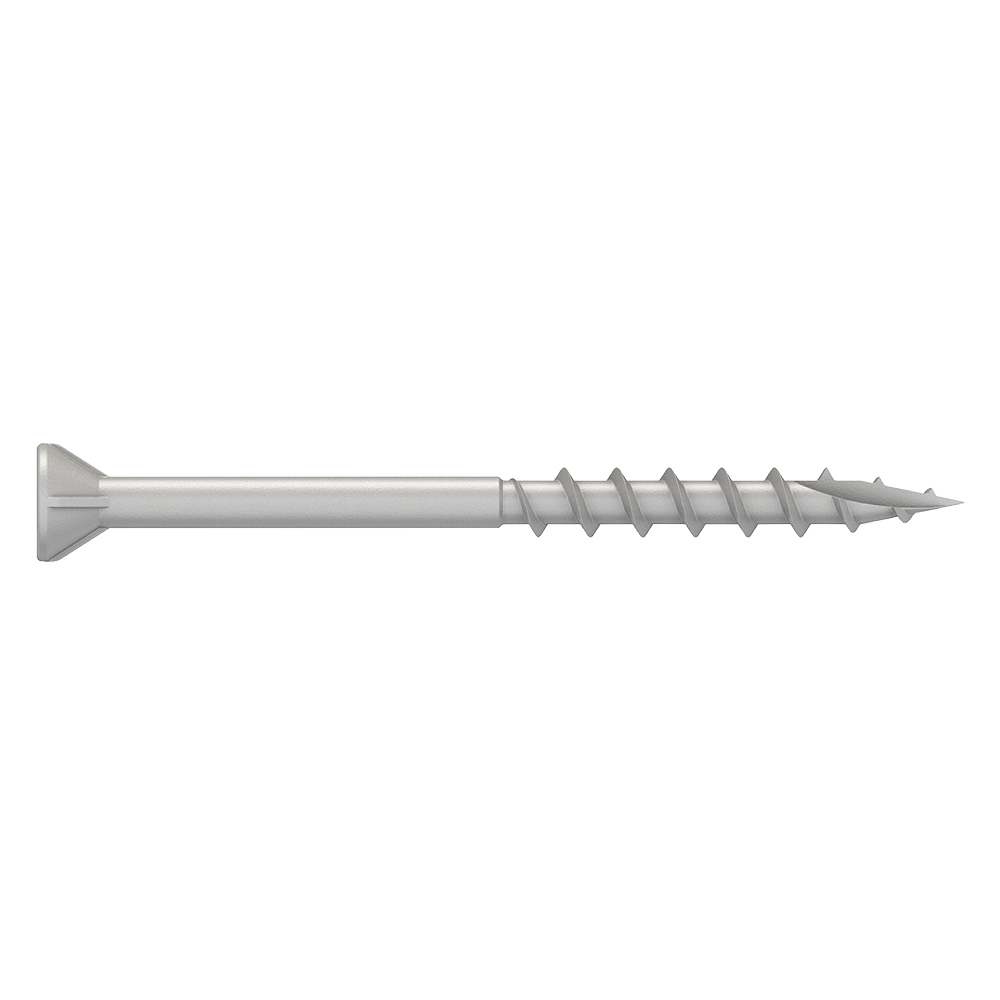

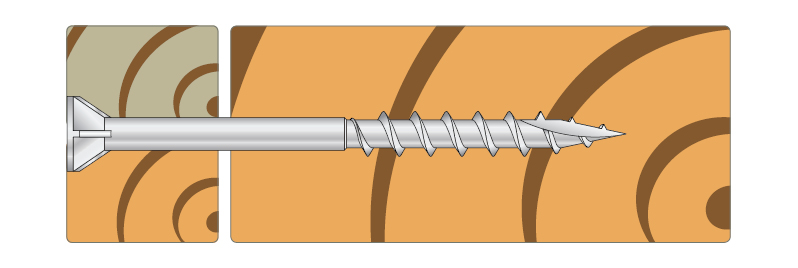

The DSIX4 decking screw features the new Impreg®X4 coating designed for treated timber and outdoor environments. It has a 6 lobe recess to ensure good grip which drives the screw efficiently. The type 17 point prevents the timber from splitting when it is inserted. It has a coarse thread and ribbed countersunk flat head which allows it to be countersunk in the timber and ensures a neat finish. The DSIX4 is CE marked to EN14592.

CE Marking

Impreg® x4

Service class 2

Outdoor
EPD

Fastener Designer
Technical Data
Product Dimensions
| Reference | Fasteners Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Other | Dimensions[mm] | |||||||||
| Tun / DB nr. | NOB nr. | Weight[kg] | d[mm] | l[mm] | dₕ | d₁[mm] | lg[mm] | tfix[mm] | Driver Bit[mm] | ||
| DSIX44.2X35T-20 | 74361 | 1949819 | 53293686 | 0.002 | 4.2 | 35 | 7.3 | 2.5 | 20 | 15 | T-20 |
| DSIX44.2X45T-20 | 74362 | 1949820 | 53293694 | 0.003 | 4.2 | 45 | 7.3 | 2.5 | 23.5 | 21.5 | T-20 |
| DSIX44.2X55T-20 | 74363 | 1949821 | 53295321 | 0.003 | 4.2 | 55 | 7.3 | 2.5 | 27.5 | 27.5 | T-20 |
| DSIX44.2X75T-20 | 74365 | 1949823 | 53295340 | 0.004 | 4.2 | 75 | 7.3 | 2.7 | 40.5 | 34.5 | T-20 |

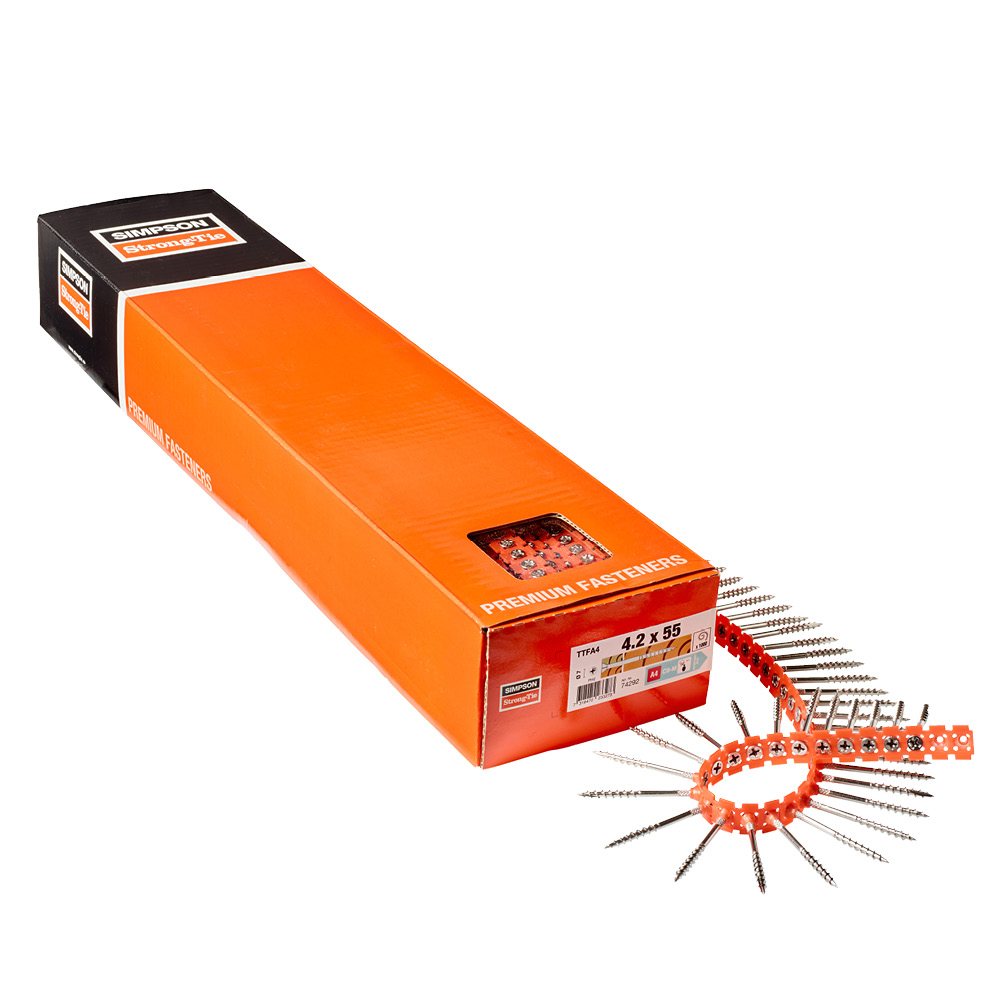

Collated Screws
| Reference | Fasteners Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Item Code | Other | Dimensions[mm] | ||||||||
| Tun / DB nr. | NOB nr. | d[mm] | l[mm] | dₕ | d₁[mm] | lg[mm] | tfix[mm] | Driver Bit[mm] | ||
| DSIX44.2X45PH2 | 74294 | - | 53293656 | 4.2 | 45 | 7.3 | 2.5 | 23.5 | 21.5 | PH2 |
| DSIX44.2X55PH2 | 74354 | 1949813 | 53293660 | 4.2 | 55 | 7.3 | 2.5 | 27.5 | 27.5 | PH2 |
| DSIX44.2X75PH2 | 74355 | 1949814 | 53293675 | 4.2 | 75 | 7.3 | 2.7 | 40.5 | 34.5 | PH2 |
Characteristic Capacities
| Reference | Screw Parameters | |||
|---|---|---|---|---|
| Characteristic parameters | ||||
| Characteristic Yield Moment – My,ₖ[Nm] | Characteristic withdrawal parameter - fₐₓ,ₖ,₉₀°[N/mm²] | Characteristic head pull-through parameter - fₕₑₐd,ₖ[N/mm²] | Characteristic tensile capacity - fₜₑₙₛ,ₖ[kN] | |
| DSIX44.2X35T-20 | 4295 | 13.9 | 14.4 | 6 |
| DSIX44.2X45T-20 | 4295 | 13.9 | 14.4 | 6 |
| DSIX44.2X55T-20 | 4295 | 13.9 | 14.4 | 6 |
| DSIX44.2X75T-20 | 4749 | 22.9 | 17.1 | 6 |
| DSIX44.2X45PH2 | 4295 | 13.9 | 14.4 | 6 |
| DSIX44.2X55PH2 | 4295 | 13.9 | 14.4 | 6 |
| DSIX44.2X75PH2 | 4749 | 22.9 | 17.1 | 6 |
