CRE

CRE

Usually used as a support, reinforcement in furniture.

Service class 2
Service class 2
EPD
EPD
Electro-galvanized steel
Electro-galvanized steel
Indoor
Indoor

Product Details

Images

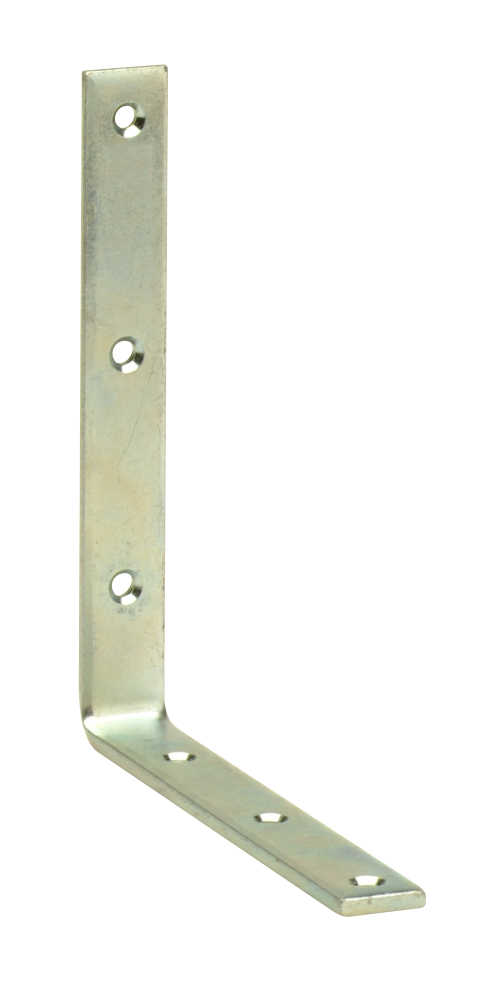

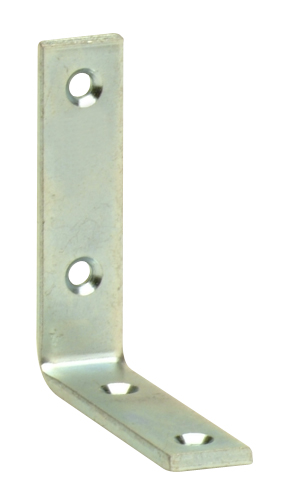

Reinforcing bracket CRE70
Reinforcing bracket CRE140

Features

Material

Steel quality:
• DD11 steel as per EN 10111

Corrosion protection:
• Hot-dip galvanizing according to DIN EN ISO 1461

Benefits

• Solutions for securing the position for DIY and home projects.

Application

Applicatons

Wood, wood products

Scope

• Home and garden.

Technical Data

Product Dimensions

Dimensions

ReferenceConnector Dimensions
Product Dimensions[mm]JoistFlange BOther
A[mm]B[mm]C[mm]Thickness[mm]RoundRound Weight[kg]
∅[mm]Ø5[mm]
CRE505454184220.05
CRE100104104184330.11
CRE120124124184330.13
CRE140144144184330.15
CRE160164164204330.2
CRE250254254204330.31

CRE50 up to CRE140 will within the foreseeable future the dimension "A" changed (20mm instead of 18mm)

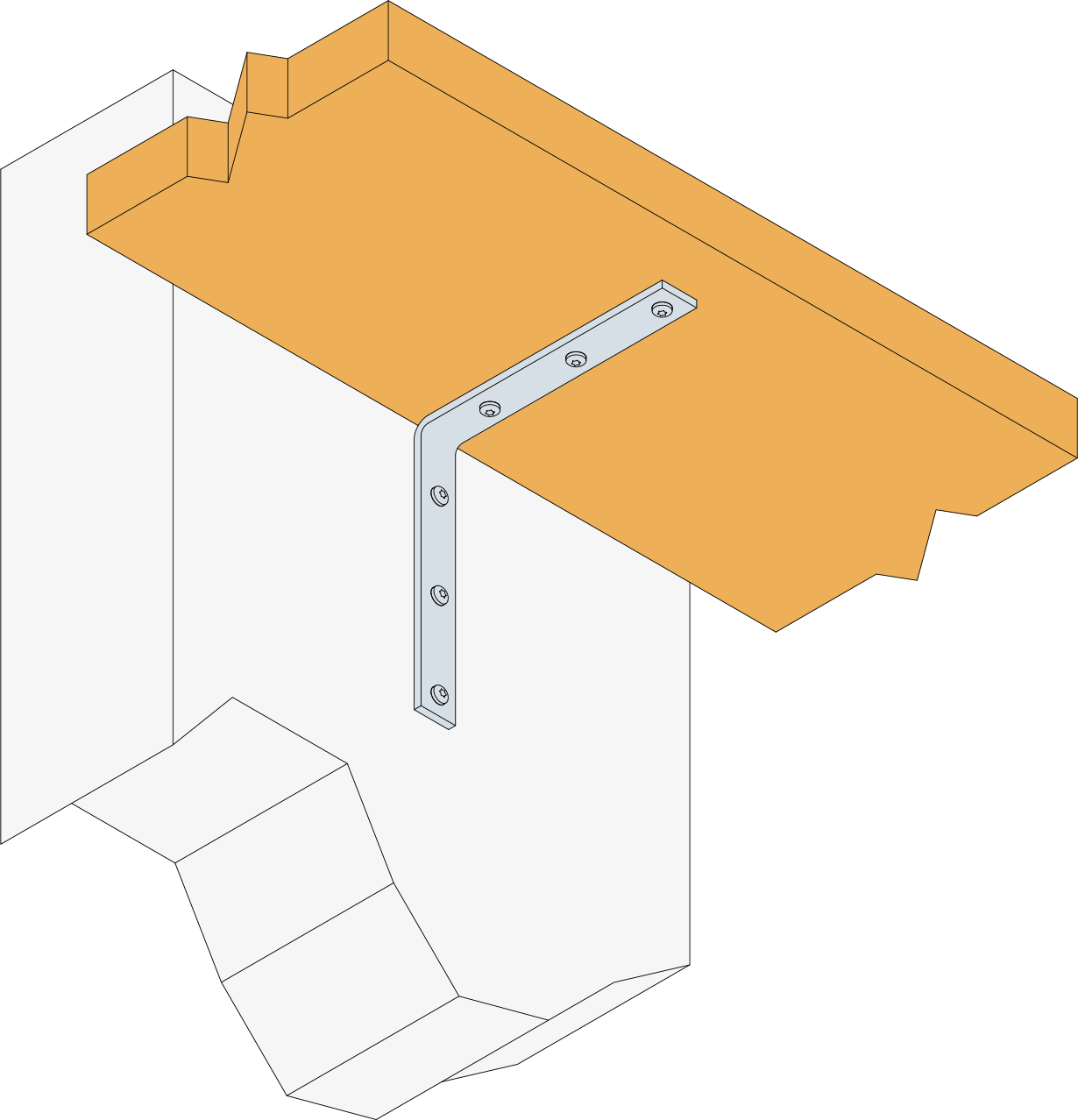

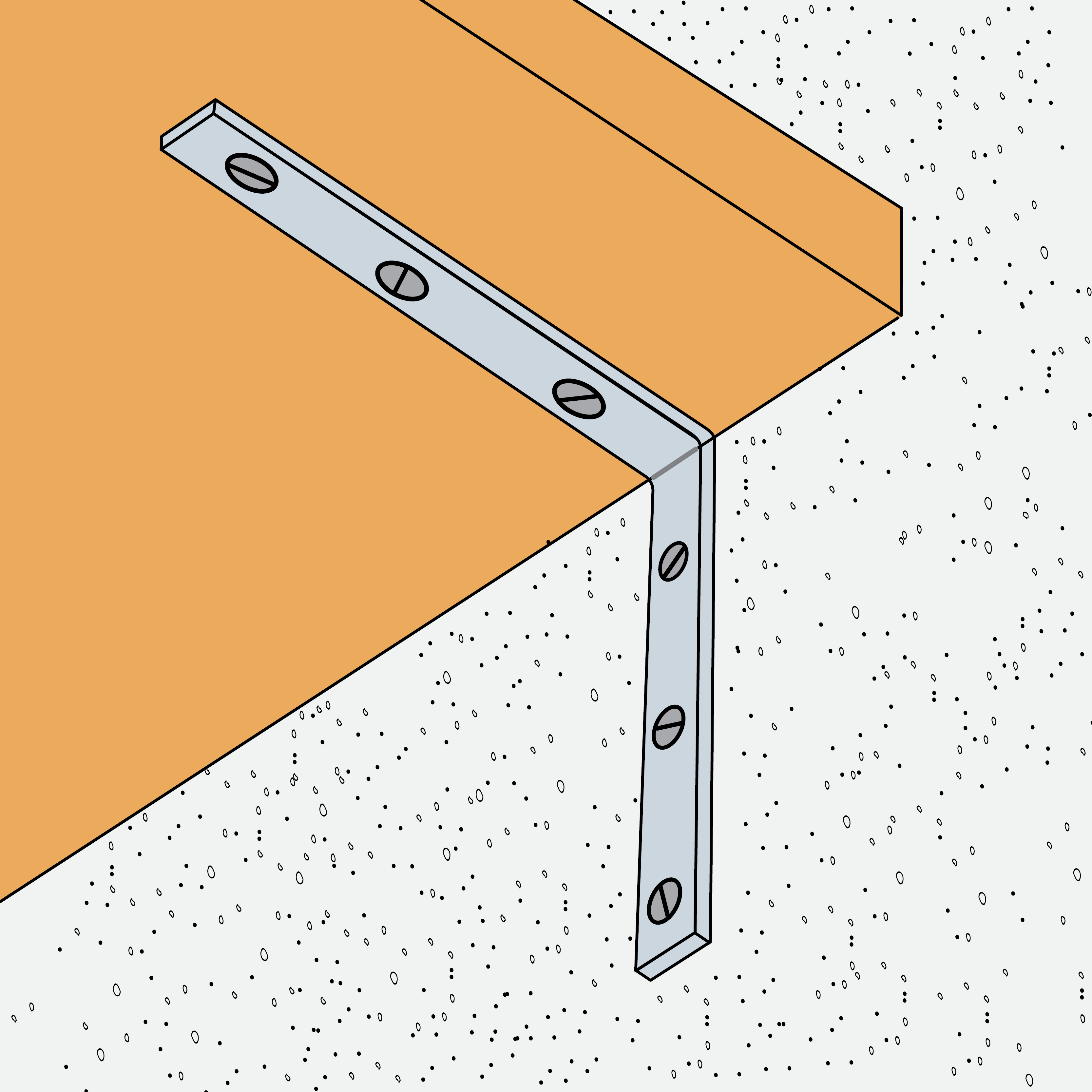

Installation

Installation

Installation

c

Fasteners

• Connecting the wood is done with screws, eg CSA.

Certification

Environmental Product Declarations (EPD)
