TTSFS

Countersunk Wood Screw - Stainless Steel A4

The TTSFS is marine grade A4 stainless steel. Suitable for outdoor use and use in severe weather conditions, the TTSFS has a prismatic countersunk head to ensure a neat finish and type 17 point to prevent timber from splitting upon insertion. It also has a serrated thread which reduces the installtion torque. 80mm or longer variants have an additional milling thread to further reduce installation torque. TTSFS is CE marked to EN14592.

Technical Data Sheet
CE Marking
CE Marking
ETA
ETA
Service class 3
Service class 3
Severe
Severe
EPD
EPD
Stainless steel A4
Stainless steel A4
Fastener Designer
Fastener Designer
TTSFS main image.jpg

Product Details

Images

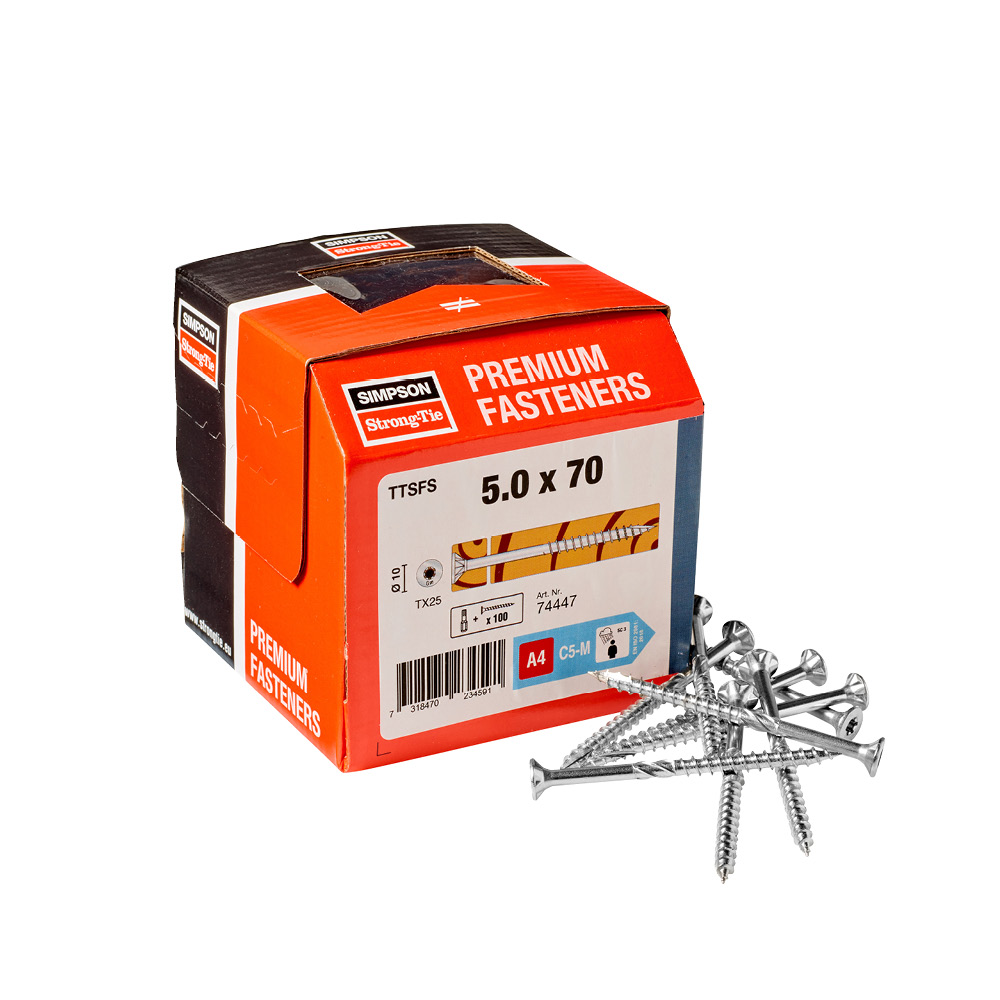

TTSFS Prod image.jpg

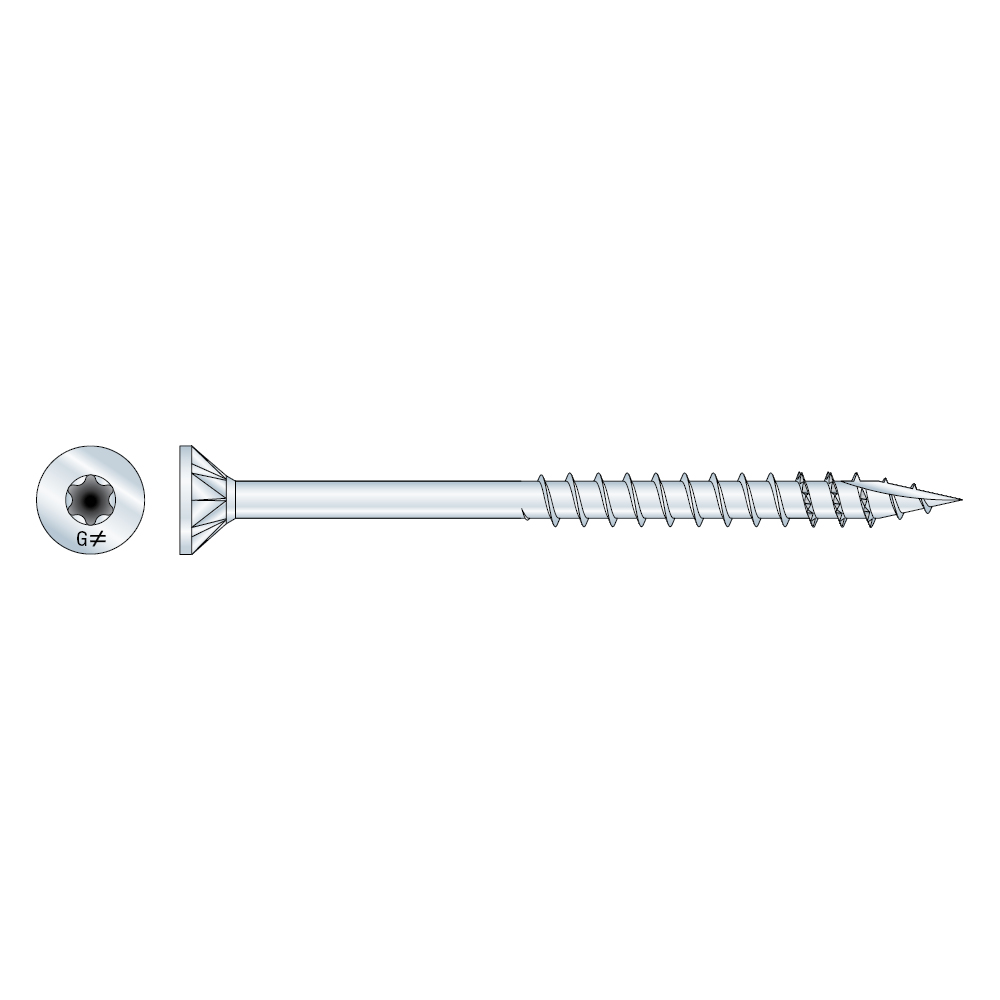

TTSFS photo gallery.jpg

Features

Material

A4 stainless steel

Features

  • CE marked to EN14592
  • 6 lobe drive
  • Prismatic countersunk head
  • Type 17 point
  • Coarse, serrated thread
  • Stainless steel

Application

Common Applications

  • Timber to timber

Technical Data

Product Dimensions

Dimensions

Product Dimensions
ReferenceFasteners Dimensions[mm]
Item CodeOtherProduct information[mm]
Weight[kg]d[mm]l[mm]dh[mm]d1[mm]Thread Length[mm]tfix[mm]Driver Bit[mm]
TTSFS5.0X60744460.0055609.53.43228T-25
TTSFS5.0X70744470.0065709.53.43535T-25
TTSFS5.0X80744480.0065809.53.44040T-25
TTSFS5.0X90744490.0075909.53.44545T-25
TTSFS5.0X100744440.00851009.53.45545T-25
TTSFS5.0X120744450.0151209.53.46060T-25
TTSFS6.0X70744730.00867011.643535T-30
TTSFS6.0X80744740.0168011.644040T-30
TTSFS6.0X90744750.01169011.644545T-30
TTSFS6.0X100744500.012610011.645545T-30
TTSFS6.0X120744710.014612011.646060T-30
TTSFS6.0X140744720.016614011.646575T-30

Characteristic Capacities

ReferenceScrew Parameters
Characteristic parameters
Characteristic Yield Moment – My,ₖ[Nm]Characteristic withdrawal parameter - fₐₓ,ₖ,₉₀°[N/mm²]Characteristic head pull-through parameter - fₕₑₐd,ₖ[N/mm²]Characteristic tensile capacity - fₜₑₙₛ,ₖ[kN]
TTSFS5.0X60471014.9166.3
TTSFS5.0X70471014.9166.3
TTSFS5.0X80471014.9166.3
TTSFS5.0X90471014.9166.3
TTSFS5.0X100471014.9166.3
TTSFS5.0X120471014.9166.3
TTSFS6.0X70857013.616.29.5
TTSFS6.0X80857013.616.29.5
TTSFS6.0X90857013.616.29.5
TTSFS6.0X100857013.616.29.5
TTSFS6.0X120857013.616.29.5
TTSFS6.0X140857013.616.29.5

Certification

Declaration of Performance (DoP)

uk-dop-e21-0670-02-s-2.pdf
Show history
uk-dop-e21-0670.pdf

European Technical Assessment (ETA)

eta-21-0670-2025-10-17.pdf
Show history
eta210670-2021-12-09-cor-1.pdf

Environmental Product Declarations (EPD)

epd-certificate-sst-screws

CAD and BIM Library

2D

TTSFS5.0X70

TTSFS5.0X80

TTSFS6.0X70

TTSFS6.0X140

TTSFS6.0X120

TTSFS6.0X80

TTSFS6.0X100

TTSFS5.0X60

TTSFS5.0X120

TTSFS5.0X100

TTSFS6.0X90

TTSFS5.0X90

3D

TTSFS5.0X70

TTSFS5.0X80

TTSFS6.0X70

TTSFS6.0X140

TTSFS6.0X120

TTSFS6.0X80

TTSFS6.0X100

TTSFS5.0X60

TTSFS5.0X120

TTSFS5.0X100

TTSFS6.0X90

TTSFS5.0X90
