TTZNFS

Countersunk Wood Screw Impreg®+

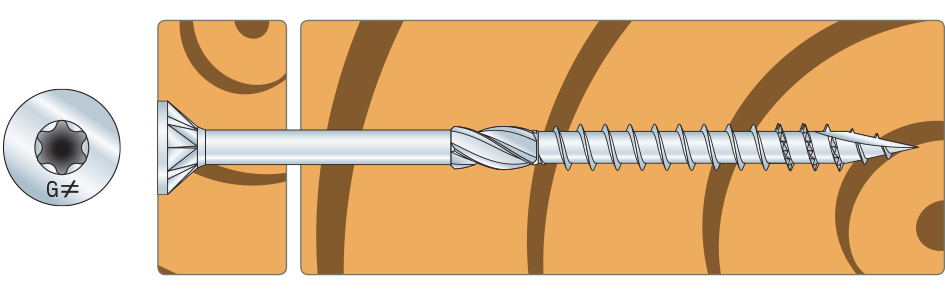

The TTZNFS has the latest Impreg®+ coating meaning that it is suitable for outdoor use. The type 17 point allows for easier installation and prevents any splitting of the timber whilst the serrated thread helps reduce the installation torque. 80mm and longer variants have an additional milling thread to further reduce the installation torque. This screw has a 6 lobe drive and countersunk head which allows for a flush finish in the timber. The TTZNFS is CE marked to EN14592.





CE Marking
CE Marking
ETA
ETA
Service class 2
Service class 2
EPD
EPD
Outdoor
Outdoor
Impreg® +
Impreg® +
Fastener Designer
Fastener Designer

Product Details

Images

Features

Material

Steel - Impreg®+ coating

Features

  • CE marked to EN14592
  • 6 lobe drive
  • Flat countersunk head with prismatic design
  • Type 17 point
  • Serrated thread
  • Impreg®+ coating

Application

Suitable For

  • Timber to timber applications

Technical Data

Product Dimensions

Dimensions

ReferenceFasteners Dimensions[mm]
Item CodeOtherProduct Dimensions[mm]
Weight[kg]d[mm]l[mm]dh[mm]Head Diameter[mm]Thread Length[mm]Driver Bit[mm]
TTZNFS4.5X25744810.0024.5258.42.820T-20
TTZNFS4.5X30744820.0024.5308.42.825T-20
TTZNFS4.5X40744830.0034.5408.42.835T-20
TTZNFS4.5X50744840.0034.5508.42.830T-20
TTZNFS4.5X60744850.0044.5608.42.835T-20
TTZNFS4.5X70744860.0054.5708.42.840T-20
TTZNFS5.0X50744890.0045509.53.230T-25
TTZNFS5.0X60744900.0055609.53.235T-25
TTZNFS5.0X70744910.0065709.53.240T-25
TTZNFS5.0X80744930.0075809.53.240T-25
TTZNFS5.0X90744950.0075909.53.245T-25
TTZNFS5.0X100744870.00851009.53.260T-25
TTZNFS5.0X120744880.00951209.53.260T-25
TTZNFS6.0X60745040.00766011.63.835T-30
TTZNFS6.0X70745050.00867011.63.840T-30
TTZNFS6.0X80745060.0168011.63.840T-30
TTZNFS6.0X90745080.01169011.63.845T-30
TTZNFS6.0X100744970.012610011.63.860T-30
TTZNFS6.0X120744990.015612011.63.870T-30
TTZNFS6.0X140745010.016614011.63.870T-30
TTZNFS6.0X160745020.018616011.63.870T-30

* not covered by CE marking

Characteristic Capacities

ReferenceScrew Parameters
Characteristic parameters
Characteristic Yield Moment – My,ₖ[Nm]Characteristic withdrawal parameter - fₐₓ,ₖ,₉₀°[N/mm²]Characteristic head pull-through parameter - fₕₑₐd,ₖ[N/mm²]Characteristic tensile capacity - fₜₑₙₛ,ₖ[kN]
TTZNFS4.5X25466014.715.67.8
TTZNFS4.5X30466014.715.67.8
TTZNFS4.5X40466014.715.67.8
TTZNFS4.5X50466014.715.67.8
TTZNFS4.5X60466014.715.67.8
TTZNFS4.5X70466014.715.67.8
TTZNFS5.0X5067201517.17.9
TTZNFS5.0X6067201517.17.9
TTZNFS5.0X7067201517.17.9
TTZNFS5.0X8067201517.17.9
TTZNFS5.0X9067201517.17.9
TTZNFS5.0X10067201517.17.9
TTZNFS5.0X12067201517.17.9
TTZNFS6.0X60950012.516.611.1
TTZNFS6.0X70950012.516.611.1
TTZNFS6.0X80950012.516.611.1
TTZNFS6.0X90950012.516.611.1
TTZNFS6.0X100950012.516.611.1
TTZNFS6.0X120950012.516.611.1
TTZNFS6.0X140950012.516.611.1
TTZNFS6.0X160950012.516.611.1

Refer to relevant ITTR or ETA for more details
